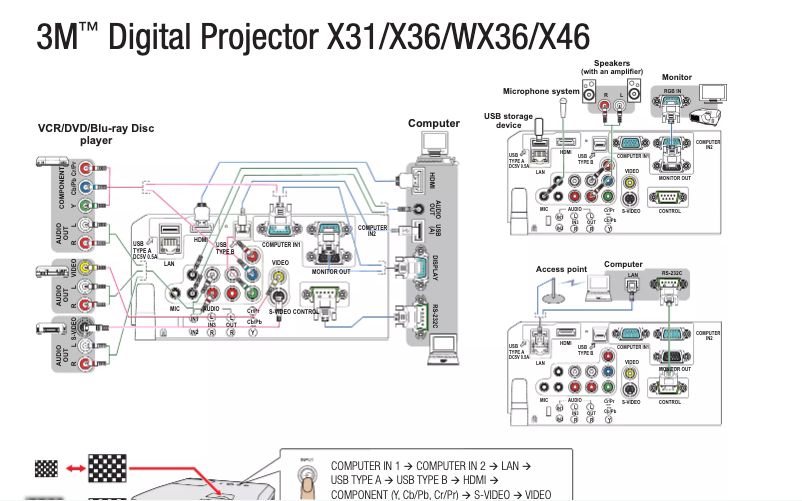

Manual of product WX36
Technical Specifications WX36
General Information
-
ModelWX36
-
Brand
-
Category
-
Type
-
SKU91014
-
MPN91014
Projector
-
Projection technology-
-
Projector brightness3000 ANSI lumens
-
Native resolution of the projectorWXGA (1280x800)
-
Compatible screen size30 - 300 "
-
Projection distance- m
-
Contrast ratio2000:1
-
Number of colors16.78 million colors
-
Correction of the trapezium, vertical-30 - 30 °
-
Matrix size0.59 "
-
Matrix type3-panel (p-Si TFT active)
-
Vertical scanning frequency56 - 120 Hz
-
Horizontal scanning domain31.5 - 106 kHz
-
Projector brightness (eco mode)2200 ANSI lumens
Other features
-
Image format16:10
-
Resolution (maximum analog)1600 x 1200 pixels
-
Lens focal lengthF 1.67 - 1.91
-
RS-232 port1
-
Dimensions (LxWxH)317 x 288 x 98 mm
-
Maximum operating altitude1829 m
-
Connectivity technologyWired
Objective system
-
Zoom capacityYes
-
Zoom ratio1.2:1
-
TuningAuto
-
Focal length19 - 23 mm
-
Enlargement4 x
-
Zoom typeManual
Light source
-
Lifespan of the light source3000 h
-
Power of the lamp210 W
-
Type of lampUHB
-
Lifespan of the light source (eco mode)6000 h
-
Lamp power (eco mode)140 W
-
Type of light sourceLamp
Connectivity
-
Number of VGA (D-Sub) ports2
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of USB 2.0 Ports0
-
DVI PortNo
-
Power entry sectorYes
-
Quantity of HDMI ports1
-
Power entry sectorYes
-
Power entry sectorYes
-
Serial interface typeRS-232
Network
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
-
WifiNo
Video
-
Analog signal format systemNTSC
-
HD-ReadyNTSC 4.43
-
HD-ReadyPAL
-
Supported graphic resolutionsPAL M
-
Supported video modesPAL N
-
3D CompatibilitySECAM
-
Yes
-
Yes
-
1600 x 1200 (UXGA)
-
1080i, 480i, 480p, 576i, 720p
-
No
Multimedia
-
Built-in speakersYes
-
Number of built-in speakers1
-
Rated power of RMS16 W
Design
-
Product colorWhite
Power
-
Typical electricity consumption330 W
-
AC input voltage110 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy consumption (standby mode)1 W
Weight and dimensions
-
Weight3600 g
Features
-
Sound level37 dB
-
Sound level (economy mode)30 dB
-
CertificationUL, cUL, FCC-B, EN60950-1, CE.
Environmental conditions
-
Temperature out of operation-20 - 60 °C
-
Operating temperature5 - 35 °C
Packaging contents
-
Remote control providedYes
Similar products
More product categories from brand 3M
More product types from brand 3M
Presentation of product WX36 specifications from brand 3M
Generalities
The brand of the product 3M WX36 is 3M. This brand is known for its quality and innovation in the field of household appliances. The product model 3M WX36 is WX36 | WX36. This model ensures optimal performance and an enhanced user experience. The EAN code of the product 3M WX36 is 0051125633802, 0078923677203. This code allows for the unique identification of the product in the distribution system.
Other features
The image format of the product 3M WX36 is 16:10. This format is ideal for an immersive visual experience. The focal length of the 3M WX36 lens is F 1.67 - 1.91. This feature allows for images with a depth of field suited to your photographic needs. The maximum analog resolution of the product 3M WX36 is 1600 x 1200 pixels. This feature ensures optimal image quality for an enriching visual experience. The RS-232 port of the 3M WX36 contains 1. This port is essential for ensuring reliable serial communication with other devices. The dimensions (LxWxH) of the product 3M WX36 are 317 x 288 x 98 mm. These dimensions ensure an optimal fit in your space. The maximum operating altitude of the product 3M WX36 is 1829 m. This specification ensures optimal performance even at high altitudes. The product 3M WX36 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Objective system
Does the product 3M WX36 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The adjustment of the 3M WX36 is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The focal length of the product 3M WX36 is 19 - 23 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The zoom ratio of the product 3M WX36 is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The enlargement of the product 3M WX36 is 4 x. This enlargement allows for viewing details with increased precision. The zoom type of the product 3M WX36 is Manuel. This type of zoom allows for precise and customized handling to suit your photographic needs.
Light source
The type of lamp of the product 3M WX36 is UHB. This lamp offers intense brightness and excellent lighting quality. The power of the lamp of the product 3M WX36 is 210 W. This power ensures optimal lighting for your needs. The lifespan of the light source of the product 3M WX36 is 3000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The lifespan of the light source (eco mode) of the product 3M WX36 is 6000 h. This longevity ensures prolonged and economical use. The power of the lamp (economy mode) of the product 3M WX36 is 140 W. This specification ensures optimal energy efficiency while providing quality lighting. The type of light source of the product 3M WX36 is Lampe. This light source ensures effective illumination tailored to your needs.
Projector
The brightness of the product 3M WX36 is 3000 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The projector 3M WX36 features a - projection technology. This technology ensures optimal image quality and an immersive visual experience. The compatible screen size of the product 3M WX36 is 30 - 300 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The native resolution of the product 3M WX36 is WXGA (1280x800). This feature ensures optimal image quality for your presentations and entertainment. The projection distance of the product 3M WX36 is - m. This specification allows for optimizing the visual experience based on the available space. The contrast ratio of the product 3M WX36 is 2000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The matrix size of the product 3M WX36 is 0.59 ". This specification is essential to ensure optimal image quality. The matrix type of the product 3M WX36 is 3-panneaux (p-Si TFT active). This type of matrix is essential to ensure optimal image quality and impressive visual performance. The number of colors of the product 3M WX36 is 16,78 millions de couleurs. This wide range of colors allows for the creation of varied and immersive atmospheres. The product 3M WX36 features trapezoidal correction, vertical of -30 - 30 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The vertical scanning frequency of the product 3M WX36 is 56 - 120 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product 3M WX36 is 31.5 - 106 kHz. This range allows for excellent display quality and optimal image smoothness. The 3M WX36 projector has a brightness of 3200 ANSI lumens in eco mode. This performance allows for clear and bright images, even in low-light environments.
Network
The number of Ethernet LAN (RJ-45) ports of the product 3M WX36 is 1. These ports provide a stable and fast network connection for your devices. The Wifi of the product 3M WX36 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product 3M WX36 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product.
Multimedia
Does the product 3M WX36 have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The RMS rated power of the product 3M WX36 is 16 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of built-in speakers of the product 3M WX36 is 1. These speakers provide immersive audio quality for an optimal listening experience.
Design
The color of the product 3M WX36 is Blanc. This shade gives it a modern and elegant look.
Video
The analog signal format system of the product 3M WX36 contains NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product 3M WX36 have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Is the 3M WX36 product HD-Ready? Oui. This feature indicates whether the device can display an HD resolution, which is essential for an optimal viewing experience. The supported graphic resolutions of the product 3M WX36 are 1600 x 1200 (UXGA). These resolutions provide optimal display quality for your content. The supported video mode of the product 3M WX36 is 1080i, 480i, 480p, 576i, 720p. This mode allows you to enjoy optimal image quality for your videos. Does the product 3M WX36 have 3D Compatibility? No. This product does not support 3D technology.
Connectivity
The product 3M WX36 has an S-Video input. This input allows you to connect video devices with enhanced image quality. The number of VGA (D-Sub) ports on the 3M WX36 is 2. This port allows for easy connection with various devices and monitors. The product 3M WX36 has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The product 3M WX36 has an input component of the audiovisual device (YPbPr/YCbCr) 1. This specification allows for a high-quality connection for an optimal visual experience. The integrated audio connector (L,R) of the product 3M WX36 has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The audio output (left, right) of the product 3M WX36 contains 1. This specification allows for an immersive stereo sound experience. Does the product 3M WX36 have a PC audio input? Oui. This feature allows for easy connection of audio devices for an optimal sound experience. The number of HDMI ports on the 3M WX36 is 1. This detail is essential for determining compatibility with your multimedia devices. The number of USB 2.0 ports on the 3M WX36 is 0. These ports allow for a fast and efficient connection for your devices. Does the product 3M WX36 have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. Does the product 3M WX36 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. Does the product 3M WX36 have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. The serial interface type of the product 3M WX36 is RS-232. This type of interface allows for effective communication between different devices.
Weight and dimensions
The weight of the product 3M WX36 is 3600 g. This weight is ideal for ensuring optimal use and easy handling.
Features
The noise level of the product 3M WX36 is 37 dB. This noise level allows for pleasant use without excessive noise disturbances. The noise level in eco mode of the product 3M WX36 is 30 dB. This noise level ensures discreet and pleasant use, ideal for noise-sensitive environments. The certification of the product 3M WX36 contains UL, cUL, FCC-B, EN60950-1, CE.. This certification guarantees compliance with the required safety and performance standards.
Power
The typical power consumption of the product 3M WX36 is 330 W. This feature allows for the assessment of the energy efficiency of the device. The AC input frequency of the product 3M WX36 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The energy consumption in standby mode of the product 3M WX36 is 1 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The AC input voltage of the 3M WX36 is 110 - 240 V. This specification ensures optimal compatibility with standard electrical systems.
Environmental conditions
The operating temperature of the product 3M WX36 is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product 3M WX36 is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Packaging contents
Does the product 3M WX36 come with a remote control? Oui.
