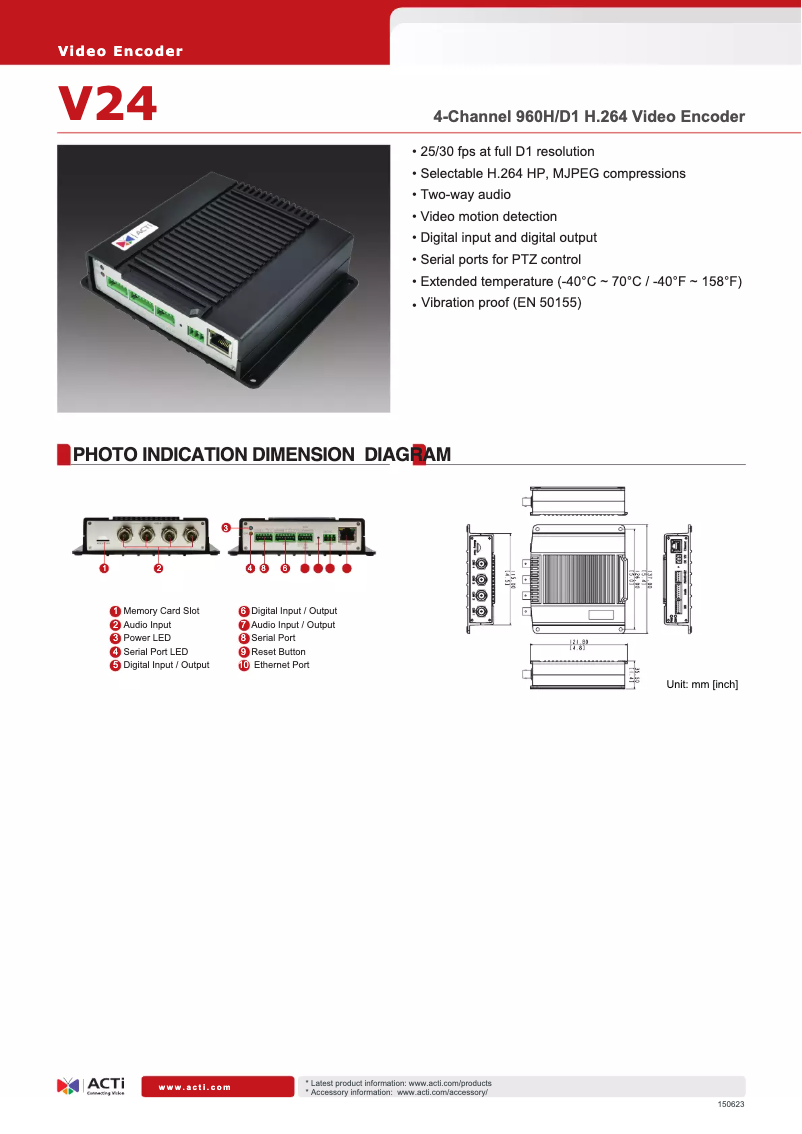

Manuals of product V24
Technical Specifications V24
General Information
-
ModelV24
-
Brand
-
Category
-
Type
-
SKU1137217
-
MPN1137217
Video
-
Number of channels4 channels
-
Maximum cadence30 fps
-
Maximum video resolution960 x 576 pixels
-
Visual compression formatsH.264, M-JPEG
Connectivity
-
Input/Output terminal ports4
-
Number of Ethernet LAN ports (RJ-45)1
-
Input/Output terminal ports4
Design
-
IndicatorsYes
-
CertificationCE, FCC, NEMA TS2, UL
-
Product colorBlack, Grey
Representation / realization
-
Maximum video resolution throughput6 Mbit/s
-
Image adjustmentBrightness, Contrast, Privacy mask, Saturation, Sharpness
-
Web-based managementYes
-
Compatible operating systemsWindows 8.1, Windows 7 SP1, Windows Server 2008 R2 SP1
-
Web-based managementYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Web-based managementYes
Network
-
Supported network protocolsTCP
-
Network standardsUDP
-
Ethernet connection, supporting power over this port (PoE)HTTP
-
HTTPS
-
DHCP
-
PPPoE
-
RTP
-
RTSP
-
IPv4/v6
-
DNS
-
DDNS
-
NTP
-
ICMP
-
ARP
-
IGMP
-
SMTP
-
FTP
-
UPnP
-
SNMP
-
Bonjour
-
IEEE 802.1X
-
IEEE 802.3af
-
Yes
Security
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Security-supported algorithmHTTPS
-
Password protectionUser
Environmental conditions
-
Temperature out of operation-40 - 76 °C
-
Temperature out of operation-40 - 76 °C
-
Operating relative humidity (H-H)10 - 85 %
Weight and dimensions
-
Weight462 g
-
Width137 mm
-
Depth121.8 mm
-
Height35.5 mm
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product V24 specifications from brand ACTi
Design
Does the product ACTi V24 have indicators? Oui. These indicators allow you to visualize the operating status of the device. The color of the product ACTi V24 is Black, Grey. This shade gives it a modern and elegant look. The certification of the product ACTi V24 contains CE, FCC, NEMA TS2, UL. This certification guarantees compliance with the required safety and performance standards.
Generalities
The brand of the product ACTi V24 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The product model ACTi V24 is V24 | V24. This model ensures optimal performance and an enhanced user experience.
Connectivity
The BNC input port of the ACTi V24 contains 4. This port allows for a reliable and quality connection for your equipment. The input/output terminal ports of the product ACTi V24 contain 4. These ports allow optimal connectivity with various devices. The number of Ethernet LAN (RJ-45) ports of the product ACTi V24 is 1. These ports provide a stable and fast network connection for your devices.
Video
The quantity of channels of the product ACTi V24 is 4 canaux. This specification determines the number of communication paths available for optimal use. The maximum video resolution of the product ACTi V24 is 960 x 576 pixels. This specification ensures optimal image quality for your videos. The maximum frame rate of the product ACTi V24 is 30 ips. This specification ensures optimal image smoothness for your recordings. The product ACTi V24 has visual compression formats: H.264, M-JPEG. These formats ensure optimal image quality for your videos.
Network
The supported network protocols of the product ACTi V24 are TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, IEEE 802.1X. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product ACTi V24 are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the ACTi V24 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Security
Does the product ACTi V24 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the ACTi V24 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The supported security algorithm of the product ACTi V24 contains HTTPS. This algorithm ensures optimal protection of your data. Does the product ACTi V24 have Password Protection? Utilisateur. This feature ensures the security of your personal data.
Representation / realization
The output at a maximum video resolution of the product ACTi V24 is 6 Mbit/s. This specification ensures optimal image quality for your videos. The PTZ control of the product ACTi V24 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The compatible operating system for the product ACTi V24 is Windows XP, Windows Vista, Windows 7. These operating systems ensure optimal and smooth use of the product. The product image adjustment ACTi V24 includes options such as brightness, contrast, mirror, and privacy mask. These settings allow you to optimize visual quality according to your needs. Does the ACTi V24 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The ACTi V24 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The product ACTi V24 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Environmental conditions
The non-operating temperature of the product ACTi V24 is -40 - 76 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product ACTi V24 has an operating relative humidity (H-H) of 10 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product ACTi V24 is -40 - 76 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The depth of the product ACTi V24 is 121.8 mm. This dimension allows for optimal integration into your space. The width of the product ACTi V24 is 137 mm. This dimension is essential to ensure optimal integration into your space. The height of the product ACTi V24 is 35.5 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product ACTi V24 is 462 g. This weight is ideal for ensuring optimal use and easy handling.
