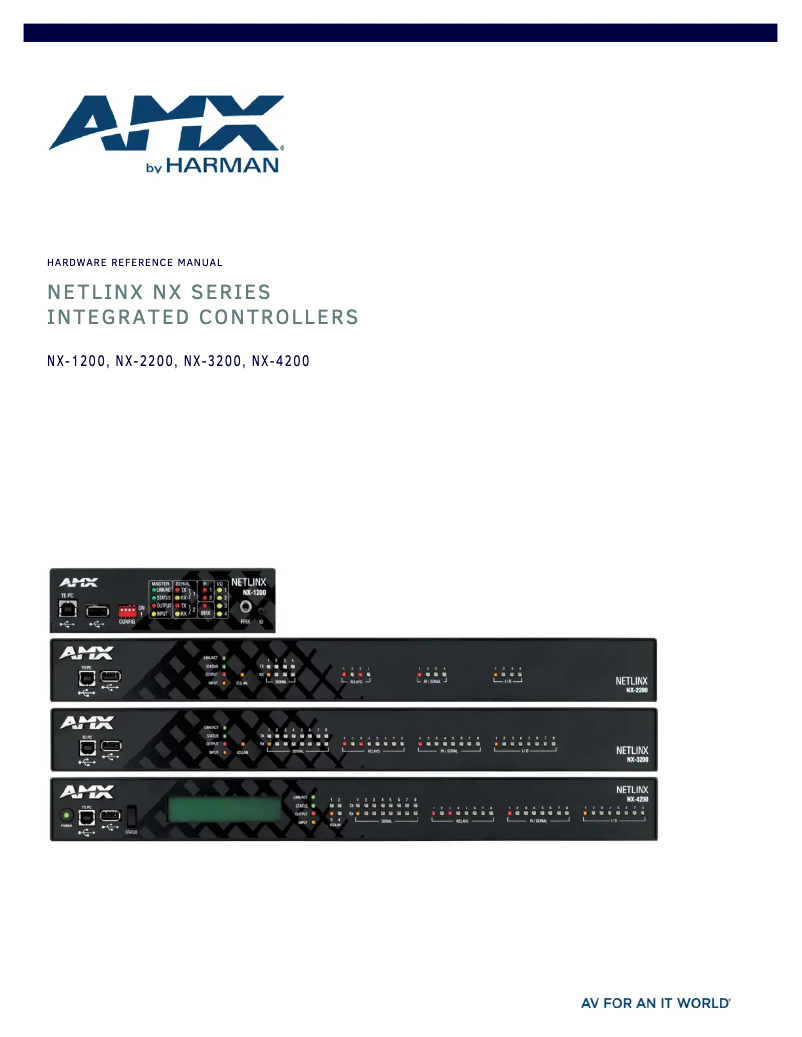

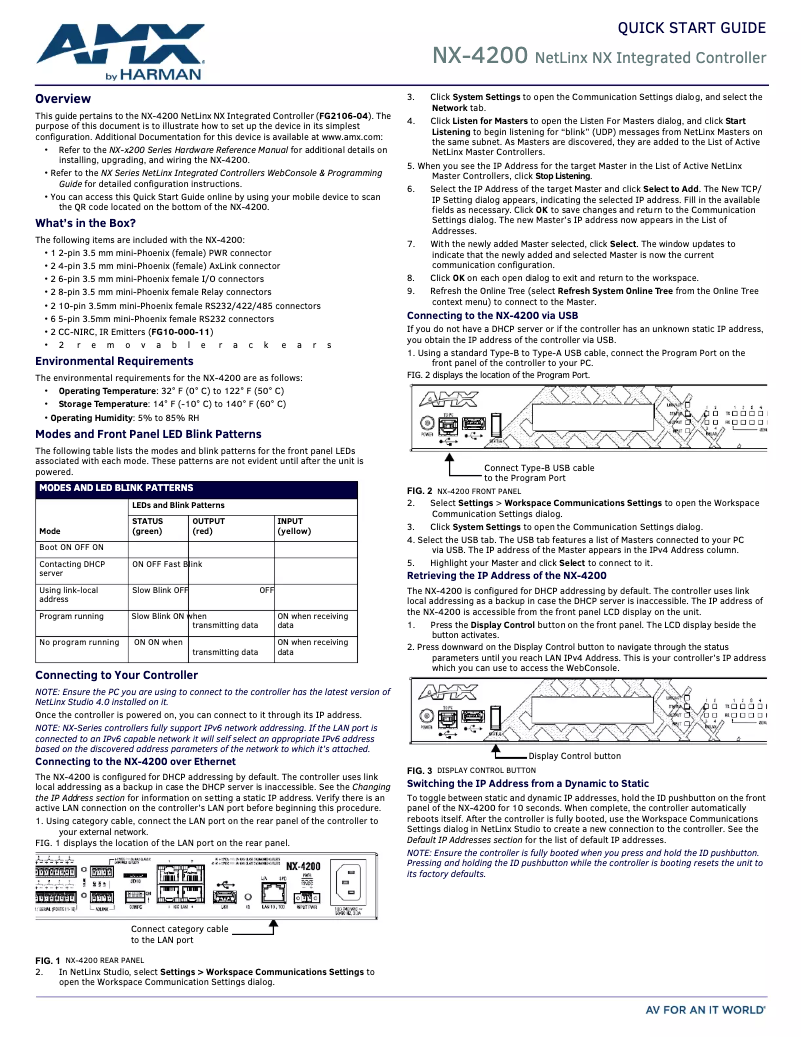

Manuals of product NetLinx NX-4200
Technical Specifications NetLinx NX-4200
General Information
-
ModelNETLINX NX-4200
-
Brand
-
Category
-
Type
-
SKU1856906
-
MPN1856906
Representation / realization
-
Control display unitNo
-
Internal memory1024 MB
-
Flash memory8000 MB
-
Integrated into the processorYes
-
Number of installed processors1
Design
-
Product colorBlack
-
IndicatorsYes
-
Rack capacity1U
Weight and dimensions
-
Height45.15 mm
-
Width431.8 mm
-
Depth231.64 mm
-
Weight3447 g
Power
-
Typical electricity consumption8.4 W
-
Thermal dissipation28.7 BTU/h
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Input voltage100 - 240 V
-
Input frequency50/60 Hz
-
DC input voltage12 V
Connectivity
-
RS-232 port6
-
Number of Ethernet LAN ports (RJ-45)1
Network
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
Environmental conditions
-
Operating relative humidity (H-H)5 - 85 %
-
Operating temperature0 - 50 °C
-
Temperature out of operation-10 - 60 °C
Similar products
More product categories from brand AMX
More product types from brand AMX
Presentation of product NetLinx NX-4200 specifications from brand AMX
Generalities
The brand of the product AMX NetLinx NX-4200 is AMX. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product AMX NetLinx NX-4200 is 0718878247990. This code allows for the unique identification of the product in the distribution system. The product model AMX NetLinx NX-4200 is NetLinx NX-4200 | FG2106-04. This model ensures optimal performance and an enhanced user experience.
Design
The color of the product AMX NetLinx NX-4200 is Noir. This shade gives it a modern and elegant look. The capacity of the AMX NetLinx NX-4200 rack is 1U. This specification ensures optimal space for the installation of your equipment. Does the product AMX NetLinx NX-4200 have indicators? Oui. These indicators allow you to visualize the operating status of the device.
Weight and dimensions
The height of the product AMX NetLinx NX-4200 is 45.15 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product AMX NetLinx NX-4200 is 3447 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product AMX NetLinx NX-4200 is 231.64 mm. This dimension allows for optimal integration into your space. The width of the product AMX NetLinx NX-4200 is 431.8 mm. This dimension is essential to ensure optimal integration into your space.
Representation / realization
Does the product AMX NetLinx NX-4200 have a control display unit? No. This feature indicates that the product does not have a display for controlling the settings. The product AMX NetLinx NX-4200 has a flash memory of 8000 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The internal memory of the product AMX NetLinx NX-4200 contains 1024 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The technical detail "Integrated into the processor" of the product AMX NetLinx NX-4200 is Oui. This essential component ensures optimal performance and increased efficiency. The number of installed processors of the product AMX NetLinx NX-4200 is 1. This processor ensures optimal performance for your daily tasks.
Network
The data transfer rate of the product AMX NetLinx NX-4200 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs.
Connectivity
The RS-232 port of the AMX NetLinx NX-4200 contains 6. This port is essential for ensuring reliable serial communication with other devices. The number of Ethernet LAN (RJ-45) ports of the product AMX NetLinx NX-4200 is 1. These ports provide a stable and fast network connection for your devices.
Power
The typical power consumption of the product AMX NetLinx NX-4200 is 8.4 W. This feature allows for the assessment of the energy efficiency of the device. Does the AMX NetLinx NX-4200 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The thermal dissipation of the product AMX NetLinx NX-4200 is 28.7 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device. The input voltage of the product AMX NetLinx NX-4200 is 100 - 240 V. This feature ensures compatibility with standard electrical systems. The input frequency of the product AMX NetLinx NX-4200 is 50/60 Hz. This specification ensures optimal compatibility with standard power grids. The DC input voltage of the product AMX NetLinx NX-4200 is 12 V. This DC input voltage ensures optimal performance and compatibility with various devices.
Environmental conditions
The product AMX NetLinx NX-4200 has an operating relative humidity (H-H) of 5 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product AMX NetLinx NX-4200 is -10 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product AMX NetLinx NX-4200 is 0 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
