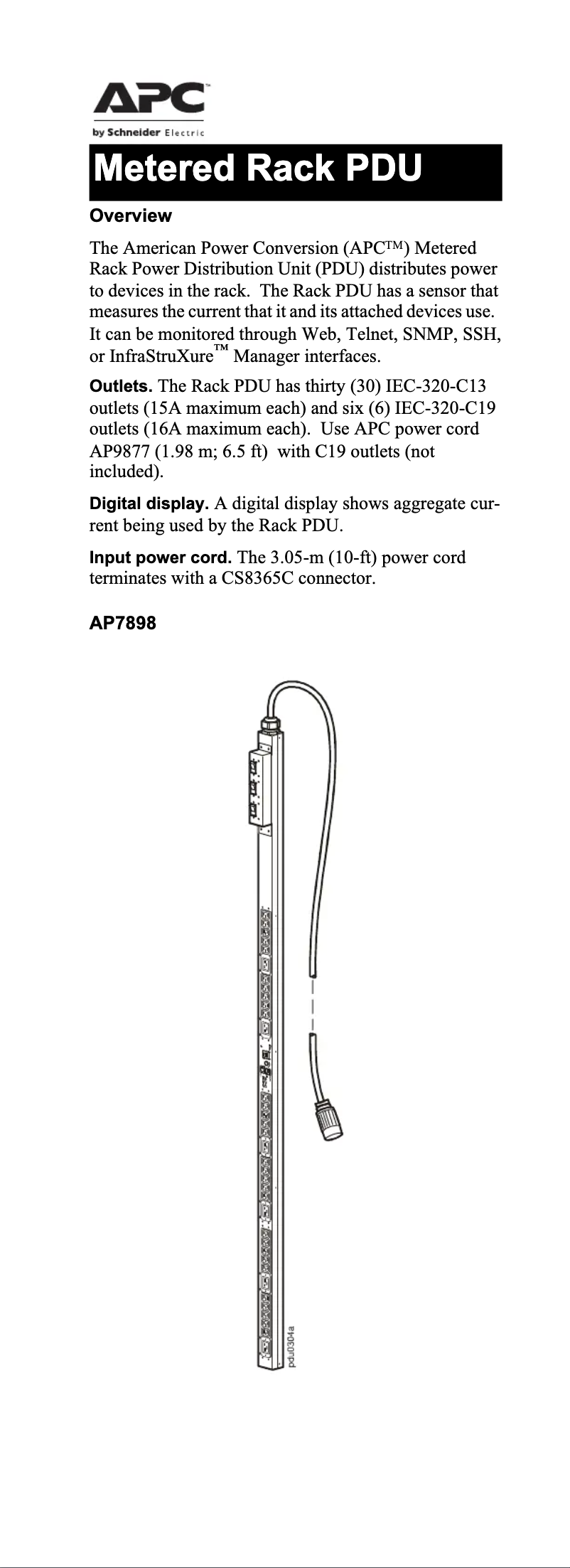

Manual of product AP7898
Technical Specifications AP7898
General Information
-
ModelAP7898
-
Brand
-
Category
-
Type
-
SKU2009213
-
MPN2009213
Power
-
Nominal input voltage208 V
-
AC input frequency50 - 60 Hz
-
Nominal input voltage208 V
-
Power supply/load capacity12500 VA
-
Maximum input current per phase35 A
-
Maximum input current per phase35 A
Features
-
Cable length3.05 m
-
CertificationcUL Listed, CSA C22.2 No. 60950-1-03, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950-1, UL Listed, RoHS 7b
Design
-
Product colorBlack
Connectivity
-
Input connection typeCS8365
-
Output connections30x IEC 320 C13
-
6x IEC 320 C19
Weight and dimensions
-
Dimensions (LxWxH)56 x 89 x 1778 mm
-
Weight9040 g
Environmental conditions
-
Temperature out of operation-25 - 65 °C
-
Operating temperature-5 - 45 °C
Similar products
More product categories from brand APC
Other APC
Home appliances APC
Interior APC
Phones APC
Tools APC
Software APC
More product types from brand APC
Presentation of product AP7898 specifications from brand APC
Design
The color of the product APC AP7898 is Noir. This shade gives it a modern and elegant look.
Generalities
The brand of the product APC AP7898 is APC. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product APC AP7898 is 0731304226888. This code allows for the unique identification of the product in the distribution system. The product model APC AP7898 is AP7898 | AP7898. This model ensures optimal performance and an enhanced user experience.
Features
The cable length of the product APC AP7898 is 3.05 m. This specification ensures optimal use and installation flexibility. The certification of the product APC AP7898 contains cUL Listed, CSA C22.2 No. 60950-1-03, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950-1, UL Listed, RoHS 7b. This certification guarantees compliance with the required safety and performance standards.
Power
The nominal input voltage of the APC AP7898 is 208 V. This specification ensures optimal performance and compatibility with standard electrical systems. The AC input frequency of the product APC AP7898 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The power/load capacity of the product APC AP7898 is 12500 VA. This specification ensures optimal performance for all your energy needs. The nominal output voltage of the APC AP7898 is 208 V. This feature ensures optimal performance and compatibility with standard electrical devices. The maximum current usage per phase of the product APC AP7898 is 35 A. This specification ensures optimal performance and increased safety during its use. The maximum input current per phase of the product APC AP7898 is 35 A. This current ensures optimal performance and increased energy efficiency.
Connectivity
The input connection type of the product APC AP7898 is CS8365. This type of connection ensures optimal compatibility with your installations. The output connections of the product APC AP7898 are 30x IEC 320 C13\n6x IEC 320 C19. These connections allow for easy integration with other audio equipment.
Weight and dimensions
The weight of the product APC AP7898 is 9040 g. This weight is ideal for ensuring optimal use and easy handling. The dimensions (LxWxH) of the product APC AP7898 are 56 x 89 x 1778 mm. These dimensions ensure an optimal fit in your space.
Environmental conditions
The operating temperature of the product APC AP7898 is -5 - 45 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product APC AP7898 is -25 - 65 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
