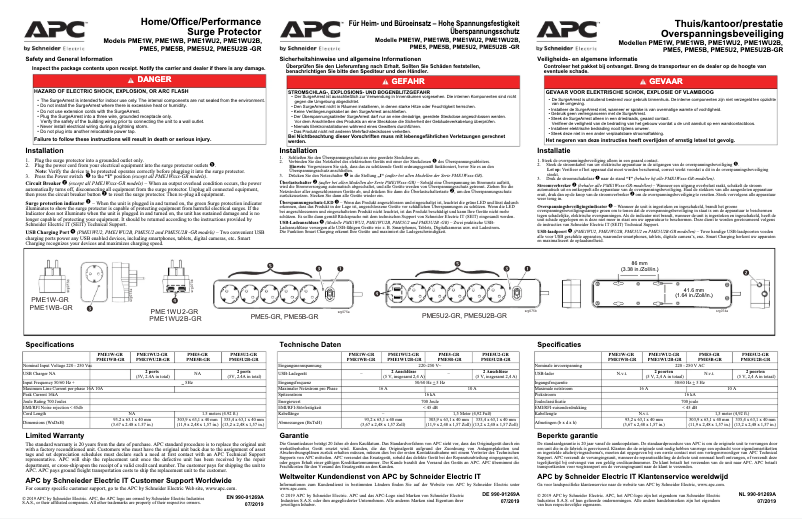

Manual of product PME5B-GR
Editorial note
The APC PME5B-GR product stands out for its modern and practical design, particularly due to its wall-mounting capability that optimizes space while adding an aesthetic touch to your environment. Its RoHS certification reflects a commitment to energy efficiency and environmental respect, making it a wise choice for users concerned about their ecological impact. In terms of performance, the model offers a peak power of 2300 W and an output current of 10 A, thus ensuring reliable power for multiple devices simultaneously. Additionally, the 40 dB EMI/RFI noise filter helps reduce interference, ensuring optimal operation of connected devices. However, some drawbacks must be taken into account. The lack of USB ports limits connectivity for modern devices, which may be a drawback for some users. Furthermore, the 1.5 m cable length may not be suitable for all spaces, thus restricting installation flexibility. Although the product is designed to withstand varied conditions, its operating range of 0 to 40 °C may not be ideal for extreme environments. In conclusion, the APC PME5B-GR is a high-performing and environmentally friendly device, but it may not meet all needs due to its limitations in connectivity and flexibility. Potential users should evaluate these aspects to determine if it meets their expectations.Score details
User experience
The APC PME5B-GR product offers a satisfactory user experience thanks to its wall mounting that optimizes space and its modern aesthetics.
Performance
With a peak power of 2300 W and an output current of 10 A, this product ensures reliable performance for powering multiple devices simultaneously.
Robustness
Designed to withstand extreme conditions, the product operates efficiently in a temperature range of 0 to 40 °C and a humidity level of 0 to 95%.
Value for money
Although the product is environmentally friendly with its RoHS certification, the lack of USB ports and the 1.5 m cable length may limit its value for some users.
Features
The EMI/RFI noise filter of 40 dB is an asset, but the absence of USB ports and the maximum power of 2300 W may not meet the needs of all users.
Advantages
RoHS certified for eco-efficiency
EMI/RFI filter reduces interference
Wall mount for space saving
2300 W and 10 A for multiple devices
Operates from 0 to 40 °C, humidity 95%
Disadvantages
No available USB ports
1.5 m cable too short
Wall mounting difficult due to weight
Power of 2300 W insufficient
Limited temperature range (0 - 40 °C)
Technical Specifications PME5B-GR
General Information
-
ModelPME5B-GR
-
Brand
-
Category
-
Type
-
SKU1894570
-
MPN1894570
Technical details
-
Sustainability certificatesRoHS
Features
-
Product colorBlack
-
Wall mountingYes
-
EMI/RFI noise filtering40 dB
-
Wall mountingYes
Power
-
Nominal input voltage230 V
-
AC input frequency50 - 60 Hz
-
Nominal output current10 A
-
Estimation of sudden energy surge680 J
-
Number of outputs5 output(s) AC
-
Peak power2300 W
-
AC output typesType F
-
Peak current, normal mode15000 A
Weight and dimensions
-
Cable length1.5 m
-
Width303.9 mm
-
Depth63.1 mm
-
Height40 mm
-
Weight470 g
Connectivity
-
Number of USB ports0
-
Male connectorType F (Schuko)
Packaging information
-
Tare weight of the packaging555 g
-
Package height334 mm
-
Package width118 mm
-
Package depth46 mm
Certificate
-
CertificationCE
-
CE Mark
Environmental conditions
-
Operating relative humidity (H-H)0 - 95 %
-
Temperature out of operation-15 - 45 °C
-
Operating relative humidity (H-H)0 - 95 %
-
Operating temperature0 - 40 °C
Logistics data
-
Products by pallet324 piece(s)
-
Harmonized System Code85364900
Packaging contents
-
Cables includedSector
Frequently Asked Questions
What is the weight of the APC PME5B-GR?
What certifications does the APC PME5B-GR have?
What is the height of the APC PME5B-GR?
What is the width of the APC PME5B-GR?
What is the depth of the APC PME5B-GR?
Is the manual for the APC PME5B-GR available in French?
Similar products
More product categories from brand APC
Other APC
Home appliances APC
Interior APC
Phones APC
Tools APC
Software APC
More product types from brand APC
Presentation of product PME5B-GR specifications from brand APC
General Information
The product APC PME5B-GR is manufactured by the renowned brand APC, known for its commitment to quality and innovation in the home appliance sector. This model, also referred to as PME5B-GR, is designed to deliver high performance and a satisfying user experience. The EAN code 0731304347033 uniquely identifies this product in the distribution system.
Technical Details
The APC PME5B-GR is certified RoHS, confirming its compliance with environmental and energy efficiency standards. These certifications ensure that the product meets high standards of durability and environmental respect.
Features
Featuring a Black finish, this model presents a modern and elegant aesthetic. It is equipped with an EMI/RFI noise filter that reduces electromagnetic and radio frequency interference, with a filtering level of 40 dB. Additionally, its wall-mountable functionality allows for practical and aesthetic installation while optimizing available space.
Power
The APC PME5B-GR operates with a nominal input voltage of 230 V, ensuring compatibility with standard electrical systems. Its AC input frequency ranges from 50 to 60 Hz, allowing for efficient operation. With an output current of 10 A and a peak power of 2300 W, it can power multiple devices simultaneously. This model has 5 AC outlets and complies with the AC output standard Type F, ensuring safe use.
Weight and Dimensions
The power cable measures 1.5 m, providing some installation flexibility. The product has dimensions of 303.9 mm in width, 63.1 mm in depth, and 40 mm in height, with a weight of 470 g, making it easy to handle and integrate into various spaces.
Connectivity
The APC PME5B-GR does not have USB ports, which may limit connectivity for some users. However, it is equipped with a male Type F (Schuko) plug, ensuring a reliable electrical connection.
Packaging Information
The packaging weight of the APC PME5B-GR is 555 g, while the package dimensions are 334 mm in height, 118 mm in width, and 46 mm in depth, optimizing the transport and storage of the product.
Certificate
This product is certified CE, which guarantees that it meets the required safety and performance standards.
Environmental Conditions
The APC PME5B-GR can operate within a temperature range of 0 to 40 °C and withstands a relative humidity of 0 to 95 %, making it suitable for various environments. Its storage temperature can vary from -15 to 45 °C, ensuring durability even in extreme conditions.
Logistics Data
It is possible to store 324 pieces of this product per pallet, facilitating stock management. The harmonized system code associated with the APC PME5B-GR is 85364900, allowing for its identification in international trade.
Contents of the Package
The product comes with a power cable, essential for establishing an optimal electrical connection.
