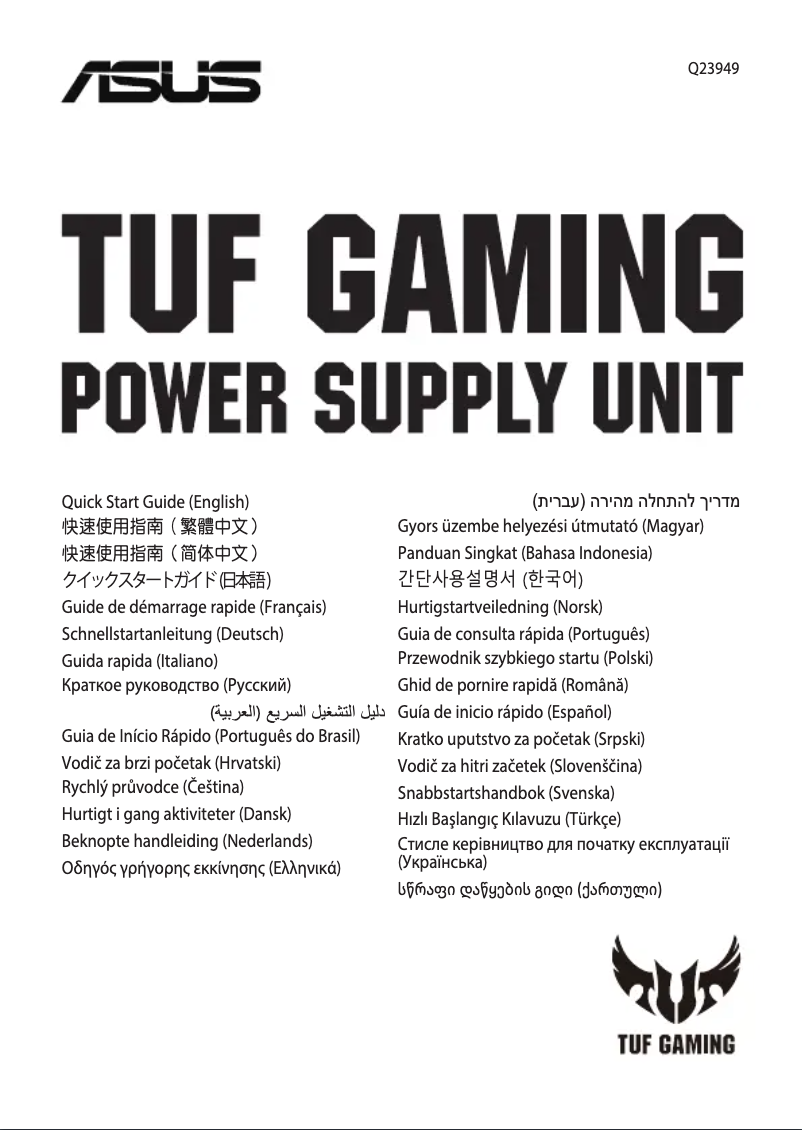

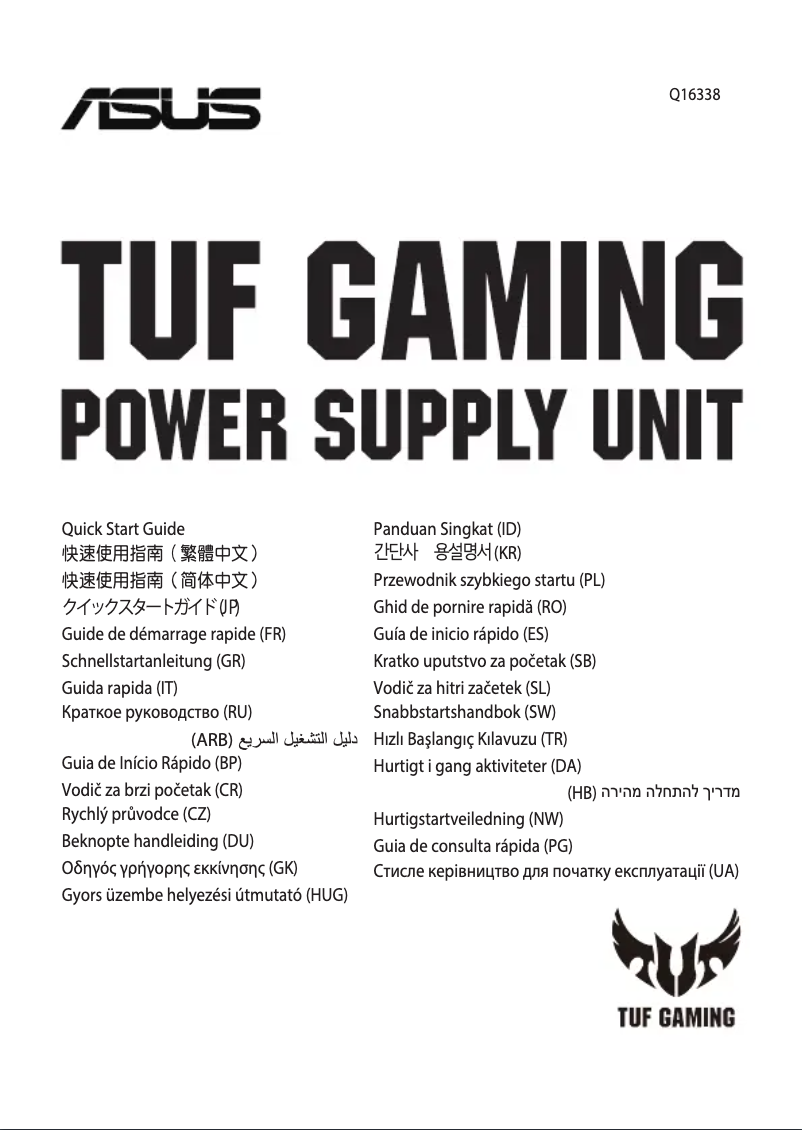

Manuals of product TUF-Gaming-550B
Technical Specifications TUF-Gaming-550B
General Information
-
ModelTUF-GAMING-550B
-
Brand
-
Category
-
Type
-
SKU1326738
-
MPN1326738
Power
-
Total power550 W
-
AC input voltage100 - 240 V
-
Maximum output current (+3.3V)25 A
-
Maximum output current (+3.3V)25 A
-
Combined power (+5V)120 W
-
Combined power (+5V)120 W
-
Maximum output current (+5V)20 A
-
Combined power (+12 V)549.6 W
-
Maximum output current (+12V)45.8 A
-
Combined power (-12V)9.6 W
-
Maximum output current (-12V)0.8 A
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5Vsb)3 A
Design
-
Product colorBlack
-
Cooling typeActive
-
Fan diameter135 mm
-
Number of fans1 fan(s)
-
Built-in power buttonYes
Weight and dimensions
-
Width150 mm
-
Height86 mm
-
Width150 mm
-
Weight1890 g
Connectivity
-
Motherboard connector24-pin ATX
-
Molex peripheral connector (4-pin)4
-
CPU power connector (4+4 pin)Yes
-
Length of the CPU power cable800 mm
-
PCI Express power connectors (6 +2 pin)2
-
Number of SATA power cables5
-
Length of the PCI Express power cable600 mm
-
Length of the SATA power cable120,400 mm
-
Wiring typeNon-modular
Representation / realization
-
Sound level- dB
-
80 PLUS Certification80 PLUS Bronze
-
UtilityPC
-
Form factor of the power supply unitATX
Packaging contents
-
Cables includedCPU
-
PCIe
-
SATA
Packaging information
-
Package weight2580 g
-
Type of packagingBox
Logistics data
-
Harmonized System Code84733020
Similar products
More product categories from brand Asus
Computers and accessories Asus
Phones Asus
Other Asus
Audio Asus
Home appliances Asus
Interior Asus
More product types from brand Asus
Presentation of product TUF-Gaming-550B specifications from brand Asus
Weight and dimensions
The depth of the product Asus TUF-Gaming-550B is 150 mm. This dimension allows for optimal integration into your space. The weight of the product Asus TUF-Gaming-550B is 1890 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Asus TUF-Gaming-550B is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Asus TUF-Gaming-550B is 150 mm. This dimension is essential to ensure optimal integration into your space.
Generalities
The brand of the product Asus TUF-Gaming-550B is Asus. This brand is known for its quality and innovation in the field of household appliances. The product model Asus TUF-Gaming-550B is TUF-Gaming-550B | 90YE00D2-B0NA00. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Asus TUF-Gaming-550B is 4718017724289, 4718017724401. This code allows for the unique identification of the product in the distribution system.
Design
The color of the product Asus TUF-Gaming-550B is Noir. This shade gives it a modern and elegant look. The cooling type of the product Asus TUF-Gaming-550B is active. This system ensures optimal temperature management for improved performance. The number of fans of the product Asus TUF-Gaming-550B is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The diameter of the Asus TUF-Gaming-550B fan is 135 mm. This diameter is essential for ensuring optimal air circulation. Does the product Asus TUF-Gaming-550B have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device.
Packaging contents
The included cable of the product Asus TUF-Gaming-550B contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Representation / realization
The noise level of the product Asus TUF-Gaming-550B is - dB. This noise level allows for pleasant use without excessive noise disturbances. The usefulness of the product Asus TUF-Gaming-550B is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The form factor of the power supply unit of the product Asus TUF-Gaming-550B is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The product Asus TUF-Gaming-550B has the 80 PLUS 80 PLUS Bronze certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs.
Power
The total power of the product Asus TUF-Gaming-550B is 550 W. This power ensures optimal performance for efficient use. The AC input voltage of the Asus TUF-Gaming-550B is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The input current of the product Asus TUF-Gaming-550B is 25 A. This input current ensures optimal performance and increased energy efficiency. The maximum output current (+3.3V) of the Asus TUF-Gaming-550B is 25 A. This current ensures optimal performance for your power supply needs. The product Asus TUF-Gaming-550B has a combined power (+3.3 V) of 120 W. This specification ensures optimal performance for your energy needs. The product Asus TUF-Gaming-550B has a combined power (+5V) of 120 W. This specification ensures optimal performance for your devices. The combined power (+12 V) of the product Asus TUF-Gaming-550B is 549.6 W. This specification ensures optimal performance for your energy needs. The product Asus TUF-Gaming-550B has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The product Asus TUF-Gaming-550B has a maximum output current (+12V) of 45.8 A. This specification ensures optimal performance for your power supply needs. The product Asus TUF-Gaming-550B has a combined power (-12V) of 9.6 W. This specification ensures optimal performance and increased energy efficiency. The maximum output current (-12V) of the Asus TUF-Gaming-550B is 0.8 A. This specification ensures optimal performance for your energy needs. The combined power (+5Vsb) of the Asus TUF-Gaming-550B is 15 W. This specification ensures optimal performance for your devices. The maximum output current (+5Vsb) of the Asus TUF-Gaming-550B is 3 A. This current ensures a stable and efficient power supply for your devices.
Connectivity
The connector on the motherboard of the product Asus TUF-Gaming-550B contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The product Asus TUF-Gaming-550B has a CPU power cable length of 800 mm. This specification ensures optimal connectivity for your system. Does the Asus TUF-Gaming-550B have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. The Molex peripheral connector (4-pin) of the product Asus TUF-Gaming-550B contains 4. This connector is essential for ensuring a reliable connection between electronic components. The PCI Express power connector (6 +2 pin) of the product Asus TUF-Gaming-550B contains 2. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The number of SATA power cables for the product Asus TUF-Gaming-550B is 5. These cables provide a reliable and efficient connection to power your components. The length of the PCI Express power cable of the product Asus TUF-Gaming-550B is 600 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. The SATA power cable of the product Asus TUF-Gaming-550B has a length of 120,400 mm. This specification ensures optimal connectivity for your components. The wiring type of the product Asus TUF-Gaming-550B is Non-modulaire. This non-modular wiring ensures a stable and reliable connection.
Packaging information
The packaging type of the product Asus TUF-Gaming-550B is Boîte. This type of packaging ensures optimal protection and facilitates transportation. The weight of the Asus TUF-Gaming-550B package is 2580 g. This weight ensures optimal protection during transport and delivery.
Logistics data
The Harmonized System code for the product Asus TUF-Gaming-550B is 84733020. This code allows for the unique identification of goods in international trade.
