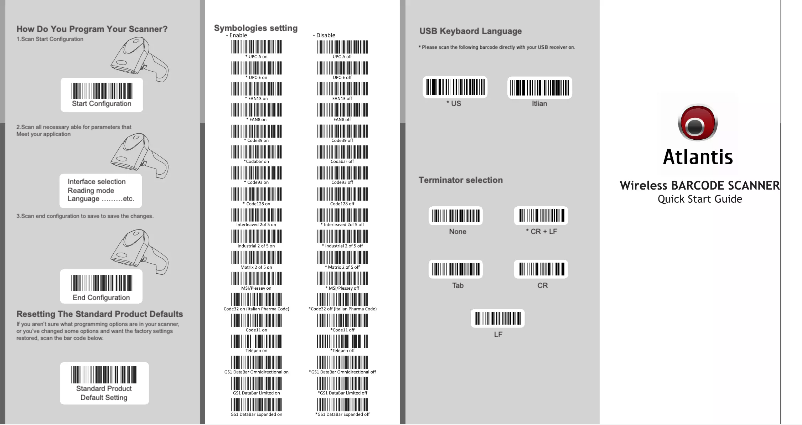

Manual of product A08-LS1500-W
Technical Specifications A08-LS1500-W
General Information
-
ModelA08-LS1500-W
-
Brand
-
Category
-
Type
-
SKU285443
-
MPN285443
Digitization
-
Standard decodingsUPC/EAN
-
WavelengthCodabar
-
Reading rate (max)Code 39
-
Scanner resolutionCode 93
-
Sensor typeCode 128
-
Industrial 2of5
-
Interleave 2of5
-
Matrix 2of5
-
MSI/Plessey
-
Code 11
-
Code 32
-
Chinese Post
-
Telepen
-
GS1 Databar
-
Italian Pharmacy
-
650 nm
-
100 readings/second
-
0.1016 mm
-
Laser
Other features
-
Light sourceLaserDiode
-
Maximum operating distance100 m
-
Dimensions (LxWxH)68 x 160 x 88 mm
Connectivity
-
Operating frequency2400 - 2500 MHz
-
Standard interfacesUSB
Power
-
Input voltage5 V
-
Electricity consumption220 mA
-
Battery capacity1260 mAh
-
Number of readings per battery60000
-
Battery technologyLithium-Ion (Li-Ion)
-
Charging time4 h
Representation / realization
-
Material of the case/bodyPlastic
-
Product colorBlack
Weight and dimensions
-
Weight195 g
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)20 - 85 %
Similar products
More product categories from brand Atlantis Land
More product types from brand Atlantis Land
Presentation of product A08-LS1500-W specifications from brand Atlantis Land
Connectivity
The operating frequency of the product Atlantis Land A08-LS1500-W is 2400 - 2500 MHz. This specification ensures optimal and safe use of the device. The product Atlantis Land A08-LS1500-W has standard interfaces. These interfaces ensure optimal connectivity and facilitate integration with various devices.
Generalities
The brand of the product Atlantis Land A08-LS1500-W is Atlantis Land. This brand is known for its quality and innovation in the field of household appliances. The product model Atlantis Land A08-LS1500-W is A08-LS1500-W | A08-LS1500-W. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Atlantis Land A08-LS1500-W is 8026974014883. This code allows for the unique identification of the product in the distribution system.
Digitization
The standard decoding of the product Atlantis Land A08-LS1500-W contains UPC/EAN\nCodabar\nCode 39\nCode 93\nCode 128, \nIndustrial 2of5\nInterleave 2of5\nMatrix 2of5\nMSI/Plessey\nCode 11\nCode 32\nChinese Post\nTelepen\nGS1 Databar\nItalian Pharmacy. This decoding allows for efficient reading of barcodes, thus facilitating inventory management and transactions. The wavelength of the product Atlantis Land A08-LS1500-W is 650 nm. This specification is essential to ensure accurate and high-quality scanning. The resolution of the Atlantis Land A08-LS1500-W scanner is 0.1016 mm. This feature ensures exceptionally clear scanned images. The reading rate (max) of the product Atlantis Land A08-LS1500-W is 100 lectures/seconde. This high rate ensures fast and efficient scanning. The sensor type of the product Atlantis Land A08-LS1500-W is Laser. This type of sensor ensures optimal image quality for your needs.
Other features
The product Atlantis Land A08-LS1500-W has a light source LaserDiode. This light source offers energy efficiency and a long lifespan, ensuring optimal lighting. The maximum operating distance of the product Atlantis Land A08-LS1500-W is 100 m. This specification ensures optimal connectivity over long distances. The dimensions (LxWxH) of the product Atlantis Land A08-LS1500-W are 68 x 160 x 88 mm. These dimensions ensure an optimal fit in your space.
Weight and dimensions
The weight of the product Atlantis Land A08-LS1500-W is 195 g. This weight is ideal for ensuring optimal use and easy handling.
Power
The battery capacity of the product Atlantis Land A08-LS1500-W is 1260 mAh. This capacity allows for extended use without interruption. The input voltage of the product Atlantis Land A08-LS1500-W is 5 V. This feature ensures compatibility with standard electrical systems. The number of readings per battery of the product Atlantis Land A08-LS1500-W is 60000. This product offers exceptional battery life, allowing you to enjoy your readings without interruption. The electrical consumption of the product Atlantis Land A08-LS1500-W is 220 mA. This consumption ensures optimal operation while guaranteeing energy efficiency. The battery technology of the product Atlantis Land A08-LS1500-W is nickel-metal hydride (NiMH). This technology offers excellent performance and increased durability, ideal for daily use. The charging time of the product Atlantis Land A08-LS1500-W is 4 h. This charging time allows for quick and efficient use of the device.
Representation / realization
The color of the product Atlantis Land A08-LS1500-W is Noir. This shade gives it a modern and elegant look. The material of the product case Atlantis Land A08-LS1500-W is Plastique. This material ensures both durability and elegance.
Environmental conditions
The product Atlantis Land A08-LS1500-W has an operating relative humidity (H-H) of 20 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Atlantis Land A08-LS1500-W is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Atlantis Land A08-LS1500-W is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
