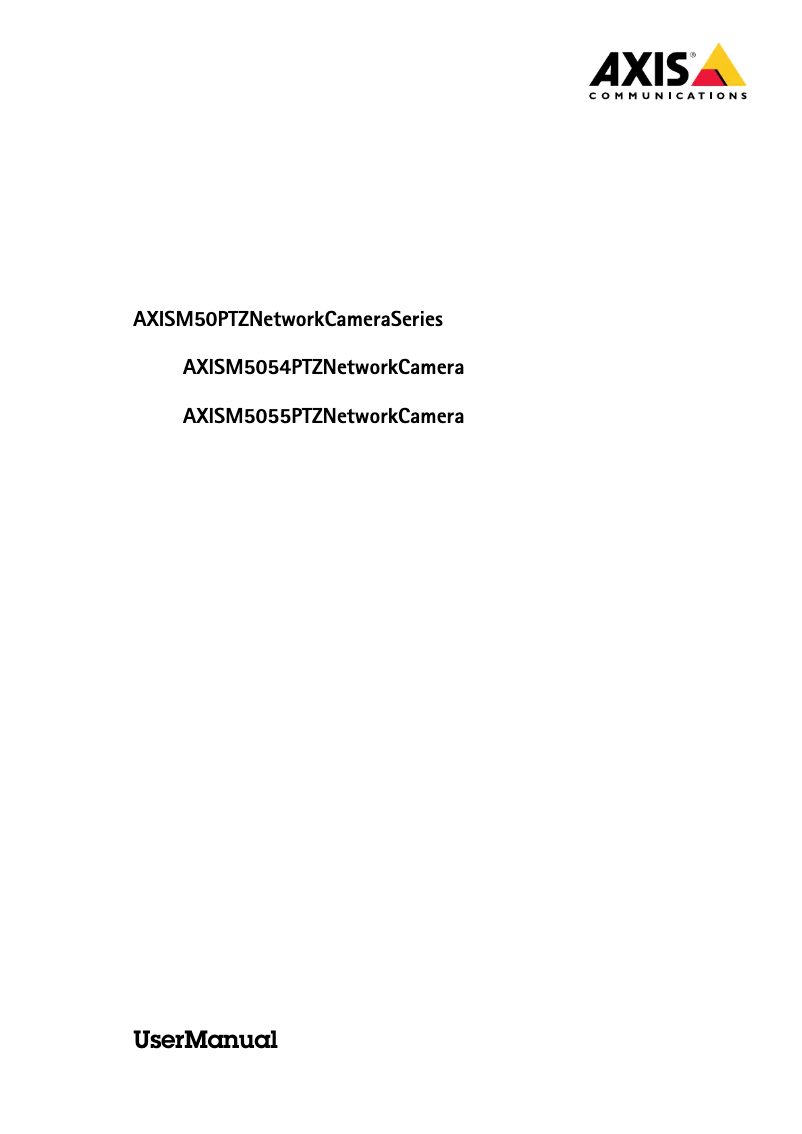

Manual of product M5054
Technical Specifications M5054
General Information
-
ModelM5054
-
Brand
-
Category
-
Type
-
SKU1209807
-
MPN1209807
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/4.85 "
-
Progressive scanYes
Objective system
-
Focal length2.2 - 11 mm
-
Minimum opening amount1.4
-
Maximum number of openings2.5
-
Zoom capacityYes
-
Zoom capacityYes
-
Optical zoom5 x
-
Digital zoom10 x
Packaging contents
-
Number of cameras1
-
User GuideYes
Camera
-
Minimum illumination0.9 lux
-
Camera shutter speed1/16000 - 1 s
-
Field of view of the lens, horizontal71 °
-
Angle of view of the lens, vertical40 °
-
Panoramic-179 - 179 °
-
Tilt speed100 °/sec
-
Inclination angle-45 - 45 °
-
Tilt speed100 °/sec
Representation / realization
-
PTZ ControlYes
-
PTZ ControlYes
-
Supported installationIndoor
-
TypeIP security camera
-
CertificationEN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN-35; IEC/EN/UL 62368-1; IEC/EN 60529 IP51
-
Number of languages11
-
Languages taken into accountCHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, KOR, POR, RUS
-
Connectivity technologyWired
Video
-
Visual compression formatsAVC, H.264, M-JPEG, MPEG4
-
Maximum resolution1280 x 720 pixels
-
Supported graphic resolutions320 x 180, 1280 x 720 (HD 720)
-
Supported video modes720p
-
Number of images per second30 fps
-
Image quality adjustmentBrightness, Sharpness
-
Binary rate controlVariable Bit Rate (VBR)
-
Video broadcastingYes
-
Video broadcastingYes
Power
-
Power supply typePoE
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Typical electricity consumption4.6 W
-
Consumption (max)7.8 W
Audio
-
Built-in microphoneYes
-
Supported audio formatsAAC, ADPCM, PCM
-
Voice codecsG.711, G.726
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Security-supported algorithmHTTPS
-
Alert notification typeE-mail
Network
-
Supported network protocolsIPv4/v6
-
Ethernet/LANHTTP
-
BluetoothHTTPS
-
BluetoothSSL/TLS
-
Type of Ethernet interfaceQoS L3 DiffServ
-
Wiring technologyFTP
-
Network standardsSFTP
-
CIFS/SMB
-
SMTP
-
Bonjour
-
UPnP
-
SNMPv1/v2c/v3 (MIB-II)
-
DNS
-
DynDNS
-
NTP
-
RTSP
-
RTP
-
TCP
-
UDP
-
IGMP
-
RTCP
-
ICMP
-
DHCP
-
ARP
-
SOCKS
-
SSH
-
Yes
-
No
-
No
-
Fast Ethernet
-
10/100Base-T(X)
-
IEEE 802.3af, IEEE 802.3at
Design
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling
-
International Protection Code (IP)IP51
-
Material of the case/bodyPlastic
Storage support
-
Flash memory256 MB
-
Internal memory512 MB
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Night vision
-
Night vision-
Environmental conditions
-
Operating temperature0 - 45 °C
-
Temperature out of operation-30 - 60 °C
-
Operating relative humidity (H-H)10 - 90 %
Management features
-
Web-based managementYes
Weight and dimensions
-
Diameter130 mm
-
Height63 mm
-
Weight375 g
Connectivity
-
InterfaceRJ-45
Logistics data
-
Harmonized System Code85258900
Similar products
More product categories from brand Axis
More product types from brand Axis
Presentation of product M5054 specifications from brand Axis
Packaging contents
The number of cameras of the product Axis M5054 is 1. This product is equipped with a camera that allows capturing high-quality images. Does the product Axis M5054 have a User Guide? Oui. This guide will allow you to fully enjoy all the features of the product.
Generalities
The EAN code of the product Axis M5054 is 7331021059894. This code allows for the unique identification of the product in the distribution system. The brand of the product Axis M5054 is Axis. This brand is known for its quality and innovation in the field of household appliances. The product model Axis M5054 is M5054 | 01079-001. This model ensures optimal performance and an enhanced user experience.
Image sensor
The sensor type of the product Axis M5054 is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Axis M5054 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Axis M5054 is 1/4.85 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Objective system
The focal length of the product Axis M5054 is 2.2 - 11 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The minimum opening number of the product Axis M5054 is 1.4. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. Does the Axis M5054 have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The maximum number of openings for the product Axis M5054 is 2.5. This feature allows for optimal use and increased flexibility. Does the product Axis M5054 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The optical zoom of the product Axis M5054 is 5 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The digital zoom of the product Axis M5054 is 10 x. This zoom allows for capturing precise details even from a distance.
Camera
The minimum illumination of the product Axis M5054 is 0.9 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Axis M5054 is 1/16000 - 1 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Axis M5054 lens is 71 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Axis M5054 is 40 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The panoramic view of the product Axis M5054 is -179 - 179 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Axis M5054 is 100 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt angle of the product Axis M5054 is -45 - 45 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Axis M5054 is 100 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience.
Representation / realization
The PTZ control of the product Axis M5054 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Axis M5054 have preset points? Oui. This feature allows for simplified and customized use according to your preferences. The design of the product Axis M5054 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Axis M5054 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The certification of the product Axis M5054 contains EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN-35; IEC/EN/UL 62368-1; IEC/EN 60529 IP51. This certification guarantees compliance with the required safety and performance standards. The number of languages of the product Axis M5054 is 11. This product offers an enriching multilingual experience. The product Axis M5054 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The languages considered for the product Axis M5054 are CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, KOR, POR, RUS. This product thus caters to a wide international audience.
Video
The product Axis M5054 has visual compression formats: AVC, H.264, M-JPEG, MPEG4. These formats ensure optimal image quality for your videos. The maximum resolution of the product Axis M5054 is 1280 x 720 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Axis M5054 are 320 x 180,1280 x 720 (HD 720). These resolutions provide optimal display quality for your content. The supported video mode of the product Axis M5054 is 720p. This mode allows you to enjoy optimal image quality for your videos. The number of frames per second of the product Axis M5054 is 30 ips. This specification ensures optimal smoothness when playing videos. The image quality setting of the product Axis M5054 contains Brightness, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The binary bitrate control of the product Axis M5054 contains Débit binaire variable (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product Axis M5054 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Axis M5054 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Power
The typical power consumption of the product Axis M5054 is 4.6 W. This feature allows for the assessment of the energy efficiency of the device. Does the Axis M5054 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The type of power source for the product Axis M5054 is PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Axis M5054 is 7.8 W. This specification allows for the assessment of the energy efficiency of the device.
Audio
Does the product Axis M5054 have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The voice codec of the Axis M5054 product contains G.711, G.726. This voice codec ensures optimal audio quality for your communications. The supported audio formats of the product Axis M5054 are AAC, ADPCM, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Security
Does the product Axis M5054 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Axis M5054 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The alert notification type for the product Axis M5054 is E-mail. This feature allows for real-time alerts for better security. The supported security algorithm of the product Axis M5054 contains HTTPS. This algorithm ensures optimal protection of your data.
Design
The color of the product Axis M5054 is Blanc. This shade gives it a modern and elegant look. The format of the product Axis M5054 is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Axis M5054 contains IP51. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Axis M5054 is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The material of the product case Axis M5054 is Plastique. This material ensures both durability and elegance.
Storage support
The product Axis M5054 has a flash memory of 256 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The product Axis M5054 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Axis M5054 have a built-in hard drive? No. This feature means that the product does not have internal storage. The internal memory of the product Axis M5054 contains 512 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. Does the Axis M5054 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Network
The supported network protocols of the product Axis M5054 are IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH. These protocols ensure efficient and reliable communication for your networking needs. Does the Axis M5054 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Axis M5054 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Axis M5054 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Axis M5054 is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product Axis M5054 contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product Axis M5054 are IEEE 802.3af, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols.
Night vision
Does the product Axis M5054 have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Environmental conditions
The operating temperature of the product Axis M5054 is 0 - 45 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Axis M5054 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Axis M5054 is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Management features
The Axis M5054 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Weight and dimensions
The weight of the product Axis M5054 is 375 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Axis M5054 is 130 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Axis M5054 is 63 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Connectivity
The product Axis M5054 has an Interface RJ-45. This interface allows for easy and quick connection with various devices.
Logistics data
The Harmonized System code for the product Axis M5054 is 85258900. This code allows for the unique identification of goods in international trade.
