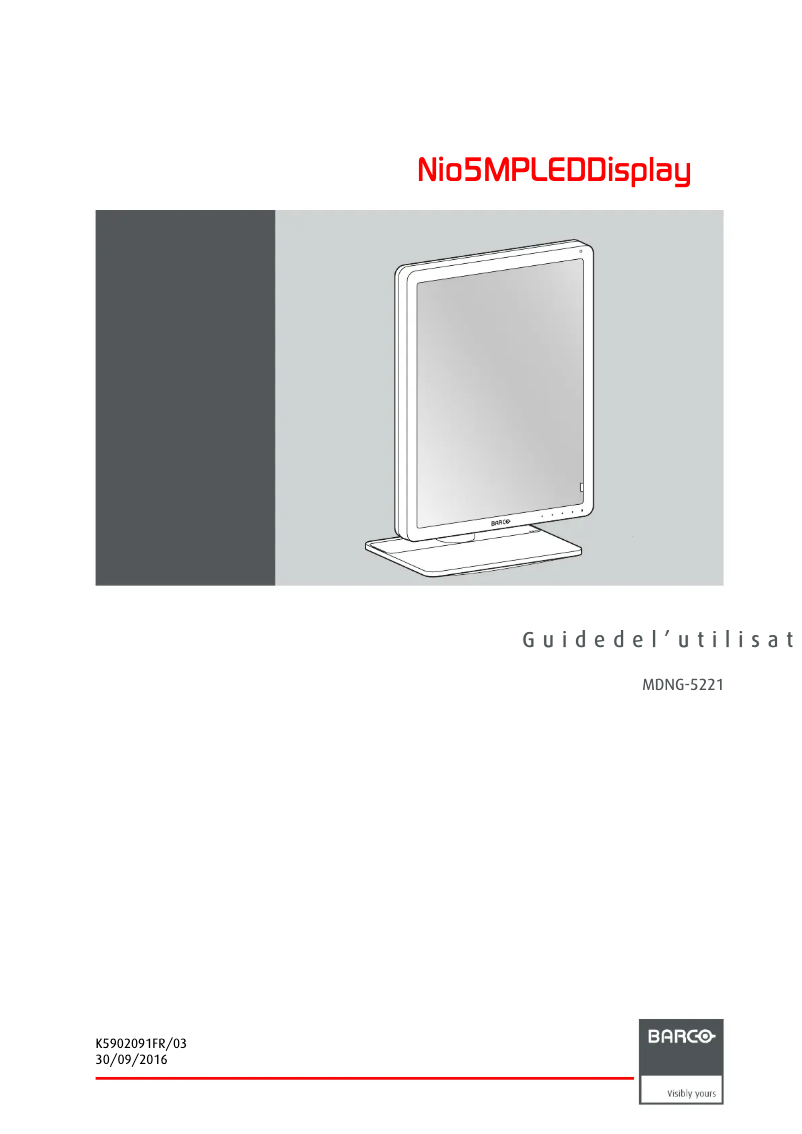

Manual of product Nio 5MP LED (MDNG-5221)
Technical Specifications Nio 5MP LED (MDNG-5221)
General Information
-
ModelNIO 5MP LED (MDNG-5221)
-
Brand
-
Category
-
Type
-
SKU791991
-
MPN791991
Screen
-
Display technologyLED
-
Screen size21.3 "
-
Visible diagonal size540 mm
-
Horizontal viewable size422.4 mm
-
Vertical viewable size337.9 mm
-
Image format5:4
-
Screen resolution2560 x 2048 pixels
-
No pixel0.165 x 0.165 mm
-
Vertical viewing angle176 °
-
Vertical viewing angle176 °
-
Screen brightness (typical)1020 cd/m²
-
Response time25 ms
-
Contrast ratio1200:1
-
Horizontal scanning domain15 - 128 kHz
-
Vertical scanning frequency24 - 100 Hz
-
Display areaMat
-
Type HD2K Ultra HD
-
Supported graphic resolutions2560 x 2048
-
Touch screenNo
-
Screen shapeFlat
-
Number of colors displayedMonochrome
-
Type of panelIPS
-
Touch screenNo
Other features
-
Built-in power button-
-
ScreenLED
-
CertificationCE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE - 2004/108/EC, CE - 93/42/EEC; A1:2007/47/EC class II b, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
-
Integrated TV tunerNon
Design
-
Product colorBlack, White
-
Market positionMedical
Connectivity
-
Built-in USB hubYes
-
Number of upstream ports1
-
Number of VGA (D-Sub) ports0
-
Number of upstream ports1
-
Built-in USB hubYes
-
USB hub version2.0
-
Number of upstream ports1
-
Number of downstream USB Type A ports2
-
Number of VGA (D-Sub) ports0
Power
-
AC input voltage100 - 240 V
-
Typical electricity consumption43 W
-
Energy consumption (standby mode)- W
Ergonomics
-
VESA mountYes
-
Number of OSD languages14
-
Multilingual display on screenARA, CHI (SIMPL), DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
-
VESA mountYes
-
Height adjustment100 mm
-
VESA mountYes
-
Inclination angle-5 - 25 °
-
VESA mountYes
-
Oscillation angle range-30 - 30 °
-
Rotation angle0 - 90 °
-
VESA mountYes
-
VESA standard100 x 100 mm
-
Cable anti-theft lockNo
Weight and dimensions
-
Width (without support)407 mm
-
Depth (support included)235 mm
-
Height (support included)623 mm
-
Width (without support)407 mm
-
Depth (without support)84 mm
-
Height (without support)493.5 mm
-
Weight (with support)13250 g
-
Weight (without support)8230 g
Packaging information
-
Package width676 mm
-
Package depth317 mm
-
Package height565 mm
-
Package weight19610 g
Packaging contents
-
User manualYes
-
User manualYes
-
Cables includedAC, DVI, DisplayPort, USB
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)8 - 80 %
-
Relative humidity rate (storage)5 - 95 %
-
Operating altitude0 - 2000 m
-
Non-operating altitude0 - 7500 m
Multimedia
-
Built-in cameraNo
-
Built-in cameraNo
Representation / realization
-
AMD FreeSyncNo
-
AMD FreeSyncNo
Thin client
-
Thin client installedNo
Logistics data
-
Harmonized System Code85285210
Similar products
More product categories from brand Barco
More product types from brand Barco
Presentation of product Nio 5MP LED (MDNG-5221) specifications from brand Barco
Generalities
The brand of the product Barco Nio 5MP LED (MDNG-5221) is Barco. This brand is known for its quality and innovation in the field of household appliances. The product model Barco Nio 5MP LED (MDNG-5221) is Nio 5MP LED (MDNG-5221) | K9602734. This model ensures optimal performance and an enhanced user experience.
Other features
Does the product Barco Nio 5MP LED (MDNG-5221) have a built-in TV tuner? No. This product does not allow you to receive television channels directly. Does the product Barco Nio 5MP LED (MDNG-5221) have a built-in power button? -. This feature allows for simplified use and optimal control of the device. The Barco Nio 5MP LED (MDNG-5221) screen contains LED. This screen offers exceptional image quality for an immersive visual experience. The certification of the product Barco Nio 5MP LED (MDNG-5221) contains CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE - 2004/108/EC, CE - 93/42/EEC; A1:2007/47/EC class II b, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS. This certification guarantees compliance with the required safety and performance standards.
Design
The color of the product Barco Nio 5MP LED (MDNG-5221) is Black, White. This shade gives it a modern and elegant look. The market position of the product Barco Nio 5MP LED (MDNG-5221) is Médical. This product is primarily aimed at professionals, offering features tailored to their specific needs.
Power
The AC input voltage of the Barco Nio 5MP LED (MDNG-5221) is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product Barco Nio 5MP LED (MDNG-5221) is - W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product Barco Nio 5MP LED (MDNG-5221) is 43 W. This feature allows for the assessment of the energy efficiency of the device.
Screen
The diagonal viewable size of the product Barco Nio 5MP LED (MDNG-5221) is 540 mm. This dimension allows for an immersive and enjoyable visual experience. The horizontal viewable size of the product Barco Nio 5MP LED (MDNG-5221) is 422.4 mm. This specification ensures an optimal visual experience for all your content. The display technology of the product Barco Nio 5MP LED (MDNG-5221) is LED. This technology ensures optimal image quality for an immersive visual experience. The screen size of the product Barco Nio 5MP LED (MDNG-5221) is 21.3 ". This dimension allows for an optimal visual experience for all your content. The vertical viewable size of the product Barco Nio 5MP LED (MDNG-5221) is 337.9 mm. This dimension allows for an optimal visual experience for users. The image format of the product Barco Nio 5MP LED (MDNG-5221) is 5:4. This format is ideal for an immersive visual experience. The screen resolution of the product Barco Nio 5MP LED (MDNG-5221) is 2560 x 2048 pixels. This feature ensures optimal display quality for a pleasant visual experience. The pixel pitch of the product Barco Nio 5MP LED (MDNG-5221) is 0.165 x 0.165 mm. This pixel pitch ensures optimal display quality without distortion. The horizontal viewing angle of the product Barco Nio 5MP LED (MDNG-5221) is 176 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Barco Nio 5MP LED (MDNG-5221) is 176 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The typical screen brightness of the product Barco Nio 5MP LED (MDNG-5221) is 1020 cd/m². This feature ensures optimal visibility in various lighting conditions. The response time of the product Barco Nio 5MP LED (MDNG-5221) is 25 ms. This fast response time ensures a smooth and responsive visual experience. The contrast ratio of the product Barco Nio 5MP LED (MDNG-5221) is 1200:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal scanning range of the product Barco Nio 5MP LED (MDNG-5221) is 15 - 128 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Barco Nio 5MP LED (MDNG-5221) is 24 - 100 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The display area of the product Barco Nio 5MP LED (MDNG-5221) is Mat. This area provides a pleasant visual experience and reduces glare. The HD Type of the product Barco Nio 5MP LED (MDNG-5221) is 2K Ultra HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The supported graphic resolutions of the product Barco Nio 5MP LED (MDNG-5221) are 2560 x 2048. These resolutions provide optimal display quality for your content. Does the product Barco Nio 5MP LED (MDNG-5221) have 3D Compatibility? No. This product does not support 3D technology. The screen shape of the product Barco Nio 5MP LED (MDNG-5221) is Plat. This feature ensures an optimal visual experience for all your multimedia needs. The number of colors displayed for the product Barco Nio 5MP LED (MDNG-5221) is Monochrome. This detail is essential for appreciating the visual quality of the screen. The panel type of the product Barco Nio 5MP LED (MDNG-5221) is IPS. This type of panel offers excellent display quality and vibrant colors. Does the product Barco Nio 5MP LED (MDNG-5221) have a touchscreen? Non.
Connectivity
Does the product Barco Nio 5MP LED (MDNG-5221) have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The product Barco Nio 5MP LED (MDNG-5221) does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of DisplayPort interfaces of the product Barco Nio 5MP LED (MDNG-5221) is 1. This specification allows for optimal connectivity with various devices. The number of HDMI ports on the Barco Nio 5MP LED (MDNG-5221) is 0. This detail is essential for determining compatibility with your multimedia devices. Does the product Barco Nio 5MP LED (MDNG-5221) have a built-in USB hub? Oui. This feature allows you to connect multiple USB devices simultaneously, thus enhancing your user experience. The version of the USB hub of the product Barco Nio 5MP LED (MDNG-5221) is 2.0. This version ensures fast and efficient connectivity for all your devices. The number of VGA (D-Sub) ports on the Barco Nio 5MP LED (MDNG-5221) is 0. This port allows for easy connection with various devices and monitors. The number of upstream ports of the product Barco Nio 5MP LED (MDNG-5221) is 1. This number determines the connection capacity with other devices. The number of downstream USB Type A ports of the product Barco Nio 5MP LED (MDNG-5221) is 2. These ports allow for easy and fast connection to various devices.
Ergonomics
The multilingual display on the Barco Nio 5MP LED (MDNG-5221) screen contains ARA, CHI (SIMPL), DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE. This system allows users to easily navigate in multiple languages, making the experience more accessible and user-friendly. Does the product Barco Nio 5MP LED (MDNG-5221) have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. The number of OSD languages of the product Barco Nio 5MP LED (MDNG-5221) is 14. This feature allows for easy use in multiple languages, making the product accessible to a wide audience. Does the product Barco Nio 5MP LED (MDNG-5221) have a height adjustment? No. This product does not allow for height adjustment. Does the product Barco Nio 5MP LED (MDNG-5221) have a height adjustment? No. This product does not allow for height adjustment. Does the product Barco Nio 5MP LED (MDNG-5221) have an Incline Adjustment? Oui. This feature allows you to adjust the angle according to your needs for optimal comfort. The tilt angle of the product Barco Nio 5MP LED (MDNG-5221) is -5 - 25 °. This angle allows for adjusting the position for optimal comfort. Is the Barco Nio 5MP LED (MDNG-5221) product Rotating? Oui. This feature allows for optimal usage flexibility. The oscillation angle range of the product Barco Nio 5MP LED (MDNG-5221) is -30 - 30 °. This feature allows for optimal flexibility during its use. The rotation angle of the product Barco Nio 5MP LED (MDNG-5221) is 0 - 90 °. This angle allows for optimal usage flexibility. Does the product Barco Nio 5MP LED (MDNG-5221) have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The product Barco Nio 5MP LED (MDNG-5221) has the VESA Standard 100 x 100 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Does the product Barco Nio 5MP LED (MDNG-5221) have a cable lock port? No. This product does not have this security feature.
Packaging information
The width of the package of the product Barco Nio 5MP LED (MDNG-5221) is 676 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Barco Nio 5MP LED (MDNG-5221) is 317 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Barco Nio 5MP LED (MDNG-5221) is 565 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Barco Nio 5MP LED (MDNG-5221) package is 19610 g. This weight ensures optimal protection during transport and delivery.
Weight and dimensions
The width of the device Barco Nio 5MP LED (MDNG-5221) is 407 mm. This dimension includes the stand, ensuring a seamless integration into your space. The width of the product Barco Nio 5MP LED (MDNG-5221) is 407 mm. This dimension allows for optimal integration into various spaces. The depth of the product Barco Nio 5MP LED (MDNG-5221) is 235 mm. This dimension is essential to ensure optimal integration into your space. The height (including support) of the product Barco Nio 5MP LED (MDNG-5221) is 623 mm. This dimension is essential to ensure that the product fits perfectly in your space. The unsupported depth of the product Barco Nio 5MP LED (MDNG-5221) is 84 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Barco Nio 5MP LED (MDNG-5221) is 493.5 mm. This dimension is essential to ensure the product fits your space. The weight (with support) of the product Barco Nio 5MP LED (MDNG-5221) is 13250 g. This weight includes all the necessary accessories for its use. The weight of the product Barco Nio 5MP LED (MDNG-5221) is 8230 g. This weight is essential for assessing the maneuverability and transport of the product.
Packaging contents
The included cable of the product Barco Nio 5MP LED (MDNG-5221) contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Barco Nio 5MP LED (MDNG-5221) have a User Manual? Oui. This document provides clear instructions for optimal use of the product. Does the product Barco Nio 5MP LED (MDNG-5221) have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product.
Environmental conditions
The non-operating temperature of the product Barco Nio 5MP LED (MDNG-5221) is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Barco Nio 5MP LED (MDNG-5221) is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Barco Nio 5MP LED (MDNG-5221) is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Barco Nio 5MP LED (MDNG-5221) has an operating relative humidity (H-H) of 8 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating altitude of the product Barco Nio 5MP LED (MDNG-5221) is 0 - 2000 m. This specification ensures optimal performance across a wide range of altitudes. The altitude of non-operation for the product Barco Nio 5MP LED (MDNG-5221) is 0 - 7500 m. This specification ensures that the product can operate efficiently across a wide range of altitudes.
Multimedia
Does the Barco Nio 5MP LED (MDNG-5221) have a built-in camera? Non. This camera allows you to capture precious moments with ease. Does the product Barco Nio 5MP LED (MDNG-5221) have built-in speakers? Non. These speakers provide an immersive and convenient audio experience.
Thin client
Does the product Barco Nio 5MP LED (MDNG-5221) have Thin client installed? No. This product does not have this feature.
Representation / realization
Does the product Barco Nio 5MP LED (MDNG-5221) have NVIDIA G-SYNC? No. This technology helps eliminate screen tearing and improve gaming smoothness. Does the product Barco Nio 5MP LED (MDNG-5221) have AMD FreeSync? No. This technology helps eliminate screen tearing and ensures a smooth gaming experience.
Logistics data
The Harmonized System code for the product Barco Nio 5MP LED (MDNG-5221) is 85285210. This code allows for the unique identification of goods in international trade.
