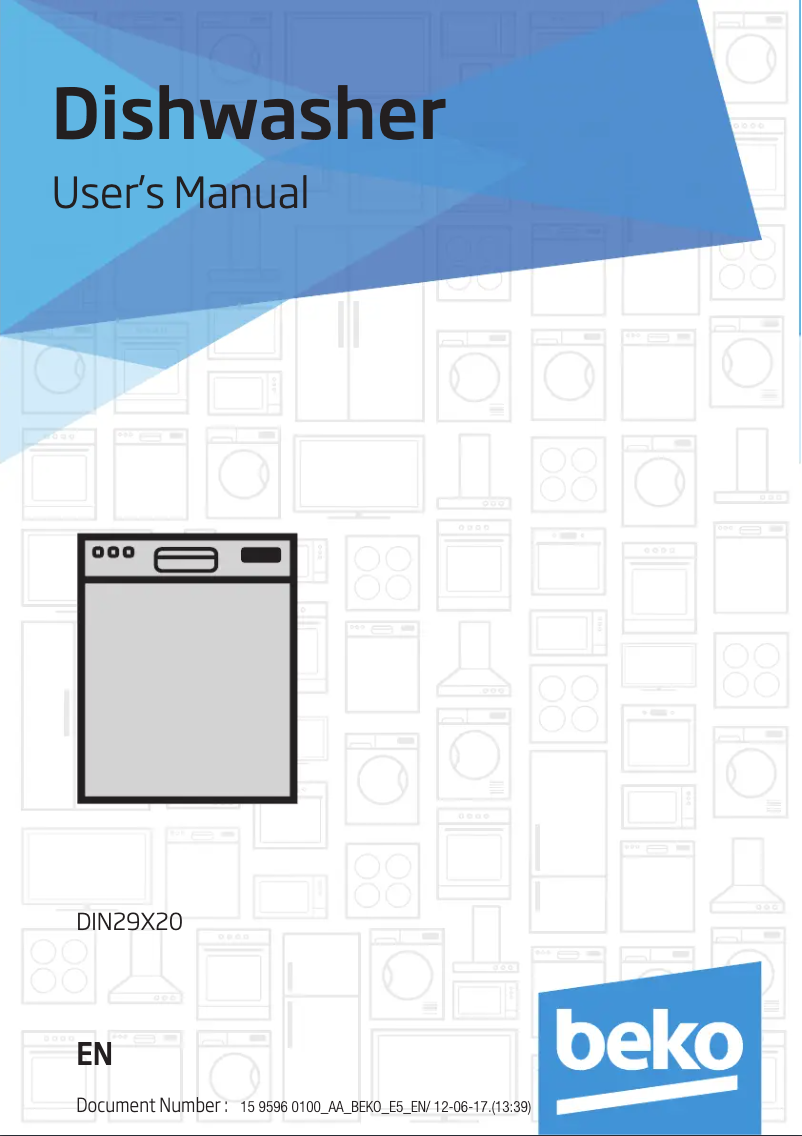

Manuals of product DIN29X20
Editorial note
The Beko DIN29X20 dishwasher stands out with its integrated and elegant design, easily fitting into various spaces while preserving the aesthetics of your kitchen. With a capacity of 14 place settings and 9 wash programs, it offers optimal flexibility and efficiency to meet your needs, even during family or friend meals. Additionally, the built-in adjustable water softener enhances washing performance and extends the appliance's durability, while the self-cleaning filtration system and salt indicator simplify maintenance. However, some aspects deserve consideration. The noise level of 44 dB, while reasonable, may be perceived as high in very quiet environments, especially during nighttime wash cycles. The absence of an included door panel may also require an additional purchase, which could increase the total cost. Furthermore, the energy efficiency class E may not be suitable for environmentally conscious users, especially compared to other more efficient models. Finally, the weight of 40.2 kg may complicate installation, potentially requiring the assistance of several people or a professional. Overall, the Beko DIN29X20 is a solid model that combines design and functionality, but it is important to consider these drawbacks to make an informed choice.Score details
User experience
The Beko DIN29X20 dishwasher offers a pleasant user experience thanks to its integrated and elegant design, perfectly adapting to different spaces while preserving the kitchen's aesthetics.
Performance
With a capacity of 14 place settings and 9 wash programs, this model ensures flexibility and efficiency, although the cycle duration of 220 minutes for a standard wash may seem long for some users.
Battery life
Its low noise level of 44 dB is pleasant for domestic use, but may be perceived as high in very quiet environments, especially during nighttime wash cycles.
Design
The integrated design and ready-to-use custom panels add a unique touch to the space while ensuring optimal use.
Value for money
The absence of an included door panel may require an additional purchase, thus increasing the total cost, while the energy efficiency class E may not be suitable for environmentally conscious users.
repairability
The self-cleaning filtration system and salt indicator make maintenance easier, ensuring optimal operation without requiring frequent interventions.
Usability
The weight of 40.2 kg may make installation difficult, potentially requiring the assistance of several people or a professional for proper setup.
Advantages
Integrated and elegant design for all kitchens.
Capacity of 14 place settings and 9 programs.
Adjustable water softener for better washing.
Self-cleaning filtration and salt indicator.
Low noise of 44 dB for peace.
Disadvantages
Sound level of 44 dB a bit high."
Door panel not included to purchase."
Energy class E, insufficient for some."
Weight of 40.2 kg difficult to install."
Standard washing cycle of 220 minutes.
Technical Specifications DIN29X20
General Information
-
ModelDIN29X20
-
Brand
-
Category
-
Type
-
SKU1314999
-
MPN1314999
Design
-
Device placementFully integrated
-
Product sizeMaximum size (60 cm)
-
Removable cutlery basketYes
-
Color of the doorNot applicable
-
Order typeButtons
-
Removable cutlery basketYes
-
Removable cutlery basketYes
-
Adjustable height upper basket3
-
Maximum dish size (upper basket)185 mm
-
Maximum dish size (lower basket)295 mm
-
Cable length1.5 m
-
Removable cutlery basketYes
-
Water fillingcold
-
Removable cutlery basketYes
-
Door panel includedNo
-
Removable cutlery basketYes
-
Screen typeLCD
-
Tank materialStainless steel
-
Hinge location of doorFixed
-
Length of the drainage pipe1.3 m
-
The diameter of the pipe16 mm
-
Removable cutlery basketYes
-
Removable cutlery basketYes
Ergonomics
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Child safetyNo
-
Adjustment of the feet100 mm
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
Representation / realization
-
AquaStop function-
-
Self-cleaningYes
-
Number of covers14 covers
-
Number of washing programs9
-
Sound emission classB
-
Sound level44 dB
-
Washing programsSteam
-
Temperature (max)- °C
-
Cycle duration220 min
-
Cycle time (fast program)30 min
-
Self-cleaningYes
-
Delayed departure24 h
-
Self-cleaningYes
-
Number of temperature settings6
-
Recommended minimum water pressure300 kPa
-
Self-cleaningYes
-
Self-cleaningYes
-
Maximum recommended water pressure1000 kPa
-
Self-cleaningYes
-
Drying systemActive ventilation
Power
-
Energy efficiency class (old)E
-
Energy efficiency rangeA to G
-
Water consumption per cycle9.5 L
-
Energy consumption per 100 cycles95 kWh
-
Connected charge2100 W
-
Heating supply1800 W
-
AC input voltage220-240 V
-
AC input frequency50 Hz
-
Energy consumption per cycle0.951 kWh
-
Current13 A
-
Energy efficiency class (old)E
Weight and dimensions
-
Width598 mm
-
Depth550 mm
-
Height818 mm
-
Weight40200 g
-
Custom panel weight (min)3000 g
-
Custom panel weight (max)6000 g
-
Depth when the door is open1150 mm
-
Height under worktop820 mm
Packaging information
-
Package width644 mm
-
Package depth661 mm
-
Package height859 mm
-
Package weight43200 g
Logistics data
-
Automated Commodity Classification Tracking System (CCATS)84221100
-
Automated Commodity Classification Tracking System (CCATS)84221100
-
Weight of expanded polystyrene (EPS) packaging660 g
-
Weight of the metal packaging12 g
-
Weight of the paper packaging700 g
-
Weight of plastic packaging205 g
-
Weight of wooden packaging450 g
Other features
-
Washing classA
Frequently Asked Questions
What should I do if my dishwasher emits an unpleasant odor?
Is it necessary to rinse dishes before placing them in the dishwasher?
What is the amount of detergent to use?
How do I add softening salt to my dishwasher?
What is the weight of the Beko DIN29X20?
What is the height of the Beko DIN29X20?
What is the width of the Beko DIN29X20?
What is the depth of the Beko DIN29X20?
What is the energy rating of the Beko DIN29X20?
Is the manual for the Beko DIN29X20 available in French?
Similar products
More product categories from brand Beko
More product types from brand Beko
Presentation of product DIN29X20 specifications from brand Beko
General Information
The Beko DIN29X20 dishwasher is a product from the renowned brand Beko, known for its innovation and reliability in the field of household appliances. This model, identified by the EAN code 5023790043465, offers optimal washing performance and an enhanced user experience thanks to its advanced features.
Design
Designed to seamlessly integrate into your kitchen, the Beko DIN29X20 features a built-in design that preserves the overall aesthetics of your space. With a width of 60 cm, it fits various layouts. Its customizable panel allows for a personal touch. The appliance is equipped with intuitive control buttons and an LCD screen for simplified use. The upper basket is height-adjustable, allowing flexibility in organizing your dishes. Its stainless steel tub ensures durability and resistance to corrosion.
Ergonomics
The Beko DIN29X20 incorporates several practical indicators such as the salt and rinse aid indicators, making it easy to monitor product levels. Although it does not have a child safety lock, it is equipped with adjustable feet of 100 mm for easy height adjustment. The automatic detergent detection system optimizes washing efficiency, while the self-cleaning filter reduces the necessary maintenance.
Washing Performance
With a capacity of 14 place settings and 9 washing programs, this model is ideal for family or friend gatherings. Its noise emission class is rated B, with a noise level of 44 dB, allowing for pleasant use in home environments. The steam washing program and 6 temperature settings ensure cleaning results suitable for different types of dishes.
Power and Energy Efficiency
The Beko DIN29X20 is rated E for energy efficiency, with a water consumption of 9.5 L per cycle and an energy consumption of 0.951 kWh. It is designed to operate with an input voltage of 220-240 V and a frequency of 50 Hz, ensuring compatibility with standard electrical systems.
Dimensions and Weight
The dimensions of the appliance are 598 mm wide, 550 mm deep, and 818 mm high, allowing for effortless integration into modern kitchens. With a weight of 40.2 kg, installation may require several people. The maximum depth when the door is open reaches 1150 mm, ensuring easy access to the interior.
Packaging Information
The package of the Beko DIN29X20 measures 644 mm wide, 661 mm deep, and 859 mm high, with a total weight of 43.2 kg, facilitating transport and handling.
Other Features
The washing class of this appliance is A, ensuring superior cleaning efficiency. Additionally, the active ventilation drying system optimizes drying results.
