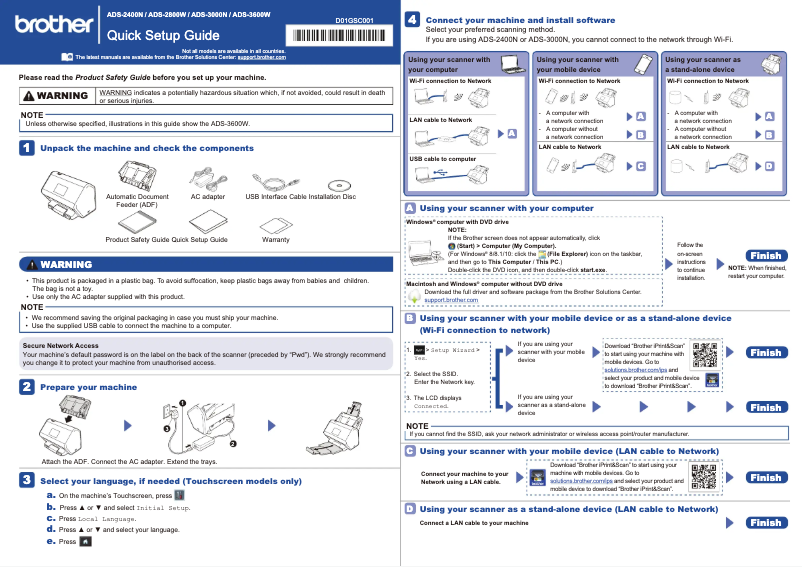

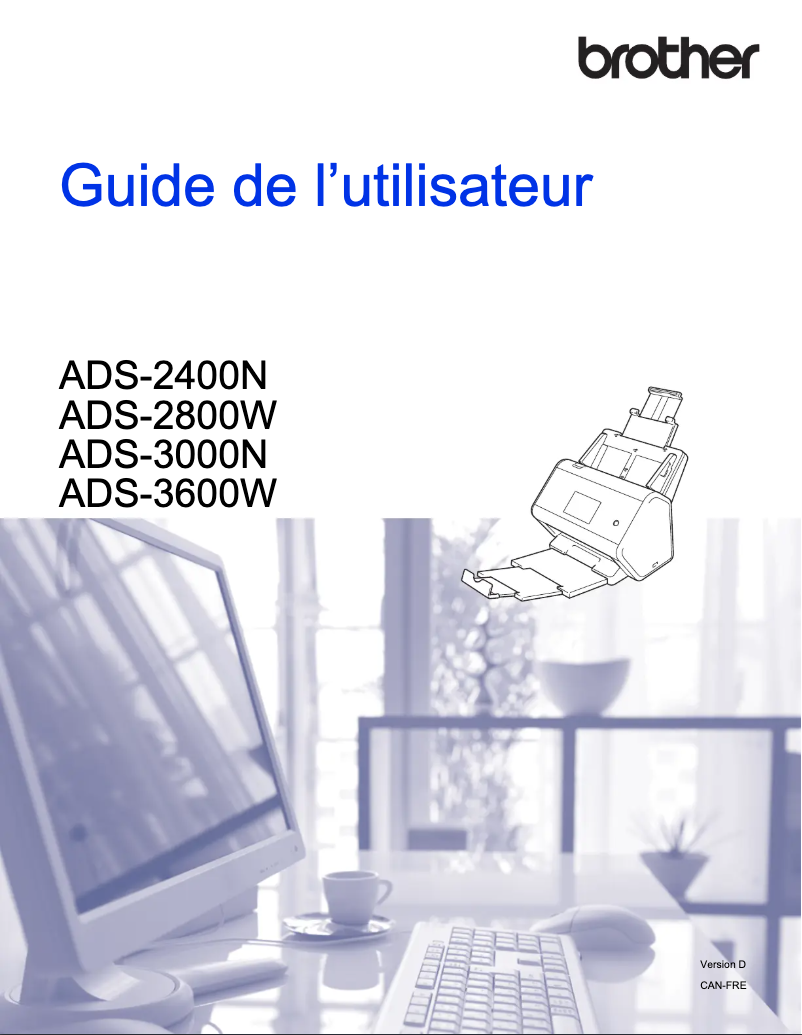

Manuals of product ImageCenter ADS-3600W
Technical Specifications ImageCenter ADS-3600W
General Information
-
ModelIMAGECENTER ADS-3600W
-
Brand
-
Category
-
Type
-
SKU745905
-
MPN745905
Digitization
-
Maximum scanning area215.9 x 355.6 mm
-
Optical scanning resolution600 x 600 DPI
-
Enhanced scanning resolution1200 x 1200 DPI
-
Double-sided scanningYes
-
Double-sided scanningYes
-
Film scanningNo
-
ADF scanning speed (color, A4)50 ppm
-
ADF scanning speed (color, A4)50 ppm
-
Gray levels256
-
Input color display depth30 bit
-
Output color display depth24 bit
Design
-
Type of scannerScanner ADF
-
Product colorBlack
-
ScreenLCD
-
Built-in screenYes
-
Screen size3.66 "
-
Built-in screenYes
Representation / realization
-
Sensor typeDual CIS
-
Operating cycle per day (max)5000 pages
-
Scan toCloud, E-mail, FTP, File, HTTP, Image, OCR, PC, USB
-
Scan driversICA, SANE, TWAIN, WIA
-
Internal memory512 MB
Input capacity
-
Automatic document feeder capacity50 sheets
Paper management
-
Maximum ISO A series paper sizeA3
-
Support for media scanning typesBusiness Card
-
Weight of the media, automatic document feederPlastic Card
-
ISO, Format Series A (A0...A9)Recycled paper
-
Thick paper
-
Thin paper
-
27 - 413 g/m²
-
A3
-
A4
-
A5
-
A6
-
A7
-
A8
Power
-
Type of power supplySector
-
Typical electricity consumption30 W
-
Energy consumption (standby mode)4.9 W
-
Electricity consumption (stop)0.12 W
-
Energy consumption (eco mode)2.9 W
Packaging contents
-
Provided softwareMac: Brother Control Center 2
-
ABBYY FineReader Professional Edition
-
Remote Set-up
-
-
Windows: Brother Control Center 4
-
Nuance Paperport 14 SE
-
ABBYY FineReader v.11 Professional Edition
-
ABBYY PDF Transformer+
-
Remote Set-up
-
BRAdmin Professional 3
Weight and dimensions
-
Width306 mm
-
Depth258 mm
-
Height250 mm
-
Weight4450 g
Technical details
-
Sustainability certificatesENERGY STAR
Minimum system requirements
-
Support for the Mac operating systemYes
-
Support for the Windows operating systemWindows 7 Enterprise
-
Windows 7 Enterprise x64
-
Windows 7 Home Basic
-
Windows 7 Home Basic x64
-
Windows 7 Home Premium
-
Windows 7 Home Premium x64
-
Windows 7 Professional
-
Windows 7 Professional x64
-
Windows 7 Starter
-
Windows 7 Starter x64
-
Windows 7 Ultimate
-
Windows 7 Ultimate x64
-
Windows 8
-
Windows 8 Enterprise
-
Windows 8 Pro
-
Windows 8 Pro x64
-
Windows 8 x64
-
Windows Vista Business
-
Windows Vista Business x64
-
Windows Vista Enterprise
-
Windows Vista Enterprise x64
-
Windows Vista Home Basic
-
Windows Vista Home Basic x64
-
Windows Vista Home Premium
-
Windows Vista Home Premium x64
-
Windows Vista Ultimate
-
Windows Vista Ultimate x64
-
Windows XP Home
-
Windows XP Home x64
-
Windows XP Professional
-
Windows XP Professional x64
Packaging information
-
Package width382 mm
-
Package depth254 mm
-
Package height330 mm
-
Package weight6300 g
Environmental conditions
-
Operating relative humidity (H-H)20 - 80 %
-
Operating temperature5 - 35 °C
Network
-
Wifi standards802.11b
-
Supported network protocols802.11g
-
Security-supported algorithmWi-Fi 4 (802.11n)
-
Ethernet/LANARP
-
Ethernet/LANRARP
-
BOOTP
-
DHCP
-
APIPA (Auto IP)
-
WINS/NetBIOS name resolution
-
DNS Resolver
-
mDNS
-
LLMNR responder
-
Custom Raw Port/Port9100
-
SMTP Client
-
FTP Client and Server
-
LDAP Client
-
CIFS Client
-
SNMPv1/v2c/v3
-
HTTP/HTTPS server
-
TFTP client and server
-
ICMP
-
Web Services (Scan)
-
SNTP Client
-
EAP-FAST
-
EAP-MD5
-
EAP-TLS
-
EAP-TTLS
-
HTTPS
-
IPSEC
-
PEAP
-
SMTP-AUTH
-
SNMP
-
SSL/TLS
-
Yes
-
Yes
Connectivity
-
USB portYes
Logistics data
-
Harmonized System Code84716070
Similar products
More product categories from brand Brother
Home appliances Brother
Other Brother
Tools Brother
Phones Brother
Interior Brother
More product types from brand Brother
Presentation of product ImageCenter ADS-3600W specifications from brand Brother
Design
The type of scanner of the product Brother ImageCenter ADS-3600W is a Scanner ADF. This type of scanner allows for fast and efficient scanning of multiple documents at once. The Brother ImageCenter ADS-3600W screen contains LCD. This screen offers exceptional image quality for an immersive visual experience. Does the product Brother ImageCenter ADS-3600W have a touchscreen? Oui. The color of the product Brother ImageCenter ADS-3600W is Noir. This shade gives it a modern and elegant look. The screen size of the product Brother ImageCenter ADS-3600W is 3.66 ". This dimension allows for an optimal visual experience for all your content. The Brother ImageCenter ADS-3600W has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device.
Representation / realization
The sensor type of the product Brother ImageCenter ADS-3600W is Dual CIS. This type of sensor ensures optimal image quality for your needs. The daily operating cycle (max) of the product Brother ImageCenter ADS-3600W is 5000 pages. This cycle allows for intensive use while ensuring optimal performance. The scanning mode of the product Brother ImageCenter ADS-3600W contains Cloud, E-mail, FTP, File, HTTP, Image, OCR, PC, USB. This mode allows flexibility in the choice of scanning protocols. The scan driver for the product Brother ImageCenter ADS-3600W contains ICA, SANE, TWAIN, WIA. This scan driver ensures optimal compatibility with various scanning systems. The internal memory of the product Brother ImageCenter ADS-3600W contains 512 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use.
Generalities
The brand of the product Brother ImageCenter ADS-3600W is Brother. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Brother ImageCenter ADS-3600W is 4977766755351, 4977766755368, 4977766755375, 0012502642794, 4977766755382, 4977766755399, 4002352011099. This code allows for the unique identification of the product in the distribution system. The product model Brother ImageCenter ADS-3600W is ImageCenter ADS-3600W | ADS-3600W. This model ensures optimal performance and an enhanced user experience.
Input capacity
The capacity of the automatic document feeder of the product Brother ImageCenter ADS-3600W is 50 feuilles. This capacity allows for the efficient processing of a large volume of documents at once.
Digitization
The maximum scanning surface of the product Brother ImageCenter ADS-3600W is 215.9 x 355.6 mm. This feature allows for the precise and efficient scanning of large documents. The product Brother ImageCenter ADS-3600W has an optical scanning resolution of 600 x 600 DPI. This specification ensures high-quality images and precise details during scanning. The product Brother ImageCenter ADS-3600W has an enhanced scanning resolution of 1200 x 1200 DPI. This specification ensures images of exceptional clarity, ideal for professional documents and photos. Does the product Brother ImageCenter ADS-3600W have color scanning? Oui. This feature allows capturing images with vibrant and accurate colors, thus providing superior image quality. Does the product Brother ImageCenter ADS-3600W have Duplex scanning? No. This feature would allow scanning documents on both sides, but this product does not offer it. Does the product Brother ImageCenter ADS-3600W have Film Scanning? Non. This specification indicates that the product does not allow film scanning. The product Brother ImageCenter ADS-3600W has an ADF scanning speed (b/w, A4) of 50 ppm. This performance ensures fast and efficient scanning for all your documents. The product Brother ImageCenter ADS-3600W has an ADF scanning speed (color, A4) of 50 ppm. This feature allows for optimizing efficiency when scanning color documents in A4 format. The grayscale levels of the product Brother ImageCenter ADS-3600W contain 256. This specification allows for detailed and precise shades in scanned images. The color input display depth of the product Brother ImageCenter ADS-3600W is 30 bit. This specification ensures accurate color reproduction for an optimal visual experience. The output color display depth of the product Brother ImageCenter ADS-3600W is 24 bit. This feature ensures accurate and rich color reproduction for an optimal visual experience.
Paper management
The product Brother ImageCenter ADS-3600W has a maximum ISO A series paper size of A3. This specification ensures optimal compatibility with standard printers and office equipment. The weight of the product support Brother ImageCenter ADS-3600W is 27 - 413 g/m². This weight allows for optimal use with the automatic document feeder, thus ensuring efficient and reliable performance. The product Brother ImageCenter ADS-3600W has ISO, Format Series A (A0...A9): A3, A4, A5, A6, A7, A8. This specification ensures compatibility with standard paper sizes such as A4 and A5. The support for the scanning types of the product Brother ImageCenter ADS-3600W is suitable for business cards, envelopes, and plastic cards. This varied support allows for optimal flexibility for all your scanning needs.
Packaging contents
The software provided with the product Brother ImageCenter ADS-3600W contains Mac: Brother Control Center 2, ABBYY FineReader Professional Edition, Remote Set-up\n\nWindows: Brother Control Center 4, Nuance Paperport 14 SE, ABBYY FineReader v.11 Professional Edition, ABBYY PDF Transformer+, Remote Set-up, BRAdmin Professional 3. This software enhances the user experience and optimizes the device's performance.
Weight and dimensions
The weight of the product Brother ImageCenter ADS-3600W is 4450 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Brother ImageCenter ADS-3600W is 250 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Brother ImageCenter ADS-3600W is 258 mm. This dimension allows for optimal integration into your space. The width of the product Brother ImageCenter ADS-3600W is 306 mm. This dimension is essential to ensure optimal integration into your space.
Power
The power supply type of the product Brother ImageCenter ADS-3600W is Secteur. This specification ensures reliable and efficient use of the device. The typical power consumption of the product Brother ImageCenter ADS-3600W is 30 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Brother ImageCenter ADS-3600W is 4.9 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The power consumption (standby) of the product Brother ImageCenter ADS-3600W is 0.12 W. This feature helps to minimize energy consumption when the device is in standby mode. The energy consumption in economy mode of the product Brother ImageCenter ADS-3600W is 2.9 W. This feature significantly reduces electrical consumption while maintaining optimal performance.
Technical details
The product Brother ImageCenter ADS-3600W has Sustainability Certificates: ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Minimum system requirements
Does the product Brother ImageCenter ADS-3600W support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users. Does the product Brother ImageCenter ADS-3600W support the Windows operating system? Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Packaging information
The depth of the product package Brother ImageCenter ADS-3600W is 254 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Brother ImageCenter ADS-3600W is 382 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Brother ImageCenter ADS-3600W package is 6300 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Brother ImageCenter ADS-3600W is 330 mm. This dimension is essential to ensure optimal transport and storage.
Environmental conditions
The product Brother ImageCenter ADS-3600W has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Brother ImageCenter ADS-3600W is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Connectivity
Does the Brother ImageCenter ADS-3600W have a USB Port? Oui. This feature allows for easy and quick connection to various devices.
Logistics data
The Harmonized System code for the product Brother ImageCenter ADS-3600W is 84716070. This code allows for the unique identification of goods in international trade.
Network
The wifi standard of the product Brother ImageCenter ADS-3600W contains 802.11b, 802.11g, Wi-Fi 4 (802.11n). This wifi standard ensures a fast and reliable connection for all your devices. The supported network protocols of the product Brother ImageCenter ADS-3600W are ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, Custom Raw Port/Port9100, SMTP Client, FTP Client and Server, LDAP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Scan), SNTP Client. These protocols ensure efficient and reliable communication for your networking needs. The supported security algorithm of the product Brother ImageCenter ADS-3600W contains EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPSEC, PEAP, SMTP-AUTH, SNMP, SSL/TLS. This algorithm ensures optimal protection of your data. The Wifi of the product Brother ImageCenter ADS-3600W contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Brother ImageCenter ADS-3600W have Ethernet/LAN? Oui. This specification determines the network connectivity of the product.
