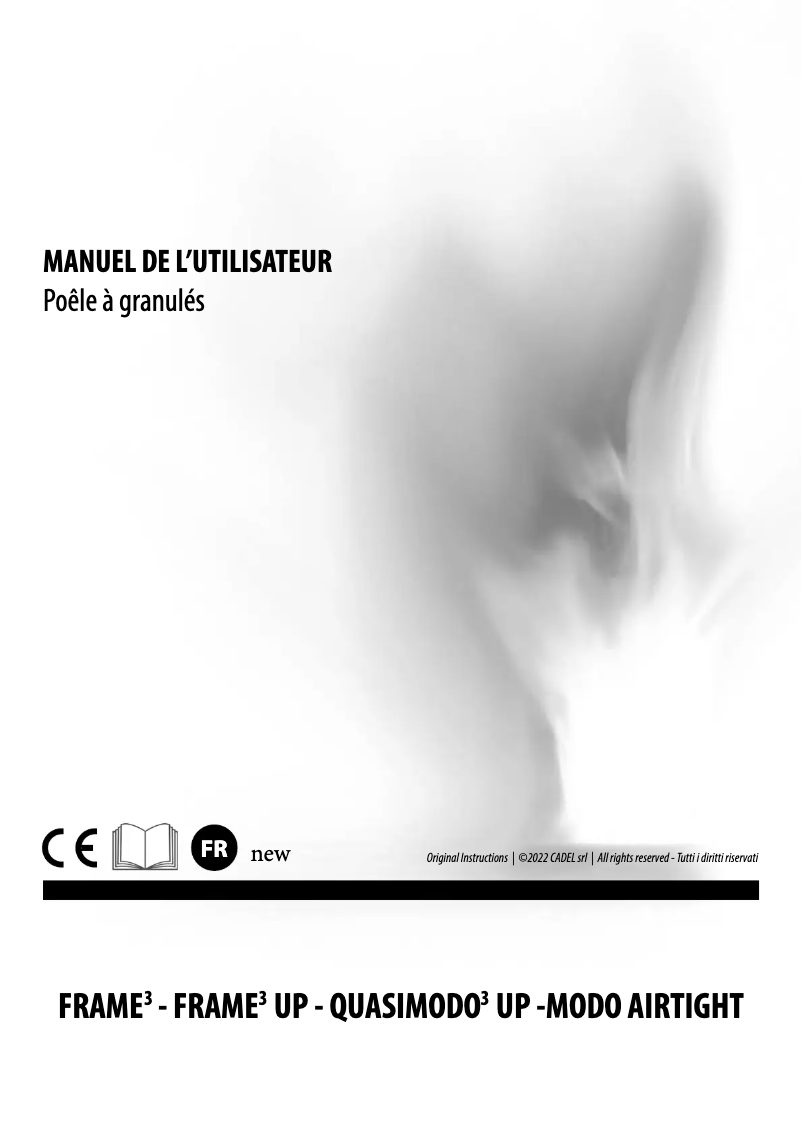

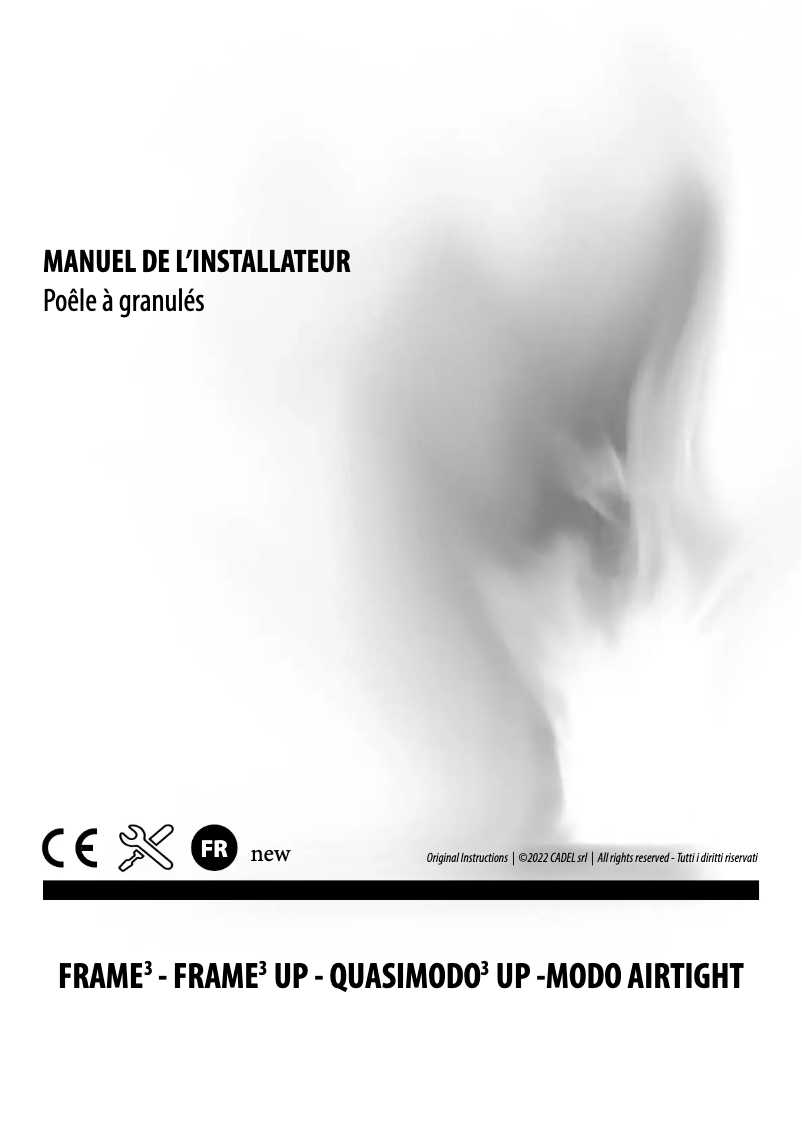

Manuals of product Frame 9 Up
Technical Specifications Frame 9 Up
Oven
-
Oven includedNo
Design
-
Device placementFree-standing
-
Product colorBlack, Bronze
-
Material of the case/bodyAluminium, Cast iron
-
Hopper capacity15 kg
-
Escape locationHigh
Power
-
Power supplySector
-
Power- W
-
AC input voltage230 V
-
AC input frequency50 Hz
-
Electricity consumption (ignition)346 W
-
Consumption (max)113.7 W
Representation / realization
-
Type of fuelPellet
-
Suitable for room volume up to265 m³
-
Suitable for a room up to98 m²
-
Nominal efficiency89 %
-
Reduced efficiency93.9 %
-
Chimney flue (max)11.8 Pascal
-
Level (nominal) of carbon monoxide (CO)0.009 %
-
Reduced level of carbon monoxide (CO)0.021 %
-
Average dust content19 mg/Nm³
-
Thermal input (nominal)9.3 kW
-
Thermal input (reduced)2.7 kW
-
Range of autonomy6.9 - 25 h
-
Duct gas temperature190 °C
-
Pellet consumption (min)0.59 kg/h
-
Pellet consumption (max)2.18 kg/h
-
Maximum supported pellet diameter6 mm
-
External thermostatYes
-
Number of power levels3
-
External thermostatYes
-
External thermostatYes
-
External thermostatYes
Weight and dimensions
-
Width734 mm
-
Depth530 mm
-
Height780 mm
-
Diameter of the exhaust duct80 mm
-
Weight106000 g
Packaging information
-
Package weight118000 g
Plate
-
Included plateNo
Similar products
More product categories from brand Cadel
Interior Cadel
Other Cadel
More product types from brand Cadel
Presentation of product Frame 9 Up specifications from brand Cadel
Oven
Does the product Cadel Frame 9 Up have an oven included? Non. This feature allows you to easily and efficiently cook your favorite dishes.
Generalities
The brand of the product Cadel Frame 9 Up is Cadel. This brand is known for its quality and innovation in the field of household appliances. The product model Cadel Frame 9 Up is Frame 9 Up | 7020004. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Cadel Frame 9 Up is 8053859012740. This code allows for the unique identification of the product in the distribution system.
Design
The placement of the Cadel Frame 9 Up device is integrated. This design allows for optimal use while preserving the overall aesthetics. The capacity of the product hopper Cadel Frame 9 Up is 15 kg. This feature allows for the storage of a significant amount of material, thus facilitating its use. The color of the product Cadel Frame 9 Up is Black, Bronze. This shade gives it a modern and elegant look. The material of the product case Cadel Frame 9 Up is Aluminium, Cast iron. This material ensures both durability and elegance. The exhaust location of the product Cadel Frame 9 Up is Haut. This exhaust location ensures efficient gas evacuation, thus contributing to optimal operation.
Power
The power supply of the product Cadel Frame 9 Up is Secteur. This power supply ensures optimal autonomy for prolonged use. The AC input frequency of the product Cadel Frame 9 Up is 50 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Cadel Frame 9 Up is 230 V. This specification ensures optimal compatibility with standard electrical systems. The power of the product Cadel Frame 9 Up is - W. This power ensures optimal performance for your needs. The power consumption (startup) of the product Cadel Frame 9 Up is 346 W. This specification allows for the assessment of energy efficiency during the use of the device. The maximum consumption of the product Cadel Frame 9 Up is 113.7 W. This specification allows for the assessment of the energy efficiency of the device.
Packaging information
The weight of the Cadel Frame 9 Up package is 118000 g. This weight ensures optimal protection during transport and delivery.
Weight and dimensions
The width of the product Cadel Frame 9 Up is 734 mm. This dimension is essential to ensure optimal integration into your space. The diameter of the exhaust duct for the product Cadel Frame 9 Up is 80 mm. This diameter is essential for ensuring effective evacuation of smoke or gases. The depth of the product Cadel Frame 9 Up is 530 mm. This dimension allows for optimal integration into your space. The height of the product Cadel Frame 9 Up is 780 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Cadel Frame 9 Up is 106000 g. This weight is ideal for ensuring optimal use and easy handling.
Plate
Does the product Cadel Frame 9 Up come with a plate included? Non. This feature ensures immediate and convenient use of the product.
Representation / realization
The fuel type of the product Cadel Frame 9 Up is Pellet. This type of fuel allows for optimal and environmentally friendly use. The appropriate room volume for the product Cadel Frame 9 Up is up to 265 m³. This product is ideal for optimizing space in various environments. The product Cadel Frame 9 Up is suitable for a room up to 98 m². This specification ensures optimal use in spaces of this size. The nominal efficiency of the product Cadel Frame 9 Up is 89 %. This specification ensures optimal performance for efficient use. The reduced efficiency of the product Cadel Frame 9 Up is 93.9 %. This feature ensures optimal performance while minimizing the resources used. The chimney flue of the product Cadel Frame 9 Up has a maximum pressure of 11.8 Pascal. This flue is essential for ensuring effective smoke evacuation and guaranteeing the safety of your installation. The nominal level of carbon monoxide (CO) in the product Cadel Frame 9 Up is 0.009 %. This level is essential to ensure the safety and proper functioning of the device. The product Cadel Frame 9 Up has a reduced level of carbon monoxide (CO) of 0.021 %. This level ensures safe use while maintaining air quality. The average dust content of the product Cadel Frame 9 Up is 19 mg/Nm³. This dust level ensures optimal performance while meeting quality standards. The nominal thermal output of the product Cadel Frame 9 Up is 9.3 kW. This parameter is essential for assessing the energy efficiency and performance of the device. The thermal input of the product Cadel Frame 9 Up is 2.7 kW. This level of thermal input allows for optimal use while minimizing energy consumption. The product Cadel Frame 9 Up's range is 6.9 - 25 h. This feature ensures prolonged use without interruption. The temperature of the duct gas for the product Cadel Frame 9 Up is 190 °C. This specification ensures optimal and safe operation of the device. The pellet consumption (min) of the product Cadel Frame 9 Up is 0.59 kg/h. This specification ensures optimal efficiency during its use. The consumption of pellets (max) of the product Cadel Frame 9 Up is 2.18 kg/h. This feature ensures optimal efficiency during its use. Does the product Cadel Frame 9 Up have a Thermostat? Oui. This device allows for precise and efficient temperature regulation. The number of power levels of the product Cadel Frame 9 Up is 3. This number allows you to adjust the intensity according to your needs. Is the Cadel Frame 9 Up product Remote Controlled? Oui. This feature allows for convenient and easy remote control. The maximum supported pellet diameter of the product Cadel Frame 9 Up is 6 mm. This specification ensures optimal compatibility with your needs. Does the product Cadel Frame 9 Up have the programming function? Oui. This feature allows you to schedule tasks in advance, thus providing optimal usage flexibility. Does the Cadel Frame 9 Up have an external thermostat? Oui. This thermostat allows for precise temperature control for optimal comfort.
