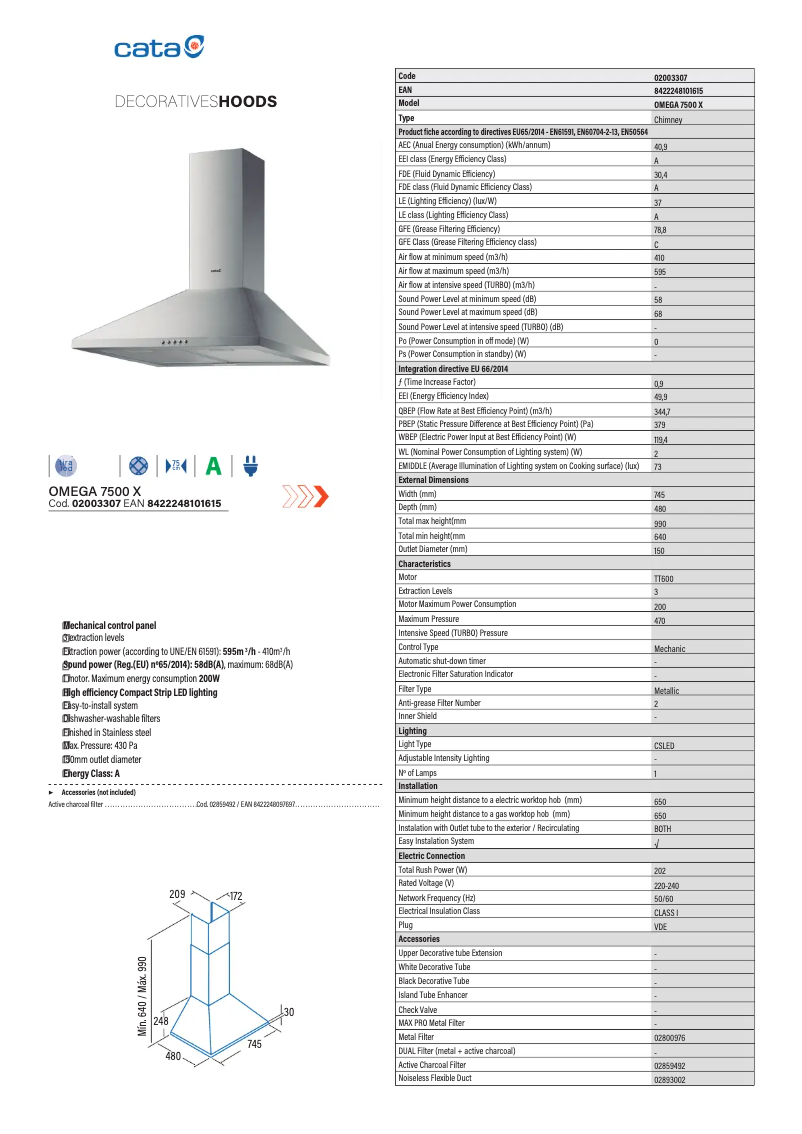

Manuals of product OMEGA 7500 X
Technical Specifications OMEGA 7500 X
General Information
-
ModelOMEGA 7500 X
-
Brand
-
Category
-
Type
-
SKU1505514
-
MPN1505514
Representation / realization
-
Maximum extraction power595 m³/h
-
Type of extractionDuct / Recirculation
-
Lighting efficiency classA
-
Lighting efficiency classA
-
Grease filtration efficiency classC
-
Sound level (fast speed)68 dB
-
Number of speeds3
-
The maximum recirculation power344.7 m³/h
-
Sound level (slow speed)58 dB
-
Sound level (fast speed)68 dB
Power
-
Energy efficiency classA
-
Annual energy consumption41 kWh
-
Energy efficiency rangeA+++ to D
-
Connected charge202 W
-
AC input voltage220/240 V
-
AC input frequency50 - 60 Hz
-
Engine power200 W
Design
-
Product colorStainless steel
-
TypeWall mount
-
Order typeButtons
-
Built-in screenNo
-
Diameter of the exhaust duct150 mm
Lighting
-
Type of bulbLED
-
Lighting positionIn front
-
Number of bulbs1 bulb(s)
Weight and dimensions
-
Width745 mm
-
Depth480 mm
-
Height (max)990 mm
-
Height (min)640 mm
Filtering
-
Type of grease filterMetal
-
Number of filters2 piece(s)
Similar products
More product categories from brand CATA
More product types from brand CATA
Presentation of product OMEGA 7500 X specifications from brand CATA
Generalities
The EAN code of the product CATA OMEGA 7500 X is 8422248101615. This code allows for the unique identification of the product in the distribution system. The brand of the product CATA OMEGA 7500 X is CATA. This brand is known for its quality and innovation in the field of household appliances. The product model CATA OMEGA 7500 X is OMEGA 7500 X | 02003307. This model ensures optimal performance and an enhanced user experience.
Design
The color of the product CATA OMEGA 7500 X is Acier inoxydable. This shade gives it a modern and elegant look. The CATA OMEGA 7500 X has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device. The product CATA OMEGA 7500 X order type consists of Boutons. This order type allows for intuitive and practical use. The type of product CATA OMEGA 7500 X is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The diameter of the exhaust duct for the product CATA OMEGA 7500 X is 150 mm. This diameter is essential for ensuring effective evacuation of smoke or gases.
Power
The energy efficiency class of the product CATA OMEGA 7500 X is A. This class indicates the level of energy performance of the product, thereby contributing to energy savings and reducing environmental impact. The product CATA OMEGA 7500 X has a connected charge of 202 W. This specification ensures optimal performance and increased energy efficiency. The annual energy consumption of the product CATA OMEGA 7500 X is 41 kWh. This specification allows you to assess energy efficiency and the impact on your electricity bill. The energy efficiency range of the product CATA OMEGA 7500 X is A+++ à D. This range ensures optimal energy consumption, thereby contributing to savings on your bills and protecting the environment. The AC input voltage of the CATA OMEGA 7500 X is 220/240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product CATA OMEGA 7500 X is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The engine power of the product CATA OMEGA 7500 X is 200 W. This power ensures optimal performance for efficient use.
Lighting
The type of bulb for the product CATA OMEGA 7500 X is LED. This bulb offers intense brightness and an extended lifespan. The lighting position of the product CATA OMEGA 7500 X is at the back. This position helps create a warm and welcoming atmosphere in your space. The number of bulbs in the product CATA OMEGA 7500 X is 1 ampoule(s). This detail is essential to ensure adequate brightness in your space.
Representation / realization
The maximum extraction power of the product CATA OMEGA 7500 X is 595 m³/h. This feature ensures optimal efficiency in eliminating odors and particles from the air. The extraction type of the product CATA OMEGA 7500 X is Conduit / Recirculation. This extraction type determines the method used to obtain the essential elements of the product. The lighting efficiency class of the product CATA OMEGA 7500 X is A. This class allows for the assessment of the energy performance of the proposed lighting. The dynamic efficiency class of the fluid of the product CATA OMEGA 7500 X is A. This class indicates the energy performance of the fluid in question. The grease filtering efficiency class of the product CATA OMEGA 7500 X is C. This class ensures optimal grease filtration, thus providing a healthier cooking environment and better performance of your appliance. The noise level of the product CATA OMEGA 7500 X is 68 dB. This noise level allows for pleasant use without excessive noise disturbances. The number of speeds of the product CATA OMEGA 7500 X is 3. This number of speeds allows for easy adjustment of performance according to the user's needs. The maximum recirculation power of the product CATA OMEGA 7500 X is 344.7 m³/h. This feature ensures optimal efficiency in air treatment, thus providing a pleasant and healthy environment. The sound level of the product CATA OMEGA 7500 X is 58 dB. This sound level allows for discreet and pleasant use, ideal for quiet environments. The sound level of the product CATA OMEGA 7500 X is 68 dB. This sound level ensures a pleasant user experience without being too intrusive.
Weight and dimensions
The depth of the product CATA OMEGA 7500 X is 480 mm. This dimension allows for optimal integration into your space. The width of the product CATA OMEGA 7500 X is 745 mm. This dimension is essential to ensure optimal integration into your space. The maximum height of the product CATA OMEGA 7500 X is 990 mm. This dimension is essential to ensure that the product fits perfectly in your space. The minimum height of the product CATA OMEGA 7500 X is 640 mm. This dimension ensures optimal use tailored to your needs.
Filtering
The grease filter type of the product CATA OMEGA 7500 X is made of Métal. This aluminum filter ensures excellent performance in capturing fats and residues, thus guaranteeing a clean and healthy cooking environment. The number of filters for the product CATA OMEGA 7500 X is 2 pièce(s). These filters ensure optimal purification for effective use.
