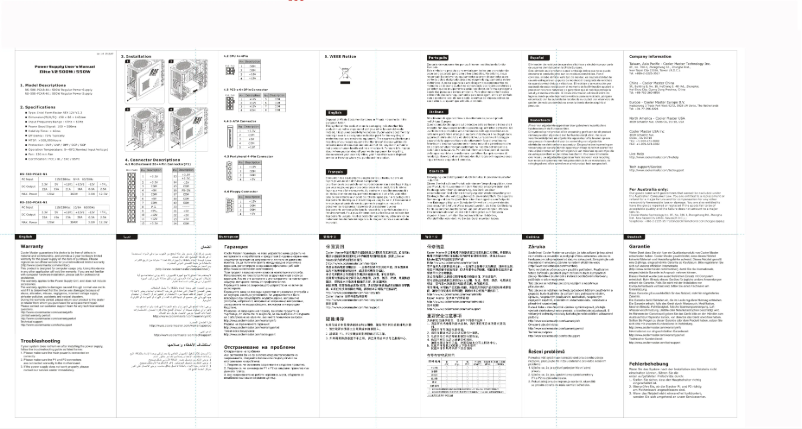

Manual of product Elite V2
Technical Specifications Elite V2
General Information
-
ModelELITE V2
-
Brand
-
Category
-
Type
-
SKU206565
-
MPN206565
Power
-
Total power550 W
-
AC input voltage115 - 230 V
-
AC input frequency47 - 63 Hz
-
Holding time16 ms
-
Effectiveness75 %
-
Electrical protection devicesOver current, Over voltage, Short circuit, Under voltage
-
Combined power (+5V)120 W
-
Combined power (+5V)120 W
-
Combined power (-12V)3.6 W
-
Maximum output current (+3.3V)22 A
-
Maximum output current (+12V)12.5 A
-
Maximum output current (+12 V1)23 A
-
Maximum output current (+12 V2)20 A
-
Maximum output current (+5V)15 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)2.5 A
Design
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Cooling typeActive
-
Product colorBlack
Connectivity
-
Motherboard connector20+4 pin ATX
-
Number of SATA power cables6
-
Molex peripheral connector (4-pin)3
-
PCI Express power connectors (6 +2 pin)2
-
ATX power connector (20+4 pin)Yes
-
ATX power connector (20+4 pin)Yes
-
Floppy disk drive power connector1
Representation / realization
-
Form factor of the power supply unitATX
-
UtilityPC
-
Version ATX2.3
-
Sound level- dB
-
Mean time between failures100000 h
-
CertificationFCC, UL, EAC, BSMI
Environmental conditions
-
Operating temperature0 - 40 °C
Weight and dimensions
-
Width150 mm
-
Depth140 mm
-
Height86 mm
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product Elite V2 specifications from brand Cooler Master
Generalities
The product model Cooler Master Elite V2 is Elite V2 | RS550-PCARN1. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Cooler Master Elite V2 is 4719512045954. This code allows for the unique identification of the product in the distribution system. The brand of the product Cooler Master Elite V2 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances.
Design
The diameter of the Cooler Master Elite V2 fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The cooling type of the product Cooler Master Elite V2 is active. This system ensures optimal temperature management for improved performance. The number of fans of the product Cooler Master Elite V2 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The color of the product Cooler Master Elite V2 is Noir. This shade gives it a modern and elegant look.
Connectivity
The connector on the motherboard of the product Cooler Master Elite V2 contains 20+4 pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The Molex peripheral connector (4-pin) of the product Cooler Master Elite V2 contains 3. This connector is essential for ensuring a reliable connection between electronic components. The PCI Express power connector (6 +2 pin) of the product Cooler Master Elite V2 contains 2. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The number of SATA power cables for the product Cooler Master Elite V2 is 6. These cables provide a reliable and efficient connection to power your components. Does the Cooler Master Elite V2 have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. Does the Cooler Master Elite V2 have an ATX power connector (20+4 pin)? Oui. This connector is essential for ensuring stable and efficient power supply to your system. The power connector of the floppy disk drive of the product Cooler Master Elite V2 contains 1. This connector is essential to ensure adequate power supply to the floppy disk drive.
Environmental conditions
The operating temperature of the product Cooler Master Elite V2 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Representation / realization
The usefulness of the product Cooler Master Elite V2 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The form factor of the power supply unit of the product Cooler Master Elite V2 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The ATX version of the product Cooler Master Elite V2 is 2.3. This specification ensures optimal compatibility with modern computer components. The noise level of the product Cooler Master Elite V2 is - dB. This noise level allows for pleasant use without excessive noise disturbances. The average time between failures of the product Cooler Master Elite V2 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The certification of the product Cooler Master Elite V2 contains FCC, UL, EAC, BSMI. This certification guarantees compliance with the required safety and performance standards.
Power
The total power of the product Cooler Master Elite V2 is 550 W. This power ensures optimal performance for efficient use. The retention time of the product Cooler Master Elite V2 is 16 ms. This retention time ensures optimal performance and increased responsiveness during its use. The AC input frequency of the product Cooler Master Elite V2 is 47 - 63 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Cooler Master Elite V2 is 115 - 230 V. This specification ensures optimal compatibility with standard electrical systems. The effectiveness of the product Cooler Master Elite V2 is 75 %. This performance ensures optimal results for daily use. The electrical protection devices of the product Cooler Master Elite V2 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The product Cooler Master Elite V2 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The maximum output current (+3.3V) of the Cooler Master Elite V2 is 22 A. This current ensures optimal performance for your power supply needs. The product Cooler Master Elite V2 has a combined power (+5V) of 120 W. This specification ensures optimal performance for your devices. The product Cooler Master Elite V2 has a combined power (+3.3 V) of 120 W. This specification ensures optimal performance for your energy needs. The product Cooler Master Elite V2 has a maximum output current (+12V) of 12.5 A. This specification ensures optimal performance for your power supply needs. The maximum output current (+12 V1) of the Cooler Master Elite V2 is 23 A. This current ensures optimal performance for your power supply needs. The maximum output current (-12V) of the Cooler Master Elite V2 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Cooler Master Elite V2 is 2.5 A. This current ensures a stable and efficient power supply for your devices. The product Cooler Master Elite V2 has a maximum output current (+5V) of 15 A. This current allows you to efficiently power your electronic devices. The product Cooler Master Elite V2 has a maximum output current (+12 V2) of 20 A. This high current ensures optimal performance for your devices.
Weight and dimensions
The width of the product Cooler Master Elite V2 is 150 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Cooler Master Elite V2 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Cooler Master Elite V2 is 140 mm. This dimension allows for optimal integration into your space.
