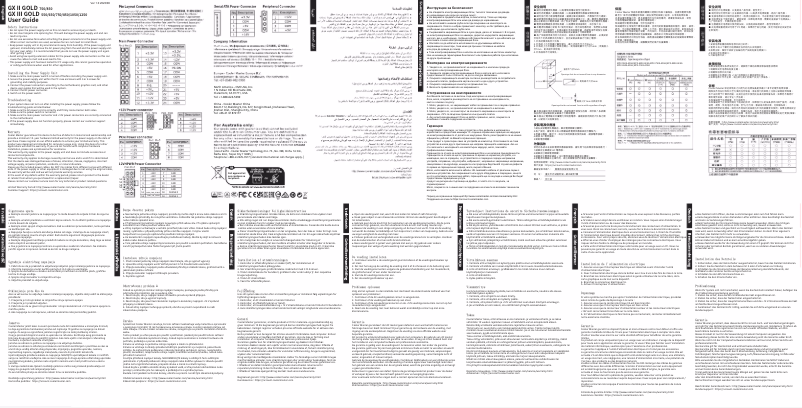

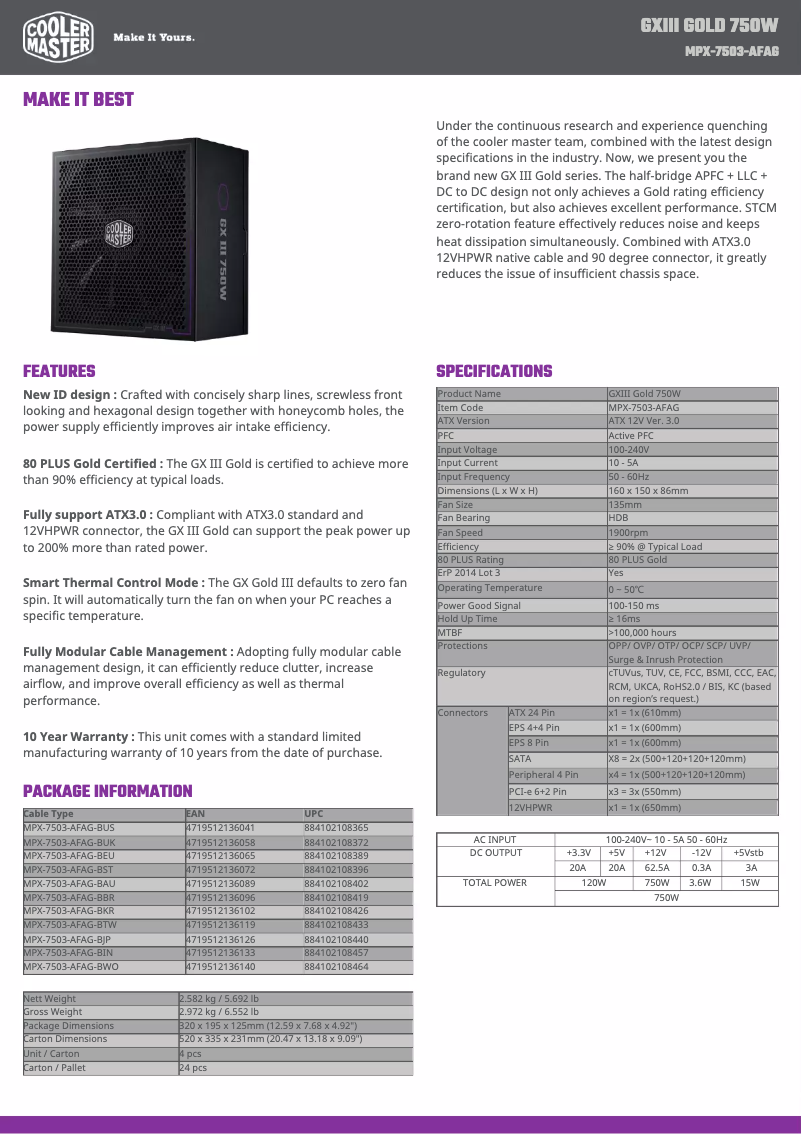

Manuals of product GX III Gold 750
Technical Specifications GX III Gold 750
General Information
-
ModelGX III GOLD 750
-
Brand
-
Category
-
Type
-
SKU1853746
-
MPN1853746
Power
-
Combined power (+12 V)750 W
-
Input current10 - 5 A
-
Effectiveness90 %
-
Holding time16 ms
-
Combined power (+5V)120 W
-
Combined power (+12 V)750 W
-
Combined power (+5V)120 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)62.5 A
-
Maximum output current (+5V)20 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)3 A
-
Type of Power Factor Corrector (PFC)Active
-
AC input voltage100 - 240 V
-
AC input frequency50/60 Hz
-
Electrical protection devicesOver power, Overheating, Over voltage, Under voltage, Over current, Short circuit
Design
-
Fan speed0 - 1900 rpm
-
Fan diameter135 mm
-
Number of fans1 fan(s)
-
Built-in power buttonYes
-
Product colorBlack
-
Cooling typeActive
Connectivity
-
PCI Express power connectors (6 +2 pin)3
-
Motherboard connector24-pin ATX
-
Length of motherboard power cable610 mm
-
Number of SATA power cables8
-
Length of the device's power cable (Molex)120,500 mm
-
Molex peripheral connector (4-pin)4
-
Length of the device's power cable (Molex)120,500 mm
-
ATX connector (24-pin)Yes
-
ATX connector (24-pin)Yes
-
Length of the PCI Express power cable550 mm
-
ATX connector (24-pin)Yes
-
Wiring typeFully modular
Weight and dimensions
-
Width150 mm
-
Depth160 mm
-
Height86 mm
-
Weight2582 g
Packaging information
-
Package width195 mm
-
Package depth320 mm
-
Package height125 mm
-
Package weight2972 g
-
Type of packagingBox
Environmental conditions
-
Operating temperature0 - 50 °C
Technical details
-
Sustainability certificatesRoHS
-
Federal Communications Commission (FCC)
-
TUV
-
BSMI
-
UKCA
-
EAC
-
CCC
-
CE
-
cTUVus
-
ErP
Representation / realization
-
UtilityPC
-
Form factor of the power supply unitATX
-
80 PLUS Certification80 PLUS Gold
-
Version ATX3.0
-
Rolling technologyHDB
-
Mean time between failures100000 h
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product GX III Gold 750 specifications from brand Cooler Master
Generalities
The brand of the product Cooler Master GX III Gold 750 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Cooler Master GX III Gold 750 is 4719512136041, 4719512136089. This code allows for the unique identification of the product in the distribution system. The product model Cooler Master GX III Gold 750 is GX III Gold 750 | MPX-7503-AFAG-BAU. This model ensures optimal performance and an enhanced user experience.
Design
The fan speed of the product Cooler Master GX III Gold 750 is 0 - 1900 tr/min. This feature allows you to adjust the airflow according to your needs. The diameter of the Cooler Master GX III Gold 750 fan is 135 mm. This diameter is essential for ensuring optimal air circulation. Does the product Cooler Master GX III Gold 750 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. The number of fans of the product Cooler Master GX III Gold 750 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The color of the product Cooler Master GX III Gold 750 is Noir. This shade gives it a modern and elegant look. The cooling type of the product Cooler Master GX III Gold 750 is active. This system ensures optimal temperature management for improved performance.
Connectivity
The PCI Express power connector (6 +2 pin) of the product Cooler Master GX III Gold 750 contains 3. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The length of the motherboard power cable of the product Cooler Master GX III Gold 750 is 610 mm. This specification ensures optimal connectivity for your components. The connector on the motherboard of the product Cooler Master GX III Gold 750 contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The number of SATA power cables for the product Cooler Master GX III Gold 750 is 8. These cables provide a reliable and efficient connection to power your components. The SATA power cable of the product Cooler Master GX III Gold 750 has a length of 120,500 mm. This specification ensures optimal connectivity for your components. The Molex peripheral connector (4-pin) of the product Cooler Master GX III Gold 750 contains 4. This connector is essential for ensuring a reliable connection between electronic components. Does the Cooler Master GX III Gold 750 have an EPS electrical connector (4+4 pins)? Oui. This connector is essential for providing stable and reliable power to your system's components. The length of the PCI Express power cable of the product Cooler Master GX III Gold 750 is 550 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. Does the Cooler Master GX III Gold 750 have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. The length of the power cable of the device (Molex) of the product Cooler Master GX III Gold 750 is 120,500 mm. This specification ensures optimal connectivity for your power needs. Does the product Cooler Master GX III Gold 750 have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The wiring type of the product Cooler Master GX III Gold 750 is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection.
Weight and dimensions
The height of the product Cooler Master GX III Gold 750 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Cooler Master GX III Gold 750 is 150 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Cooler Master GX III Gold 750 is 2582 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Cooler Master GX III Gold 750 is 160 mm. This dimension allows for optimal integration into your space.
Power
The retention time of the product Cooler Master GX III Gold 750 is 16 ms. This retention time ensures optimal performance and increased responsiveness during its use. The effectiveness of the product Cooler Master GX III Gold 750 is 90 %. This performance ensures optimal results for daily use. The total power of the product Cooler Master GX III Gold 750 is 750 W. This power ensures optimal performance for efficient use. The input current of the product Cooler Master GX III Gold 750 is 10 - 5 A. This input current ensures optimal performance and increased energy efficiency. The product Cooler Master GX III Gold 750 has a combined power (+3.3 V) of 120 W. This specification ensures optimal performance for your energy needs. The combined power (+12 V) of the product Cooler Master GX III Gold 750 is 750 W. This specification ensures optimal performance for your energy needs. The product Cooler Master GX III Gold 750 has a combined power (+5V) of 120 W. This specification ensures optimal performance for your devices. The product Cooler Master GX III Gold 750 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Cooler Master GX III Gold 750 is 15 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Cooler Master GX III Gold 750 is 20 A. This current ensures optimal performance for your power supply needs. The product Cooler Master GX III Gold 750 has a maximum output current (+12V) of 62.5 A. This specification ensures optimal performance for your power supply needs. The product Cooler Master GX III Gold 750 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The maximum output current (-12V) of the Cooler Master GX III Gold 750 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Cooler Master GX III Gold 750 is 3 A. This current ensures a stable and efficient power supply for your devices. The power factor correction device of the product Cooler Master GX III Gold 750 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The AC input voltage of the Cooler Master GX III Gold 750 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Cooler Master GX III Gold 750 is 50/60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The electrical protection devices of the product Cooler Master GX III Gold 750 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation.
Environmental conditions
The operating temperature of the product Cooler Master GX III Gold 750 is 0 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Packaging information
The depth of the product package Cooler Master GX III Gold 750 is 320 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Cooler Master GX III Gold 750 is 195 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Cooler Master GX III Gold 750 package is 2972 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Cooler Master GX III Gold 750 is 125 mm. This dimension is essential to ensure optimal transport and storage. The packaging type of the product Cooler Master GX III Gold 750 is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Technical details
The product Cooler Master GX III Gold 750 has Sustainability Certificates: RoHS, Federal Communications Commission (FCC), TUV, BSMI, UKCA, EAC, CCC, CE, cTUVus, ErP. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Representation / realization
The product Cooler Master GX III Gold 750 has the 80 PLUS 80 PLUS Gold certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The usefulness of the product Cooler Master GX III Gold 750 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The ATX version of the product Cooler Master GX III Gold 750 is 3.0. This specification ensures optimal compatibility with modern computer components. The form factor of the power supply unit of the product Cooler Master GX III Gold 750 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The product Cooler Master GX III Gold 750 features a HDB bearing technology. This technology ensures optimal performance and increased durability. The average time between failures of the product Cooler Master GX III Gold 750 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
