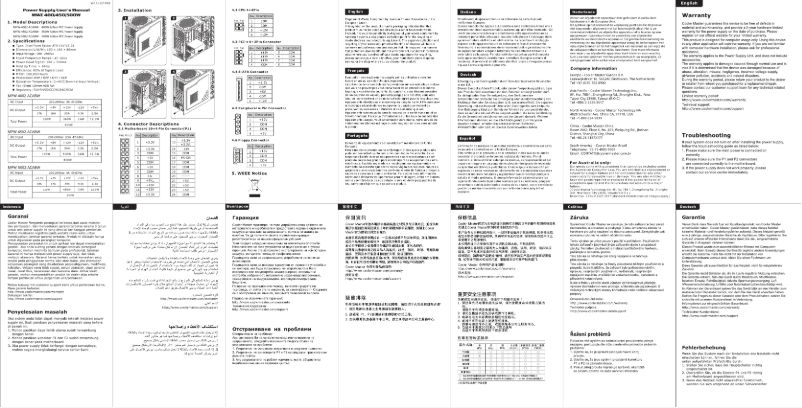

Manuals of product MWE 400
Technical Specifications MWE 400
General Information
-
ModelMWE 400
-
Brand
-
Category
-
Type
-
SKU1735780
-
MPN1735780
Representation / realization
-
Version ATX2.31
-
Rolling technologyHDB
-
Mean time between failures100000 h
-
CertificationCE, TUV, EAC, RCM, CCC, ErP 2013 Lot 6
-
Form factor of the power supply unitATX
-
80 PLUS Certification80 PLUS
-
UtilityPC
-
Sound level- dB
Power
-
Type of Power Factor Corrector (PFC)Active
-
Power factor0.9
-
AC input voltage200 - 240 V
-
Input current3 A
-
AC input frequency47 - 63 Hz
-
Total power400 W
-
Power Good signal trigger delay100 - 500 ms
-
Holding time14 ms
-
Effectiveness85 %
-
Electrical protection devicesOver power, Over voltage, Overheating, Short circuit
-
Maximum output current (+3.3V)17 A
-
Maximum output current (+5V)16 A
-
Maximum output current (+12V)30 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)2.5 A
-
Combined power (+5V)100 W
-
Combined power (+5V)100 W
-
Combined power (+12 V)360 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)12.5 W
Design
-
Product colorBlack
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Built-in power buttonYes
-
Fan speed751 - 1675 rpm
-
Cooling typeActive
Weight and dimensions
-
Width150 mm
-
Depth140 mm
-
Height86 mm
-
Weight1140 g
Environmental conditions
-
Operating temperature0 - 40 °C
Connectivity
-
Motherboard connector20+4 pin ATX
-
Floppy disk drive connectorYes
-
Number of SATA power cables6
-
Molex peripheral connector (4-pin)3
-
Floppy disk drive connectorYes
-
PCI Express power connectors (6 +2 pin)1
-
PCI Express power connectors (6 +2 pin)1
-
Length of the CPU power cable550 mm
-
Length of the PCI Express power cable400 mm
-
Length of the SATA power cable400,550,700 mm
-
Length of the device's power cable (Molex)400,550,700,850 mm
-
Length of the CPU power cable550 mm
-
Wiring typeNon-modular
Packaging information
-
Package weight1370 g
-
Package width266 mm
-
Package depth194 mm
-
Package height112 mm
Logistics data
-
Width of the main locker (external)582 mm
-
Length of the main locker (external)279 mm
-
Height of the main locker (external)217 mm
-
Product by main locker (external)5 piece(s)
-
Products by pallet24 piece(s)
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product MWE 400 specifications from brand Cooler Master
Generalities
The brand of the product Cooler Master MWE 400 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The product model Cooler Master MWE 400 is MWE 400 | MPW-4002-ACABW-EB. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Cooler Master MWE 400 is 4719512060759, 4719512061091. This code allows for the unique identification of the product in the distribution system.
Design
The diameter of the Cooler Master MWE 400 fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The color of the product Cooler Master MWE 400 is Noir. This shade gives it a modern and elegant look. The number of fans of the product Cooler Master MWE 400 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. Does the product Cooler Master MWE 400 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. The fan speed of the product Cooler Master MWE 400 is 751 - 1675 tr/min. This feature allows you to adjust the airflow according to your needs. The cooling type of the product Cooler Master MWE 400 is active. This system ensures optimal temperature management for improved performance.
Representation / realization
The ATX version of the product Cooler Master MWE 400 is 2.31. This specification ensures optimal compatibility with modern computer components. The certification of the product Cooler Master MWE 400 contains CE, TUV, EAC, RCM, CCC, ErP 2013 Lot 6. This certification guarantees compliance with the required safety and performance standards. The average time between failures of the product Cooler Master MWE 400 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The product Cooler Master MWE 400 features a HDB bearing technology. This technology ensures optimal performance and increased durability. The form factor of the power supply unit of the product Cooler Master MWE 400 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The product Cooler Master MWE 400 has the 80 PLUS 80 PLUS certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The usefulness of the product Cooler Master MWE 400 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The noise level of the product Cooler Master MWE 400 is - dB. This noise level allows for pleasant use without excessive noise disturbances.
Weight and dimensions
The depth of the product Cooler Master MWE 400 is 140 mm. This dimension allows for optimal integration into your space. The width of the product Cooler Master MWE 400 is 150 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Cooler Master MWE 400 is 1140 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Cooler Master MWE 400 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Environmental conditions
The operating temperature of the product Cooler Master MWE 400 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The power factor correction device of the product Cooler Master MWE 400 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The power factor of the product Cooler Master MWE 400 is 0.9. This power factor indicates the efficiency with which the product uses energy. The input current of the product Cooler Master MWE 400 is 3 A. This input current ensures optimal performance and increased energy efficiency. The AC input voltage of the Cooler Master MWE 400 is 200 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Cooler Master MWE 400 is 47 - 63 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The total power of the product Cooler Master MWE 400 is 400 W. This power ensures optimal performance for efficient use. The trigger delay for the Power Good signal of the product Cooler Master MWE 400 is 100 - 500 ms. This delay is essential to ensure stable and reliable power supply. The retention time of the product Cooler Master MWE 400 is 14 ms. This retention time ensures optimal performance and increased responsiveness during its use. The effectiveness of the product Cooler Master MWE 400 is 85 %. This performance ensures optimal results for daily use. The electrical protection devices of the product Cooler Master MWE 400 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The maximum output current (+3.3V) of the Cooler Master MWE 400 is 17 A. This current ensures optimal performance for your power supply needs. The product Cooler Master MWE 400 has a maximum output current (+5V) of 16 A. This current allows you to efficiently power your electronic devices. The product Cooler Master MWE 400 has a maximum output current (+12V) of 30 A. This specification ensures optimal performance for your power supply needs. The maximum output current (-12V) of the Cooler Master MWE 400 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Cooler Master MWE 400 is 2.5 A. This current ensures a stable and efficient power supply for your devices. The product Cooler Master MWE 400 has a combined power (+3.3 V) of 100 W. This specification ensures optimal performance for your energy needs. The product Cooler Master MWE 400 has a combined power (+5V) of 100 W. This specification ensures optimal performance for your devices. The combined power (+12 V) of the product Cooler Master MWE 400 is 360 W. This specification ensures optimal performance for your energy needs. The product Cooler Master MWE 400 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Cooler Master MWE 400 is 12.5 W. This specification ensures optimal performance for your devices.
Packaging information
The depth of the product package Cooler Master MWE 400 is 194 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Cooler Master MWE 400 is 112 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Cooler Master MWE 400 package is 1370 g. This weight ensures optimal protection during transport and delivery. The width of the package of the product Cooler Master MWE 400 is 266 mm. This dimension is essential to ensure optimal transport and storage.
Logistics data
The width of the external main locker of the product Cooler Master MWE 400 is 582 mm. This dimension is essential to ensure optimal storage and efficient use of space. The product Cooler Master MWE 400 contains 5 pièce(s) piece(s). This specification is essential for inventory management and shipping optimization. The height of the external main locker of the product Cooler Master MWE 400 is 217 mm. This dimension is essential to ensure optimal storage. The length of the main (external) locker of the product Cooler Master MWE 400 is 279 mm. This specification is essential to ensure optimal storage and efficient use of space. The number of products per pallet of the product Cooler Master MWE 400 is 24 pièce(s). This specification is essential for optimizing logistics and inventory management.
Connectivity
The number of SATA power cables for the product Cooler Master MWE 400 is 6. These cables provide a reliable and efficient connection to power your components. The connector on the motherboard of the product Cooler Master MWE 400 contains 20+4 pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. Does the Cooler Master MWE 400 have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. The Molex peripheral connector (4-pin) of the product Cooler Master MWE 400 contains 3. This connector is essential for ensuring a reliable connection between electronic components. Does the product Cooler Master MWE 400 have a floppy disk drive connector? Oui. This connector allows for easy and quick connection with floppy disk drives, ensuring optimal compatibility. The power connector of the floppy disk drive of the product Cooler Master MWE 400 contains 1. This connector is essential to ensure adequate power supply to the floppy disk drive. The PCI Express power connector (6 +2 pin) of the product Cooler Master MWE 400 contains 1. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The length of the PCI Express power cable of the product Cooler Master MWE 400 is 400 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. The SATA power cable of the product Cooler Master MWE 400 has a length of 400,550,700 mm. This specification ensures optimal connectivity for your components. The length of the power cable of the device (Molex) of the product Cooler Master MWE 400 is 400,550,700,850 mm. This specification ensures optimal connectivity for your power needs. The length of the motherboard power cable of the product Cooler Master MWE 400 is 550 mm. This specification ensures optimal connectivity for your components. The product Cooler Master MWE 400 has a CPU power cable length of 550 mm. This specification ensures optimal connectivity for your system. The wiring type of the product Cooler Master MWE 400 is Non-modulaire. This non-modular wiring ensures a stable and reliable connection.
