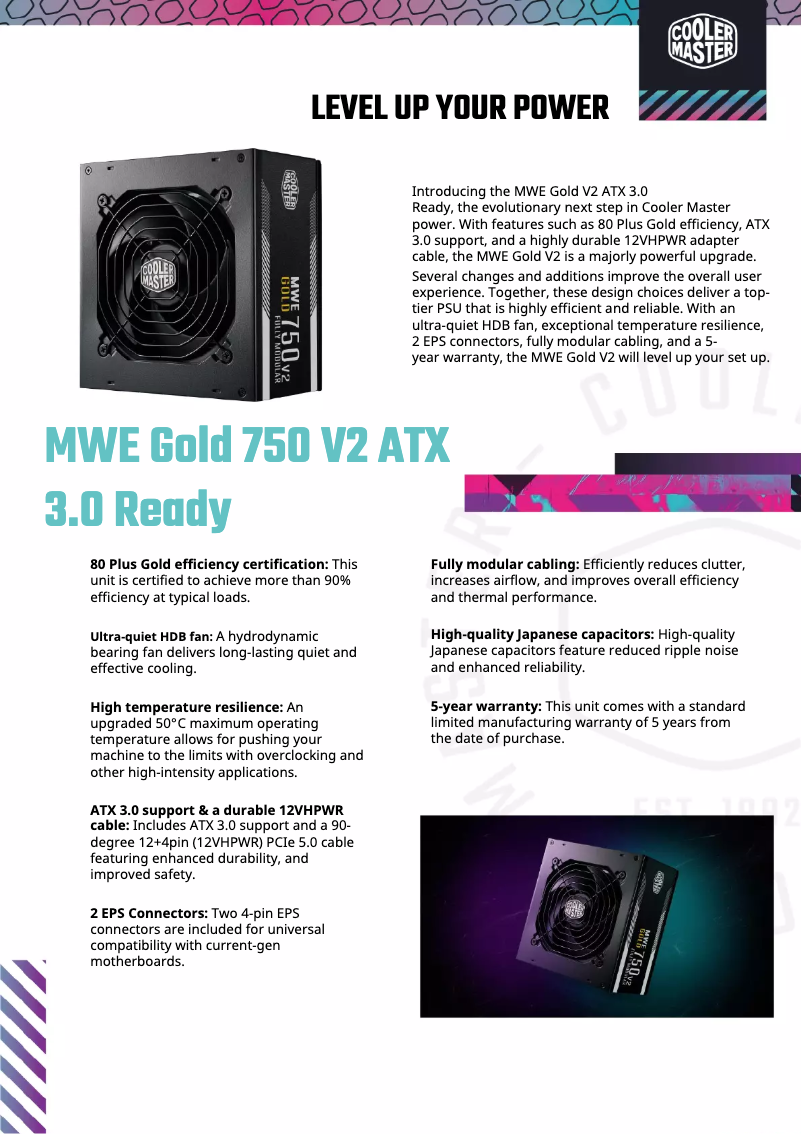

Manuals of product MWE Gold 750 V2
Technical Specifications MWE Gold 750 V2
General Information
-
ModelMWE GOLD 750 V2
-
Brand
-
Category
-
Type
-
SKU1861539
-
MPN1861539
Power
-
Combined power (+12 V)750 W
-
AC input voltage90 -264 V
-
Input current5 - 10 A
-
AC input frequency47 - 63 Hz
-
Type of Power Factor Corrector (PFC)Active
-
Effectiveness90 %
-
Power Good signal trigger delay100 - 150 ms
-
Holding time16 ms
-
Electrical protection devicesOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
-
Combined power (+5V)100 W
-
Combined power (+5V)100 W
-
Combined power (+12 V)750 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)62.5 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)3 A
Design
-
Product colorBlack
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Fan speed0 - 1500 rpm
-
Cooling typeActive
Weight and dimensions
-
Width150 mm
-
Depth160 mm
-
Height86 mm
-
Weight2170 g
Representation / realization
-
Rolling technologyHDB
-
Form factor of the power supply unitATX
-
80 PLUS Certification80 PLUS Gold
-
Sound level- dB
-
CertificationErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
-
Mean time between failures100000 h
-
UtilityPC
Other features
-
Noise level (silent mode, < 30 %)0 dB
-
Noise level (silent mode, 50 %)17.8 dB
-
Noise level (full charge mode, 100 %)24.9 dB
Environmental conditions
-
Operating temperature0 - 50 °C
Connectivity
-
Motherboard connector24-pin ATX
-
Length of motherboard power cable610 mm
-
EPS power connector (8-pin)Yes
-
EPS power connector (8-pin)Yes
-
Number of SATA power cables12
-
PCI Express power connectors (6 +2 pin)4
-
PCI Express power connectors (6 +2 pin)4
-
Length of the PCI Express power cable670 mm
-
Length of the SATA power cable500,620,740,860 mm
-
Length of the SATA power cable500,620,740,860 mm
-
Wiring typeFully modular
Packaging information
-
Package weight2570 g
-
Package width194 mm
-
Package depth310 mm
-
Package height120 mm
Logistics data
-
Width of the main locker (external)325 mm
-
Length of the main locker (external)620 mm
-
Height of the main locker (external)220 mm
-
Main locker (external) per pallet5 piece(s)
-
Main locker (external) per pallet5 piece(s)
-
Harmonized System Code84733020
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product MWE Gold 750 V2 specifications from brand Cooler Master
Generalities
The brand of the product Cooler Master MWE Gold 750 V2 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Cooler Master MWE Gold 750 V2 is 0884102078798, 0884102078804, 4719512106488, 4719512106495, 4719512142240. This code allows for the unique identification of the product in the distribution system. The product model Cooler Master MWE Gold 750 V2 is MWE Gold 750 V2 | MPE-7501-AFAAG-EU. This model ensures optimal performance and an enhanced user experience.
Design
The color of the product Cooler Master MWE Gold 750 V2 is Noir. This shade gives it a modern and elegant look. The fan speed of the product Cooler Master MWE Gold 750 V2 is 0 - 1500 tr/min. This feature allows you to adjust the airflow according to your needs. The number of fans of the product Cooler Master MWE Gold 750 V2 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The diameter of the Cooler Master MWE Gold 750 V2 fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The cooling type of the product Cooler Master MWE Gold 750 V2 is active. This system ensures optimal temperature management for improved performance.
Weight and dimensions
The width of the product Cooler Master MWE Gold 750 V2 is 150 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Cooler Master MWE Gold 750 V2 is 160 mm. This dimension allows for optimal integration into your space. The weight of the product Cooler Master MWE Gold 750 V2 is 2170 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Cooler Master MWE Gold 750 V2 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Other features
The noise level of the product Cooler Master MWE Gold 750 V2 is below 30%. This feature allows for discreet and pleasant use, ideal for noise-sensitive environments. The noise level in full charge mode, 100% of the product Cooler Master MWE Gold 750 V2 is 24.9 dB. This noise level ensures discreet and pleasant use in any environment. The noise level in silent mode of the product Cooler Master MWE Gold 750 V2 is 17.8 dB. This sound level allows for a discreet and pleasant use.
Power
The total power of the product Cooler Master MWE Gold 750 V2 is 750 W. This power ensures optimal performance for efficient use. The AC input frequency of the product Cooler Master MWE Gold 750 V2 is 47 - 63 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Cooler Master MWE Gold 750 V2 is 90 -264 V. This specification ensures optimal compatibility with standard electrical systems. The input current of the product Cooler Master MWE Gold 750 V2 is 5 - 10 A. This input current ensures optimal performance and increased energy efficiency. The power factor correction device of the product Cooler Master MWE Gold 750 V2 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The effectiveness of the product Cooler Master MWE Gold 750 V2 is 90 %. This performance ensures optimal results for daily use. The trigger delay for the Power Good signal of the product Cooler Master MWE Gold 750 V2 is 100 - 150 ms. This delay is essential to ensure stable and reliable power supply. The retention time of the product Cooler Master MWE Gold 750 V2 is 16 ms. This retention time ensures optimal performance and increased responsiveness during its use. The electrical protection devices of the product Cooler Master MWE Gold 750 V2 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The product Cooler Master MWE Gold 750 V2 has a combined power (+3.3 V) of 100 W. This specification ensures optimal performance for your energy needs. The product Cooler Master MWE Gold 750 V2 has a combined power (+5V) of 100 W. This specification ensures optimal performance for your devices. The combined power (+12 V) of the product Cooler Master MWE Gold 750 V2 is 750 W. This specification ensures optimal performance for your energy needs. The product Cooler Master MWE Gold 750 V2 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Cooler Master MWE Gold 750 V2 is 15 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Cooler Master MWE Gold 750 V2 is 20 A. This current ensures optimal performance for your power supply needs. The product Cooler Master MWE Gold 750 V2 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The product Cooler Master MWE Gold 750 V2 has a maximum output current (+12V) of 62.5 A. This specification ensures optimal performance for your power supply needs. The maximum output current (-12V) of the Cooler Master MWE Gold 750 V2 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Cooler Master MWE Gold 750 V2 is 3 A. This current ensures a stable and efficient power supply for your devices.
Representation / realization
The product Cooler Master MWE Gold 750 V2 features a HDB bearing technology. This technology ensures optimal performance and increased durability. The noise level of the product Cooler Master MWE Gold 750 V2 is - dB. This noise level allows for pleasant use without excessive noise disturbances. The product Cooler Master MWE Gold 750 V2 has the 80 PLUS 80 PLUS Gold certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The form factor of the power supply unit of the product Cooler Master MWE Gold 750 V2 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The certification of the product Cooler Master MWE Gold 750 V2 contains ErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI. This certification guarantees compliance with the required safety and performance standards. The average time between failures of the product Cooler Master MWE Gold 750 V2 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The usefulness of the product Cooler Master MWE Gold 750 V2 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users.
Environmental conditions
The operating temperature of the product Cooler Master MWE Gold 750 V2 is 0 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Packaging information
The weight of the Cooler Master MWE Gold 750 V2 package is 2570 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Cooler Master MWE Gold 750 V2 is 310 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Cooler Master MWE Gold 750 V2 is 194 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Cooler Master MWE Gold 750 V2 is 120 mm. This dimension is essential to ensure optimal transport and storage.
Connectivity
Does the Cooler Master MWE Gold 750 V2 have an EPS electrical connector (4+4 pins)? Oui. This connector is essential for providing stable and reliable power to your system's components. The connector on the motherboard of the product Cooler Master MWE Gold 750 V2 contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. Does the Cooler Master MWE Gold 750 V2 have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. The length of the motherboard power cable of the product Cooler Master MWE Gold 750 V2 is 610 mm. This specification ensures optimal connectivity for your components. The number of SATA power cables for the product Cooler Master MWE Gold 750 V2 is 12. These cables provide a reliable and efficient connection to power your components. The Molex peripheral connector (4-pin) of the product Cooler Master MWE Gold 750 V2 contains 4. This connector is essential for ensuring a reliable connection between electronic components. The PCI Express power connector (6 +2 pin) of the product Cooler Master MWE Gold 750 V2 contains 4. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The length of the PCI Express power cable of the product Cooler Master MWE Gold 750 V2 is 670 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. The length of the power cable of the device (Molex) of the product Cooler Master MWE Gold 750 V2 is 500,620,740,860 mm. This specification ensures optimal connectivity for your power needs. The SATA power cable of the product Cooler Master MWE Gold 750 V2 has a length of 500,620,740,860 mm. This specification ensures optimal connectivity for your components. The wiring type of the product Cooler Master MWE Gold 750 V2 is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection.
Logistics data
The product Cooler Master MWE Gold 750 V2 contains 5 pièce(s) piece(s). This specification is essential for inventory management and shipping optimization. The height of the external main locker of the product Cooler Master MWE Gold 750 V2 is 220 mm. This dimension is essential to ensure optimal storage. The width of the external main locker of the product Cooler Master MWE Gold 750 V2 is 325 mm. This dimension is essential to ensure optimal storage and efficient use of space. The length of the main (external) locker of the product Cooler Master MWE Gold 750 V2 is 620 mm. This specification is essential to ensure optimal storage and efficient use of space. The main (external) locker of the product Cooler Master MWE Gold 750 V2 contains 5 pièce(s) parts. This locker is designed to optimize storage space and facilitate logistical management. The Harmonized System code for the product Cooler Master MWE Gold 750 V2 is 84733020. This code allows for the unique identification of goods in international trade.
