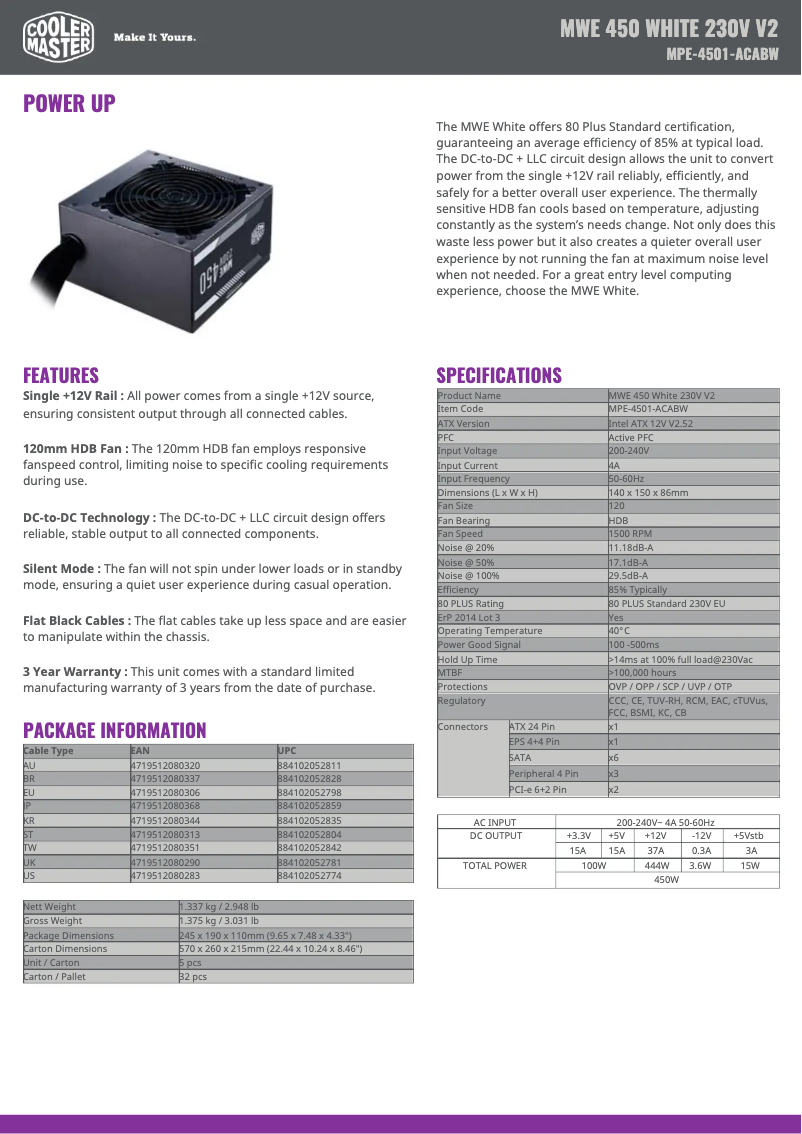

Manuals of product MWE White 450
Technical Specifications MWE White 450
General Information
-
ModelMWE WHITE 450
-
Brand
-
Category
-
Type
-
SKU1923565
-
MPN1923565
Power
-
Total power500 W
-
AC input voltage200 - 240 V
-
AC input frequency50 - 60 Hz
-
Input current5 A
-
Type of Power Factor Corrector (PFC)Active
-
Combined power (+5V)110 W
-
Combined power (+12 V)492 W
-
Combined power (+5V)110 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)16 A
-
Maximum output current (+12V)41 A
-
Maximum output current (+5V)16 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)3 A
-
Holding time14 ms
-
Effectiveness85 %
-
Electrical protection devicesOver power, Over voltage, Overheating, Short circuit, Under voltage
-
Power Good signal trigger delay100 - 500 ms
Representation / realization
-
UtilityPC
-
Form factor of the power supply unitATX
-
80 PLUS Certification80 PLUS
-
Version ATX2.52
-
Silent modeYes
-
Rolling technologyHDB
-
Mean time between failures100000 h
-
CertificationERP 2014 LOT 3, CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
Design
-
Product colorBlack
-
Fan diameter120 mm
-
Cooling typeActive
-
Number of fans1 fan(s)
-
Fan speed0 - 1500 rpm
Environmental conditions
-
Operating temperature0 - 40 °C
Connectivity
-
Motherboard connector24-pin ATX
-
Length of motherboard power cable500 mm
-
Number of SATA power cables6
-
Length of the device's power cable (Molex)400,550,700 mm
-
Molex peripheral connector (4-pin)3
-
Length of the device's power cable (Molex)400,550,700 mm
-
ATX connector (24-pin)Yes
-
PCI Express power connectors (6 +2 pin)2
-
ATX connector (24-pin)Yes
-
Wiring typeNon-modular
Weight and dimensions
-
Width140 mm
-
Depth86 mm
-
Height150 mm
-
Weight1341 g
Other features
-
Noise level (silent mode, < 30 %)11.77 dB
-
Noise level (silent mode, 50 %)18.3 dB
-
Noise level (full charge mode, 100 %)31 dB
Logistics data
-
Harmonized System Code84733020
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product MWE White 450 specifications from brand Cooler Master
Generalities
The brand of the product Cooler Master MWE White 450 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Cooler Master MWE White 450 is 0884102053146, 4719512080658, 4719512094334, 4719512103753. This code allows for the unique identification of the product in the distribution system. The product model Cooler Master MWE White 450 is MWE White 450 | MPE-5001-ACABW-ML. This model ensures optimal performance and an enhanced user experience.
Design
The color of the product Cooler Master MWE White 450 is Noir. This shade gives it a modern and elegant look. The cooling type of the product Cooler Master MWE White 450 is active. This system ensures optimal temperature management for improved performance. The diameter of the Cooler Master MWE White 450 fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The number of fans of the product Cooler Master MWE White 450 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The fan speed of the product Cooler Master MWE White 450 is 0 - 1500 tr/min. This feature allows you to adjust the airflow according to your needs.
Representation / realization
The usefulness of the product Cooler Master MWE White 450 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The product Cooler Master MWE White 450 has the 80 PLUS 80 PLUS certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The form factor of the power supply unit of the product Cooler Master MWE White 450 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The ATX version of the product Cooler Master MWE White 450 is 2.52. This specification ensures optimal compatibility with modern computer components. Does the product Cooler Master MWE White 450 have a silent mode? Oui. This feature allows for discreet use, ideal for quiet environments. The product Cooler Master MWE White 450 features a HDB bearing technology. This technology ensures optimal performance and increased durability. The average time between failures of the product Cooler Master MWE White 450 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The certification of the product Cooler Master MWE White 450 contains ERP 2014 LOT 3, CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The operating temperature of the product Cooler Master MWE White 450 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The width of the product Cooler Master MWE White 450 is 140 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Cooler Master MWE White 450 is 86 mm. This dimension allows for optimal integration into your space. The height of the product Cooler Master MWE White 450 is 150 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Cooler Master MWE White 450 is 1341 g. This weight is ideal for ensuring optimal use and easy handling.
Other features
The noise level in silent mode of the product Cooler Master MWE White 450 is 18.3 dB. This sound level allows for a discreet and pleasant use. The noise level of the product Cooler Master MWE White 450 is below 30%. This feature allows for discreet and pleasant use, ideal for noise-sensitive environments. The noise level in full charge mode, 100% of the product Cooler Master MWE White 450 is 31 dB. This noise level ensures discreet and pleasant use in any environment.
Connectivity
The connector on the motherboard of the product Cooler Master MWE White 450 contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The number of SATA power cables for the product Cooler Master MWE White 450 is 6. These cables provide a reliable and efficient connection to power your components. The SATA power cable of the product Cooler Master MWE White 450 has a length of 400,550,700 mm. This specification ensures optimal connectivity for your components. The length of the motherboard power cable of the product Cooler Master MWE White 450 is 500 mm. This specification ensures optimal connectivity for your components. The Molex peripheral connector (4-pin) of the product Cooler Master MWE White 450 contains 3. This connector is essential for ensuring a reliable connection between electronic components. The length of the power cable of the device (Molex) of the product Cooler Master MWE White 450 is 400,550,700 mm. This specification ensures optimal connectivity for your power needs. Does the Cooler Master MWE White 450 have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. The PCI Express power connector (6 +2 pin) of the product Cooler Master MWE White 450 contains 2. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. Does the product Cooler Master MWE White 450 have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The wiring type of the product Cooler Master MWE White 450 is Non-modulaire. This non-modular wiring ensures a stable and reliable connection.
Power
The total power of the product Cooler Master MWE White 450 is 500 W. This power ensures optimal performance for efficient use. The AC input frequency of the product Cooler Master MWE White 450 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Cooler Master MWE White 450 is 200 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The input current of the product Cooler Master MWE White 450 is 5 A. This input current ensures optimal performance and increased energy efficiency. The power factor correction device of the product Cooler Master MWE White 450 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The product Cooler Master MWE White 450 has a combined power (+3.3 V) of 110 W. This specification ensures optimal performance for your energy needs. The combined power (+12 V) of the product Cooler Master MWE White 450 is 492 W. This specification ensures optimal performance for your energy needs. The product Cooler Master MWE White 450 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The product Cooler Master MWE White 450 has a combined power (+5V) of 110 W. This specification ensures optimal performance for your devices. The combined power (+5Vsb) of the Cooler Master MWE White 450 is 15 W. This specification ensures optimal performance for your devices. The product Cooler Master MWE White 450 has a maximum output current (+12V) of 41 A. This specification ensures optimal performance for your power supply needs. The product Cooler Master MWE White 450 has a maximum output current (+5V) of 16 A. This current allows you to efficiently power your electronic devices. The maximum output current (-12V) of the Cooler Master MWE White 450 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+3.3V) of the Cooler Master MWE White 450 is 16 A. This current ensures optimal performance for your power supply needs. The maximum output current (+5Vsb) of the Cooler Master MWE White 450 is 3 A. This current ensures a stable and efficient power supply for your devices. The retention time of the product Cooler Master MWE White 450 is 14 ms. This retention time ensures optimal performance and increased responsiveness during its use. The trigger delay for the Power Good signal of the product Cooler Master MWE White 450 is 100 - 500 ms. This delay is essential to ensure stable and reliable power supply. The effectiveness of the product Cooler Master MWE White 450 is 85 %. This performance ensures optimal results for daily use. The electrical protection devices of the product Cooler Master MWE White 450 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation.
Logistics data
The Harmonized System code for the product Cooler Master MWE White 450 is 84733020. This code allows for the unique identification of goods in international trade.
