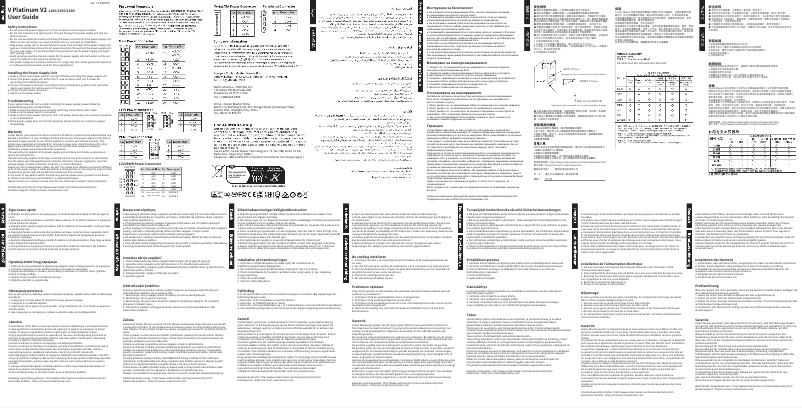

Manuals of product V Platinum 1600 V2
Technical Specifications V Platinum 1600 V2
General Information
-
ModelV PLATINUM 1600 V2
-
Brand
-
Category
-
Type
-
SKU1915756
-
MPN1915756
Design
-
Cooling typeActive
-
Product colorBlack
-
Fan diameter135 mm
-
Number of fans1 fan(s)
-
Fan speed0 - 2400 rpm
-
Fan locationHigh
-
Built-in power buttonYes
Representation / realization
-
Mean time between failures100000 h
-
CertificationcTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,
-
Rolling technologyRoHS2.0 / BIS, KC
-
UtilityLDB
-
Form factor of the power supply unitPC
-
80 PLUS CertificationATX
-
Version ATX80 PLUS Platinum
-
3.0
Environmental conditions
-
Operating temperature0 - 50 °C
Packaging contents
-
Cables includedPCIe
-
Peripheral (Molex)
-
SATA
Weight and dimensions
-
Width150 mm
-
Depth160 mm
-
Height86 mm
-
Weight3660 g
Packaging information
-
Package width195 mm
-
Package depth125 mm
-
Package height320 mm
-
Package weight4050 g
-
Type of packagingBox
Technical details
-
Compliance with sustainabilityYes
-
Sustainability certificatesErP
Power
-
Power Good signal trigger delay100 - 150 ms
-
Effectiveness92 %
-
Electrical protection devicesOver current, Over power, Over voltage, Overheating, Surge protection, Under voltage
-
Holding time16 ms
-
Total power1600 W
-
AC input voltage100 - 240 V
-
AC input frequency50/60 Hz
-
Input current16 - 8 A
-
Type of Power Factor Corrector (PFC)Active
-
Combined power (+5V)120 W
-
Combined power (+12 V)1599.6 W
-
Combined power (+5V)120 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)133.3 A
-
Maximum output current (+5V)20 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)3 A
Connectivity
-
Wiring typeFully modular
-
Electrical connector EPS (4+4 pins)Yes
-
PCI Express power connectors (12 pins)2
-
PCI Express power connectors (6 +2 pin)5
-
Motherboard connector24-pin ATX
-
Length of motherboard power cable650 mm
-
Number of SATA power cables16
-
Length of the device's power cable (Molex)120,500 mm
-
Molex peripheral connector (4-pin)4
-
Length of the device's power cable (Molex)120,500 mm
-
Electrical connector EPS (4+4 pins)Yes
-
Electrical connector EPS (4+4 pins)Yes
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product V Platinum 1600 V2 specifications from brand Cooler Master
Environmental conditions
The operating temperature of the product Cooler Master V Platinum 1600 V2 is 0 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Representation / realization
The average time between failures of the product Cooler Master V Platinum 1600 V2 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The product Cooler Master V Platinum 1600 V2 features a LDB bearing technology. This technology ensures optimal performance and increased durability. The usefulness of the product Cooler Master V Platinum 1600 V2 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The certification of the product Cooler Master V Platinum 1600 V2 contains cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, \nRoHS2.0 / BIS, KC. This certification guarantees compliance with the required safety and performance standards. The form factor of the power supply unit of the product Cooler Master V Platinum 1600 V2 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The product Cooler Master V Platinum 1600 V2 has the 80 PLUS 80 PLUS Platinum certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The ATX version of the product Cooler Master V Platinum 1600 V2 is 3.0. This specification ensures optimal compatibility with modern computer components.
Generalities
The brand of the product Cooler Master V Platinum 1600 V2 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The product model Cooler Master V Platinum 1600 V2 is V Platinum 1600 V2 | MPZ-G002-AFAP-BAU. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Cooler Master V Platinum 1600 V2 is 4719512140949, 4719512140987. This code allows for the unique identification of the product in the distribution system.
Packaging contents
The included cable of the product Cooler Master V Platinum 1600 V2 contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Design
The cooling type of the product Cooler Master V Platinum 1600 V2 is active. This system ensures optimal temperature management for improved performance. The color of the product Cooler Master V Platinum 1600 V2 is Noir. This shade gives it a modern and elegant look. The diameter of the Cooler Master V Platinum 1600 V2 fan is 135 mm. This diameter is essential for ensuring optimal air circulation. The number of fans of the product Cooler Master V Platinum 1600 V2 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The fan speed of the product Cooler Master V Platinum 1600 V2 is 0 - 2400 tr/min. This feature allows you to adjust the airflow according to your needs. The location of the fan of the product Cooler Master V Platinum 1600 V2 is at the front and back. This positioning allows for optimal air circulation to maintain an ideal temperature. Does the product Cooler Master V Platinum 1600 V2 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device.
Weight and dimensions
The depth of the product Cooler Master V Platinum 1600 V2 is 160 mm. This dimension allows for optimal integration into your space. The width of the product Cooler Master V Platinum 1600 V2 is 150 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Cooler Master V Platinum 1600 V2 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Cooler Master V Platinum 1600 V2 is 3660 g. This weight is ideal for ensuring optimal use and easy handling.
Technical details
The product Cooler Master V Platinum 1600 V2 has Sustainability Certificates: ErP. These certificates ensure that the product meets high standards for energy efficiency and environmental respect. Does the product Cooler Master V Platinum 1600 V2 comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact.
Packaging information
The weight of the Cooler Master V Platinum 1600 V2 package is 4050 g. This weight ensures optimal protection during transport and delivery. The width of the package of the product Cooler Master V Platinum 1600 V2 is 195 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Cooler Master V Platinum 1600 V2 is 320 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Cooler Master V Platinum 1600 V2 is 125 mm. This dimension is essential to ensure proper packaging and secure transport. The packaging type of the product Cooler Master V Platinum 1600 V2 is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Power
The effectiveness of the product Cooler Master V Platinum 1600 V2 is 92 %. This performance ensures optimal results for daily use. The trigger delay for the Power Good signal of the product Cooler Master V Platinum 1600 V2 is 100 - 150 ms. This delay is essential to ensure stable and reliable power supply. The retention time of the product Cooler Master V Platinum 1600 V2 is 16 ms. This retention time ensures optimal performance and increased responsiveness during its use. The electrical protection devices of the product Cooler Master V Platinum 1600 V2 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The total power of the product Cooler Master V Platinum 1600 V2 is 1600 W. This power ensures optimal performance for efficient use. The AC input voltage of the Cooler Master V Platinum 1600 V2 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Cooler Master V Platinum 1600 V2 is 50/60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The input current of the product Cooler Master V Platinum 1600 V2 is 16 - 8 A. This input current ensures optimal performance and increased energy efficiency. The power factor correction device of the product Cooler Master V Platinum 1600 V2 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The product Cooler Master V Platinum 1600 V2 has a combined power (+3.3 V) of 120 W. This specification ensures optimal performance for your energy needs. The combined power (+12 V) of the product Cooler Master V Platinum 1600 V2 is 1599.6 W. This specification ensures optimal performance for your energy needs. The product Cooler Master V Platinum 1600 V2 has a combined power (+5V) of 120 W. This specification ensures optimal performance for your devices. The product Cooler Master V Platinum 1600 V2 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Cooler Master V Platinum 1600 V2 is 15 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Cooler Master V Platinum 1600 V2 is 20 A. This current ensures optimal performance for your power supply needs. The product Cooler Master V Platinum 1600 V2 has a maximum output current (+12V) of 133.3 A. This specification ensures optimal performance for your power supply needs. The product Cooler Master V Platinum 1600 V2 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The maximum output current (-12V) of the Cooler Master V Platinum 1600 V2 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Cooler Master V Platinum 1600 V2 is 3 A. This current ensures a stable and efficient power supply for your devices.
Connectivity
The wiring type of the product Cooler Master V Platinum 1600 V2 is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection. The PCI Express power connectors (12 pins) of the product Cooler Master V Platinum 1600 V2 contain 2. These connectors provide stable and efficient power for your components, ensuring optimal performance. The PCI Express power connector (6 +2 pin) of the product Cooler Master V Platinum 1600 V2 contains 5. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. Does the product Cooler Master V Platinum 1600 V2 have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The connector on the motherboard of the product Cooler Master V Platinum 1600 V2 contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The length of the motherboard power cable of the product Cooler Master V Platinum 1600 V2 is 650 mm. This specification ensures optimal connectivity for your components. The number of SATA power cables for the product Cooler Master V Platinum 1600 V2 is 16. These cables provide a reliable and efficient connection to power your components. The Molex peripheral connector (4-pin) of the product Cooler Master V Platinum 1600 V2 contains 4. This connector is essential for ensuring a reliable connection between electronic components. The length of the power cable of the device (Molex) of the product Cooler Master V Platinum 1600 V2 is 120,500 mm. This specification ensures optimal connectivity for your power needs. Does the Cooler Master V Platinum 1600 V2 have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. The SATA power cable of the product Cooler Master V Platinum 1600 V2 has a length of 120,500 mm. This specification ensures optimal connectivity for your components. Does the Cooler Master V Platinum 1600 V2 have an EPS electrical connector (4+4 pins)? Oui. This connector is essential for providing stable and reliable power to your system's components.
