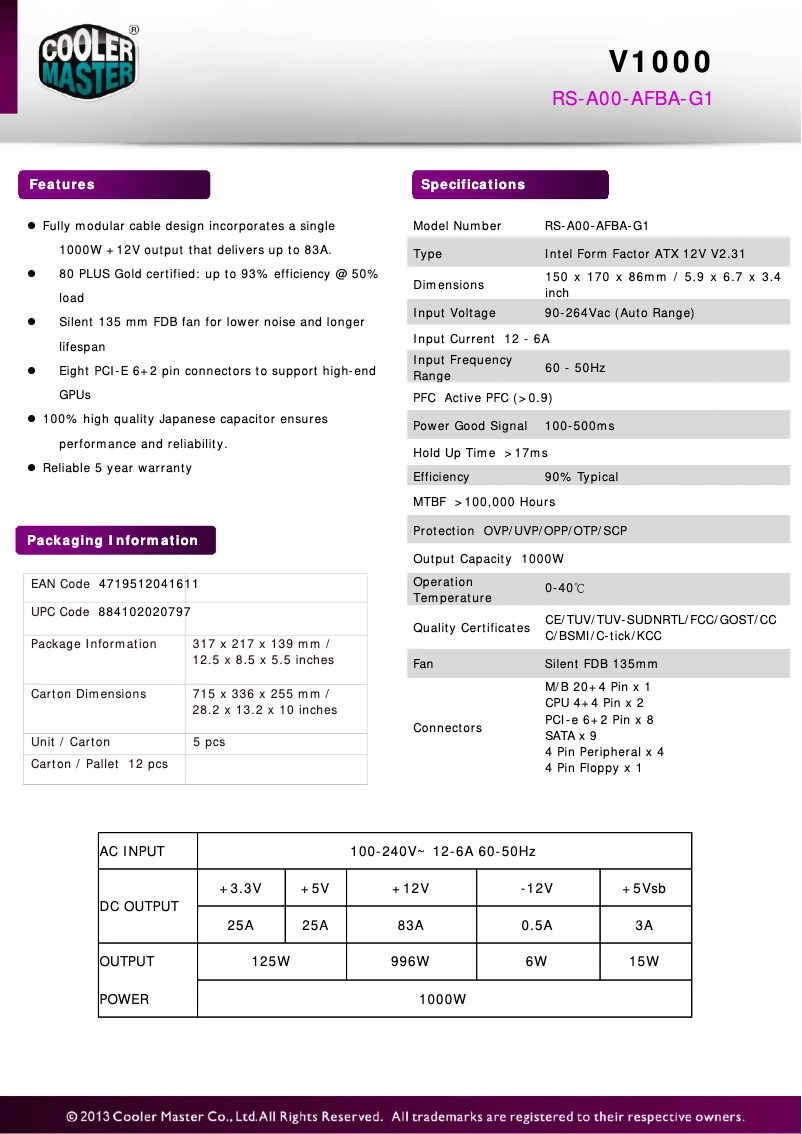

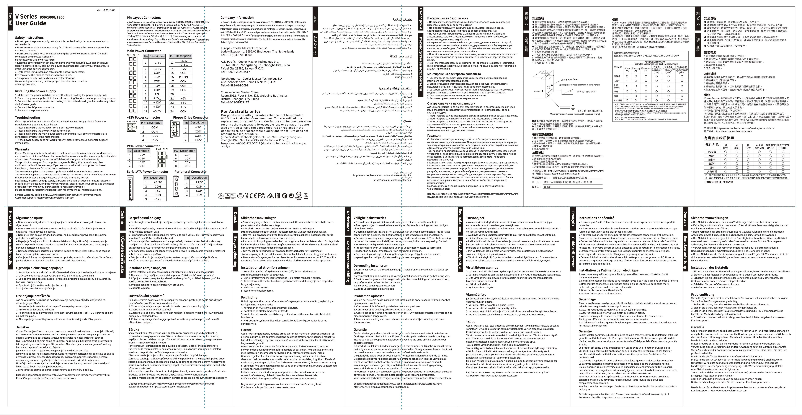

Manuals of product V1000
Technical Specifications V1000
General Information
-
ModelV1000
-
Brand
-
Category
-
Type
-
SKU130463
-
MPN130463
Power
-
Total power1000 W
-
AC input voltage90 - 264 V
-
AC input frequency50 - 60 Hz
-
Type of Power Factor Corrector (PFC)Active
-
Combined power (+5V)125 W
-
Combined power (+12 V)996 W
-
Combined power (+5V)125 W
-
Combined power (-12V)6 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)25 A
-
Maximum output current (+12V)83 A
-
Maximum output current (+5V)25 A
-
Maximum output current (-12V)0.5 A
-
Maximum output current (+5Vsb)3 A
-
Holding time17 ms
-
Effectiveness90 %
-
Electrical protection devicesOver power, Over voltage, Overheating, Short circuit, Under voltage
-
Input current6 - 12 A
-
Power factor0.9
Design
-
Fan diameter135 mm
-
Product colorBlack
-
Number of fans1 fan(s)
-
Cooling typeActive
Connectivity
-
Motherboard connector20+4 pin ATX
-
Number of SATA power cables9
-
Molex peripheral connector (4-pin)4
-
PCI Express power connectors (6 +2 pin)8
-
CPU power connector (4+4 pin)Yes
-
Floppy disk drive power connector1
-
Wiring typeFully modular
Representation / realization
-
Sound level- dB
-
80 PLUS Certification80 PLUS Gold
-
Form factor of the power supply unitATX
-
UtilityPC
-
Version ATX2.31
-
Mean time between failures100000 h
-
CertificationCE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
Weight and dimensions
-
Width150 mm
-
Depth170 mm
-
Height86 mm
Environmental conditions
-
Operating temperature0 - 40 °C
Packaging information
-
Package width216 mm
-
Package depth316 mm
-
Package height139 mm
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product V1000 specifications from brand Cooler Master
Design
The diameter of the Cooler Master V1000 fan is 135 mm. This diameter is essential for ensuring optimal air circulation. The number of fans of the product Cooler Master V1000 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The color of the product Cooler Master V1000 is Noir. This shade gives it a modern and elegant look. The cooling type of the product Cooler Master V1000 is active. This system ensures optimal temperature management for improved performance.
Generalities
The brand of the product Cooler Master V1000 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Cooler Master V1000 is 766150032192, 884102020797, 4719512041611. This code allows for the unique identification of the product in the distribution system. The product model Cooler Master V1000 is V1000 | RS-A00-AFBA-G1-EU. This model ensures optimal performance and an enhanced user experience.
Connectivity
The Molex peripheral connector (4-pin) of the product Cooler Master V1000 contains 4. This connector is essential for ensuring a reliable connection between electronic components. The connector on the motherboard of the product Cooler Master V1000 contains 20+4 pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The PCI Express power connector (6 +2 pin) of the product Cooler Master V1000 contains 8. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The number of SATA power cables for the product Cooler Master V1000 is 9. These cables provide a reliable and efficient connection to power your components. Does the Cooler Master V1000 have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. The power connector of the floppy disk drive of the product Cooler Master V1000 contains 1. This connector is essential to ensure adequate power supply to the floppy disk drive. The wiring type of the product Cooler Master V1000 is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection.
Environmental conditions
The operating temperature of the product Cooler Master V1000 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Representation / realization
The noise level of the product Cooler Master V1000 is - dB. This noise level allows for pleasant use without excessive noise disturbances. The usefulness of the product Cooler Master V1000 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The product Cooler Master V1000 has the 80 PLUS 80 PLUS Gold certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The form factor of the power supply unit of the product Cooler Master V1000 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The ATX version of the product Cooler Master V1000 is 2.31. This specification ensures optimal compatibility with modern computer components. The average time between failures of the product Cooler Master V1000 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The certification of the product Cooler Master V1000 contains CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC. This certification guarantees compliance with the required safety and performance standards.
Weight and dimensions
The width of the product Cooler Master V1000 is 150 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Cooler Master V1000 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Cooler Master V1000 is 170 mm. This dimension allows for optimal integration into your space.
Power
The total power of the product Cooler Master V1000 is 1000 W. This power ensures optimal performance for efficient use. The AC input voltage of the Cooler Master V1000 is 90 - 264 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Cooler Master V1000 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The power factor correction device of the product Cooler Master V1000 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The product Cooler Master V1000 has a combined power (+3.3 V) of 125 W. This specification ensures optimal performance for your energy needs. The combined power (+12 V) of the product Cooler Master V1000 is 996 W. This specification ensures optimal performance for your energy needs. The product Cooler Master V1000 has a combined power (+5V) of 125 W. This specification ensures optimal performance for your devices. The product Cooler Master V1000 has a combined power (-12V) of 6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Cooler Master V1000 is 15 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Cooler Master V1000 is 25 A. This current ensures optimal performance for your power supply needs. The product Cooler Master V1000 has a maximum output current (+12V) of 83 A. This specification ensures optimal performance for your power supply needs. The maximum output current (-12V) of the Cooler Master V1000 is 0.5 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Cooler Master V1000 is 3 A. This current ensures a stable and efficient power supply for your devices. The retention time of the product Cooler Master V1000 is 17 ms. This retention time ensures optimal performance and increased responsiveness during its use. The product Cooler Master V1000 has a maximum output current (+5V) of 25 A. This current allows you to efficiently power your electronic devices. The effectiveness of the product Cooler Master V1000 is 90 %. This performance ensures optimal results for daily use. The electrical protection devices of the product Cooler Master V1000 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The power factor of the product Cooler Master V1000 is 0.9. This power factor indicates the efficiency with which the product uses energy. The input current of the product Cooler Master V1000 is 6 - 12 A. This input current ensures optimal performance and increased energy efficiency.
Packaging information
The depth of the product package Cooler Master V1000 is 316 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Cooler Master V1000 is 216 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Cooler Master V1000 is 139 mm. This dimension is essential to ensure optimal transport and storage.
