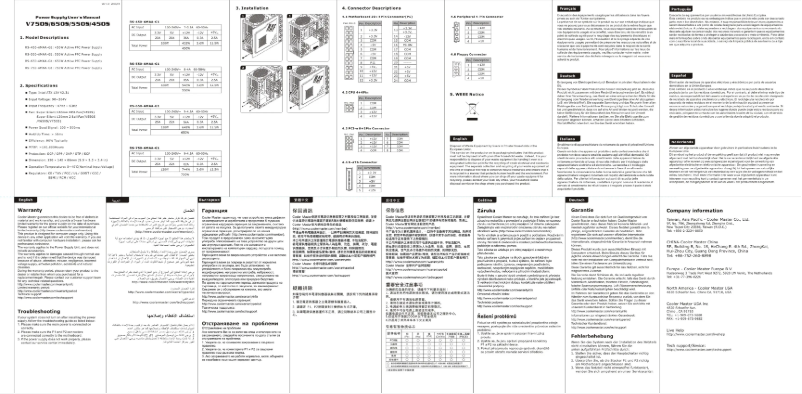

Manual of product V750S
Technical Specifications V750S
General Information
-
ModelV750S
-
Brand
-
Category
-
Type
-
SKU112127
-
MPN112127
Power
-
Total power750 W
-
AC input voltage90 - 264 V
-
AC input frequency47 - 63 Hz
-
Input current5 - 10 A
-
Power factor0.9
-
Type of Power Factor Corrector (PFC)Active
-
Maximum input current (@110 V)+12V, +3.3V, +5V, +5Vsb, -12V A
-
Combined power (+5V)120 W
-
Combined power (+12 V)744 W
-
Combined power (+5V)120 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)12.5 W
-
Maximum output current (+3.3V)25 A
-
Maximum output current (+12V)62 A
-
Maximum output current (+5V)22 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)2.5 A
-
Holding time16 ms
-
Effectiveness90 %
-
Electrical protection devicesOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Design
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Fan locationHigh
-
Cooling typeActive
-
Built-in power buttonYes
-
Product colorBlack
Connectivity
-
Motherboard connector24-pin ATX
-
Number of SATA power cables8
-
Molex peripheral connector (4-pin)6
-
PCI Express power connectors (6 +2 pin)4
-
Floppy disk drive connectorYes
-
Floppy disk drive connectorYes
-
Floppy disk drive power connector1
-
Floppy disk drive connectorYes
-
Floppy disk drive connectorYes
-
Wiring typeSemi-modular
Representation / realization
-
Form factor of the power supply unitATX
-
UtilityPC
-
Version ATX2.31
-
Sound level- dB
-
Mean time between failures100000 h
-
80 PLUS Certification80 PLUS Gold
-
CertificationCE, TUV, FCC, CCC, BSMI, KCC, RCM, EAC, UL
Other features
-
Climbing time500 ms
Environmental conditions
-
Operating temperature0 - 40 °C
Weight and dimensions
-
Width150 mm
-
Depth140 mm
-
Height86 mm
Packaging information
-
Package width266 mm
-
Package depth196 mm
-
Package height192 mm
-
Type of packagingBox
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product V750S specifications from brand Cooler Master
Generalities
The brand of the product Cooler Master V750S is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Cooler Master V750S is 4719512044476, 884102023590. This code allows for the unique identification of the product in the distribution system. The product model Cooler Master V750S is V750S | RS750-AMAAG1-US. This model ensures optimal performance and an enhanced user experience.
Design
The diameter of the Cooler Master V750S fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The location of the fan of the product Cooler Master V750S is at the front and back. This positioning allows for optimal air circulation to maintain an ideal temperature. The number of fans of the product Cooler Master V750S is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The cooling type of the product Cooler Master V750S is active. This system ensures optimal temperature management for improved performance. Does the product Cooler Master V750S have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. The color of the product Cooler Master V750S is Noir. This shade gives it a modern and elegant look.
Connectivity
The connector on the motherboard of the product Cooler Master V750S contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The number of SATA power cables for the product Cooler Master V750S is 8. These cables provide a reliable and efficient connection to power your components. The Molex peripheral connector (4-pin) of the product Cooler Master V750S contains 6. This connector is essential for ensuring a reliable connection between electronic components. The PCI Express power connector (6 +2 pin) of the product Cooler Master V750S contains 4. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. Does the Cooler Master V750S have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. Does the product Cooler Master V750S have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The power connector of the floppy disk drive of the product Cooler Master V750S contains 1. This connector is essential to ensure adequate power supply to the floppy disk drive. Does the product Cooler Master V750S have a PCI Express Connector? Oui. This connector ensures fast and efficient communication between the components of your system. Does the product Cooler Master V750S have a floppy disk drive connector? Oui. This connector allows for easy and quick connection with floppy disk drives, ensuring optimal compatibility. The wiring type of the product Cooler Master V750S is Semi-modulaire. This non-modular wiring ensures a stable and reliable connection.
Other features
The rise time of the product Cooler Master V750S is 500 ms. This feature ensures optimal responsiveness for a smooth user experience.
Representation / realization
The ATX version of the product Cooler Master V750S is 2.31. This specification ensures optimal compatibility with modern computer components. The usefulness of the product Cooler Master V750S is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The form factor of the power supply unit of the product Cooler Master V750S is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The noise level of the product Cooler Master V750S is - dB. This noise level allows for pleasant use without excessive noise disturbances. The average time between failures of the product Cooler Master V750S is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The product Cooler Master V750S has the 80 PLUS 80 PLUS Gold certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The certification of the product Cooler Master V750S contains CE, TUV, FCC, CCC, BSMI, KCC, RCM, EAC, UL. This certification guarantees compliance with the required safety and performance standards.
Power
The total power of the product Cooler Master V750S is 750 W. This power ensures optimal performance for efficient use. The AC input voltage of the Cooler Master V750S is 90 - 264 V. This specification ensures optimal compatibility with standard electrical systems. The input current of the product Cooler Master V750S is 5 - 10 A. This input current ensures optimal performance and increased energy efficiency. The AC input frequency of the product Cooler Master V750S is 47 - 63 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The power factor of the product Cooler Master V750S is 0.9. This power factor indicates the efficiency with which the product uses energy. The power factor correction device of the product Cooler Master V750S is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The maximum input current of the product Cooler Master V750S is +12V, +3.3V, +5V, +5Vsb, -12V A. This specification ensures optimal performance and compatibility with various electrical systems. The product Cooler Master V750S has a combined power (+3.3 V) of 120 W. This specification ensures optimal performance for your energy needs. The combined power (+12 V) of the product Cooler Master V750S is 744 W. This specification ensures optimal performance for your energy needs. The product Cooler Master V750S has a combined power (+5V) of 120 W. This specification ensures optimal performance for your devices. The product Cooler Master V750S has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Cooler Master V750S is 12.5 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Cooler Master V750S is 25 A. This current ensures optimal performance for your power supply needs. The product Cooler Master V750S has a maximum output current (+12V) of 62 A. This specification ensures optimal performance for your power supply needs. The product Cooler Master V750S has a maximum output current (+5V) of 22 A. This current allows you to efficiently power your electronic devices. The maximum output current (-12V) of the Cooler Master V750S is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Cooler Master V750S is 2.5 A. This current ensures a stable and efficient power supply for your devices. The retention time of the product Cooler Master V750S is 16 ms. This retention time ensures optimal performance and increased responsiveness during its use. The effectiveness of the product Cooler Master V750S is 90 %. This performance ensures optimal results for daily use. The electrical protection devices of the product Cooler Master V750S include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation.
Environmental conditions
The operating temperature of the product Cooler Master V750S is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The height of the product Cooler Master V750S is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Cooler Master V750S is 140 mm. This dimension allows for optimal integration into your space. The width of the product Cooler Master V750S is 150 mm. This dimension is essential to ensure optimal integration into your space.
Packaging information
The depth of the product package Cooler Master V750S is 196 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Cooler Master V750S is 266 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Cooler Master V750S is 192 mm. This dimension is essential to ensure optimal transport and storage. The packaging type of the product Cooler Master V750S is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
