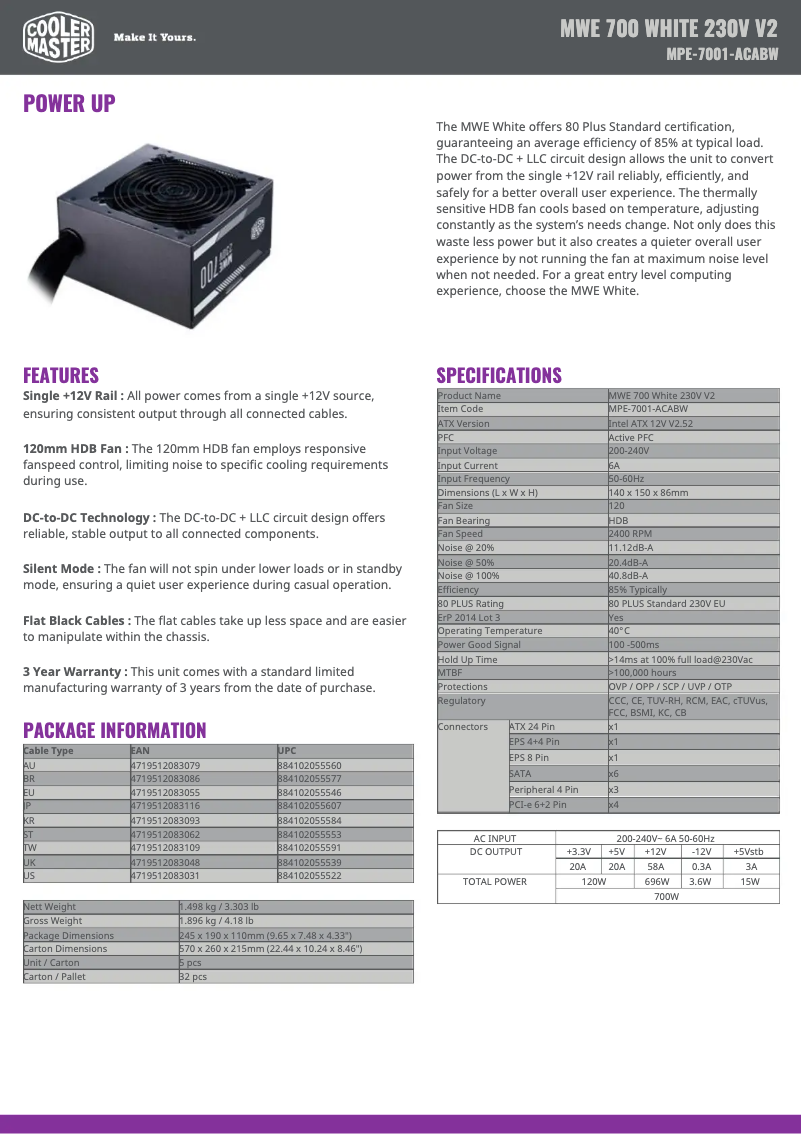

Manual of product MWE 700 White V2
Editorial note
The Cooler Master MWE 700 White V2 is a power supply that stands out for its optimal power of 700 W, ensuring high performance to effectively power your computer components. Its 80 PLUS certification guarantees appreciable energy efficiency, helping to reduce energy consumption and associated costs. Additionally, the built-in protection devices against overloads, surges, and short circuits enhance the safety and reliability of your electrical setup, which is a major asset for users concerned about the durability of their equipment. However, some drawbacks are worth mentioning. The non-modular cabling system can make installation cumbersome, as all cables must be connected, even those that are not used. While energy efficiency is satisfactory, a yield of 85% may seem lower compared to other power supplies with higher certifications. Furthermore, the noise level in full load mode (40.8 dB) could be perceived as high in noise-sensitive environments, which might disturb some users. In terms of durability, the product boasts a mean time between failures of 100,000 hours, ensuring prolonged use without interruptions. Nevertheless, the hold-up time of 14 ms may not be suitable for those with specific needs for power stability during power outages. Finally, the operating temperature range (0 - 40 °C) could limit its use in extreme, hot, or cold environments. Overall, the Cooler Master MWE 700 White V2 is a solid and high-performing power supply, ideal for users looking for a reliable and efficient solution, despite a few points to consider.Score details
Performance
The optimal power of 700 W ensures high performance to effectively power your computer components.
efficiency
The 80 PLUS certification guarantees high energy efficiency, helping to reduce energy consumption and associated costs.
Robustness
The built-in protection devices against overloads, surges, and short circuits ensure the safety and reliability of your electrical installation.
Usability
The silent mode allows for discreet use, ideal for quiet environments.
durability
Increased durability with a mean time between failures of 100,000 hours ensures prolonged use without interruptions.
Usability
The non-modular cabling system can make installation cumbersome, as all cables must be connected, even those not in use.
Performance
Although energy efficiency is good, its efficiency of 85% may be considered lower compared to other power supplies with higher certifications.
noise
The noise level in full load mode (40.8 dB) may be perceived as high in noise-sensitive environments.
reliability
The hold-up time of 14 ms may not be sufficient for users with specific power stability needs.
environmental_conditions
The operating temperature range (0 - 40 °C) could limit its use in hotter or colder environments.
Advantages
700 W for optimal performance
80 PLUS certification for energy efficiency
Protections against overloads and short circuits
Silent mode for discreet operation
100,000 hours durability guaranteed
Disadvantages
Bulky non-modular wiring.
Efficiency of 85% considered low.
Noise of 40.8 dB under heavy load.
Insufficient hold-up time of 14 ms.
Limited temperature range (0 - 40 °C).
Technical Specifications MWE 700 White V2
General Information
-
ModelMWE 700 WHITE V2
-
Brand
-
Category
-
Type
-
SKU1736013
-
MPN1736013
Power
-
Total power700 W
-
AC input voltage200 - 240 V
-
AC input frequency50 - 60 Hz
-
Input current6 A
-
Type of Power Factor Corrector (PFC)Active
-
Combined power (+5V)120 W
-
Combined power (+12 V)696 W
-
Combined power (+5V)120 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)58 A
-
Maximum output current (+5V)20 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)3 A
-
Holding time14 ms
-
Effectiveness85 %
-
Electrical protection devicesOver power, Over voltage, Overheating, Short circuit, Under voltage
-
Power Good signal trigger delay100 - 500 ms
Representation / realization
-
Compatible productsERP 2014 LOT 3
-
UtilityCCC
-
Form factor of the power supply unitCE
-
80 PLUS CertificationTUV-RH
-
Version ATXEAC
-
Silent modeRCM
-
Sound levelcTUVus
-
Rolling technologyFCC
-
Mean time between failuresBSMI
-
KC
-
CB
-
PC
-
ATX
-
80 PLUS
-
2.52
-
Yes
-
- dB
-
HDB
-
100000 h
Design
-
Product colorBlack
-
Cooling typeActive
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Fan speed0 - 2400 rpm
Connectivity
-
Motherboard connector24-pin ATX
-
Length of motherboard power cable500 mm
-
Number of SATA power cables6
-
Length of the device's power cable (Molex)400,550,700 mm
-
Molex peripheral connector (4-pin)3
-
Length of the device's power cable (Molex)400,550,700 mm
-
ATX connector (24-pin)Yes
-
PCI Express power connectors (6 +2 pin)4
-
ATX connector (24-pin)Yes
-
Wiring typeNon-modular
Other features
-
Noise level (silent mode, < 30 %)11.12 dB
-
Noise level (silent mode, 50 %)20.4 dB
-
Noise level (full charge mode, 100 %)40.8 dB
Environmental conditions
-
Operating temperature0 - 40 °C
Weight and dimensions
-
Width140 mm
-
Depth86 mm
-
Height150 mm
-
Weight1498 g
Packaging information
-
Package width245 mm
-
Package depth190 mm
-
Package height110 mm
-
Package weight1896 g
Logistics data
-
Products by pallet32 piece(s)
-
Width of the main locker (external)570 mm
-
Length of the main locker (external)260 mm
-
Height of the main locker (external)215 mm
-
Product by main locker (external)5 piece(s)
Frequently Asked Questions
What is the weight of the Cooler Master MWE 700 White V2?
What is the height of the Cooler Master MWE 700 White V2?
What is the width of the Cooler Master MWE 700 White V2?
What is the depth of the Cooler Master MWE 700 White V2?
Is the manual for the Cooler Master MWE 700 White V2 available in French?
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product MWE 700 White V2 specifications from brand Cooler Master
General Information
The Cooler Master MWE 700 White V2 is a power supply unit from the renowned brand Cooler Master, famous for its technological innovations and quality. This model, referenced as MPE-7001-ACABW-UK, is designed to provide reliable performance and an optimal user experience. Its EAN code, 4719512083048, allows for unique identification within distribution systems.
Power
With a total power of 700 W, the Cooler Master MWE 700 White V2 ensures high performance to effectively power a variety of computer components. Its AC input voltage ranges from 200 to 240 V, ensuring compatibility with standard electrical systems. With an input frequency of 50 to 60 Hz and an input current of 6 A, this model optimizes energy efficiency.
The active power factor correction further enhances efficiency, while the combined output powers, including 120 W for +3.3 V, 696 W for +12 V, and 120 W for +5 V, ensure stable power for all your needs. Protections against overloads, overvoltages, and short circuits are integrated to ensure the safety of your electrical installation.
Representation / Realization
The Cooler Master MWE 700 White V2 complies with several safety standards, including ERP 2014 LOT 3, CE, and FCC, ensuring safe and efficient use. Designed for PC systems, its ATX form factor guarantees compatibility with most modern cases and components. The 80 PLUS certification attests to its energy efficiency, helping to reduce energy consumption.
This model includes a silent mode, ideal for environments requiring discreet operation, and uses HDB bearing technology that promotes durability, with a mean time between failures of 100,000 hours.
Design
The design of the MWE 700 White V2 is both modern and functional, featuring an elegant black color. Its active cooling system, combined with a 120 mm fan that operates between 0 and 2400 RPM, allows for efficient airflow and optimal operation.
Connectivity
In terms of connectivity, the MWE 700 White V2 is equipped with a 24-pin ATX motherboard connector for a stable connection. It also has 6 SATA power cables and several Molex connectors. Its motherboard power cable length is 500 mm, facilitating integration into various types of cases. The model also includes EPS (8-pin) and PCI Express (6 + 2 pin) connectors, ensuring adequate power for graphics cards.
Other Features
The MWE 700 White V2 stands out for its noise level, below 30 %, with values of 20.4 dB in silent mode and 40.8 dB under maximum load. These features ensure a pleasant use, even in noise-sensitive environments.
Environmental Conditions
This power supply operates efficiently within a temperature range of 0 to 40 °C, making it suitable for use in various environments.
Weight and Dimensions
The Cooler Master MWE 700 White V2 measures 140 mm in width, 86 mm in depth, and 150 mm in height, with a weight of 1498 g, making it easy to install and integrate into your setup.
Packaging Information
The packaging dimensions are 245 mm in width, 190 mm in depth, and 110 mm in height, with a total weight of 1896 g. These specifications ensure secure transport and storage.
Logistical Data
The product is packaged with 32 pieces per pallet, with box dimensions of 570 mm in width, 260 mm in length, and 215 mm in height, thus optimizing stock management and shipping.
