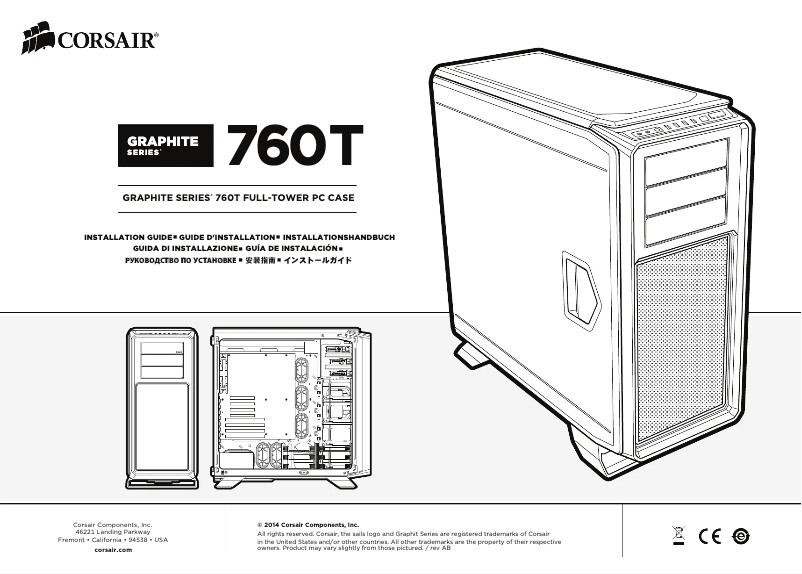

Manual of product Graphite 760T
Editorial note
The Corsair Graphite 760T stands out with its sleek and modern design, featuring a black finish and a side window that showcases the interior of the case. However, this window requires regular maintenance to prevent the accumulation of dust and fingerprints. In terms of storage, the case offers great flexibility with 6 3.5" bays and 4 2.5" bays, allowing for the integration of numerous hard drives and SSDs to meet various needs. The cooling system is also well thought out, allowing for the installation of up to 6 fans to ensure optimal airflow, although the presence of only one rear fan may limit its effectiveness for more demanding configurations. However, the Corsair Graphite 760T has some drawbacks. The lack of a power supply included can complicate setup for novice users, requiring an additional purchase. Additionally, with a weight of 11,200 g, the case can be relatively heavy, making transport and installation more difficult. Finally, the limited number of USB 2.0 ports (2 ports) may not be sufficient for users with many peripherals, especially at a time when USB 3.0 connections are becoming increasingly common. Overall, the Corsair Graphite 760T is a solid choice for those looking for an aesthetic and high-performing case, but it is important to consider the practical aspects related to its weight and setup.Score details
User experience
The elegant and modern design, with a side window, enhances the overall aesthetics, although regular maintenance is necessary to avoid dust accumulation.
Design
The case offers an attractive aesthetic thanks to its black color and quality finish, but the side window may require frequent cleaning.
storage
The large storage flexibility with 6 x 3.5" bays and 4 x 2.5" bays allows for the integration of many hard drives and SSDs, thus meeting various needs.
Performance
The cooling system is effective due to the possibility of installing up to 6 fans, although the rear fan is limited to a single unit.
Value for money
The fact that the Corsair Graphite 760T does not include a power supply can complicate setup for novice users and requires an additional purchase.
Usability
Weighing 11,200 g, the case can be relatively heavy, complicating its transport and installation in certain spaces.
connectivity
The limited number of USB 2.0 ports (2 ports) may prove insufficient for users with many devices to connect, especially at a time when USB 3.0 connections are becoming the norm.
Advantages
Modern design with elegant side glass
6 x 3.5 bays and 4 x 2.5 bays available
Compatible with various motherboard formats
Installation of up to 6 fans possible
Optimized cable management for an organized space
Disadvantages
No power supply included, additional purchase required.
Heavy weight, difficult transport and installation.
Few USB 2.0 ports available.
Dirty side glass, regular maintenance required.
Only one rear fan, limited cooling.
Technical Specifications Graphite 760T
General Information
-
ModelGRAPHITE 760T
-
Brand
-
Category
-
Type
-
SKU1758386
-
MPN1758386
Design
-
FormatFull Tower
-
TypePC
-
MaterialSteel
-
Number of 5.25" consoles3
-
Number of 3.5" internal bays6
-
Supported motherboard form factorATX, EATX, Micro ATX, Mini-ITX, XL-ATX
-
Product colorBlack
-
Number of berries 2.54
-
Number of 3.5" internal bays6
-
Suitable forPlay
-
Reset buttonYes
-
Lighting locationFan
-
Color of the lightingRed
-
Reset buttonYes
-
Built-in speakersNo
-
Number of expansion slots9
-
Maximum height CPU cooler170 mm
-
Maximum length graphics card450 mm
-
Maximum length of the power cable240 mm
-
Reset buttonYes
-
Reset buttonYes
Power Supply
-
Power supply includedNo
-
Power locationLow
Other features
-
Electrical protection devices-
-
User GuideYes
Connectivity
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
Audio outputYes
-
Audio outputYes
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
Cooling
-
Fans installed before2x 140 mm
-
Maximum front fans2
-
Support for larger fan diameters120,140 mm
-
Rear fans installed1x 140 mm
-
Maximum lower fans1
-
Support for larger fan diameters120,140 mm
-
Maximum upper fans3
-
Support for larger fan diameters120,140 mm
-
Maximum lower fans1
-
Liquid cooling capacityYes
Storage support
-
Supported hard drive sizes2.5
-
3.5
Weight and dimensions
-
Width246 mm
-
Depth564 mm
-
Height568 mm
-
Weight11200 g
Frequently Asked Questions
What is the weight of the Corsair Graphite 760T?
What is the height of the Corsair Graphite 760T?
What is the width of the Corsair Graphite 760T?
What is the depth of the Corsair Graphite 760T?
Is the manual for the Corsair Graphite 760T available in French?
Similar products
More product categories from brand Corsair
More product types from brand Corsair
Presentation of product Graphite 760T specifications from brand Corsair
General Information
The Corsair Graphite 760T is a case from the Corsair brand, known for its high-quality and innovative products. This model, identified by the code Graphite 760T | CC-9011073-WW, is designed to provide optimal performance and a pleasant user experience. It is also identifiable by its EAN code, which includes several references, ensuring unique recognition in the distribution network.
Design
The Corsair Graphite 760T features a bar format, ideal for practical use in various environments. Its island design combines functionality and aesthetics, allowing for space optimization in your interior. Made of steel, this case combines lightness and durability, thus offering remarkable resistance to wear. With 3 5.25" bays, 6 3.5" bays, and 4 2.5" bays, it offers impressive storage flexibility. This model is compatible with several motherboard formats, including ATX, EATX, Micro ATX, Mini-ITX, and XL-ATX, ensuring adaptability to various systems. The black color and side window add a modern touch while allowing visibility of the interior of the case. Additionally, it features multi-color lighting located at the fan level, creating a personalized ambiance. However, it does not include built-in speakers and has 9 expansion slots to increase the system's expansion capacity.
Power Supply
The Corsair Graphite 760T does not include a power supply, requiring a separate purchase for the initial setup. The power supply is positioned at the bottom, optimizing integration into your space.
Other Features
This case is equipped with electrical protection devices that ensure the safety of your setup, including protections against overloads and short circuits. A user guide is also provided to help you fully utilize all the product's features.
Connectivity
The Corsair Graphite 760T offers 2 USB 2.0 ports for quick connection of your devices. It also features an audio input and output, facilitating connection to various audio devices. However, it does not have USB 3.2 Gen 1 ports, which may be a disadvantage for users needing higher transfer speeds.
Cooling
This model is designed for efficient cooling, with the possibility of installing up to 6 fans. The front fan of 2x 140 mm ensures good airflow, while a rear fan is also present to complete the cooling system. The top fans can accommodate diameters of 120 mm and 140 mm, thus offering flexibility in choosing cooling components. Additionally, the case supports liquid cooling, maintaining optimal temperatures for efficient operation.
Storage Support
The Corsair Graphite 760T is designed to accommodate 2.5" and 3.5" hard drives, providing great flexibility in choosing storage devices.
Weight and Dimensions
With dimensions of 246 mm in width, 564 mm in depth, and 568 mm in height, the Corsair Graphite 760T easily fits into various spaces. Its weight of 11,200 g ensures stability during use, although it may make transport and installation more complex.
