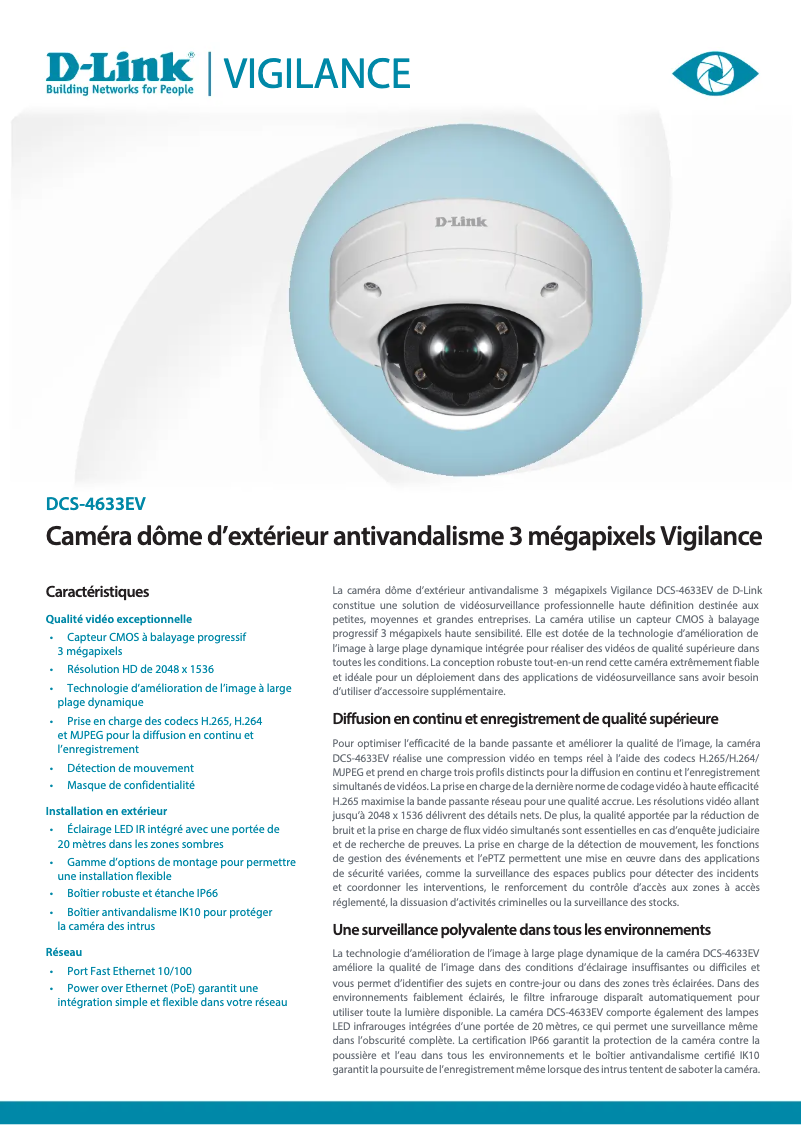

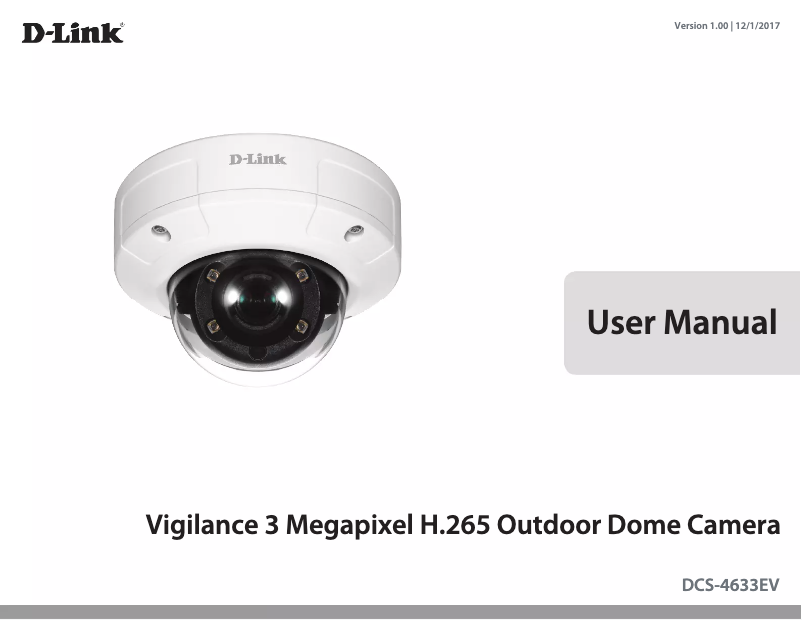

Manuals of product DCS-4633EV
Technical Specifications DCS-4633EV
General Information
-
ModelDCS-4633EV
-
Brand
-
Category
-
Type
-
SKU1206746
-
MPN1206746
Camera
-
White balanceCar
-
Minimum illumination0 lux
-
Rotation angle350 °
-
Field of view of the lens, horizontal105 °
-
Angle of view of the lens, vertical80 °
-
Angle of view of the lens, diagonal137 °
Video
-
Video broadcastingYes
-
Visual compression formatsH.264, H.265, M-JPEG
-
Number of images per second30 fps
-
Video broadcastingYes
-
Total megapixels3 MP
-
Video broadcastingYes
-
Supported graphic resolutions640 x 360, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 1080, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
-
Maximum resolution2048 x 1536 pixels
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Video broadcastingYes
-
Video broadcastingYes
Network
-
Streaming methodMulticast
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.3af
-
Ethernet/LANYes
-
Supported network protocolsIPv6, IPv4, ARP, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP/HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP/RTSP/RTCP, IP filtering, Multicast, CoS, QoS/DSCP, SNMP, ONVIF
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
Representation / realization
-
Infrared cutoff filterYes
-
TypeIP security camera
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
CertificationCE, FCC, C-Tick
-
Connectivity technologyWired
-
Supported installationOutdoor
-
Infrared cutoff filterYes
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Output CC in volts12
-
Consumption (max)6 W
-
Power supply typeAC, DC, PoE
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Output CC in amperes1.5 A
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Alert notification typeE-mail, Snapshot alert message
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Packaging contents
-
Number of cameras1
Minimum system requirements
-
Support for the Windows operating systemWindows 10
-
Windows 7
-
Windows 8
Management features
-
Web BrowserYes
-
Web BrowserYes
Environmental conditions
-
Operating temperature-30 - 50 °C
-
Temperature out of operation-20 - 70 °C
-
Relative humidity rate (storage)5 - 95 %
Weight and dimensions
-
Height64.7 mm
-
Weight365 g
-
Diameter99 mm
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Design
-
Protection functionsAnti-vandalism
-
Weather-resistantYes
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
-
Code IKIK10
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/3 "
-
Progressive scanYes
Objective system
-
Zoom capacityYes
-
Digital zoom10 x
-
Maximum number of openings1.85
-
Fixed Focal Length2.8 mm
-
Minimum focusing distance0.5 m
Technical details
-
Suitable for outdoor useYes
-
Suitable for outdoor useYes
Night vision
-
Night visionYes
-
Night vision distance20 m
-
Type of LEDIR
Packaging information
-
Package weight870 g
-
Package depth208 mm
-
Package height95 mm
-
Package width137 mm
Logistics data
-
Gross width of the pallet1200 mm
-
Gross length of the pallet1100 mm
-
Width of the shipping box297 mm
-
Length of the shipping box502 mm
-
Height of the shipping box250 mm
-
Product by shipping crate (internal)10 piece(s)
-
Net weight of the shipping package8750 g
-
Gross weight of the shipping crate (internal)9250 g
-
Gross weight of pallet (air)397400 g
-
Main lockers (external) per pallet (air)40 piece(s)
-
Quantity per pallet (air)400 piece(s)
-
Height of the pallet (air)1385 mm
-
Gross weight of pallet (sea)538000 g
-
Main lockers (external) per pallet (sea)56 piece(s)
-
Products per pallet (sea)560 piece(s)
-
Height of the pallet (sea)1885 mm
-
Harmonized System Code85258900
Similar products
More product categories from brand D-Link
More product types from brand D-Link
Presentation of product DCS-4633EV specifications from brand D-Link
Generalities
The EAN code of the product D-Link DCS-4633EV is 0790069436680, 0790069438080, 0790069439841. This code allows for the unique identification of the product in the distribution system. The brand of the product D-Link DCS-4633EV is D-Link. This brand is known for its quality and innovation in the field of household appliances. The product model D-Link DCS-4633EV is DCS-4633EV | DCS-4633EV. This model ensures optimal performance and an enhanced user experience.
Camera
The white balance of the product D-Link DCS-4633EV consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The minimum illumination of the product D-Link DCS-4633EV is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view of the D-Link DCS-4633EV lens is 105 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The rotation angle of the product D-Link DCS-4633EV is 350 °. This angle allows for optimal usage flexibility. The vertical field of view of the product D-Link DCS-4633EV is 80 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product D-Link DCS-4633EV is 137 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Network
The streaming method of the product D-Link DCS-4633EV is Multi-diffusion. This method allows for efficient data transmission to multiple users simultaneously. The network standards of the product D-Link DCS-4633EV are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The wiring technology of the product D-Link DCS-4633EV contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The Ethernet interface type of the product D-Link DCS-4633EV is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product D-Link DCS-4633EV have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. Does the D-Link DCS-4633EV have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product D-Link DCS-4633EV have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product D-Link DCS-4633EV contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product D-Link DCS-4633EV are IPv6, IPv4, ARP, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP/HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP/RTSP/RTCP, IP filtering, Multicast, CoS, QoS/DSCP, SNMP, ONVIF. These protocols ensure efficient and reliable communication for your networking needs.
Video
Does the product D-Link DCS-4633EV have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. The product D-Link DCS-4633EV has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The number of frames per second of the product D-Link DCS-4633EV is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product D-Link DCS-4633EV have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. The total megapixels of the product D-Link DCS-4633EV is 3 MP. This total ensures exceptional image quality for your photos. Does the product D-Link DCS-4633EV have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The supported graphic resolutions of the product D-Link DCS-4633EV are 640 x 360,640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1440 x 1080,1920 x 1080 (HD 1080),2048 x 1536 (QXGA). These resolutions provide optimal display quality for your content. The maximum resolution of the product D-Link DCS-4633EV is 2048 x 1536 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The image quality setting of the product D-Link DCS-4633EV contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product D-Link DCS-4633EV have Timestamp Overlay? Oui. This feature allows you to display the date and time directly on the video, providing valuable temporal context. Does the product D-Link DCS-4633EV have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Power
Does the D-Link DCS-4633EV have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The maximum consumption of the product D-Link DCS-4633EV is 6 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product D-Link DCS-4633EV is AC, DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product D-Link DCS-4633EV has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The AC input voltage of the D-Link DCS-4633EV is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product D-Link DCS-4633EV is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The product D-Link DCS-4633EV has a DC output in amperes of 1.5 A. This specification ensures a stable power supply suitable for your needs.
Representation / realization
Does the product D-Link DCS-4633EV have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The type of product D-Link DCS-4633EV is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product D-Link DCS-4633EV have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The D-Link DCS-4633EV product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. The certification of the product D-Link DCS-4633EV contains CE, FCC, C-Tick. This certification guarantees compliance with the required safety and performance standards. The product D-Link DCS-4633EV features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product D-Link DCS-4633EV supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product D-Link DCS-4633EV have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy.
Security
Does the product D-Link DCS-4633EV have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product D-Link DCS-4633EV have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product D-Link DCS-4633EV have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. The alert notification type for the product D-Link DCS-4633EV is E-mail, Snapshot alert message. This feature allows for real-time alerts for better security. Does the product D-Link DCS-4633EV have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the D-Link DCS-4633EV product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Storage support
Does the D-Link DCS-4633EV have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the D-Link DCS-4633EV have a built-in hard drive? No. This feature means that the product does not have internal storage. The product D-Link DCS-4633EV has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product D-Link DCS-4633EV is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Minimum system requirements
Does the product D-Link DCS-4633EV support the Windows operating system? Windows 10, Windows 7, Windows 8. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Packaging contents
The number of cameras of the product D-Link DCS-4633EV is 1. This product is equipped with a camera that allows capturing high-quality images.
Management features
The D-Link DCS-4633EV product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product D-Link DCS-4633EV have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Environmental conditions
The non-operating temperature of the product D-Link DCS-4633EV is -20 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product D-Link DCS-4633EV is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The operating temperature of the product D-Link DCS-4633EV is -30 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product D-Link DCS-4633EV is 1. These ports provide a stable and fast network connection for your devices.
Weight and dimensions
The height of the product D-Link DCS-4633EV is 64.7 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product D-Link DCS-4633EV is 365 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product D-Link DCS-4633EV is 99 mm. This diameter allows for optimal use and fits perfectly with your needs.
Image sensor
The sensor type of the product D-Link DCS-4633EV is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product D-Link DCS-4633EV is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product D-Link DCS-4633EV have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Design
The format of the product D-Link DCS-4633EV is a bar. This format allows for practical and efficient use in various contexts. The product D-Link DCS-4633EV has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions. The color of the product D-Link DCS-4633EV is Blanc. This shade gives it a modern and elegant look. Is the D-Link DCS-4633EV weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The mounting type of the product D-Link DCS-4633EV is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product D-Link DCS-4633EV contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product D-Link DCS-4633EV is IK10. This IK Code allows for easy identification of the specific design of the item.
Technical details
Does the product D-Link DCS-4633EV have a removable infrared filter? Oui. This filter helps improve image quality by reducing light interference. Is the D-Link DCS-4633EV suitable for outdoor use? Oui. This product is ideal for outdoor activities.
Objective system
The maximum number of openings for the product D-Link DCS-4633EV is 1.85. This feature allows for optimal use and increased flexibility. The digital zoom of the product D-Link DCS-4633EV is 10 x. This zoom allows for capturing precise details even from a distance. The product goal system D-Link DCS-4633EV has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. Does the product D-Link DCS-4633EV have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The minimum focusing distance of the product D-Link DCS-4633EV is 0.5 m. This feature allows for sharp images even at relatively far distances.
Night vision
The type of LED of the product D-Link DCS-4633EV is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product D-Link DCS-4633EV is 20 m. This feature allows for clear and precise observation even in darkness. Does the product D-Link DCS-4633EV have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Packaging information
The weight of the D-Link DCS-4633EV package is 870 g. This weight ensures optimal protection during transport and delivery. The depth of the product package D-Link DCS-4633EV is 208 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product D-Link DCS-4633EV is 137 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product D-Link DCS-4633EV is 95 mm. This dimension is essential to ensure optimal transport and storage.
Logistics data
The gross length of the D-Link DCS-4633EV product pallet is 1100 mm. This specification is essential for optimizing storage and transport. The gross width of the D-Link DCS-4633EV product palette is 1200 mm. This specification is essential for optimizing storage and transportation. The length of the shipping carton for the product D-Link DCS-4633EV is 502 mm. This specification is essential to ensure efficient and secure shipping. The width of the shipping carton for the product D-Link DCS-4633EV is 297 mm. This dimension is essential to ensure efficient and secure transport. The height of the shipping carton for the product D-Link DCS-4633EV is 250 mm. This specification is essential for optimizing transport and storage. The product D-Link DCS-4633EV contains 10 pièce(s) piece(s) per internal shipping crate. This specification is essential for optimizing logistics management and ensuring efficient shipping. The gross weight of the pallet (air) of the product D-Link DCS-4633EV is 397400 g. This weight is essential for calculating shipping costs and ensuring proper handling during transport. The net weight of the shipping package for the product D-Link DCS-4633EV is 8750 g. This weight is essential for calculating shipping costs and ensuring efficient shipping. The gross weight of the shipping case (internal) of the product D-Link DCS-4633EV is 9250 g. This weight is essential for optimizing transportation costs and ensuring efficient logistics management. The height of the product D-Link DCS-4633EV (air) is 1385 mm. This specification ensures optimization of storage and transport space. The quantity per pallet (air) of the product D-Link DCS-4633EV is 400 pièce(s). This specification allows for the optimization of the transport and storage of goods. The main (external) lockers of the product D-Link DCS-4633EV contain 40 pièce(s) parts. These lockers are designed to optimize space and facilitate storage during air transport. The gross weight of the pallet (sea) of the product D-Link DCS-4633EV is 538000 g. This weight is essential for logistics management and maritime transport. The main (external) lockers of the product D-Link DCS-4633EV contain 56 pièce(s) parts. These lockers are designed to optimize storage space during maritime transport. The number of products per pallet (sea) of the product D-Link DCS-4633EV is 560 pièce(s). This specification allows for optimizing maritime transport by maximizing loading space. The height of the product D-Link DCS-4633EV (sea) pallet is 1885 mm. This specification ensures optimal compatibility for maritime transport. The Harmonized System code for the product D-Link DCS-4633EV is 85258900. This code allows for the unique identification of goods in international trade.
