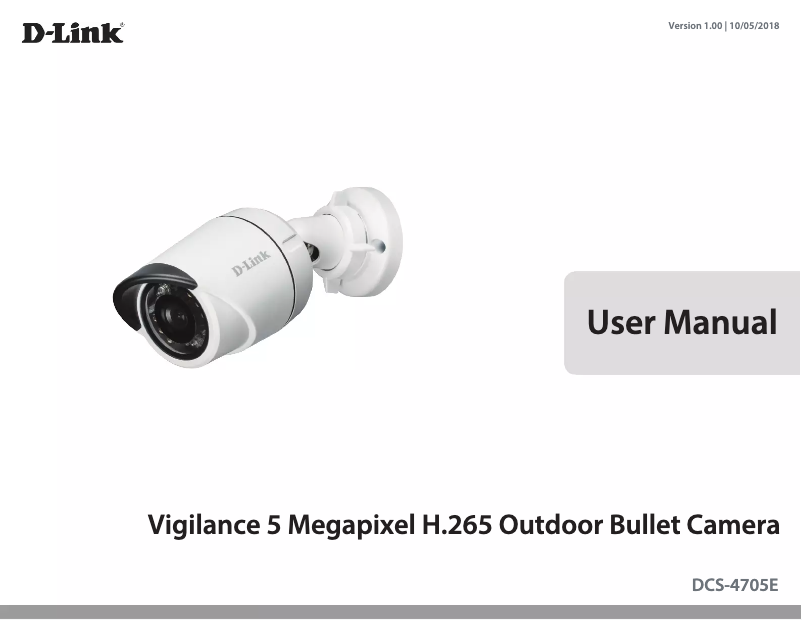

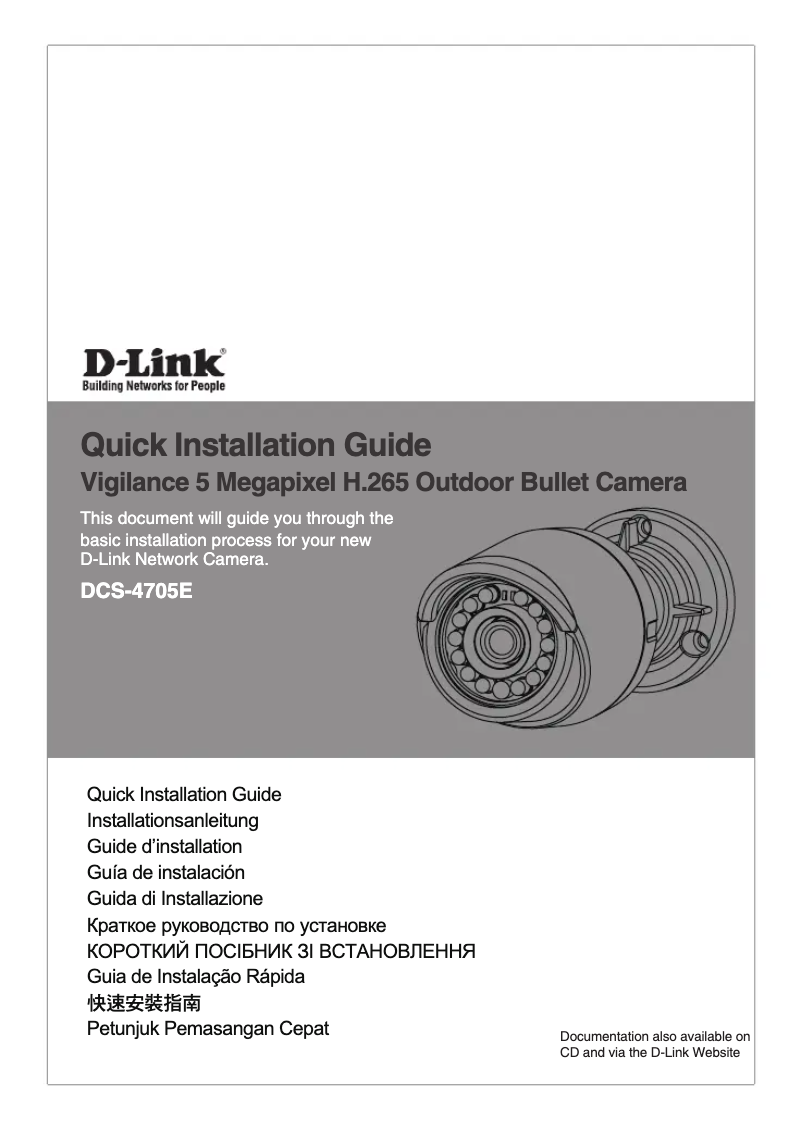

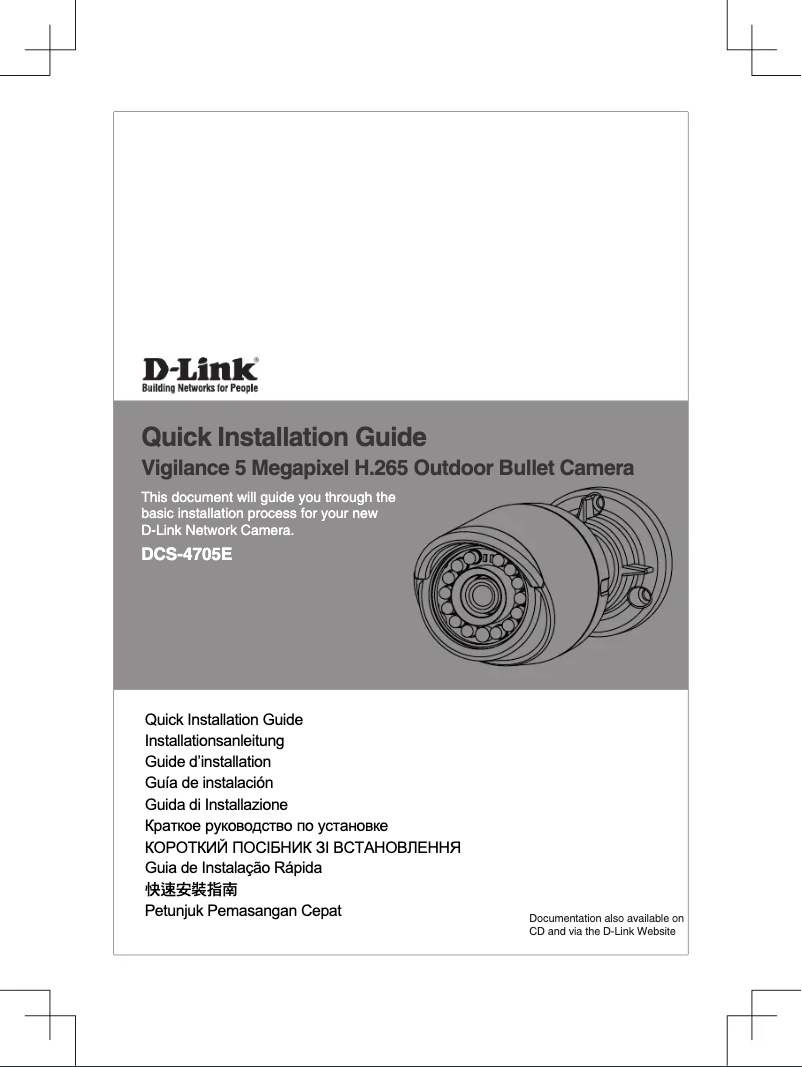

Manuals of product DCS-4705E
Technical Specifications DCS-4705E
General Information
-
ModelDCS-4705E
-
Brand
-
Category
-
Type
-
SKU1193538
-
MPN1193538
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Day/Night ModeYes
Design
-
FormatTerminal
-
Product colorWhite
-
Mounting typeWall
-
International Protection Code (IP)IP66
Video
-
Maximum resolution2592 x 1440 pixels
-
Total megapixels5 MP
-
Visual compression formatsH.264, H.265, M-JPEG
-
Supported graphic resolutions640 x 360,640 x 480 (VGA),800 x 448,800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1440 x 1080,1600 x 1200 (UXGA),1920 x 1080 (HD 1080),2560 x 1920
-
Number of images per second30 ips
-
Video broadcastingYes
-
Video broadcastingYes
Camera
-
Minimum illumination0 lux
-
Field of view of the lens, horizontal90 °
-
Angle of view of the lens, vertical50 °
-
Angle of view of the lens, diagonal104 °
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.5 "
-
Progressive scanYes
Objective system
-
Number of lenses1
-
Zoom capacityYes
-
Digital zoom10 x
-
Fixed Focal Length2.8 mm
-
Maximum number of openings2
Storage support
-
Integrated hard driveNo
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Network
-
Ethernet/LANYes
-
WifiNo
-
WifiNo
-
Type of Ethernet interfaceFast Ethernet
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Power
-
Power supply typeAC, PoE
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption3.2 W
Packaging contents
-
Number of cameras1
Security
-
Motion detector (video)Yes
Weight and dimensions
-
Diameter59 mm
-
Depth164.7 mm
-
Diameter59 mm
-
Diameter59 mm
-
Weight445 g
Environmental conditions
-
Operating temperature-30 - 50 °C
-
Temperature out of operation-20 - 70 °C
-
Operating relative humidity (H-H)20 - 80 %
-
Relative humidity rate (storage)5 - 95 %
Packaging information
-
Package weight766.5 g
-
Package depth208 mm
-
Package height95 mm
-
Package width137 mm
Logistics data
-
Gross width of the pallet1200 mm
-
Gross length of the pallet1100 mm
-
Width of the shipping box297 mm
-
Length of the shipping box508 mm
-
Height of the shipping box250 mm
-
Product by shipping crate (internal)10 piece(s)
-
Net weight of the shipping package7695 g
-
Gross weight of the shipping crate (internal)8395 g
-
Gross weight of pallet (air)357800 g
-
Main lockers (external) per pallet (air)40 piece(s)
-
Quantity per pallet (air)400 piece(s)
-
Height of the pallet (air)1385 mm
-
Gross weight of pallet (sea)490120 g
-
Main lockers (external) per pallet (sea)56 piece(s)
-
Products per pallet (sea)560 piece(s)
-
Height of the pallet (sea)1885 mm
Similar products
More product categories from brand D-Link
More product types from brand D-Link
Presentation of product DCS-4705E specifications from brand D-Link
Generalities
The brand of the product D-Link DCS-4705E is D-Link. This brand is known for its quality and innovation in the field of household appliances. The product model D-Link DCS-4705E is DCS-4705E | DCS-4705E. This model ensures optimal performance and an enhanced user experience. The EAN code of the product D-Link DCS-4705E is 0790069441592, 0790069441783, 0790069446535. This code allows for the unique identification of the product in the distribution system.
Representation / realization
The type of product D-Link DCS-4705E is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product D-Link DCS-4705E features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product D-Link DCS-4705E have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product D-Link DCS-4705E supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product D-Link DCS-4705E have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product D-Link DCS-4705E have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort.
Design
The format of the product D-Link DCS-4705E is a bar. This format allows for practical and efficient use in various contexts. The color of the product D-Link DCS-4705E is Blanc. This shade gives it a modern and elegant look. The mounting type of the product D-Link DCS-4705E is Mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product D-Link DCS-4705E contains IP66. This code indicates the level of protection against solid objects and moisture.
Video
The maximum resolution of the product D-Link DCS-4705E is 2592 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product D-Link DCS-4705E has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product D-Link DCS-4705E are 640 x 360,640 x 480 (VGA),800 x 448,800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1440 x 1080,1600 x 1200 (UXGA),1920 x 1080 (HD 1080),2560 x 1920. These resolutions provide optimal display quality for your content. The total megapixels of the product D-Link DCS-4705E is 5 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product D-Link DCS-4705E is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product D-Link DCS-4705E have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product D-Link DCS-4705E have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Camera
The vertical field of view of the product D-Link DCS-4705E is 50 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The field of view of the D-Link DCS-4705E lens is 90 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The angle of view of the lens, diagonal of the product D-Link DCS-4705E is 104 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The minimum illumination of the product D-Link DCS-4705E is 0 lux. This feature ensures optimal performance even in low light conditions.
Image sensor
The sensor type of the product D-Link DCS-4705E is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product D-Link DCS-4705E is 1/2.5 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product D-Link DCS-4705E is 1. This number of sensors allows for precise and efficient image detection. Does the product D-Link DCS-4705E have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Storage support
Does the D-Link DCS-4705E have a built-in hard drive? No. This feature means that the product does not have internal storage.
Objective system
The number of lenses in the product D-Link DCS-4705E is 1. This number determines the quality and versatility of the lens. Does the product D-Link DCS-4705E have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The product goal system D-Link DCS-4705E has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The digital zoom of the product D-Link DCS-4705E is 10 x. This zoom allows for capturing precise details even from a distance. The maximum number of openings for the product D-Link DCS-4705E is 2. This feature allows for optimal use and increased flexibility.
Night vision
Does the product D-Link DCS-4705E have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product D-Link DCS-4705E is 30 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product D-Link DCS-4705E is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product D-Link DCS-4705E is 1. These ports provide a stable and fast network connection for your devices.
Network
The Wifi of the product D-Link DCS-4705E contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the D-Link DCS-4705E have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product D-Link DCS-4705E have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product D-Link DCS-4705E is Fast Ethernet. This type of interface allows for fast and efficient network connections.
Security
Does the product D-Link DCS-4705E have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Power
The type of power source for the product D-Link DCS-4705E is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the D-Link DCS-4705E is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product D-Link DCS-4705E is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The typical power consumption of the product D-Link DCS-4705E is 3.2 W. This feature allows for the assessment of the energy efficiency of the device.
Packaging contents
The number of cameras of the product D-Link DCS-4705E is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The diameter of the product D-Link DCS-4705E is 59 mm. This diameter allows for optimal use and fits perfectly with your needs. The width of the product D-Link DCS-4705E is 59 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product D-Link DCS-4705E is 164.7 mm. This dimension allows for optimal integration into your space. The height of the product D-Link DCS-4705E is 59 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product D-Link DCS-4705E is 445 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The non-operating temperature of the product D-Link DCS-4705E is -20 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product D-Link DCS-4705E is -30 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product D-Link DCS-4705E is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product D-Link DCS-4705E has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging information
The weight of the D-Link DCS-4705E package is 766.5 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product D-Link DCS-4705E is 95 mm. This dimension is essential to ensure optimal transport and storage. The width of the package of the product D-Link DCS-4705E is 137 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package D-Link DCS-4705E is 208 mm. This dimension is essential to ensure proper packaging and secure transport.
Logistics data
The length of the shipping carton for the product D-Link DCS-4705E is 508 mm. This specification is essential to ensure efficient and secure shipping. The gross width of the D-Link DCS-4705E product palette is 1200 mm. This specification is essential for optimizing storage and transportation. The gross length of the D-Link DCS-4705E product pallet is 1100 mm. This specification is essential for optimizing storage and transport. The width of the shipping carton for the product D-Link DCS-4705E is 297 mm. This dimension is essential to ensure efficient and secure transport. The height of the shipping carton for the product D-Link DCS-4705E is 250 mm. This specification is essential for optimizing transport and storage. The product D-Link DCS-4705E contains 10 pièce(s) piece(s) per internal shipping crate. This specification is essential for optimizing logistics management and ensuring efficient shipping. The gross weight of the pallet (air) of the product D-Link DCS-4705E is 357800 g. This weight is essential for calculating shipping costs and ensuring proper handling during transport. The net weight of the shipping package for the product D-Link DCS-4705E is 7695 g. This weight is essential for calculating shipping costs and ensuring efficient shipping. The gross weight of the shipping case (internal) of the product D-Link DCS-4705E is 8395 g. This weight is essential for optimizing transportation costs and ensuring efficient logistics management. The gross weight of the pallet (sea) of the product D-Link DCS-4705E is 490120 g. This weight is essential for logistics management and maritime transport. The main (external) lockers of the product D-Link DCS-4705E contain 40 pièce(s) parts. These lockers are designed to optimize space and facilitate storage during air transport. The height of the product D-Link DCS-4705E (air) is 1385 mm. This specification ensures optimization of storage and transport space. The quantity per pallet (air) of the product D-Link DCS-4705E is 400 pièce(s). This specification allows for the optimization of the transport and storage of goods. The main (external) lockers of the product D-Link DCS-4705E contain 56 pièce(s) parts. These lockers are designed to optimize storage space during maritime transport. The number of products per pallet (sea) of the product D-Link DCS-4705E is 560 pièce(s). This specification allows for optimizing maritime transport by maximizing loading space. The height of the product D-Link DCS-4705E (sea) pallet is 1885 mm. This specification ensures optimal compatibility for maritime transport.
