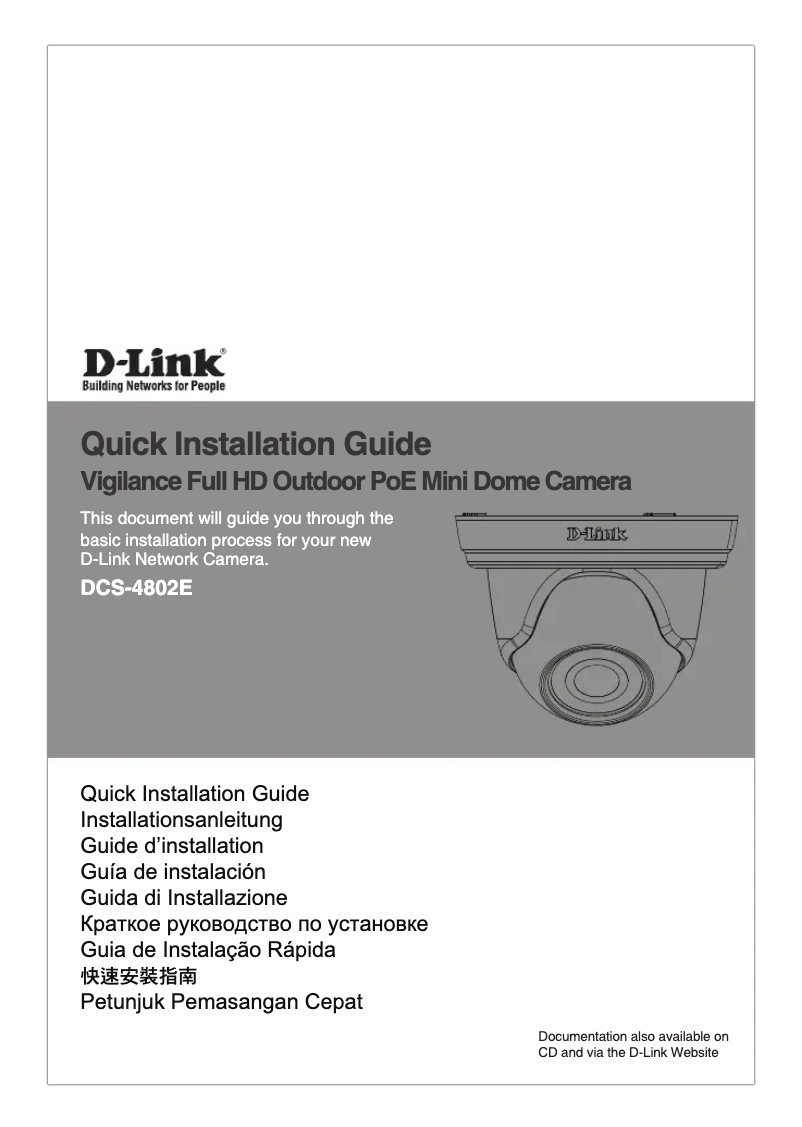

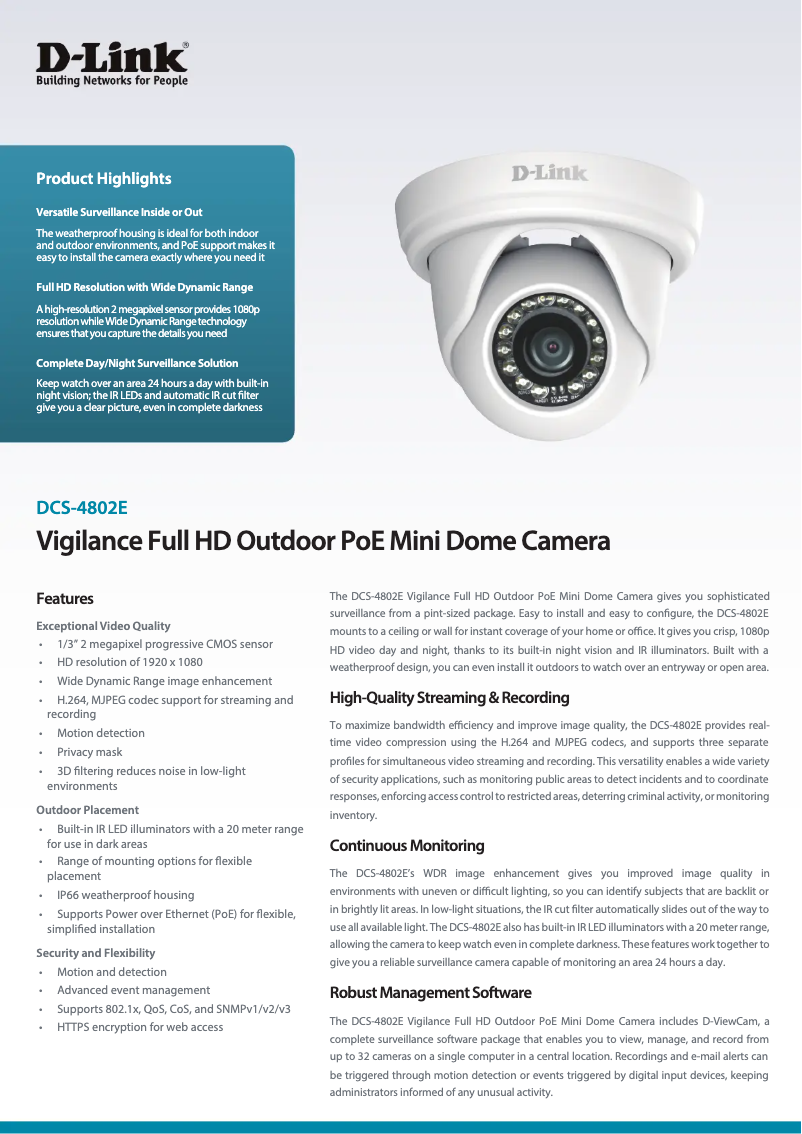

Manuals of product DCS-4802E
Technical Specifications DCS-4802E
General Information
-
ModelDCS-4802E
-
Brand
-
Category
-
Type
-
SKU1206740
-
MPN1206740
Representation / realization
-
PTZ Control-
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Connectivity technologyWired
-
CertificationCE (Class A)
-
CE LVD
-
FCC (Class A)
-
C-Tick
Design
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
Video
-
Maximum resolution1920 x 1080 pixels
-
Supported video formatH.264, MPEG
-
Supported graphic resolutions1920 x 1080 (HD 1080)
-
Supported video modes1080p
-
Number of images per second30 fps
-
Total megapixels2 MP
-
Noise reductionYes
-
Noise reductionYes
Camera
-
Minimum illumination0 lux
-
Field of view of the lens, horizontal96 °
-
Angle of view of the lens, vertical54 °
-
Angle of view of the lens, diagonal108 °
Image sensor
-
Progressive scanYes
-
Sensor typeCMOS
-
Optical sensor size1/3
Objective system
-
Zoom capacity-
-
Optical zoom- x
-
Digital zoom10 x
-
Tuning1.8
-
Fixed Focal Length2.8 mm
Security
-
Motion detectorYes
-
Motion detectorYes
Storage support
-
Integrated hard driveNo
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Network
-
Ethernet/LANYes
-
Wiring technology10/100Base-T(X)
-
WifiNo
Other features
-
Compliance with industry standardsPoE IEEE 802.3af
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
InterfaceRJ-45
Audio
-
Built-in microphone-
Weight and dimensions
-
Height85 mm
-
Depth113 mm
-
Weight370 g
-
Depth113 mm
-
Depth113 mm
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input voltage100-240 V
-
AC input frequency50 - 60 Hz
-
Output CC in amperes1.5 A
-
Output CC in volts+12V
-
Power supply typePoE
Environmental conditions
-
Operating temperature-30 - 50 °C
-
Operating relative humidity (H-H)20 - 80 %
Packaging contents
-
Number of cameras1
Packaging information
-
Package weight691.5 g
-
Package depth208 mm
-
Package height95 mm
-
Package width137 mm
Logistics data
-
Gross width of the pallet1200 mm
-
Gross length of the pallet1100 mm
-
Width of the shipping box297 mm
-
Length of the shipping box508 mm
-
Height of the shipping box250 mm
-
Product by shipping crate (internal)10 piece(s)
-
Net weight of the shipping package6915 g
-
Gross weight of the shipping crate (internal)7615 g
-
Gross weight of pallet (air)326600 g
-
Main lockers (external) per pallet (air)40 piece(s)
-
Quantity per pallet (air)400 piece(s)
-
Height of the pallet (air)1385 mm
-
Gross weight of pallet (sea)448440 g
-
Main lockers (external) per pallet (sea)56 piece(s)
-
Products per pallet (sea)560 piece(s)
-
Height of the pallet (sea)1885 mm
Similar products
More product categories from brand D-Link
More product types from brand D-Link
Presentation of product DCS-4802E specifications from brand D-Link
Generalities
The EAN code of the product D-Link DCS-4802E is 0790069416040, 0790069422683, 5054531949586, 4056203530437, 0790069422669. This code allows for the unique identification of the product in the distribution system. The brand of the product D-Link DCS-4802E is D-Link. This brand is known for its quality and innovation in the field of household appliances. The product model D-Link DCS-4802E is DCS-4802E | DCS-4802E. This model ensures optimal performance and an enhanced user experience.
Design
The format of the product D-Link DCS-4802E is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product D-Link DCS-4802E contains IP66. This code indicates the level of protection against solid objects and moisture. The mounting type of the product D-Link DCS-4802E is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product D-Link DCS-4802E is Blanc. This shade gives it a modern and elegant look.
Representation / realization
The type of product D-Link DCS-4802E is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product D-Link DCS-4802E supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product D-Link DCS-4802E is -. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product D-Link DCS-4802E have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product D-Link DCS-4802E have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product D-Link DCS-4802E features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product D-Link DCS-4802E contains CE (Class A)\nCE LVD\nFCC (Class A)\nC-Tick. This certification guarantees compliance with the required safety and performance standards.
Camera
The field of view of the D-Link DCS-4802E lens is 96 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The minimum illumination of the product D-Link DCS-4802E is 0 lux. This feature ensures optimal performance even in low light conditions. The angle of view of the lens, diagonal of the product D-Link DCS-4802E is 108 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The vertical field of view of the product D-Link DCS-4802E is 54 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions.
Image sensor
Does the product D-Link DCS-4802E have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product D-Link DCS-4802E is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product D-Link DCS-4802E is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Video
The maximum resolution of the product D-Link DCS-4802E is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product D-Link DCS-4802E are 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product D-Link DCS-4802E is 1080p. This mode allows you to enjoy optimal image quality for your videos. The supported video format of the product D-Link DCS-4802E contains H.264, MPEG. This format allows for smooth and high-quality playback of your multimedia content. The number of frames per second of the product D-Link DCS-4802E is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product D-Link DCS-4802E is 2 MP. This total ensures exceptional image quality for your photos. Does the product D-Link DCS-4802E have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product D-Link DCS-4802E have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions.
Security
Does the product D-Link DCS-4802E have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security. Does the product D-Link DCS-4802E have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Storage support
Does the D-Link DCS-4802E have a built-in hard drive? No. This feature means that the product does not have internal storage.
Objective system
Does the product D-Link DCS-4802E have zoom capacity? -. This feature allows you to capture precise details, even from a distance. The adjustment of the D-Link DCS-4802E is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The optical zoom of the product D-Link DCS-4802E is - x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The digital zoom of the product D-Link DCS-4802E is 10 x. This zoom allows for capturing precise details even from a distance. The product goal system D-Link DCS-4802E has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality.
Night vision
The night vision distance of the product D-Link DCS-4802E is 30 m. This feature allows for clear and precise observation even in darkness. Does the product D-Link DCS-4802E have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product D-Link DCS-4802E is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Network
The Wifi of the product D-Link DCS-4802E contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The wiring technology of the product D-Link DCS-4802E contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. Does the product D-Link DCS-4802E have Ethernet/LAN? Oui. This specification determines the network connectivity of the product.
Other features
The product D-Link DCS-4802E has compliance with industrial standards PoE IEEE 802.3af. This compliance ensures that the product meets the established standards to ensure its quality and safety.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product D-Link DCS-4802E is 1. These ports provide a stable and fast network connection for your devices. The product D-Link DCS-4802E has an Interface RJ-45. This interface allows for easy and quick connection with various devices.
Audio
Does the product D-Link DCS-4802E have a built-in Microphone? -. This microphone allows for clear and precise audio capture, ideal for calls and recordings.
Weight and dimensions
The height of the product D-Link DCS-4802E is 85 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product D-Link DCS-4802E is 113 mm. This dimension is essential to ensure optimal integration into your space. The diameter of the product D-Link DCS-4802E is 113 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product D-Link DCS-4802E is 370 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product D-Link DCS-4802E is 113 mm. This dimension allows for optimal integration into your space.
Power
Does the D-Link DCS-4802E have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The product D-Link DCS-4802E has a DC output in amperes of 1.5 A. This specification ensures a stable power supply suitable for your needs. The AC input frequency of the product D-Link DCS-4802E is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the D-Link DCS-4802E is 100-240 V. This specification ensures optimal compatibility with standard electrical systems. The product D-Link DCS-4802E has a DC output in volts of +12V. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product D-Link DCS-4802E is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Packaging contents
The number of cameras of the product D-Link DCS-4802E is 1. This product is equipped with a camera that allows capturing high-quality images.
Environmental conditions
The operating temperature of the product D-Link DCS-4802E is -30 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product D-Link DCS-4802E has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging information
The weight of the D-Link DCS-4802E package is 691.5 g. This weight ensures optimal protection during transport and delivery. The depth of the product package D-Link DCS-4802E is 208 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product D-Link DCS-4802E is 95 mm. This dimension is essential to ensure optimal transport and storage. The width of the package of the product D-Link DCS-4802E is 137 mm. This dimension is essential to ensure optimal transport and storage.
Logistics data
The length of the shipping carton for the product D-Link DCS-4802E is 508 mm. This specification is essential to ensure efficient and secure shipping. The gross length of the D-Link DCS-4802E product pallet is 1100 mm. This specification is essential for optimizing storage and transport. The width of the shipping carton for the product D-Link DCS-4802E is 297 mm. This dimension is essential to ensure efficient and secure transport. The gross width of the D-Link DCS-4802E product palette is 1200 mm. This specification is essential for optimizing storage and transportation. The height of the shipping carton for the product D-Link DCS-4802E is 250 mm. This specification is essential for optimizing transport and storage. The gross weight of the pallet (air) of the product D-Link DCS-4802E is 326600 g. This weight is essential for calculating shipping costs and ensuring proper handling during transport. The net weight of the shipping package for the product D-Link DCS-4802E is 6915 g. This weight is essential for calculating shipping costs and ensuring efficient shipping. The product D-Link DCS-4802E contains 10 pièce(s) piece(s) per internal shipping crate. This specification is essential for optimizing logistics management and ensuring efficient shipping. The gross weight of the shipping case (internal) of the product D-Link DCS-4802E is 7615 g. This weight is essential for optimizing transportation costs and ensuring efficient logistics management. The main (external) lockers of the product D-Link DCS-4802E contain 40 pièce(s) parts. These lockers are designed to optimize space and facilitate storage during air transport. The quantity per pallet (air) of the product D-Link DCS-4802E is 400 pièce(s). This specification allows for the optimization of the transport and storage of goods. The height of the product D-Link DCS-4802E (air) is 1385 mm. This specification ensures optimization of storage and transport space. The main (external) lockers of the product D-Link DCS-4802E contain 56 pièce(s) parts. These lockers are designed to optimize storage space during maritime transport. The number of products per pallet (sea) of the product D-Link DCS-4802E is 560 pièce(s). This specification allows for optimizing maritime transport by maximizing loading space. The gross weight of the pallet (sea) of the product D-Link DCS-4802E is 448440 g. This weight is essential for logistics management and maritime transport. The height of the product D-Link DCS-4802E (sea) pallet is 1885 mm. This specification ensures optimal compatibility for maritime transport.
