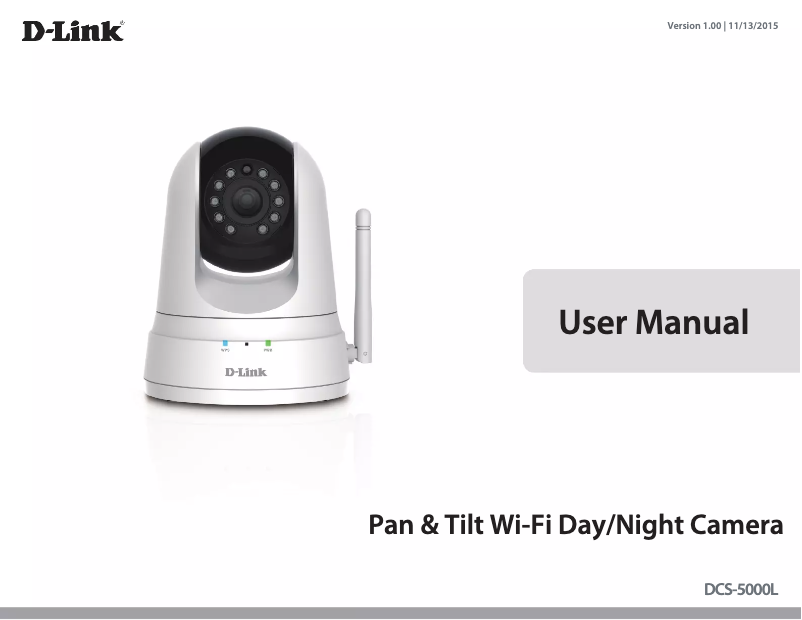

Manual of product DCS-5000L/E
Technical Specifications DCS-5000L/E
General Information
-
ModelDCS-5000L/E
-
Brand
-
Category
-
Type
-
SKU1206743
-
MPN1206743
Design
-
Sensor typeCMOS
-
Optical sensor size1/5 "
-
Built-in flashYes
-
InterfaceRJ-45 / Wi-Fi
-
Product colorWhite
-
Built-in flashYes
-
Panoramic-170 - 170 °
-
Inclination angle-25 - 95 °
-
Mounting typeFeet
-
Product colorWhite
-
Mounting typeFloor
-
FormatSpherical
Representation / realization
-
Digital zoom4 x
-
Horizontal viewing angle57 °
-
Vertical viewing angle42 °
-
PTZ ControlYes
-
Supported video formatM-JPEG
-
Maximum image resolution640 x 480 pixels
-
Maximum cadence30 fps
-
Maximum image resolution640 x 480 pixels
-
Typical electricity consumption4.8 W
-
Megapixel- MP
-
TypeIP security camera
-
Supported installationIndoor
-
PTZ ControlYes
-
Connectivity technologyWired & wireless
-
Antenna quantity1
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-25 - 70 °C
-
Operating relative humidity (H-H)20 - 85 %
-
Relative humidity rate (storage)5 - 95 %
-
Operating temperature0 - 40 °C
-
Temperature out of operation-25 - 70 °C
-
Operating relative humidity (H-H)20 - 85 %
-
Relative humidity rate (storage)5 - 95 %
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/5 "
-
Progressive scanYes
Objective system
-
Digital zoom4 x
-
Zoom capacityYes
-
Fixed Focal Length2.2 mm
Camera
-
Field of view of the lens, horizontal57 °
-
Angle of view of the lens, vertical42 °
-
Panoramic-170 - 170 °
-
Inclination angle-25 - 95 °
-
Minimum illumination0 lux
-
Angle of view of the lens, diagonal68 °
Audio
-
Built-in microphoneYes
Security
-
Motion detectorYes
Video
-
Supported video formatM-JPEG
-
Full HDNo
-
Image quality adjustmentBrightness, Contrast, Saturation
-
Supported graphic resolutions160 x 112, 320 x 240, 640 x 480 (VGA)
-
Supported video modes480p
-
Number of images per second30 fps
Connectivity
-
InterfaceRJ-45/WLAN
-
Number of Ethernet LAN ports (RJ-45)1
Power
-
Typical electricity consumption4.8 W
-
Ethernet connection, supporting power over this port (PoE)No
-
AC input voltage100-240 V
-
AC input frequency50 - 60 Hz
-
Output CC in amperes1.5 A
-
Output CC in volts5
Night vision
-
Night visionYes
-
Type of LEDIR
-
Night vision distance8 m
Network
-
Ethernet/LANNo
-
WifiYes
-
Wifi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
-
Wiring technology10/100Base-T(X)
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsIPV4, ARP, TCP, UDP, ICMP
Weight and dimensions
-
Weight292.8 g
-
Device width (support included)116.4 mm
-
Depth (support included)109.1 mm
-
Height133.6 mm
-
Device width (support included)116.4 mm
-
Depth (support included)109.1 mm
-
Height (support included)230 mm
Management features
-
Reset buttonYes
-
Reset buttonYes
Packaging information
-
Package weight862 g
-
Package depth274 mm
-
Package height138 mm
-
Package width208 mm
Logistics data
-
Gross width of the pallet1200 mm
-
Gross length of the pallet1100 mm
-
Width of the shipping box295 mm
-
Length of the shipping box436 mm
-
Height of the shipping box370 mm
-
Product by shipping crate (internal)5 piece(s)
-
Net weight of the shipping package3090 g
-
Gross weight of the shipping crate (internal)5130 g
-
Gross weight of pallet (sea)223700 g
-
Main lockers (external) per pallet (sea)40 piece(s)
-
Products per pallet (sea)200 piece(s)
-
Height of the pallet (sea)1985 mm
-
Gross weight of pallet (sea)223700 g
-
Main lockers (external) per pallet (sea)40 piece(s)
-
Products per pallet (sea)200 piece(s)
-
Height of the pallet (sea)1985 mm
