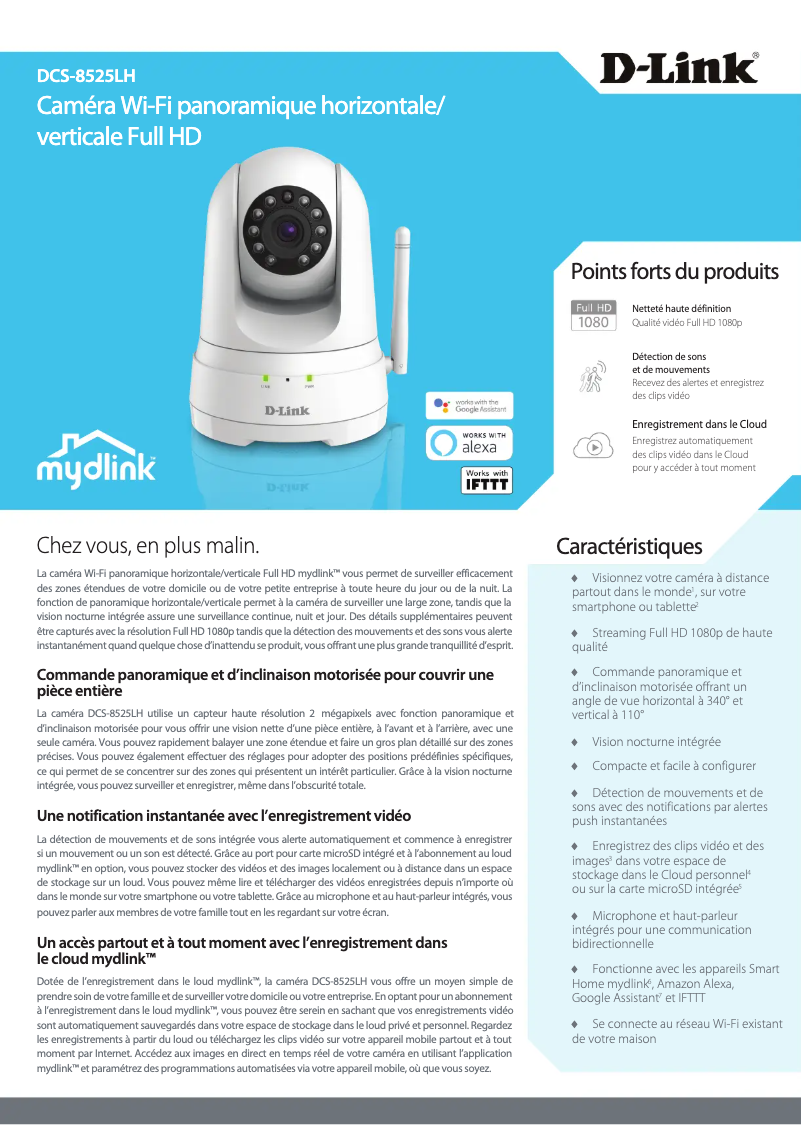

Manuals of product DCS-8525LH
Technical Specifications DCS-8525LH
General Information
-
ModelDCS-8525LH
-
Brand
-
Category
-
Type
-
SKU1206756
-
MPN1206756
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor
-
PTZ ControlYes
-
Connectivity technologyWired & wireless
-
PTZ ControlYes
-
CertificationCE, CE LVD, ICES, FCC Class B, RCM
Design
-
FormatSpherical
-
Product colorWhite
-
Mounting typeOffice
Video
-
Maximum resolution1920 x 1080 pixels
-
Visual compression formatsH.264
-
Supported graphic resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
-
Number of images per second30 fps
-
Full HDYes
-
Total megapixels- MP
Camera
-
Minimum illumination0 lux
-
Field of view of the lens, horizontal98 °
-
Angle of view of the lens, vertical52 °
-
Angle of view of the lens, diagonal114 °
-
Inclination angle-20 - 90 °
-
Panoramic-170 - 170 °
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.7 "
-
Number of sensors1
Objective system
-
Maximum number of openings2
-
Fixed Focal Length2.39 mm
-
Number of lenses1
Security
-
Motion detector (video)Yes
-
Security-supported algorithmWPA, WPA2
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash)
-
Integrated hard driveNo
Night vision
-
Night visionYes
-
Night vision distance5 m
-
Type of LEDIR
Network
-
BluetoothYes
-
BluetoothYes
-
BluetoothYes
-
Wiring technology10/100Base-T(X)
-
Wifi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
-
Type of Ethernet interfaceFast Ethernet
Audio
-
Supported audio formatsAAC
-
Built-in speakersYes
-
Built-in speakersYes
-
Built-in speakersYes
Weight and dimensions
-
Width111.3 mm
-
Depth116.4 mm
-
Height138.1 mm
-
Weight330 g
Power
-
Power supply typeAC, DC
-
AC input voltage100 - 240 V
-
Consumption (max)8.43 W
-
AC input frequency50 - 60 Hz
-
Output CC in volts5
-
Output CC in amperes2 A
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 70 °C
-
Operating relative humidity (H-H)20 - 80 %
Packaging contents
-
Number of cameras1
-
Quick Installation GuideYes
-
Quick Installation GuideYes
-
Cables includedLAN (RJ-45)
-
Quick Installation GuideYes
Minimum system requirements
-
Supported mobile systemAndroid
-
iOS
Packaging information
-
Package weight913.2 g
-
Package depth225 mm
-
Package height135 mm
-
Package width200 mm
Logistics data
-
Gross width of the pallet1200 mm
-
Gross length of the pallet1100 mm
-
Width of the shipping box245 mm
-
Length of the shipping box431 mm
-
Height of the shipping box373 mm
-
Product by shipping crate (internal)5 piece(s)
-
Net weight of the shipping package3050 g
-
Gross weight of the shipping crate (internal)5250 g
-
Gross weight of pallet (sea)285500 g
-
Main lockers (external) per pallet (sea)50 piece(s)
-
Products per pallet (sea)250 piece(s)
-
Height of the pallet (sea)2000 mm
-
Gross weight of pallet (sea)285500 g
-
Main lockers (external) per pallet (sea)50 piece(s)
-
Products per pallet (sea)250 piece(s)
-
Height of the pallet (sea)2000 mm
Similar products
More product categories from brand D-Link
More product types from brand D-Link
Presentation of product DCS-8525LH specifications from brand D-Link
Generalities
The brand of the product D-Link DCS-8525LH is D-Link. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product D-Link DCS-8525LH is 0790069439117, 0790069440106. This code allows for the unique identification of the product in the distribution system. The product model D-Link DCS-8525LH is DCS-8525LH | DCS-8525LH. This model ensures optimal performance and an enhanced user experience.
Design
The format of the product D-Link DCS-8525LH is a bar. This format allows for practical and efficient use in various contexts. The color of the product D-Link DCS-8525LH is Blanc. This shade gives it a modern and elegant look. The mounting type of the product D-Link DCS-8525LH is Bureau. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Video
The maximum resolution of the product D-Link DCS-8525LH is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product D-Link DCS-8525LH has visual compression formats: H.264. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product D-Link DCS-8525LH are 1280 x 720 (HD 720), 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The number of frames per second of the product D-Link DCS-8525LH is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product D-Link DCS-8525LH have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The total megapixels of the product D-Link DCS-8525LH is - MP. This total ensures exceptional image quality for your photos.
Representation / realization
The type of product D-Link DCS-8525LH is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The D-Link DCS-8525LH product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. The product D-Link DCS-8525LH features a Avec fil &sans fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product D-Link DCS-8525LH supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product D-Link DCS-8525LH is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The certification of the product D-Link DCS-8525LH contains CE, CE LVD, ICES, FCC Class B, RCM. This certification guarantees compliance with the required safety and performance standards.
Camera
The vertical field of view of the product D-Link DCS-8525LH is 52 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The field of view of the D-Link DCS-8525LH lens is 98 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The minimum illumination of the product D-Link DCS-8525LH is 0 lux. This feature ensures optimal performance even in low light conditions. The angle of view of the lens, diagonal of the product D-Link DCS-8525LH is 114 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product D-Link DCS-8525LH is -20 - 90 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product D-Link DCS-8525LH is -170 - 170 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes.
Objective system
The product goal system D-Link DCS-8525LH has a fixed focal length of 2.39 mm. This feature allows for images with great sharpness and exceptional quality. The maximum number of openings for the product D-Link DCS-8525LH is 2. This feature allows for optimal use and increased flexibility. The number of lenses in the product D-Link DCS-8525LH is 1. This number determines the quality and versatility of the lens.
Security
The supported security algorithm of the product D-Link DCS-8525LH contains WPA, WPA2. This algorithm ensures optimal protection of your data. Does the product D-Link DCS-8525LH have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Image sensor
The number of sensors of the product D-Link DCS-8525LH is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product D-Link DCS-8525LH is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product D-Link DCS-8525LH is CMOS. This type of sensor ensures optimal image quality for your needs.
Storage support
Does the D-Link DCS-8525LH have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the D-Link DCS-8525LH have a built-in hard drive? No. This feature means that the product does not have internal storage. The product D-Link DCS-8525LH has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data.
Audio
The supported audio formats of the product D-Link DCS-8525LH are AAC. These formats ensure optimal compatibility for an enriching listening experience. Does the product D-Link DCS-8525LH have Audio Detection? Oui. This feature allows capturing and analyzing surrounding sounds for an enhanced audio experience. Does the product D-Link DCS-8525LH have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. Does the product D-Link DCS-8525LH have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
Night vision
The night vision distance of the product D-Link DCS-8525LH is 5 m. This feature allows for clear and precise observation even in darkness. Does the product D-Link DCS-8525LH have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product D-Link DCS-8525LH is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Weight and dimensions
The depth of the product D-Link DCS-8525LH is 116.4 mm. This dimension allows for optimal integration into your space. The width of the product D-Link DCS-8525LH is 111.3 mm. This dimension is essential to ensure optimal integration into your space. The height of the product D-Link DCS-8525LH is 138.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product D-Link DCS-8525LH is 330 g. This weight is ideal for ensuring optimal use and easy handling.
Network
Does the product D-Link DCS-8525LH have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The wiring technology of the product D-Link DCS-8525LH contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The Wifi of the product D-Link DCS-8525LH contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the D-Link DCS-8525LH have Bluetooth? Oui. This feature allows for a convenient wireless connection with other compatible devices. The wifi standard of the product D-Link DCS-8525LH contains 802.11b, 802.11g, Wi-Fi 4 (802.11n). This wifi standard ensures a fast and reliable connection for all your devices. The Ethernet interface type of the product D-Link DCS-8525LH is Fast Ethernet. This type of interface allows for fast and efficient network connections.
Power
The AC input voltage of the D-Link DCS-8525LH is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The type of power source for the product D-Link DCS-8525LH is AC, DC. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product D-Link DCS-8525LH is 8.43 W. This specification allows for the assessment of the energy efficiency of the device. The AC input frequency of the product D-Link DCS-8525LH is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The product D-Link DCS-8525LH has a DC output in volts of 5. This specification ensures a stable power supply suitable for the needs of your electronic devices. The product D-Link DCS-8525LH has a DC output in amperes of 2 A. This specification ensures a stable power supply suitable for your needs.
Environmental conditions
The non-operating temperature of the product D-Link DCS-8525LH is -20 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product D-Link DCS-8525LH is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product D-Link DCS-8525LH has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Minimum system requirements
The supported mobile system of the product D-Link DCS-8525LH contains Android, iOS. This system allows for smooth usage on major mobile platforms.
Packaging contents
Does the product D-Link DCS-8525LH come with a power adapter? Oui. This allows you to use it immediately without having to purchase a separate adapter. The number of cameras of the product D-Link DCS-8525LH is 1. This product is equipped with a camera that allows capturing high-quality images. Does the D-Link DCS-8525LH have a wall mounting kit? Oui. This kit allows for easy and secure installation of your product. The included cable of the product D-Link DCS-8525LH contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product D-Link DCS-8525LH have a Quick Installation Guide? Oui. This guide will help you easily install the product by following clear and concise steps.
Packaging information
The weight of the D-Link DCS-8525LH package is 913.2 g. This weight ensures optimal protection during transport and delivery. The depth of the product package D-Link DCS-8525LH is 225 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product D-Link DCS-8525LH is 135 mm. This dimension is essential to ensure optimal transport and storage. The width of the package of the product D-Link DCS-8525LH is 200 mm. This dimension is essential to ensure optimal transport and storage.
Logistics data
The gross width of the D-Link DCS-8525LH product palette is 1200 mm. This specification is essential for optimizing storage and transportation. The width of the shipping carton for the product D-Link DCS-8525LH is 245 mm. This dimension is essential to ensure efficient and secure transport. The length of the shipping carton for the product D-Link DCS-8525LH is 431 mm. This specification is essential to ensure efficient and secure shipping. The gross length of the D-Link DCS-8525LH product pallet is 1100 mm. This specification is essential for optimizing storage and transport. The height of the shipping carton for the product D-Link DCS-8525LH is 373 mm. This specification is essential for optimizing transport and storage. The product D-Link DCS-8525LH contains 5 pièce(s) piece(s) per internal shipping crate. This specification is essential for optimizing logistics management and ensuring efficient shipping. The gross weight of the pallet (air) of the product D-Link DCS-8525LH is 285500 g. This weight is essential for calculating shipping costs and ensuring proper handling during transport. The main (external) lockers of the product D-Link DCS-8525LH contain 50 pièce(s) parts. These lockers are designed to optimize space and facilitate storage during air transport. The net weight of the shipping package for the product D-Link DCS-8525LH is 3050 g. This weight is essential for calculating shipping costs and ensuring efficient shipping. The gross weight of the shipping case (internal) of the product D-Link DCS-8525LH is 5250 g. This weight is essential for optimizing transportation costs and ensuring efficient logistics management. The quantity per pallet (air) of the product D-Link DCS-8525LH is 250 pièce(s). This specification allows for the optimization of the transport and storage of goods. The height of the product D-Link DCS-8525LH (air) is 2000 mm. This specification ensures optimization of storage and transport space. The number of products per pallet (sea) of the product D-Link DCS-8525LH is 250 pièce(s). This specification allows for optimizing maritime transport by maximizing loading space. The height of the product D-Link DCS-8525LH (sea) pallet is 2000 mm. This specification ensures optimal compatibility for maritime transport. The gross weight of the pallet (sea) of the product D-Link DCS-8525LH is 285500 g. This weight is essential for logistics management and maritime transport. The main (external) lockers of the product D-Link DCS-8525LH contain 50 pièce(s) parts. These lockers are designed to optimize storage space during maritime transport.
