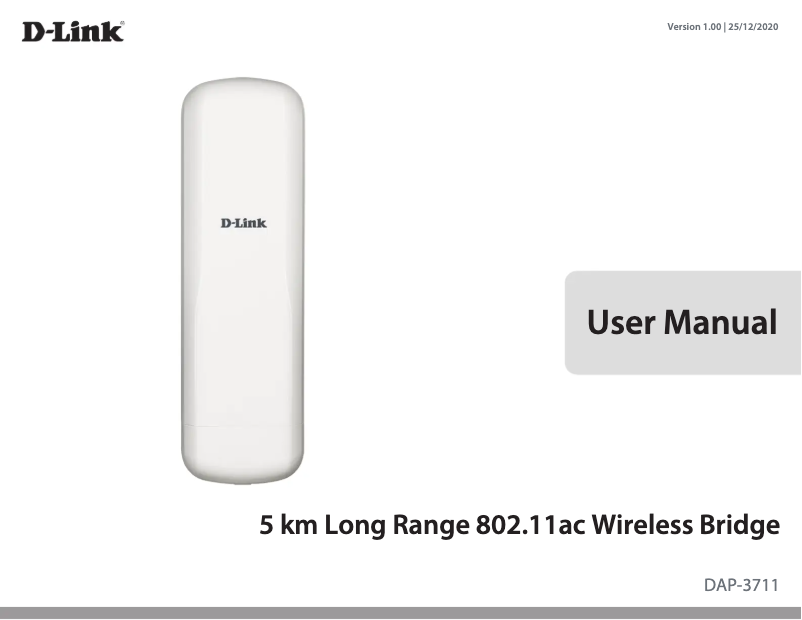

Manuals of product DAP-3711
Technical Specifications DAP-3711
General Information
-
ModelDAP-3711
-
Brand
-
Category
-
Type
-
SKU1510650
-
MPN1510650
Features
-
2.4 GHz-
-
VLAN SupportYes
-
Maximum data transfer rate (5 GHz)867 Mbit/s
-
Maximum data transfer rate (5 GHz)867 Mbit/s
-
LAN Ethernet: data transfer rate100,1000 Mbit/s
-
Network standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
-
VLAN SupportYes
-
Maximum outdoor range5000 m
-
Transmission power (CE)27 DBm
-
Raise the functions of AP modeWireless Distribution System (WDS)
-
Number of channels2 channels
-
Bandwidth0.08 GHz
-
Frequency band5.745 - 5.825 GHz
Security
-
Security-supported algorithm128-bit AES
-
DHCP SnoopingYes
-
DHCP SnoopingYes
-
DHCP SnoopingYes
-
Functions of the Service Set Identifier (SSID)SSID Broadcast
Connectivity
-
Quantity of USB 2.0 Ports-
-
Number of Ethernet LAN ports (RJ-45)2
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input voltage24 V
-
Typical electricity consumption15 W
Design
-
PositioningPole
-
Product colorWhite
-
Reset buttonYes
-
IndicatorsLAN, Power, Signal strength, WLAN
-
Material of the case/bodyAcrylonitrile-Butadiene-Styrene (ABS)
-
International Protection Code (IP)IP66
Antenna
-
Antenna typeInternal
-
Antenna gain level (max)15 dBi
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Temperature out of operation-40 - 85 °C
-
Relative humidity rate (storage)0 - 90 %
-
Relative humidity rate (storage)0 - 90 %
Weight and dimensions
-
Weight600 g
-
Width288 mm
-
Height88 mm
-
Depth45 mm
Management features
-
Scalable firmwareYes
-
Scalable firmwareYes
Certificate
-
CertificationCE
-
FCC
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand D-Link
More product types from brand D-Link
Presentation of product DAP-3711 specifications from brand D-Link
Generalities
The brand of the product D-Link DAP-3711 is D-Link. This brand is known for its quality and innovation in the field of household appliances. The product model D-Link DAP-3711 is DAP-3711 | DAP-3711. This model ensures optimal performance and an enhanced user experience. The EAN code of the product D-Link DAP-3711 is 0790069457272, 790069457272. This code allows for the unique identification of the product in the distribution system.
Security
The supported security algorithm of the product D-Link DAP-3711 contains 128-bit AES. This algorithm ensures optimal protection of your data. Does the D-Link DAP-3711 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product D-Link DAP-3711 have DHCP Snooping? Oui. This feature allows monitoring and analyzing DHCP traffic for better network management. Does the product D-Link DAP-3711 have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses. The Service Set Identifier (SSID) of the D-Link DAP-3711 product contains Diffusion SSID. This SSID allows for managing the broadcast of the wireless network and enhancing the security of the connection.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product D-Link DAP-3711 is 2. These ports provide a stable and fast network connection for your devices. The number of USB 2.0 ports on the D-Link DAP-3711 is -. These ports allow for a fast and efficient connection for your devices.
Features
Is the D-Link DAP-3711 product 2.4 GHz? -. This specification ensures effective and stable wireless connectivity. The maximum data transfer rate of the product D-Link DAP-3711 is 867 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. Does the D-Link DAP-3711 have 5 GHz? Oui. This feature allows for a faster and more stable wireless connection. The maximum data transfer rate (5 GHz) of the product D-Link DAP-3711 is 867 Mbit/s. This high speed ensures a fast and smooth connection for your devices. The data transfer rate of the product D-Link DAP-3711 is 100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The network standards of the product D-Link DAP-3711 are IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. These standards ensure optimal compatibility with various equipment and protocols. The maximum outdoor range of the product D-Link DAP-3711 is 5000 m. This feature allows for efficient use over long distances. The transmission power (CE) of the product D-Link DAP-3711 is 27 DBm. This specification ensures optimal performance for your communication needs. The AP mode of the D-Link DAP-3711 product includes 802.11k and 802.11v for intelligent roaming, dual-link AC backup, unified AC management and maintenance, Dual-MPP mesh network, mesh network, Hotspot 2.0, Plug and Play installation, service continuity during CAPWAP link disconnection, unified authentication on the AC, configuration-free WDS deployment, and a wireless distribution system (WDS). Does the product D-Link DAP-3711 support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The bandwidth of the product D-Link DAP-3711 is 0.08 GHz. This feature ensures a stable and fast connection for optimal use. The frequency band of the product D-Link DAP-3711 is 5.745 - 5.825 GHz. This feature allows for effective communication within the specified frequency range. The quantity of channels of the product D-Link DAP-3711 is 2 canaux. This specification determines the number of communication paths available for optimal use.
Design
The positioning of the product D-Link DAP-3711 is Poteau. This positioning allows for optimizing its use and ensuring an optimal user experience. Does the product D-Link DAP-3711 have indicators? LAN, Power, Signal strength, WLAN. These indicators allow you to visualize the operating status of the device. The color of the product D-Link DAP-3711 is Blanc. This shade gives it a modern and elegant look. Does the product D-Link DAP-3711 have a Reset Button? Oui. This button allows you to easily reset the product settings. The material of the product case D-Link DAP-3711 is Acrylonitrile-Butadiène-Styrène (ABS). This material ensures both durability and elegance. The International Protection Code (IP) for product D-Link DAP-3711 contains IP66. This code indicates the level of protection against solid objects and moisture.
Power
The AC input voltage of the D-Link DAP-3711 is 24 V. This specification ensures optimal compatibility with standard electrical systems. Does the D-Link DAP-3711 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The typical power consumption of the product D-Link DAP-3711 is 15 W. This feature allows for the assessment of the energy efficiency of the device.
Antenna
The type of antenna of the product D-Link DAP-3711 is Interne. This antenna is designed to provide optimal performance in a compact space. The maximum gain level of the antenna for the product D-Link DAP-3711 is 15 dBi. This gain level helps optimize the reception and transmission of signals.
Weight and dimensions
The width of the product D-Link DAP-3711 is 288 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product D-Link DAP-3711 is 600 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product D-Link DAP-3711 is 88 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product D-Link DAP-3711 is 45 mm. This dimension allows for optimal integration into your space.
Certificate
The certification of the product D-Link DAP-3711 contains CE, FCC. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The non-operating temperature of the product D-Link DAP-3711 is -40 - 85 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product D-Link DAP-3711 is 0 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The operating temperature of the product D-Link DAP-3711 is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product D-Link DAP-3711 has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Management features
Does the D-Link DAP-3711 have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance. Does the product D-Link DAP-3711 have Syslog? Oui. This feature allows for the centralization and analysis of event logs for better network management.
Logistics data
The Harmonized System code for the product D-Link DAP-3711 is 85176990. This code allows for the unique identification of goods in international trade.
