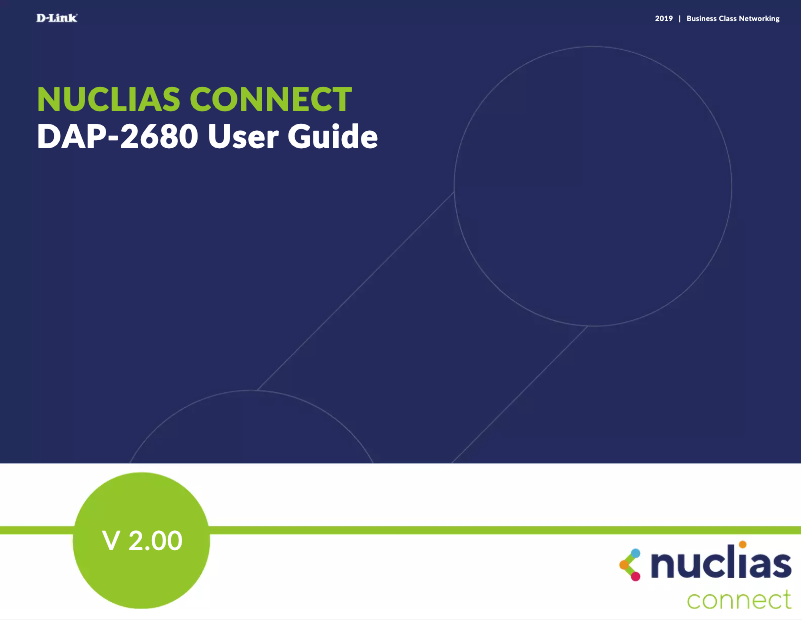

Manual of product Nuclias Connect DAP-2680
Technical Specifications Nuclias Connect DAP-2680
General Information
-
ModelNUCLIAS CONNECT DAP-2680
-
Brand
-
Category
-
Type
-
SKU1319859
-
MPN1319859
Features
-
Maximum data transfer rate1750 Mbit/s
-
Bandwidth limitationYes
-
Bandwidth limitationYes
-
Bandwidth limitationYes
-
MIMO typeMulti User MIMO
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Maximum data transfer rate (5 GHz)1300 Mbit/s
-
Maximum data transfer rate (2.4 GHz)450 Mbit/s
-
Bandwidth limitationYes
-
Bandwidth limitationYes
-
Network standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Consumption (max)17.53 W
Connectivity
-
Quantity of USB 2.0 Ports-
-
Number of Ethernet LAN ports (RJ-45)1
Antenna
-
Antenna typeInternal
-
Antenna direction typeOmnidirectional
-
Antenna gain level (max)4.2 dBi
Design
-
Product colorWhite
-
Material of the case/bodyPlastic
-
PositioningTable
Security
-
Security-supported algorithm64-bit WEP
-
MAC address filtering802.1x RADIUS
-
SSH
-
WDS
-
WPA-Enterprise
-
WPA-PSK
-
WPA2-Enterprise
-
WPA2-PSK
-
Yes
Management features
-
Web-based managementYes
Protocols
-
Management protocolsSNMP (v1, v2c, v3)
-
Telnet
Weight and dimensions
-
Weight580 g
-
Height44.8 mm
-
Depth190 mm
-
Depth190 mm
Packaging contents
-
Power adapter includedYes
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 65 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 95 %
Certificate
-
CertificationFCC
-
CE
-
UL
Similar products
More product categories from brand D-Link
More product types from brand D-Link
Presentation of product Nuclias Connect DAP-2680 specifications from brand D-Link
Power
Does the D-Link Nuclias Connect DAP-2680 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The maximum consumption of the product D-Link Nuclias Connect DAP-2680 is 17.53 W. This specification allows for the assessment of the energy efficiency of the device.
Generalities
The brand of the product D-Link Nuclias Connect DAP-2680 is D-Link. This brand is known for its quality and innovation in the field of household appliances. The product model D-Link Nuclias Connect DAP-2680 is Nuclias Connect DAP-2680 | 3XDAP-2680. This model ensures optimal performance and an enhanced user experience.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product D-Link Nuclias Connect DAP-2680 is 1. These ports provide a stable and fast network connection for your devices. The number of USB 2.0 ports on the D-Link Nuclias Connect DAP-2680 is -. These ports allow for a fast and efficient connection for your devices.
Features
The maximum data transfer rate of the product D-Link Nuclias Connect DAP-2680 is 1750 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. Is the D-Link Nuclias Connect DAP-2680 product 2.4 GHz? Oui. This specification ensures effective and stable wireless connectivity. Does the D-Link Nuclias Connect DAP-2680 have 5 GHz? Oui. This feature allows for a faster and more stable wireless connection. Does the product D-Link Nuclias Connect DAP-2680 have MIMO (multiple inputs, multiple outputs)? Oui. This specification allows for efficient signal management by providing multiple inputs and outputs simultaneously. The MIMO Type of the product D-Link Nuclias Connect DAP-2680 contains Multi User MIMO. This MIMO Type allows for optimizing wireless communication by supporting multiple users simultaneously. The data transfer rate of the product D-Link Nuclias Connect DAP-2680 is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The maximum data transfer rate (5 GHz) of the product D-Link Nuclias Connect DAP-2680 is 1300 Mbit/s. This high speed ensures a fast and smooth connection for your devices. Does the product D-Link Nuclias Connect DAP-2680 have automatic channel selection? Oui. This feature allows for optimizing the connection by choosing the best available channel. Does the product D-Link Nuclias Connect DAP-2680 have a bandwidth limitation? Oui. This feature ensures optimal control of data flow. The network standards of the product D-Link Nuclias Connect DAP-2680 are IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. The maximum data transfer rate (2.4 GHz) of the product D-Link Nuclias Connect DAP-2680 is 450 Mbit/s. This rate ensures a fast and efficient connection for your devices.
Antenna
The type of antenna of the product D-Link Nuclias Connect DAP-2680 is Interne. This antenna is designed to provide optimal performance in a compact space. The antenna direction type of the product D-Link Nuclias Connect DAP-2680 is Omni-directionnel. This antenna is designed to provide optimal coverage in all directions. The maximum gain level of the antenna for the product D-Link Nuclias Connect DAP-2680 is 4.2 dBi. This gain level helps optimize the reception and transmission of signals.
Security
Does the product D-Link Nuclias Connect DAP-2680 have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses. The supported security algorithm of the product D-Link Nuclias Connect DAP-2680 contains 64-bit WEP, 802.1x RADIUS, SSH, WDS, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK. This algorithm ensures optimal protection of your data.
Design
The material of the product case D-Link Nuclias Connect DAP-2680 is Plastique. This material ensures both durability and elegance. The color of the product D-Link Nuclias Connect DAP-2680 is Blanc. This shade gives it a modern and elegant look. The positioning of the product D-Link Nuclias Connect DAP-2680 is Table. This positioning allows for optimizing its use and ensuring an optimal user experience.
Management features
The D-Link Nuclias Connect DAP-2680 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Protocols
The product management protocol D-Link Nuclias Connect DAP-2680 contains SNMP (v1, v2c, v3), Telnet. This protocol allows for efficient and centralized management of network devices.
Weight and dimensions
The weight of the product D-Link Nuclias Connect DAP-2680 is 580 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product D-Link Nuclias Connect DAP-2680 is 190 mm. This dimension allows for optimal integration into your space. The height of the product D-Link Nuclias Connect DAP-2680 is 44.8 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product D-Link Nuclias Connect DAP-2680 is 190 mm. This dimension is essential to ensure optimal integration into your space.
Packaging contents
Does the product D-Link Nuclias Connect DAP-2680 come with a power adapter? Oui. This allows you to use it immediately without having to purchase a separate adapter.
Environmental conditions
The operating temperature of the product D-Link Nuclias Connect DAP-2680 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product D-Link Nuclias Connect DAP-2680 is -20 - 65 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product D-Link Nuclias Connect DAP-2680 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product D-Link Nuclias Connect DAP-2680 is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Certificate
The certification of the product D-Link Nuclias Connect DAP-2680 contains FCC\nCE\nUL. This certification guarantees compliance with the required safety and performance standards.
