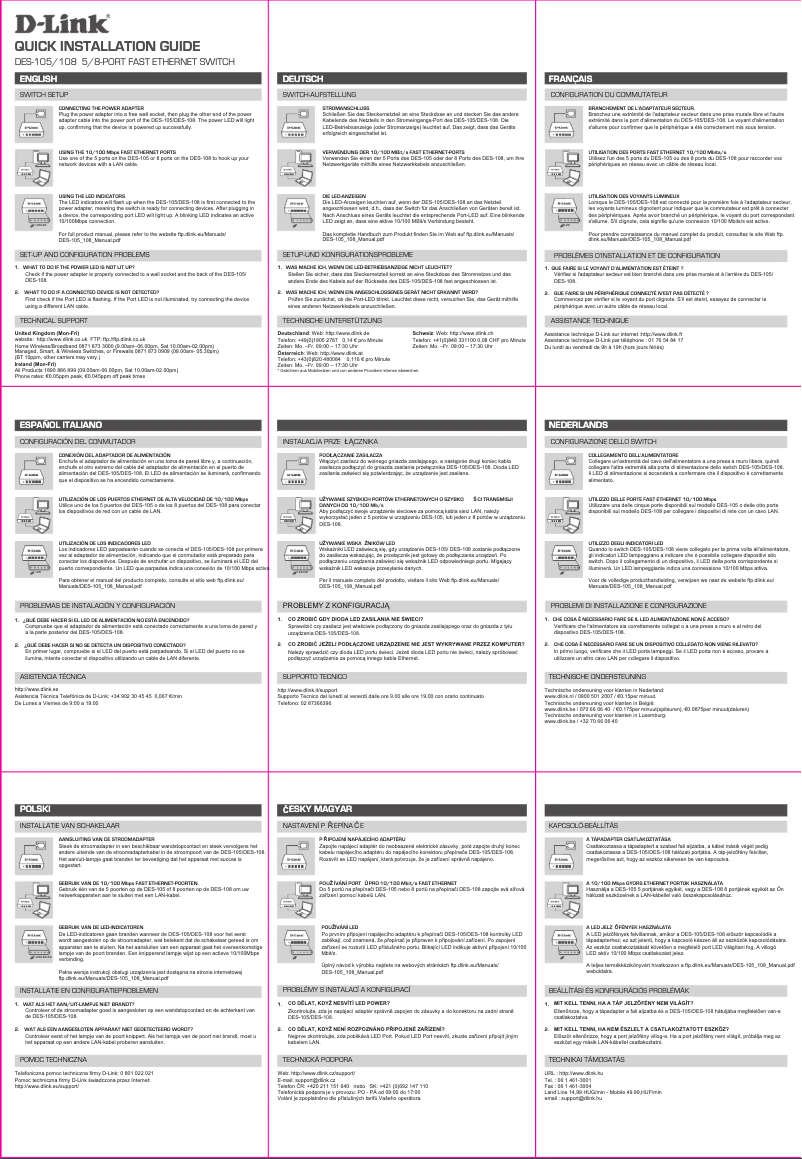

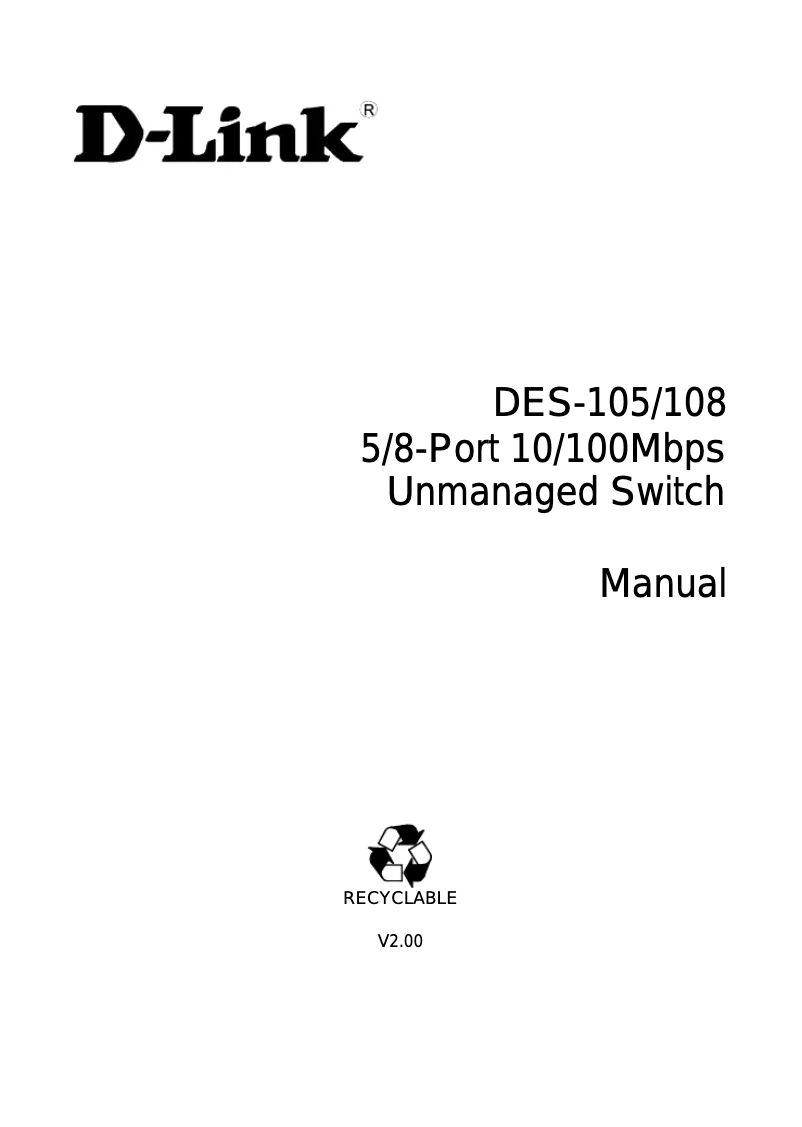

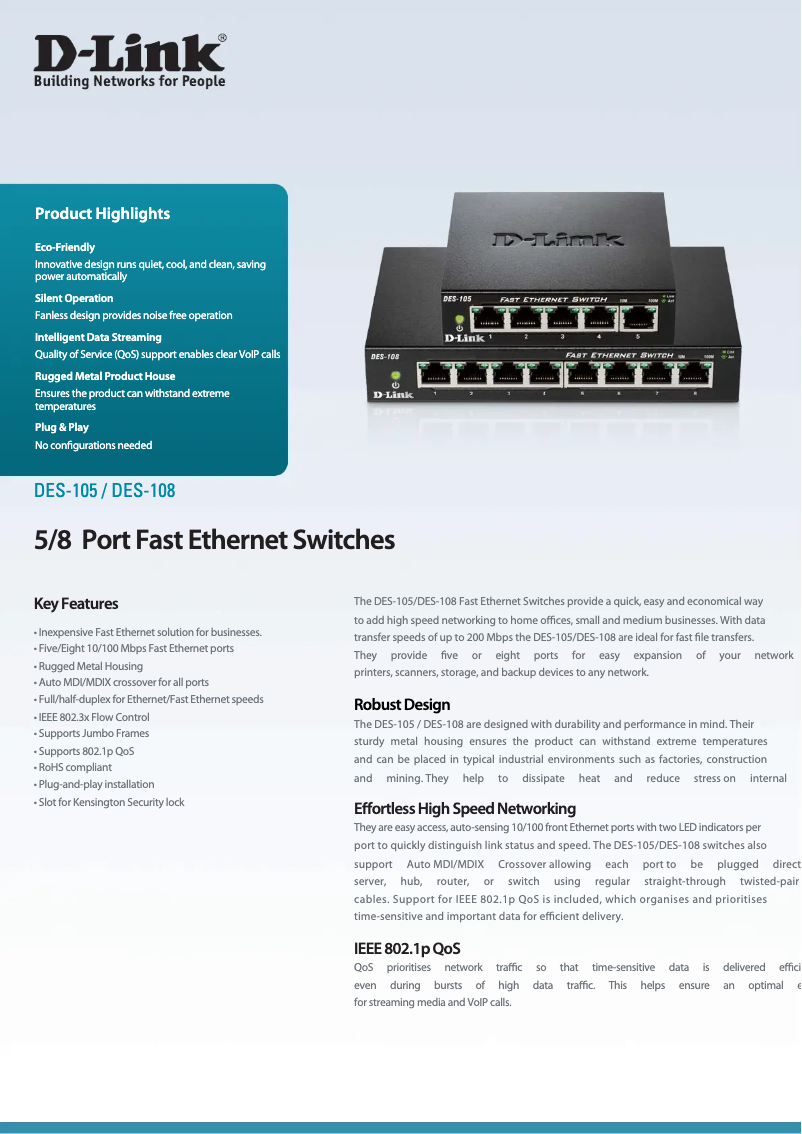

Manuals of product DES-105
Editorial note
The D-Link DES-105 is presented as a reliable network switch, offering a good data transfer rate of 10/100 Mbps, suitable for modern needs. Its MAC address filtering feature enhances security, allowing for effective access control to the network. Additionally, its compact design (100 x 98 x 28 mm) facilitates integration into various spaces, although its weight of 265 g may be a drawback for some users. However, the product has some limitations. The lack of support for the 10G standard may restrict its performance in environments requiring higher transfer speeds. As an unmanaged switch, it offers little flexibility for users looking to customize their network. Furthermore, it does not have a mounting bracket or stacking capability, which can complicate its integration into certain work environments. Finally, while the certification compliant with safety standards ensures reliable use, the lack of support for power over Ethernet (PoE) may require additional cabling, thus increasing installation complexity. In summary, the D-Link DES-105 is a good choice for basic needs but may not be suitable for users seeking more advanced features.Score details
User experience
The user experience is good thanks to the MAC address filtering feature, which enhances security and network management.
Performance
The data transfer rate of 10/100 Mbps is suitable for modern needs, but the lack of support for the 10G standard limits performance in high-speed environments.
Design
The compact design of 100 x 98 x 28 mm facilitates integration into various spaces, although the weight of 265 g may be a drawback for some users.
Value for money
Although it offers basic features, the fact that it is not a managed switch limits flexibility for users wanting to customize their network.
repairability
The absence of a mounting bracket and stacking capability makes its integration into certain work environments more difficult, reducing ease of repair and upgrade.
Support
Compliance with safety and performance standards ensures reliable use, although the lack of support for Power over Ethernet (PoE) may require additional wiring.
Advantages
Data transfer up to 100 Mbps
MAC address filtering for security
Compact design for small spaces
Simultaneous communication thanks to Full duplex
Compliant with safety standards
Disadvantages
No 10G support.
No advanced management.
No PoE.
No mounting or stacking.
Heavy for a compact device.
Technical Specifications DES-105
General Information
-
ModelDES-105
-
Brand
-
Category
-
Type
-
SKU1292149
-
MPN1292149
Data transmission
-
Maximum data transfer rate0.1 Gbit/s
-
Data transfer rate10/100 Mbps
-
Switching capacity1 Gbit/s
-
MAC Directory2000 entries
-
Registration-and-reissueYes
-
Registration-and-reissueYes
-
Packet cache memory0.384 MB
Network
-
Support 10G-
-
Auto MDI/MDI-XYes
-
Auto MDI/MDI-XYes
-
Auto MDI/MDI-XYes
-
Network standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
-
Copper Ethernet cabling technology100BASE-TX, 10BASE-T
Other features
-
Data transfer rate200 Mbit/s
-
Dimensions (LxWxH)100 x 98 x 28 mm
-
Connectivity technologyWired
Management features
-
Switching bench-
-
Switch typeUnmanaged
-
Quality of Service (QoS)Yes
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports5
-
Power connectorDC-in jack
Security
-
MAC address filteringYes
Design
-
Stackable-
-
Assembly gridNo
-
Material of the case/bodyMetal
-
IndicatorsLink, Power, Y
-
Product colorBlack
Weight and dimensions
-
Weight265 g
-
Width100 mm
-
Depth98 mm
-
Height28 mm
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)-
Power
-
Typical electricity consumption3.10 W
-
Input current1 A
-
Input voltage5 V
Representation / realization
-
Mean time between failures495709 h
Certificate
-
CertificationRoHS
-
FCC Class B
-
ICES-003 Class B
-
CE Class B
-
C-Tick Class B
-
VCCI Class B
-
cUL
-
CB
Environmental conditions
-
Operating relative humidity (H-H)10 - 90 %
-
Operating temperature0 - 50 °C
-
Temperature out of operation-10 - 70 °C
-
Relative humidity rate (storage)5 - 90 %
Frequently Asked Questions
What is the weight of the D-Link DES-105?
What certifications does the D-Link DES-105 have?
What is the height of the D-Link DES-105?
What is the width of the D-Link DES-105?
What is the depth of the D-Link DES-105?
Is the manual for the D-Link DES-105 available in French?
Similar products
More product categories from brand D-Link
More product types from brand D-Link
Presentation of product DES-105 specifications from brand D-Link
General Information
The D-Link DES-105 is a network switch from the brand D-Link, known for its commitment to quality and innovation in the field of networking equipment. This model, identified by the EAN code 0151903028896 and other numbers, ensures reliable performance and a satisfactory user experience. It provides an effective solution for connectivity needs in various environments.
Data Transmission
The D-Link DES-105 offers a maximum transfer rate of 0.1 Gbit/s, with a standard throughput of 10/100 Mbps, ideal for meeting modern communication requirements. Its switching capacity reaches 1 Gbit/s, allowing for efficient data management. With a MAC address table of 2000 entries and support for Jumbo Frames, this switch optimizes information transfer. It also integrates a recording and re-transmission feature for effective data retransmission, supported by a cache memory of 0.384 Mo for quick access.
Network
The D-Link DES-105 supports full duplex communication, allowing simultaneous exchanges in both directions, which enhances overall efficiency. Although it does not support the 10G standard, it features flow control support and automatic connection detection through Auto MDI/MDI-X technology. The network standards adhered to include IEEE 802.1p, IEEE 802.3, and others, ensuring broad compatibility.
Other Features
With compact dimensions of 100 x 98 x 28 mm, the D-Link DES-105 easily fits into various workspaces. It operates with wired connectivity, ensuring stable and fast data transmission.
Management Features
As an unmanaged switch, the D-Link DES-105 does not offer advanced management features, but it ensures quality of service (QoS) for effective network resource management, thus providing a smooth user experience.
Connectivity
The switch is equipped with 5 RJ-45 Ethernet ports for fast and efficient network connectivity. It also includes a DC-in jack for reliable power supply.
Security
The D-Link DES-105 integrates a MAC address filtering feature, allowing control over network access and ensuring enhanced security.
Design
This model does not have a mounting grid or stacking capability, which limits some installation options. Its metal casing provides appreciable durability, while its Link and Power indicators facilitate monitoring of its operational status. Its black finish gives it a modern and sleek appearance.
Weight and Dimensions
The D-Link DES-105 weighs 265 g, which is reasonable for easy handling. Its dimensions are designed for optimal integration into various work environments.
Power Supply
The switch typically consumes 3.10 W, with an input current of 1 A and an input voltage of 5 V, ensuring adequate energy efficiency.
Reliability
The D-Link DES-105 has a mean time between failures of 495709 h, demonstrating its robustness and durability for prolonged use.
Certification
The product complies with safety and performance standards, as evidenced by its RoHS, FCC Class B, CE Class B, and other certifications, ensuring safe usage.
Environmental Conditions
The D-Link DES-105 operates effectively in a relative humidity of 10 - 90 % and an operating temperature of 0 - 50 °C. It is designed to withstand extreme conditions, with an operating temperature range of -10 - 70 °C, ensuring its durability in various environments.
