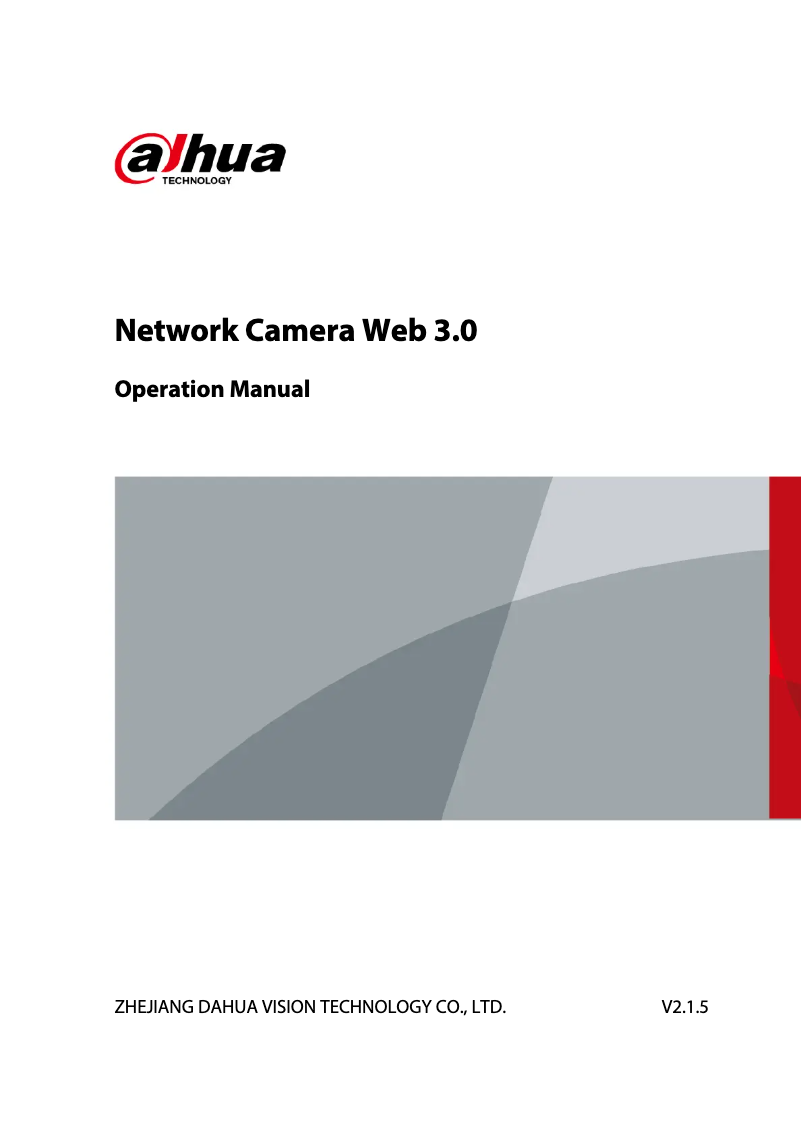

Manuals of product IPC-HFW3441T-AS-P
Technical Specifications IPC-HFW3441T-AS-P
General Information
-
ModelIPC-HFW3441T-AS-P
-
Brand
-
Category
-
Type
-
SKU1719765
-
MPN1719765
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
CertificationCE-LVD:EN62368-1;
-
Entry/exit alarmCE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
-
Entry/exit alarmFCC: 47 CFR FCC Part 15, Subpart B;
-
Entry/exit alarmUL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
-
Dynamic rangeYes
-
Yes
-
Yes
-
120 dB
Network
-
Number of users20 user(s)
-
Ethernet/LANYes
-
Streaming methodMulticast
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
-
BluetoothNo
-
Ethernet/LANYes
-
BluetoothNo
Storage support
-
Compatible memory cardsMicroSD (TransFlash)
-
Maximum memory card size256 GB
-
Internal memory128 MB
-
Integrated hard driveNo
-
ROM capacity512 MB
-
Built-in memory card readerYes
Video
-
Highlight Compensation (HLC)Yes
-
Bitrate3 Kbp - 8192Kbps
-
Maximum resolution2688 x 1520 pixels
-
Highlight Compensation (HLC)Yes
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
-
Supported graphic resolutions352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2304 x 1296,2688 x 1512
-
Total megapixels4 MP
-
Highlight Compensation (HLC)Yes
-
Gain control typeAuto/Manual
-
Highlight Compensation (HLC)Yes
-
Highlight Compensation (HLC)Yes
-
Noise reduction technology3D digital noise reduction
-
Supported video formatH.264, H.265, H.265+
-
Highlight Compensation (HLC)Yes
-
Number of images per second30 fps
Packaging information
-
Package weight1090 g
Power
-
Output CC in volts12
-
Power supply typeDC, PoE
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
-
Operating temperature-40 - 60 °C
Objective system
-
Focal length2.1 mm
-
Observation distance (wide)20.8 m
-
Number of lenses1
-
Identification distance (wide)5.2 m
-
Detection distance (wide)52 m
-
Recognition distance (wide)10.4 m
-
Maximum number of openings2
-
Minimum focusing distance0.6 m
Minimum system requirements
-
Supported mobile systemAndroid
-
iOS
Design
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP67
-
Product colorBlack, White
-
Material of the case/bodyMetal
-
FormatTerminal
Camera
-
Angle of view of the lens, diagonal175 °
-
Camera shutter speed1/3 - 1/100000 s
-
Minimum illumination0 lux
-
White balanceAuto, Manual, Natural, Outdoor, Street lamp
-
Angle of view of the lens, vertical75 °
-
Camera shutter typeElectronic
-
Panoramic0 - 360 °
-
Field of view of the lens, horizontal170 °
-
Inclination angle0 - 90 °
-
Rotation angle360 °
-
Adjustment of shutter speedAuto/Manual
-
Number of privacy masking zones4
Image sensor
-
Optical sensor size1/2.7 "
-
Progressive scanYes
-
Number of sensors1
-
Sensor typeCMOS
Audio
-
Audio input channels1 channels
-
Built-in microphoneYes
-
Supported audio formatsG.711 A-law, G.726
-
Audio input channels1 channels
-
Signal-to-noise ratio report56 dB
Management features
-
Management softwareSmart PSS
-
Web BrowserDSS
-
DMSS
-
Yes
Night vision
-
Number of lighting LEDs2
-
Type of LEDIR
-
Night visionYes
-
Night vision distance20 m
Weight and dimensions
-
Height90.4 mm
-
Weight820 g
-
Width90.7 mm
-
Product length249.3 mm
Security
-
Motion detector (video)Yes
-
Alarm output channels1
-
Alarm output channels1
-
Motion detector (video)Yes
Packaging contents
-
Number of cameras1
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product IPC-HFW3441T-AS-P specifications from brand Dahua Technology
Representation / realization
The type of product Dahua Technology IPC-HFW3441T-AS-P is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The certification of the product Dahua Technology IPC-HFW3441T-AS-P contains CE-LVD:EN62368-1;\nCE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;\nFCC: 47 CFR FCC Part 15, Subpart B;\nUL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14. This certification guarantees compliance with the required safety and performance standards. The product Dahua Technology IPC-HFW3441T-AS-P features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Dahua Technology IPC-HFW3441T-AS-P supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Dahua Technology IPC-HFW3441T-AS-P have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Dahua Technology IPC-HFW3441T-AS-P have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Dahua Technology IPC-HFW3441T-AS-P have an entry/end Alarm? Oui. This feature effectively secures access to your space. The dynamic range of the product Dahua Technology IPC-HFW3441T-AS-P is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks.
Storage support
The product Dahua Technology IPC-HFW3441T-AS-P has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data. The internal memory of the product Dahua Technology IPC-HFW3441T-AS-P contains 128 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The maximum size of the memory card for the product Dahua Technology IPC-HFW3441T-AS-P is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Dahua Technology IPC-HFW3441T-AS-P have a built-in hard drive? No. This feature means that the product does not have internal storage. The capacity of the ROM of the product Dahua Technology IPC-HFW3441T-AS-P is 512 Mo. This capacity allows for the storage of a significant amount of data and applications. Does the Dahua Technology IPC-HFW3441T-AS-P have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Generalities
The EAN code of the product Dahua Technology IPC-HFW3441T-AS-P is 8435280924142. This code allows for the unique identification of the product in the distribution system. The product model Dahua Technology IPC-HFW3441T-AS-P is IPC-HFW3441T-AS-P | DH-IPC-HFW3441TP-AS-P-0210B. This model ensures optimal performance and an enhanced user experience. The brand of the product Dahua Technology IPC-HFW3441T-AS-P is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances.
Network
The number of users of the product Dahua Technology IPC-HFW3441T-AS-P is 20 utilisateur(s). This product is ideal for several people. Does the product Dahua Technology IPC-HFW3441T-AS-P have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Ethernet interface type of the product Dahua Technology IPC-HFW3441T-AS-P is Fast Ethernet. This type of interface allows for fast and efficient network connections. The streaming method of the product Dahua Technology IPC-HFW3441T-AS-P is Multi-diffusion. This method allows for efficient data transmission to multiple users simultaneously. The supported network protocols of the product Dahua Technology IPC-HFW3441T-AS-P are IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product Dahua Technology IPC-HFW3441T-AS-P contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Dahua Technology IPC-HFW3441T-AS-P have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Dahua Technology IPC-HFW3441T-AS-P have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Packaging information
The weight of the Dahua Technology IPC-HFW3441T-AS-P package is 1090 g. This weight ensures optimal protection during transport and delivery.
Power
The product Dahua Technology IPC-HFW3441T-AS-P has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Dahua Technology IPC-HFW3441T-AS-P is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Environmental conditions
The non-operating temperature of the product Dahua Technology IPC-HFW3441T-AS-P is -40 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Dahua Technology IPC-HFW3441T-AS-P has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Dahua Technology IPC-HFW3441T-AS-P is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Minimum system requirements
The supported mobile system of the product Dahua Technology IPC-HFW3441T-AS-P contains Android, iOS. This system allows for smooth usage on major mobile platforms.
Video
Does the product Dahua Technology IPC-HFW3441T-AS-P have a smart IR? Oui. This feature allows for precise and quick motion detection, thereby enhancing the user experience. The bit rate of the product Dahua Technology IPC-HFW3441T-AS-P is 3 Kbp - 8192Kbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Dahua Technology IPC-HFW3441T-AS-P have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The maximum resolution of the product Dahua Technology IPC-HFW3441T-AS-P is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The binary bitrate control of the product Dahua Technology IPC-HFW3441T-AS-P contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The supported graphic resolutions of the product Dahua Technology IPC-HFW3441T-AS-P are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2304 x 1296,2688 x 1512. These resolutions provide optimal display quality for your content. The gain control type of the product Dahua Technology IPC-HFW3441T-AS-P is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Dahua Technology IPC-HFW3441T-AS-P have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The total megapixels of the product Dahua Technology IPC-HFW3441T-AS-P is 4 MP. This total ensures exceptional image quality for your photos. Does the product Dahua Technology IPC-HFW3441T-AS-P have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Dahua Technology IPC-HFW3441T-AS-P have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The product Dahua Technology IPC-HFW3441T-AS-P features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The supported video format of the product Dahua Technology IPC-HFW3441T-AS-P contains H.264, H.265, H.265+. This format allows for smooth and high-quality playback of your multimedia content. Does the product Dahua Technology IPC-HFW3441T-AS-P have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The number of frames per second of the product Dahua Technology IPC-HFW3441T-AS-P is 30 ips. This specification ensures optimal smoothness when playing videos.
Objective system
The focal length of the product Dahua Technology IPC-HFW3441T-AS-P is 2.1 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The identification distance (wide) of the product Dahua Technology IPC-HFW3441T-AS-P is 5.2 m. This specification ensures optimal performance for applications requiring long-range recognition. The observation distance (wide) of the product Dahua Technology IPC-HFW3441T-AS-P is 20.8 m. This feature allows for an extended and clear view over long distances. The number of lenses in the product Dahua Technology IPC-HFW3441T-AS-P is 1. This number determines the quality and versatility of the lens. The detection distance (wide) of the product Dahua Technology IPC-HFW3441T-AS-P is 52 m. This feature allows for effective identification over a wide area, ensuring optimal performance. The recognition distance (wide) of the product Dahua Technology IPC-HFW3441T-AS-P is 10.4 m. This feature allows for effective identification over long distances. The maximum number of openings for the product Dahua Technology IPC-HFW3441T-AS-P is 2. This feature allows for optimal use and increased flexibility. The minimum focusing distance of the product Dahua Technology IPC-HFW3441T-AS-P is 0.6 m. This feature allows for sharp images even at relatively far distances.
Design
The material of the product case Dahua Technology IPC-HFW3441T-AS-P is Métal. This material ensures both durability and elegance. The color of the product Dahua Technology IPC-HFW3441T-AS-P is Black, White. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Dahua Technology IPC-HFW3441T-AS-P contains IP67. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Dahua Technology IPC-HFW3441T-AS-P is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Dahua Technology IPC-HFW3441T-AS-P is a bar. This format allows for practical and efficient use in various contexts.
Image sensor
The optical sensor size of the product Dahua Technology IPC-HFW3441T-AS-P is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Dahua Technology IPC-HFW3441T-AS-P is 1. This number of sensors allows for precise and efficient image detection. Does the product Dahua Technology IPC-HFW3441T-AS-P have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Dahua Technology IPC-HFW3441T-AS-P is CMOS. This type of sensor ensures optimal image quality for your needs.
Management features
Does the product Dahua Technology IPC-HFW3441T-AS-P have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Dahua Technology IPC-HFW3441T-AS-P management software contains Smart PSS, DSS, DMSS. This management software allows for efficient and intuitive administration of video security systems.
Camera
The shutter speed of the camera of the product Dahua Technology IPC-HFW3441T-AS-P is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The minimum illumination of the product Dahua Technology IPC-HFW3441T-AS-P is 0 lux. This feature ensures optimal performance even in low light conditions. The angle of view of the lens, diagonal of the product Dahua Technology IPC-HFW3441T-AS-P is 175 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The white balance of the product Dahua Technology IPC-HFW3441T-AS-P consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The vertical field of view of the product Dahua Technology IPC-HFW3441T-AS-P is 75 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The type of shutter of the camera of the product Dahua Technology IPC-HFW3441T-AS-P is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The panoramic view of the product Dahua Technology IPC-HFW3441T-AS-P is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The field of view of the Dahua Technology IPC-HFW3441T-AS-P lens is 170 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The tilt angle of the product Dahua Technology IPC-HFW3441T-AS-P is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Dahua Technology IPC-HFW3441T-AS-P is 360 °. This angle allows for optimal usage flexibility. The ability to adjust the shutter speed of the product Dahua Technology IPC-HFW3441T-AS-P is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control. The number of privacy masking zones for the product Dahua Technology IPC-HFW3441T-AS-P is 4. This device effectively protects your privacy by offering you several masking options.
Audio
The audio output channels of the Dahua Technology IPC-HFW3441T-AS-P are 1 canaux. This specification allows for an immersive and high-quality sound experience. Does the product Dahua Technology IPC-HFW3441T-AS-P have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The number of audio input channels of the product Dahua Technology IPC-HFW3441T-AS-P is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The supported audio formats of the product Dahua Technology IPC-HFW3441T-AS-P are G.711 A-law, G.726. These formats ensure optimal compatibility for an enriching listening experience. The signal-to-noise ratio of the product Dahua Technology IPC-HFW3441T-AS-P is 56 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Weight and dimensions
The weight of the product Dahua Technology IPC-HFW3441T-AS-P is 820 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Dahua Technology IPC-HFW3441T-AS-P is 90.4 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Dahua Technology IPC-HFW3441T-AS-P is 90.7 mm. This dimension is essential to ensure optimal integration into your space. The length of the product Dahua Technology IPC-HFW3441T-AS-P is 249.3 mm. This dimension is essential to ensure optimal use.
Night vision
The night vision distance of the product Dahua Technology IPC-HFW3441T-AS-P is 20 m. This feature allows for clear and precise observation even in darkness. The number of lighting LEDs in the product Dahua Technology IPC-HFW3441T-AS-P is 2. This number determines the light intensity and energy efficiency of the device. Does the product Dahua Technology IPC-HFW3441T-AS-P have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Dahua Technology IPC-HFW3441T-AS-P is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Packaging contents
The number of cameras of the product Dahua Technology IPC-HFW3441T-AS-P is 1. This product is equipped with a camera that allows capturing high-quality images.
Security
Does the product Dahua Technology IPC-HFW3441T-AS-P have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. The alarm input channel of the product Dahua Technology IPC-HFW3441T-AS-P contains 1. This channel allows for efficient integration of security systems. Does the product Dahua Technology IPC-HFW3441T-AS-P have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The alarm output channel of the product Dahua Technology IPC-HFW3441T-AS-P contains 1. This channel allows for the effective reporting of any alerts or important events.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology IPC-HFW3441T-AS-P is 1. These ports provide a stable and fast network connection for your devices.
