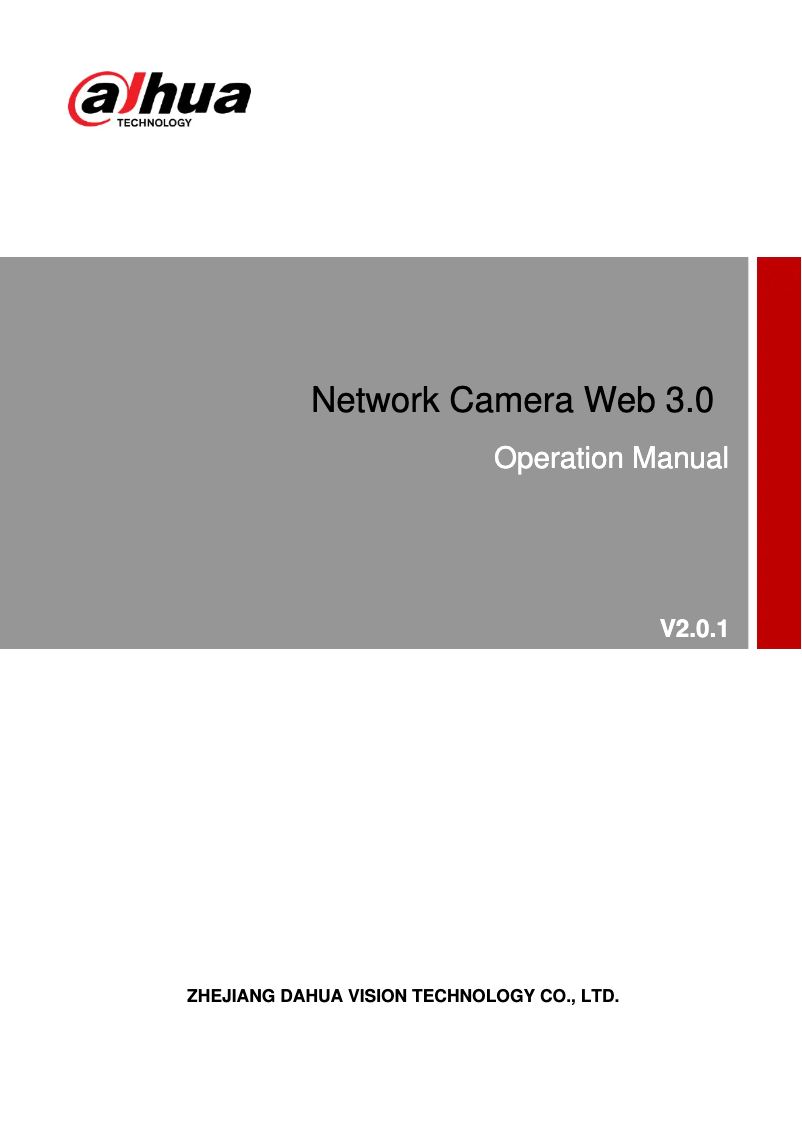

Manual of product Lite IPC-HDBW3441R-ZAS
Technical Specifications Lite IPC-HDBW3441R-ZAS
General Information
-
ModelLITE IPC-HDBW3441R-ZAS
-
Brand
-
Category
-
Type
-
SKU1209674
-
MPN1209674
Packaging contents
-
Number of cameras1
Design
-
Material of the case/bodyMetal
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP66, IP67, IP69, IP69K
-
Code IKIK10
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Temperature out of operation-40 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Diameter122 mm
-
Height88.9 mm
-
Weight492 g
Packaging information
-
Package weight663 g
Representation / realization
-
CertificationCE-LVD: EN60950-1
-
Large dynamic range (WRD)CE-EMC: 2014/30/EU
-
Large dynamic range (WRD)FCC: 47 CFR FCC 15, B
-
TypeUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
-
Supported installationYes
-
Connectivity technologyYes
-
IP security camera
-
Outdoor
-
Wired
Network
-
Ethernet/LANYes
-
Streaming methodMulticast, Unicast
-
Number of users20 user(s)
-
WifiNo
-
WifiNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.3af
-
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Voice codecsG.711Mu, G.711a, G.723, G.726
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Supported graphic resolutions352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2304 x 1296,2688 x 1520
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
-
Noise reductionYes
-
Noise reduction technology3D digital noise suppression
-
Noise reductionYes
-
Noise reductionYes
-
Gain control typeAuto/Manual
-
Number of images per second30 fps
-
Visual compression formatsH.264, H.265, M-JPEG
Objective system
-
Detection distance (wide)64 m
-
Detection distance (tele)222 m
-
Observation distance (wide)25.6 m
-
Observation distance (tele)88.8 m
-
Recognition distance (wide)12.8 m
-
Recognition distance (tele)44.4 m
-
Identification distance (wide)6.4 m
-
Identification distance (tele)22.2 m
-
Minimum focusing distance0.8 m
-
Focal length2.7 - 13.5 mm
-
Maximum number of openings1.5
-
Number of lenses1
Camera
-
Field of view of the lens, horizontal104 °
-
Angle of view of the lens, vertical55 °
-
Angle of view of the lens, diagonal124 °
-
White balanceAuto, Manual, Natural, Outdoor
-
Camera shutter typeElectronic
-
Camera shutter speed1/3 - 1/100000 s
-
Adjustment of shutter speedAuto/Manual
-
Inclination angle0 - 75 °
-
Panoramic0 - 355 °
-
Rotation angle355 °
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0.005 lux
Night vision
-
Number of lighting LEDs2
-
Night vision distance40 m
-
Type of LEDIR
-
Night visionYes
Storage support
-
ROM capacity128 MB
-
Internal memory512 MB
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash)
-
Integrated hard driveNo
-
Built-in memory card readerYes
Image sensor
-
Optical sensor size1/2.7 "
-
Effective pixel count (H x V)
-
Sensor type2688 x 1520 pixels
-
Number of sensors
-
Progressive scanCMOS
-
-
1
-
-
Yes
Minimum system requirements
-
Supported mobile systemAndroid
-
iOS
Power
-
Consumption (max)8.5 W
-
Output CC in volts12
-
Power supply typeDC, PoE
Management features
-
Behavior analysisIntrusion detection
-
Web BrowserLine crossing detection
-
Web BrowserYes
-
Yes
Security
-
Functions of the IVS system (intelligent video surveillance)People counting
-
Motion detector (video)Tripwire
-
Yes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product Lite IPC-HDBW3441R-ZAS specifications from brand Dahua Technology
Packaging contents
The number of cameras of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1. This product is equipped with a camera that allows capturing high-quality images.
Generalities
The EAN code of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 6939554977565. This code allows for the unique identification of the product in the distribution system. The brand of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The product model Dahua Technology Lite IPC-HDBW3441R-ZAS is Lite IPC-HDBW3441R-ZAS | IPC-HDBW3441R-ZAS. This model ensures optimal performance and an enhanced user experience.
Design
The material of the product case Dahua Technology Lite IPC-HDBW3441R-ZAS is Métal. This material ensures both durability and elegance. The format of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Dahua Technology Lite IPC-HDBW3441R-ZAS contains IP66, IP67, IP69, IP69K. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is IK10. This IK Code allows for easy identification of the specific design of the item.
Environmental conditions
The operating temperature of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Dahua Technology Lite IPC-HDBW3441R-ZAS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is -40 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Weight and dimensions
The height of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 88.9 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 122 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 492 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The weight of the Dahua Technology Lite IPC-HDBW3441R-ZAS package is 663 g. This weight ensures optimal protection during transport and delivery.
Representation / realization
The type of product Dahua Technology Lite IPC-HDBW3441R-ZAS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The certification of the product Dahua Technology Lite IPC-HDBW3441R-ZAS contains CE-LVD: EN60950-1\nCE-EMC: 2014/30/EU\nFCC: 47 CFR FCC 15, B\nUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07. This certification guarantees compliance with the required safety and performance standards. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Dahua Technology Lite IPC-HDBW3441R-ZAS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Dahua Technology Lite IPC-HDBW3441R-ZAS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Audio
The audio output channels of the Dahua Technology Lite IPC-HDBW3441R-ZAS are 1 canaux. This specification allows for an immersive and high-quality sound experience. The number of audio input channels of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The voice codec of the Dahua Technology Lite IPC-HDBW3441R-ZAS product contains G.711Mu, G.711a, G.723, G.726. This voice codec ensures optimal audio quality for your communications.
Network
Does the Dahua Technology Lite IPC-HDBW3441R-ZAS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The streaming method of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The number of users of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 20 utilisateur(s). This product is ideal for several people. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Dahua Technology Lite IPC-HDBW3441R-ZAS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Dahua Technology Lite IPC-HDBW3441R-ZAS are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Dahua Technology Lite IPC-HDBW3441R-ZAS are IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP. These protocols ensure efficient and reliable communication for your networking needs.
Objective system
The detection distance (wide) of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 64 m. This feature allows for effective identification over a wide area, ensuring optimal performance. The observation distance (wide) of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 25.6 m. This feature allows for an extended and clear view over long distances. The detection distance (tele) of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 222 m. This specification ensures optimal performance for your remote detection needs. The observation (tele) distance of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 88.8 m. This specification allows for an appreciation of the lens's range for distant shots. The recognition distance (wide) of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 12.8 m. This feature allows for effective identification over long distances. The recognition (tele) distance of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 44.4 m. This specification allows for assessing the effective range of the lens in terms of detecting subjects at a distance. The identification distance (wide) of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 6.4 m. This specification ensures optimal performance for applications requiring long-range recognition. The identification (tele) distance of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 22.2 m. This specification allows for determining the remote identification range, essential for optimal use. The minimum focusing distance of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 0.8 m. This feature allows for sharp images even at relatively far distances. The focal length of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 2.7 - 13.5 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1.5. This feature allows for optimal use and increased flexibility. The number of lenses in the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1. This number determines the quality and versatility of the lens.
Night vision
The number of lighting LEDs in the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 2. This number determines the light intensity and energy efficiency of the device. The type of LED of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 40 m. This feature allows for clear and precise observation even in darkness. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Video
The total megapixels of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 4 MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Dahua Technology Lite IPC-HDBW3441R-ZAS are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2304 x 1296,2688 x 1520. These resolutions provide optimal display quality for your content. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The maximum resolution of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The binary bitrate control of the product Dahua Technology Lite IPC-HDBW3441R-ZAS contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The product Dahua Technology Lite IPC-HDBW3441R-ZAS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The gain control type of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The number of frames per second of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 30 ips. This specification ensures optimal smoothness when playing videos. The product Dahua Technology Lite IPC-HDBW3441R-ZAS has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos.
Camera
The field of view of the Dahua Technology Lite IPC-HDBW3441R-ZAS lens is 104 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The angle of view of the lens, diagonal of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 124 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The white balance of the product Dahua Technology Lite IPC-HDBW3441R-ZAS consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The vertical field of view of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 55 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The type of shutter of the camera of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The ability to adjust the shutter speed of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control. The tilt angle of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The rotation angle of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 355 °. This angle allows for optimal usage flexibility. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 0.005 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Dahua Technology Lite IPC-HDBW3441R-ZAS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Minimum system requirements
The supported mobile system of the product Dahua Technology Lite IPC-HDBW3441R-ZAS contains Android, iOS. This system allows for smooth usage on major mobile platforms.
Storage support
The maximum size of the memory card for the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Dahua Technology Lite IPC-HDBW3441R-ZAS has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data. The internal memory of the product Dahua Technology Lite IPC-HDBW3441R-ZAS contains 512 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The capacity of the ROM of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 128 Mo. This capacity allows for the storage of a significant amount of data and applications. Does the Dahua Technology Lite IPC-HDBW3441R-ZAS have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Dahua Technology Lite IPC-HDBW3441R-ZAS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Image sensor
The effective pixel count (H x V) of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 2688 x 1520 pixels. This specification ensures accurate and detailed image quality. The optical sensor size of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1. This number of sensors allows for precise and efficient image detection. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Power
The type of power source for the product Dahua Technology Lite IPC-HDBW3441R-ZAS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Dahua Technology Lite IPC-HDBW3441R-ZAS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 8.5 W. This specification allows for the assessment of the energy efficiency of the device.
Security
Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The intelligent video surveillance system of the product Dahua Technology Lite IPC-HDBW3441R-ZAS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Management features
The Dahua Technology Lite IPC-HDBW3441R-ZAS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Dahua Technology Lite IPC-HDBW3441R-ZAS have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Dahua Technology Lite IPC-HDBW3441R-ZAS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology Lite IPC-HDBW3441R-ZAS is 1. These ports provide a stable and fast network connection for your devices.
