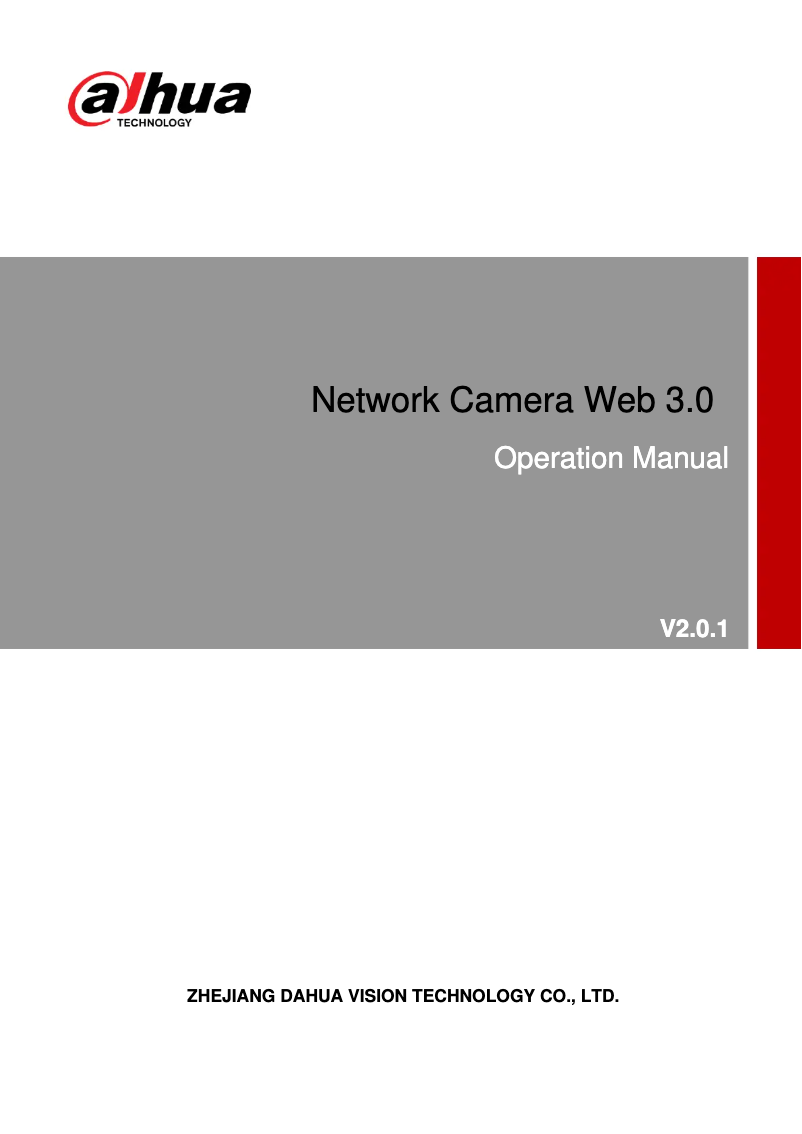

Manual of product Pro IPC-HDW5442TM-AS
Technical Specifications Pro IPC-HDW5442TM-AS
General Information
-
ModelPRO IPC-HDW5442TM-AS
-
Brand
-
Category
-
Type
-
SKU1209696
-
MPN1209696
Packaging contents
-
Number of cameras1
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Diameter106 mm
-
Height99.2 mm
-
Weight550 g
Packaging information
-
Package weight710 g
Power
-
Consumption (max)7.2 W
-
Output CC in volts12
-
Power supply typeDC, PoE
Network
-
Ethernet/LANYes
-
Number of users20 user(s)
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.3af
-
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Audio
-
Built-in microphoneYes
-
Voice codecsG.711Mu, G.711a, G.726
Video
-
Noise reductionYes
-
Bitrate32 Kbps–8192 Kbps/19 Kbps–7424 Kbps
-
Total megapixels4 MP
-
Maximum resolution2688 x 1520 pixels
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
-
Gain control typeAuto/Manual
-
Supported graphic resolutions352 x 240,352 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2304 x 1296,2688 x 1520
-
Visual compression formatsH.264, H.265, M-JPEG
-
Number of images per second30 fps
Camera
-
Panoramic0 - 360 °
-
Inclination angle0 - 78 °
-
Field of view of the lens, horizontal113 °
-
Angle of view of the lens, vertical60 °
-
Minimum illumination0.002 lux
-
Camera shutter speed1/3 - 1/100000 s
-
Adjustment of shutter speedAuto/Manual
-
Camera shutter typeElectronic
-
White balanceAuto, Manual, Natural, Outdoor
-
Rotation angle360 °
-
Camera tilt controlYes
-
Camera tilt controlYes
Objective system
-
Fixed Focal Length2.8 mm
-
Detection distance58 m
-
Observation distance23 m
-
Recognition distance12 m
-
Identification distance6 m
-
Minimum focusing distance1.3 m
-
Maximum number of openings1.6
-
Number of lenses1
Image sensor
-
Optical sensor size1/1.8 "
-
Effective pixel count (H x V)
-
Sensor type2688 x 1520 pixels
-
Number of sensors
-
Progressive scanCMOS
-
-
1
-
-
Yes
Night vision
-
Night vision distance50 m
-
Number of lighting LEDs2
-
Type of LEDIR
-
Night visionYes
Minimum system requirements
-
Supported mobile systemAndroid
-
iOS
Management features
-
Behavior analysisIntrusion detection
-
Web-based managementYes
-
Web-based managementYes
Security
-
Functions of the IVS system (intelligent video surveillance)Tripwire
-
Motion detector (video)Yes
Design
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Material of the case/bodyMetal
-
International Protection Code (IP)IP67
Representation / realization
-
CertificationCE-LVD: EN60950-1
-
Large dynamic range (WRD)CE-EMC: 2014/30/EU
-
Supported installationFCC: 47 CFR FCC 15, B
-
TypeUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
-
Connectivity technologyYes
-
Outdoor
-
IP security camera
-
Wired
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Internal memory512 MB
-
ROM capacity128 MB
-
Compatible memory cardsMicroSD (TransFlash)
-
Integrated hard driveNo
-
Built-in memory card readerYes
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product Pro IPC-HDW5442TM-AS specifications from brand Dahua Technology
Packaging contents
The number of cameras of the product Dahua Technology Pro IPC-HDW5442TM-AS is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The diameter of the product Dahua Technology Pro IPC-HDW5442TM-AS is 106 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Dahua Technology Pro IPC-HDW5442TM-AS is 99.2 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Dahua Technology Pro IPC-HDW5442TM-AS is 550 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The operating temperature of the product Dahua Technology Pro IPC-HDW5442TM-AS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Dahua Technology Pro IPC-HDW5442TM-AS is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Dahua Technology Pro IPC-HDW5442TM-AS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Generalities
The brand of the product Dahua Technology Pro IPC-HDW5442TM-AS is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The product model Dahua Technology Pro IPC-HDW5442TM-AS is Pro IPC-HDW5442TM-AS | IPC-HDW5442TM-AS. This model ensures optimal performance and an enhanced user experience.
Packaging information
The weight of the Dahua Technology Pro IPC-HDW5442TM-AS package is 710 g. This weight ensures optimal protection during transport and delivery.
Power
The product Dahua Technology Pro IPC-HDW5442TM-AS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Dahua Technology Pro IPC-HDW5442TM-AS is 7.2 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Dahua Technology Pro IPC-HDW5442TM-AS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Audio
Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The voice codec of the Dahua Technology Pro IPC-HDW5442TM-AS product contains G.711Mu, G.711a, G.726. This voice codec ensures optimal audio quality for your communications.
Network
The number of users of the product Dahua Technology Pro IPC-HDW5442TM-AS is 20 utilisateur(s). This product is ideal for several people. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Dahua Technology Pro IPC-HDW5442TM-AS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Dahua Technology Pro IPC-HDW5442TM-AS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Dahua Technology Pro IPC-HDW5442TM-AS is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Dahua Technology Pro IPC-HDW5442TM-AS are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Dahua Technology Pro IPC-HDW5442TM-AS are IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP. These protocols ensure efficient and reliable communication for your networking needs.
Image sensor
The optical sensor size of the product Dahua Technology Pro IPC-HDW5442TM-AS is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Dahua Technology Pro IPC-HDW5442TM-AS is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Dahua Technology Pro IPC-HDW5442TM-AS is 1. This number of sensors allows for precise and efficient image detection. The effective pixel count (H x V) of the product Dahua Technology Pro IPC-HDW5442TM-AS is 2688 x 1520 pixels. This specification ensures accurate and detailed image quality. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Video
Does the product Dahua Technology Pro IPC-HDW5442TM-AS have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. The bit rate of the product Dahua Technology Pro IPC-HDW5442TM-AS is 32 Kbps–8192 Kbps/19 Kbps–7424 Kbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The maximum resolution of the product Dahua Technology Pro IPC-HDW5442TM-AS is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Dahua Technology Pro IPC-HDW5442TM-AS is 4 MP. This total ensures exceptional image quality for your photos. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The product Dahua Technology Pro IPC-HDW5442TM-AS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The gain control type of the product Dahua Technology Pro IPC-HDW5442TM-AS is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The supported graphic resolutions of the product Dahua Technology Pro IPC-HDW5442TM-AS are 352 x 240,352 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2304 x 1296,2688 x 1520. These resolutions provide optimal display quality for your content. The product Dahua Technology Pro IPC-HDW5442TM-AS has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The number of frames per second of the product Dahua Technology Pro IPC-HDW5442TM-AS is 30 ips. This specification ensures optimal smoothness when playing videos.
Camera
The vertical field of view of the product Dahua Technology Pro IPC-HDW5442TM-AS is 60 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The tilt angle of the product Dahua Technology Pro IPC-HDW5442TM-AS is 0 - 78 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Dahua Technology Pro IPC-HDW5442TM-AS is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The field of view of the Dahua Technology Pro IPC-HDW5442TM-AS lens is 113 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The ability to adjust the shutter speed of the product Dahua Technology Pro IPC-HDW5442TM-AS is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control. The type of shutter of the camera of the product Dahua Technology Pro IPC-HDW5442TM-AS is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Dahua Technology Pro IPC-HDW5442TM-AS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The minimum illumination of the product Dahua Technology Pro IPC-HDW5442TM-AS is 0.002 lux. This feature ensures optimal performance even in low light conditions. The rotation angle of the product Dahua Technology Pro IPC-HDW5442TM-AS is 360 °. This angle allows for optimal usage flexibility. The white balance of the product Dahua Technology Pro IPC-HDW5442TM-AS consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The tilt command of the Dahua Technology Pro IPC-HDW5442TM-AS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a camera pan command? No. This feature is not available on this model.
Objective system
The product goal system Dahua Technology Pro IPC-HDW5442TM-AS has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The detection distance of the product Dahua Technology Pro IPC-HDW5442TM-AS is 58 m. This feature allows for effective detection over a significant range. The detection range of the product Dahua Technology Pro IPC-HDW5442TM-AS is 12 m. This specification allows for the assessment of the system's effectiveness under various usage conditions. The observation distance of the product Dahua Technology Pro IPC-HDW5442TM-AS is 23 m. This specification allows for an appreciation of the range and clarity of the observed images. The minimum focusing distance of the product Dahua Technology Pro IPC-HDW5442TM-AS is 1.3 m. This feature allows for sharp images even at relatively far distances. The maximum number of openings for the product Dahua Technology Pro IPC-HDW5442TM-AS is 1.6. This feature allows for optimal use and increased flexibility. The number of lenses in the product Dahua Technology Pro IPC-HDW5442TM-AS is 1. This number determines the quality and versatility of the lens. The product identification distance Dahua Technology Pro IPC-HDW5442TM-AS is 6 m. This specification allows determining the range at which the device can recognize objects or people.
Minimum system requirements
The supported mobile system of the product Dahua Technology Pro IPC-HDW5442TM-AS contains Android, iOS. This system allows for smooth usage on major mobile platforms.
Night vision
The night vision distance of the product Dahua Technology Pro IPC-HDW5442TM-AS is 50 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Dahua Technology Pro IPC-HDW5442TM-AS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The number of lighting LEDs in the product Dahua Technology Pro IPC-HDW5442TM-AS is 2. This number determines the light intensity and energy efficiency of the device. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Security
The intelligent video surveillance system of the product Dahua Technology Pro IPC-HDW5442TM-AS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Management features
The Dahua Technology Pro IPC-HDW5442TM-AS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Dahua Technology Pro IPC-HDW5442TM-AS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Design
The material of the product case Dahua Technology Pro IPC-HDW5442TM-AS is Métal. This material ensures both durability and elegance. The format of the product Dahua Technology Pro IPC-HDW5442TM-AS is a bar. This format allows for practical and efficient use in various contexts. The color of the product Dahua Technology Pro IPC-HDW5442TM-AS is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Dahua Technology Pro IPC-HDW5442TM-AS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product Dahua Technology Pro IPC-HDW5442TM-AS contains IP67. This code indicates the level of protection against solid objects and moisture.
Representation / realization
The certification of the product Dahua Technology Pro IPC-HDW5442TM-AS contains CE-LVD: EN60950-1\nCE-EMC: 2014/30/EU\nFCC: 47 CFR FCC 15, B\nUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07. This certification guarantees compliance with the required safety and performance standards. The type of product Dahua Technology Pro IPC-HDW5442TM-AS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Dahua Technology Pro IPC-HDW5442TM-AS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Dahua Technology Pro IPC-HDW5442TM-AS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Dahua Technology Pro IPC-HDW5442TM-AS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology Pro IPC-HDW5442TM-AS is 1. These ports provide a stable and fast network connection for your devices.
Storage support
The internal memory of the product Dahua Technology Pro IPC-HDW5442TM-AS contains 512 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The capacity of the ROM of the product Dahua Technology Pro IPC-HDW5442TM-AS is 128 Mo. This capacity allows for the storage of a significant amount of data and applications. Does the Dahua Technology Pro IPC-HDW5442TM-AS have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Dahua Technology Pro IPC-HDW5442TM-AS has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data. Does the Dahua Technology Pro IPC-HDW5442TM-AS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
