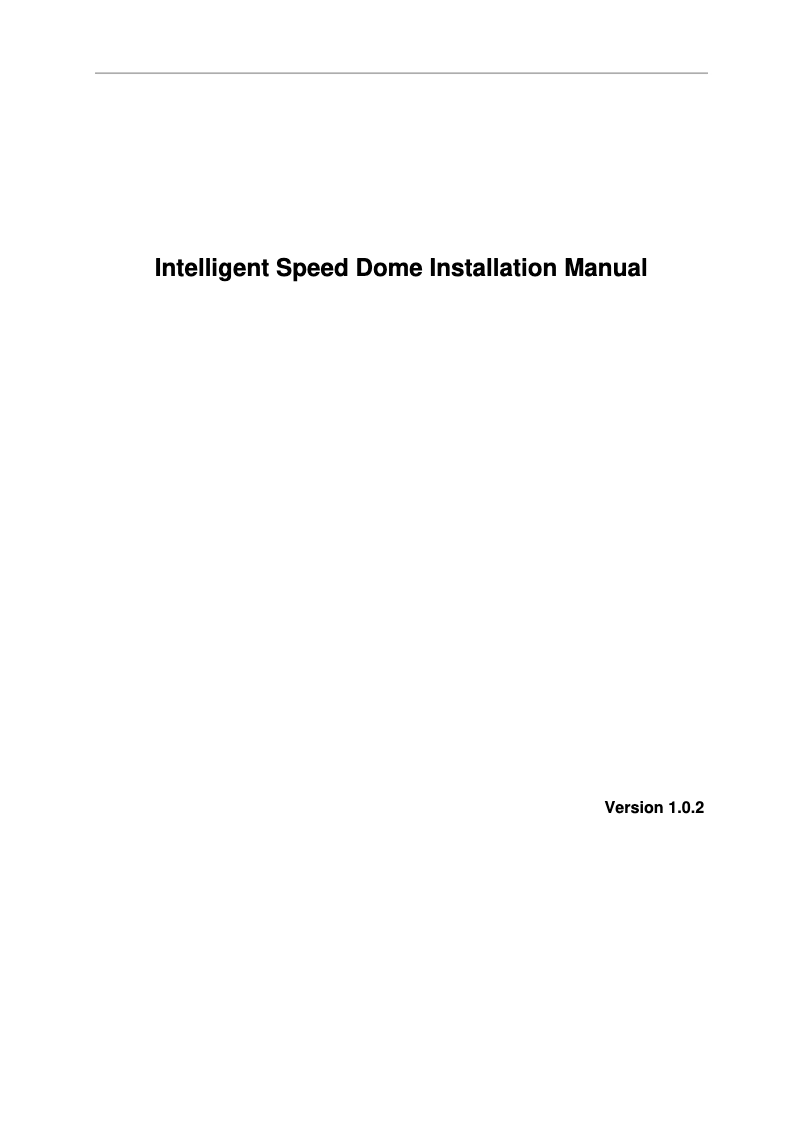

Manual of product Pro SD50230U-HNI
Technical Specifications Pro SD50230U-HNI
General Information
-
ModelPRO SD50230U-HNI
-
Brand
-
Category
-
Type
-
SKU796167
-
MPN796167
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Entry/exit alarmYes
-
PTZ ModesAuto Scan, Auto pan, Preset point
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
CertificationCE: EN55032/EN55024/EN50130-4
-
PTZ ProtocolsFCC: Part15 subpartB, ANSI C63.4- 2014
-
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
-
DH-SD
Design
-
Anti-fogYes
-
FormatDome
-
Product colorBlack, White
-
Mounting typeCeiling/wall
-
Protection functionsWater resistant
-
Material of the case/bodyMetal
-
International Protection Code (IP)IP67
-
Code IKIK10
Video
-
Maximum resolution1920 x 1080 pixels
-
Visual compression formatsH.264, H.265, M-JPEG
-
Supported graphic resolutions352 x 240,352 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
-
Supported video modes720p, 1080p
-
Analog signal format systemPAL
-
Gain control typeAuto/Manual
-
Number of images per second60 fps
-
Total megapixels2 MP
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
BitrateH.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
Camera
-
Minimum illumination0.0005 lux
-
Field of view of the lens, horizontal67.8 °
-
Inclination angle0 - 90 °
-
Tilt speed250 °/sec
-
Panoramic0 - 360 °
-
Panoramic speed350 °/sec
-
Pan tilt preset speed500 °/sec
-
Pan tilt preset speed500 °/sec
-
Quantity of predefined programs300
-
White balanceATW, Auto, Indoor, Manual, Outdoor
-
Camera shutter typeElectronics
-
Camera shutter speed1/1 - 1/300000 s
-
Automatic flippingYes
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Objective system
-
Number of lenses-
-
Auto focusYes
-
Optical zoom30 x
-
Digital zoom16 x
-
Detection distance1862 m
-
Observation distance744 m
-
Recognition distance372 m
-
Identification distance186 m
-
Maximum number of openings4.4
-
Auto focusYes
-
Minimum opening amount1.6
-
Focal length4.5 - 135 mm
-
Minimum focusing distance1 m
-
TuningMotorized/manual
Security
-
Motion detectorYes
-
Functions of the IVS system (intelligent video surveillance)Abandoned object
-
Face detection
-
Intrusion
-
Missing object
-
Tripwire
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash)
-
Integrated hard driveNo
-
Internal memory512 MB
-
Maximum memory card size128 GB
-
ROM capacity128 MB
Night vision
-
Night visionNo
Network
-
Quality of Service (QoS)Yes
-
WifiNo
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.3at
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
-
Quality of Service (QoS)Yes
-
Number of users20 user(s)
-
Streaming methodMulticast, Unicast
-
Client interoperabilityONVIF, PSIA, CGI
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
InterfaceRJ-45
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Signal-to-noise ratio report55 dB
-
Audio CodecsG.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Weight and dimensions
-
Height253 mm
-
Diameter186 mm
-
Weight2500 g
Packaging information
-
Package weight4500 g
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input voltage24 V
-
Output current of the power adapter1.5 A
-
Typical electricity consumption13 W
-
Consumption (max)23 W
-
Power supply typePoE
Management features
-
Web BrowserYes
-
Management softwareSmart PSS, DSS
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Minimum system requirements
-
Supported mobile systemAndroid
-
iOS
Packaging contents
-
Number of cameras1
Other features
-
Supported browsersIE
-
Chrome
-
Firefox
-
Safari
Technical details
-
Number of video streams3
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product Pro SD50230U-HNI specifications from brand Dahua Technology
Generalities
The brand of the product Dahua Technology Pro SD50230U-HNI is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The product model Dahua Technology Pro SD50230U-HNI is Pro SD50230U-HNI | DH-SD50230U-HNI. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Dahua Technology Pro SD50230U-HNI is 6939554922138. This code allows for the unique identification of the product in the distribution system.
Representation / realization
The design of the product Dahua Technology Pro SD50230U-HNI supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ modes of the product Dahua Technology Pro SD50230U-HNI contain Auto Scan, Auto pan, Preset point. These modes allow for increased flexibility and customization to meet your specific needs. The PTZ control of the product Dahua Technology Pro SD50230U-HNI is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The type of product Dahua Technology Pro SD50230U-HNI is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Dahua Technology Pro SD50230U-HNI have Automatic Tracking? Oui. This feature allows you to track your orders in real-time, providing you with peace of mind while shopping. Does the product Dahua Technology Pro SD50230U-HNI have a recording loop? Oui. This product allows you to easily record your audio sessions. Does the product Dahua Technology Pro SD50230U-HNI have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Dahua Technology Pro SD50230U-HNI features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product Dahua Technology Pro SD50230U-HNI contains CE: EN55032/EN55024/EN50130-4\nFCC: Part15 subpartB, ANSI C63.4- 2014\nUL: UL60950-1+CAN/CSA C22.2, No.60950-1. This certification guarantees compliance with the required safety and performance standards. The product Dahua Technology Pro SD50230U-HNI has PTZ Protocols DH-SD. These Protocols allow for precise and effective control of the camera movements, thus ensuring optimal surveillance. Does the product Dahua Technology Pro SD50230U-HNI have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Design
Does the product Dahua Technology Pro SD50230U-HNI have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The mounting type of the product Dahua Technology Pro SD50230U-HNI is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Dahua Technology Pro SD50230U-HNI is a bar. This format allows for practical and efficient use in various contexts. The color of the product Dahua Technology Pro SD50230U-HNI is Black, White. This shade gives it a modern and elegant look. The product Dahua Technology Pro SD50230U-HNI has Résistant à l’eau protection features. These characteristics ensure reliable use in various environmental conditions. The IK Code of the product Dahua Technology Pro SD50230U-HNI is IK10. This IK Code allows for easy identification of the specific design of the item. The International Protection Code (IP) for product Dahua Technology Pro SD50230U-HNI contains IP67. This code indicates the level of protection against solid objects and moisture. The material of the product case Dahua Technology Pro SD50230U-HNI is Métal. This material ensures both durability and elegance.
Image sensor
The sensor type of the product Dahua Technology Pro SD50230U-HNI is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Dahua Technology Pro SD50230U-HNI have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Dahua Technology Pro SD50230U-HNI is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Video
The maximum resolution of the product Dahua Technology Pro SD50230U-HNI is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported video mode of the product Dahua Technology Pro SD50230U-HNI is 720p, 1080p. This mode allows you to enjoy optimal image quality for your videos. The supported graphic resolutions of the product Dahua Technology Pro SD50230U-HNI are 352 x 240,352 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product Dahua Technology Pro SD50230U-HNI has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The gain control type of the product Dahua Technology Pro SD50230U-HNI is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The analog signal format system of the product Dahua Technology Pro SD50230U-HNI contains PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The number of frames per second of the product Dahua Technology Pro SD50230U-HNI is 60 ips. This specification ensures optimal smoothness when playing videos. Does the product Dahua Technology Pro SD50230U-HNI have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Dahua Technology Pro SD50230U-HNI have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The total megapixels of the product Dahua Technology Pro SD50230U-HNI is 2 MP. This total ensures exceptional image quality for your photos. Does the product Dahua Technology Pro SD50230U-HNI have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Dahua Technology Pro SD50230U-HNI have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product Dahua Technology Pro SD50230U-HNI have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the Dahua Technology Pro SD50230U-HNI have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. The binary bitrate control of the product Dahua Technology Pro SD50230U-HNI contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The bit rate of the product Dahua Technology Pro SD50230U-HNI is H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Dahua Technology Pro SD50230U-HNI have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Dahua Technology Pro SD50230U-HNI have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Dahua Technology Pro SD50230U-HNI have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product Dahua Technology Pro SD50230U-HNI have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
Camera
The tilt speed of the product Dahua Technology Pro SD50230U-HNI is 250 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt angle of the product Dahua Technology Pro SD50230U-HNI is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The field of view of the Dahua Technology Pro SD50230U-HNI lens is 67.8 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The minimum illumination of the product Dahua Technology Pro SD50230U-HNI is 0.0005 lux. This feature ensures optimal performance even in low light conditions. The panoramic view of the product Dahua Technology Pro SD50230U-HNI is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Dahua Technology Pro SD50230U-HNI is 350 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt pre-setting speed of the product Dahua Technology Pro SD50230U-HNI is 500 °/sec. This feature allows for quick and precise adjustment of the camera angle to capture images from different angles. The product Dahua Technology Pro SD50230U-HNI has a preset panning speed of 500 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The number of predefined programs of the product Dahua Technology Pro SD50230U-HNI is 300. This specification allows for optimizing the use and customization of the device. The white balance of the product Dahua Technology Pro SD50230U-HNI consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Dahua Technology Pro SD50230U-HNI is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Dahua Technology Pro SD50230U-HNI is 1/1 - 1/300000 s. This feature allows capturing sharp images even in low light conditions. Does the Dahua Technology Pro SD50230U-HNI have automatic flipping? Oui. This feature allows the camera to automatically adjust to capture the best angles.
Security
Does the product Dahua Technology Pro SD50230U-HNI have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security. The intelligent video surveillance system of the product Dahua Technology Pro SD50230U-HNI has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Night vision
Does the product Dahua Technology Pro SD50230U-HNI have night vision? Non. This feature allows for clear visibility in the dark, thus providing enhanced security.
Objective system
The digital zoom of the product Dahua Technology Pro SD50230U-HNI is 16 x. This zoom allows for capturing precise details even from a distance. The optical zoom of the product Dahua Technology Pro SD50230U-HNI is 30 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product Dahua Technology Pro SD50230U-HNI have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The detection distance of the product Dahua Technology Pro SD50230U-HNI is 1862 m. This feature allows for effective detection over a significant range. The observation distance of the product Dahua Technology Pro SD50230U-HNI is 744 m. This specification allows for an appreciation of the range and clarity of the observed images. The detection range of the product Dahua Technology Pro SD50230U-HNI is 372 m. This specification allows for the assessment of the system's effectiveness under various usage conditions. The product identification distance Dahua Technology Pro SD50230U-HNI is 186 m. This specification allows determining the range at which the device can recognize objects or people. Does the Dahua Technology Pro SD50230U-HNI have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The minimum opening number of the product Dahua Technology Pro SD50230U-HNI is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The focal length of the product Dahua Technology Pro SD50230U-HNI is 4.5 - 135 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Dahua Technology Pro SD50230U-HNI is 4.4. This feature allows for optimal use and increased flexibility. The minimum focusing distance of the product Dahua Technology Pro SD50230U-HNI is 1 m. This feature allows for sharp images even at relatively far distances. The adjustment of the Dahua Technology Pro SD50230U-HNI is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The number of lenses in the product Dahua Technology Pro SD50230U-HNI is -. This number determines the quality and versatility of the lens.
Storage support
Does the Dahua Technology Pro SD50230U-HNI have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Dahua Technology Pro SD50230U-HNI have a built-in hard drive? No. This feature means that the product does not have internal storage. The internal memory of the product Dahua Technology Pro SD50230U-HNI contains 512 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The product Dahua Technology Pro SD50230U-HNI has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Dahua Technology Pro SD50230U-HNI is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The capacity of the ROM of the product Dahua Technology Pro SD50230U-HNI is 128 Mo. This capacity allows for the storage of a significant amount of data and applications.
Weight and dimensions
The height of the product Dahua Technology Pro SD50230U-HNI is 253 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Dahua Technology Pro SD50230U-HNI is 2500 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Dahua Technology Pro SD50230U-HNI is 186 mm. This diameter allows for optimal use and fits perfectly with your needs.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology Pro SD50230U-HNI is 1. These ports provide a stable and fast network connection for your devices. The product Dahua Technology Pro SD50230U-HNI has an Interface RJ-45. This interface allows for easy and quick connection with various devices.
Audio
The number of audio input channels of the product Dahua Technology Pro SD50230U-HNI is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio output channels of the Dahua Technology Pro SD50230U-HNI are 1 canaux. This specification allows for an immersive and high-quality sound experience. The audio codecs of the product Dahua Technology Pro SD50230U-HNI contain G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2. These codecs ensure optimal sound quality and a smooth listening experience. The signal-to-noise ratio of the product Dahua Technology Pro SD50230U-HNI is 55 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Network
The Wifi of the product Dahua Technology Pro SD50230U-HNI contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Dahua Technology Pro SD50230U-HNI have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The wiring technology of the product Dahua Technology Pro SD50230U-HNI contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The Ethernet interface type of the product Dahua Technology Pro SD50230U-HNI is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Dahua Technology Pro SD50230U-HNI are IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Dahua Technology Pro SD50230U-HNI are IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Dahua Technology Pro SD50230U-HNI is 20 utilisateur(s). This product is ideal for several people. The product Dahua Technology Pro SD50230U-HNI has client interoperability ONVIF, PSIA, CGI, thus ensuring optimal compatibility with various systems and protocols. The streaming method of the product Dahua Technology Pro SD50230U-HNI is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. Does the product Dahua Technology Pro SD50230U-HNI have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Management features
The Dahua Technology Pro SD50230U-HNI management software contains Smart PSS, DSS. This management software allows for efficient and intuitive administration of video security systems. Does the product Dahua Technology Pro SD50230U-HNI have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Packaging information
The weight of the Dahua Technology Pro SD50230U-HNI package is 4500 g. This weight ensures optimal protection during transport and delivery.
Power
The AC input voltage of the Dahua Technology Pro SD50230U-HNI is 24 V. This specification ensures optimal compatibility with standard electrical systems. Does the Dahua Technology Pro SD50230U-HNI have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The output current of the power adapter for the product Dahua Technology Pro SD50230U-HNI is 1.5 A. This current provides efficient and stable power for your devices. The typical power consumption of the product Dahua Technology Pro SD50230U-HNI is 13 W. This feature allows for the assessment of the energy efficiency of the device. The maximum consumption of the product Dahua Technology Pro SD50230U-HNI is 23 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Dahua Technology Pro SD50230U-HNI is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Minimum system requirements
The supported mobile system of the product Dahua Technology Pro SD50230U-HNI contains Android, iOS. This system allows for smooth usage on major mobile platforms.
Environmental conditions
The product Dahua Technology Pro SD50230U-HNI has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Dahua Technology Pro SD50230U-HNI is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Other features
The browser support for the product Dahua Technology Pro SD50230U-HNI includes IE, Chrome, Firefox, Safari. This feature ensures an optimal user experience on compatible platforms.
Packaging contents
The number of cameras of the product Dahua Technology Pro SD50230U-HNI is 1. This product is equipped with a camera that allows capturing high-quality images.
Technical details
The number of video streams for the product Dahua Technology Pro SD50230U-HNI is 3. This number determines the product's ability to handle multiple video sources simultaneously.
