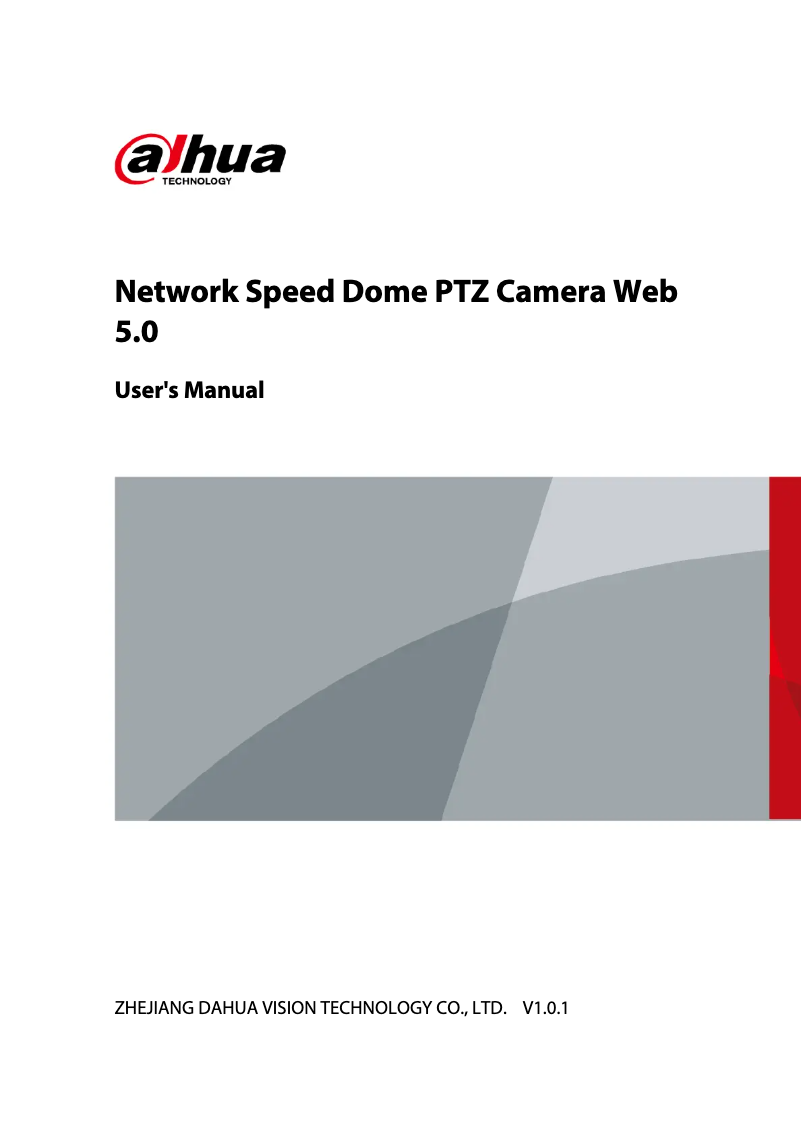

Manuals of product SD22204DB-GNY
Technical Specifications SD22204DB-GNY
General Information
-
ModelSD22204DB-GNY
-
Brand
-
Category
-
Type
-
SKU1713452
-
MPN1713452
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Preset pointsYes
-
PTZ Modes5 Pattern, 8 Tour, Preset sequence
-
Preset pointsYes
-
Preset pointsYes
-
CertificationCE, FCC, UL
-
PTZ ProtocolsPelco-P/D
-
Preset pointsYes
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorWhite
-
International Protection Code (IP)IP66
-
Code IKIK10
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0.005 lux
-
Inclination angle0 - 90 °
-
Tilt speed60 °/sec
-
Panoramic0 - 355 °
-
Pan tilt preset speed100 °/sec
-
Pan tilt preset speed100 °/sec
-
White balanceATW, Auto, Indoor, Manual, Outdoor
-
Camera shutter typeElectronic
-
Camera shutter speed1/1 - 1/30000 s
-
Field of view of the lens, horizontal99.1 °
-
Angle of view of the lens, vertical53.4 °
-
Angle of view of the lens, diagonal117.7 °
Image sensor
-
Number of sensors-
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Progressive scanYes
-
Effective pixel count (H x V)1920 x 1080 pixels
Objective system
-
Number of lenses-
-
Zoom capacityYes
-
Optical zoom4 x
-
Digital zoom16 x
-
Detection distance165.5 m
-
Observation distance65.4 m
-
Recognition distance33.1 m
-
TuningMotorized/manual
-
Maximum number of openings3
-
Identification distance16.6 m
-
Focal length2.8 - 12 mm
-
Minimum focusing distance1.5 m
-
Minimum opening amount1.6
Night vision
-
Night visionYes
-
Type of LEDIR
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Visual compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
-
Supported graphic resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
-
Supported video modes720p, 1080p
-
Number of images per second30 fps
-
Wide Dynamic Range Digital (DWDR)Yes
-
Wide Dynamic Range Digital (DWDR)Yes
-
Noise reduction technology2D noise reduction, 3D noise reduction
-
Gain control typeAuto/Manual
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Bitrate448K - 8192Kbps, 5120K - 10240Kbps
-
Wide Dynamic Range Digital (DWDR)Yes
-
Wide Dynamic Range Digital (DWDR)Yes
-
Wide Dynamic Range Digital (DWDR)Yes
-
Wide Dynamic Range Digital (DWDR)Yes
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
-
Quality of Service (QoS)Yes
-
Number of users20 user(s)
-
Streaming methodMulticast, Unicast
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash)
-
Maximum memory card size512 GB
-
Internal memory256 MB
-
ROM capacity128 MB
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
DC InputYes
Security
-
Motion detector (video)Yes
Management features
-
Web BrowserYes
-
Web BrowserYes
Power
-
Power supply typeCC
-
Consumption (max)6.1 W
-
Output CC in volts12
-
Output CC in amperes1 A
-
Typical electricity consumption2.3 W
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
Minimum system requirements
-
Supported mobile systemAndroid
-
iOS
Weight and dimensions
-
Height89 mm
-
Diameter122 mm
-
Weight500 g
Packaging information
-
Package weight700 g
-
Type of packagingBox
Packaging contents
-
Number of cameras1
Audio
-
Signal-to-noise ratio report55 dB
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product SD22204DB-GNY specifications from brand Dahua Technology
Generalities
The brand of the product Dahua Technology SD22204DB-GNY is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The product model Dahua Technology SD22204DB-GNY is SD22204DB-GNY | DH-SD22204DB-GNY. This model ensures optimal performance and an enhanced user experience.
Design
The mounting type of the product Dahua Technology SD22204DB-GNY is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Dahua Technology SD22204DB-GNY is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Dahua Technology SD22204DB-GNY contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Dahua Technology SD22204DB-GNY is Blanc. This shade gives it a modern and elegant look. The IK Code of the product Dahua Technology SD22204DB-GNY is IK10. This IK Code allows for easy identification of the specific design of the item.
Representation / realization
The product Dahua Technology SD22204DB-GNY features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Dahua Technology SD22204DB-GNY supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Dahua Technology SD22204DB-GNY is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ control of the product Dahua Technology SD22204DB-GNY is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The PTZ modes of the product Dahua Technology SD22204DB-GNY contain 5 Pattern, 8 Tour, Preset sequence. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Dahua Technology SD22204DB-GNY have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Dahua Technology SD22204DB-GNY have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The certification of the product Dahua Technology SD22204DB-GNY contains CE, FCC, UL. This certification guarantees compliance with the required safety and performance standards. The product Dahua Technology SD22204DB-GNY has PTZ Protocols Pelco-P/D. These Protocols allow for precise and effective control of the camera movements, thus ensuring optimal surveillance. Does the product Dahua Technology SD22204DB-GNY have preset points? Oui. This feature allows for simplified and customized use according to your preferences.
Camera
Does the product Dahua Technology SD22204DB-GNY have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Dahua Technology SD22204DB-GNY is 0.005 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Dahua Technology SD22204DB-GNY camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The tilt angle of the product Dahua Technology SD22204DB-GNY is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Dahua Technology SD22204DB-GNY is 60 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The panoramic view of the product Dahua Technology SD22204DB-GNY is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Dahua Technology SD22204DB-GNY is 100 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Dahua Technology SD22204DB-GNY has a preset panning speed of 100 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The white balance of the product Dahua Technology SD22204DB-GNY consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Dahua Technology SD22204DB-GNY is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Dahua Technology SD22204DB-GNY is 1/1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Dahua Technology SD22204DB-GNY lens is 99.1 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Dahua Technology SD22204DB-GNY is 53.4 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Dahua Technology SD22204DB-GNY is 117.7 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Image sensor
Does the product Dahua Technology SD22204DB-GNY have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Dahua Technology SD22204DB-GNY is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Dahua Technology SD22204DB-GNY is -. This number of sensors allows for precise and efficient image detection. The sensor type of the product Dahua Technology SD22204DB-GNY is CMOS. This type of sensor ensures optimal image quality for your needs. The effective pixel count (H x V) of the product Dahua Technology SD22204DB-GNY is 1920 x 1080 pixels. This specification ensures accurate and detailed image quality.
Night vision
The type of LED of the product Dahua Technology SD22204DB-GNY is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. Does the product Dahua Technology SD22204DB-GNY have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Objective system
The number of lenses in the product Dahua Technology SD22204DB-GNY is -. This number determines the quality and versatility of the lens. The optical zoom of the product Dahua Technology SD22204DB-GNY is 4 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product Dahua Technology SD22204DB-GNY have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The digital zoom of the product Dahua Technology SD22204DB-GNY is 16 x. This zoom allows for capturing precise details even from a distance. The detection distance of the product Dahua Technology SD22204DB-GNY is 165.5 m. This feature allows for effective detection over a significant range. The detection range of the product Dahua Technology SD22204DB-GNY is 33.1 m. This specification allows for the assessment of the system's effectiveness under various usage conditions. The adjustment of the Dahua Technology SD22204DB-GNY is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The observation distance of the product Dahua Technology SD22204DB-GNY is 65.4 m. This specification allows for an appreciation of the range and clarity of the observed images. The maximum number of openings for the product Dahua Technology SD22204DB-GNY is 3. This feature allows for optimal use and increased flexibility. The product identification distance Dahua Technology SD22204DB-GNY is 16.6 m. This specification allows determining the range at which the device can recognize objects or people. The focal length of the product Dahua Technology SD22204DB-GNY is 2.8 - 12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The minimum focusing distance of the product Dahua Technology SD22204DB-GNY is 1.5 m. This feature allows for sharp images even at relatively far distances. The minimum opening number of the product Dahua Technology SD22204DB-GNY is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Storage support
The product Dahua Technology SD22204DB-GNY has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data. Does the Dahua Technology SD22204DB-GNY have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Dahua Technology SD22204DB-GNY have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Dahua Technology SD22204DB-GNY is 512 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The internal memory of the product Dahua Technology SD22204DB-GNY contains 256 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The capacity of the ROM of the product Dahua Technology SD22204DB-GNY is 128 Mo. This capacity allows for the storage of a significant amount of data and applications.
Network
The Wifi of the product Dahua Technology SD22204DB-GNY contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Dahua Technology SD22204DB-GNY have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Dahua Technology SD22204DB-GNY have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Dahua Technology SD22204DB-GNY is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Dahua Technology SD22204DB-GNY are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Dahua Technology SD22204DB-GNY are HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS. These protocols ensure efficient and reliable communication for your networking needs. Does the product Dahua Technology SD22204DB-GNY have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The streaming method of the product Dahua Technology SD22204DB-GNY is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The number of users of the product Dahua Technology SD22204DB-GNY is 20 utilisateur(s). This product is ideal for several people.
Video
The maximum resolution of the product Dahua Technology SD22204DB-GNY is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Dahua Technology SD22204DB-GNY is 2 MP. This total ensures exceptional image quality for your photos. The product Dahua Technology SD22204DB-GNY has visual compression formats: H.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Dahua Technology SD22204DB-GNY are 352 x 240,352 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product Dahua Technology SD22204DB-GNY is 720p, 1080p. This mode allows you to enjoy optimal image quality for your videos. The number of frames per second of the product Dahua Technology SD22204DB-GNY is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Dahua Technology SD22204DB-GNY have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Dahua Technology SD22204DB-GNY have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Dahua Technology SD22204DB-GNY features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The gain control type of the product Dahua Technology SD22204DB-GNY is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The binary bitrate control of the product Dahua Technology SD22204DB-GNY contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The bit rate of the product Dahua Technology SD22204DB-GNY is 448K - 8192Kbps, 5120K - 10240Kbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Dahua Technology SD22204DB-GNY have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Dahua Technology SD22204DB-GNY have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Dahua Technology SD22204DB-GNY have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Dahua Technology SD22204DB-GNY have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology SD22204DB-GNY is 1. These ports provide a stable and fast network connection for your devices. Does the product Dahua Technology SD22204DB-GNY have a DC Input? Oui. This specification ensures compatibility with DC power supplies.
Security
Does the product Dahua Technology SD22204DB-GNY have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Management features
Does the product Dahua Technology SD22204DB-GNY have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Dahua Technology SD22204DB-GNY product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Minimum system requirements
The supported mobile system of the product Dahua Technology SD22204DB-GNY contains Android, iOS. This system allows for smooth usage on major mobile platforms.
Power
The maximum consumption of the product Dahua Technology SD22204DB-GNY is 6.1 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Dahua Technology SD22204DB-GNY is CC. This type of power supply ensures optimal performance and efficient use of the device. The product Dahua Technology SD22204DB-GNY has a DC output in amperes of 1 A. This specification ensures a stable power supply suitable for your needs. The product Dahua Technology SD22204DB-GNY has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The typical power consumption of the product Dahua Technology SD22204DB-GNY is 2.3 W. This feature allows for the assessment of the energy efficiency of the device.
Environmental conditions
The operating temperature of the product Dahua Technology SD22204DB-GNY is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Dahua Technology SD22204DB-GNY has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Dahua Technology SD22204DB-GNY is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Dahua Technology SD22204DB-GNY is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Packaging contents
The number of cameras of the product Dahua Technology SD22204DB-GNY is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The height of the product Dahua Technology SD22204DB-GNY is 89 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Dahua Technology SD22204DB-GNY is 122 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Dahua Technology SD22204DB-GNY is 500 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The weight of the Dahua Technology SD22204DB-GNY package is 700 g. This weight ensures optimal protection during transport and delivery. The packaging type of the product Dahua Technology SD22204DB-GNY is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Audio
The signal-to-noise ratio of the product Dahua Technology SD22204DB-GNY is 55 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
