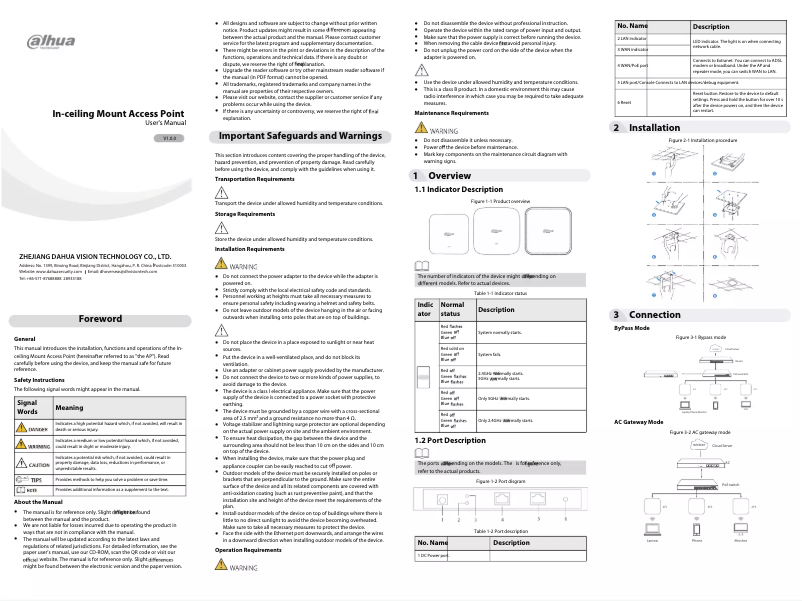

Manual of product DH-EAP6218-C
Technical Specifications DH-EAP6218-C
General Information
-
ModelDH-EAP6218-C
-
Brand
-
Category
-
Type
-
SKU1869816
-
MPN1869816
Features
-
Wi-Fi roamingYes
-
6 GHzNo
-
Maximum data transfer rate1775 Mbit/s
-
Maximum data transfer rate (2.4 GHz)574 Mbit/s
-
Maximum data transfer rate (5 GHz)1201 Mbit/s
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Frequency band2.4 - 5.85 GHz
-
Network standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
-
Number of users80 user(s)
-
Channel bandwidth80 MHz
-
Wi-Fi roamingYes
-
MIMO typeMulti User MIMO
-
Wi-Fi roamingYes
-
Wi-Fi roamingYes
-
Maximum indoor range15 m
-
Transmission power (CE)20 DBm
-
Operating modesFIT AP, FAT AP
-
Wi-Fi roamingYes
-
Wi-Fi roamingYes
-
Method of spectrum propagationOFDMA
-
Wiring technology10/100/1000Base-T(X)
Connectivity
-
DC InputYes
-
Number of Ethernet LAN ports (RJ-45)2
-
Quantity of USB 2.0 Ports0
-
WAN portEthernet (RJ-45)
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
DC voltage range12 V
-
Input current1 A
-
Consumption (max)15 W
Design
-
PositioningCeiling
-
Product colorWhite
-
Reset buttonYes
-
Reset buttonYes
Antenna
-
Antenna typeInternal
-
Antenna gain level (max)4.6 dBi
-
Antenna quantity2
Representation / realization
-
Flash memory16 MB
-
Internal memory256 MB
Weight and dimensions
-
Depth188 mm
-
Depth188 mm
-
Height35 mm
-
Weight410 g
Packaging information
-
Package width235 mm
-
Package depth243 mm
-
Package height76 mm
-
Package weight750 g
Security
-
Security-supported algorithmWPA-PSK
-
Filtering IP addressesWPA-TKIP
-
Filtering IP addressesWPA2-AES
-
Functions of the Service Set Identifier (SSID)WPA2-PSK
-
WPA2-TKIP
-
WPA3-PSK
-
Yes
-
Yes
-
Hidden SSID
Environmental conditions
-
Operating relative humidity (H-H)5 - 95 %
-
Operating temperature
-
Temperature out of operation-20 - 45 °C
-
-
-40 - 70 °C
Protocols
-
Supported network protocolsHTTP
-
TCP/IP
-
IPv4
-
UDP
-
NTP
-
DHCP
-
DNS
-
DDNS
-
Qos
-
UPnP
-
ICMP
-
PPPoE
-
IP Filter
Sustainability
-
Compliance with sustainabilityYes
-
Sustainability certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
-
Web-based managementYes
-
Web-based managementYes
-
Web-based managementYes
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product DH-EAP6218-C specifications from brand Dahua Technology
Generalities
The brand of the product Dahua Technology DH-EAP6218-C is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The product model Dahua Technology DH-EAP6218-C is DH-EAP6218-C | DH-EAP6218-C. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Dahua Technology DH-EAP6218-C is 6923172522221. This code allows for the unique identification of the product in the distribution system.
Power
Does the Dahua Technology DH-EAP6218-C have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The DC voltage range of the Dahua Technology DH-EAP6218-C is 12 V. This specification ensures optimal performance and compatibility with various electrical systems. The input current of the product Dahua Technology DH-EAP6218-C is 1 A. This input current ensures optimal performance and increased energy efficiency. The maximum consumption of the product Dahua Technology DH-EAP6218-C is 15 W. This specification allows for the assessment of the energy efficiency of the device.
Connectivity
Does the product Dahua Technology DH-EAP6218-C have a DC Input? Oui. This specification ensures compatibility with DC power supplies. The number of USB 2.0 ports on the Dahua Technology DH-EAP6218-C is 0. These ports allow for a fast and efficient connection for your devices. The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology DH-EAP6218-C is 2. These ports provide a stable and fast network connection for your devices. The WAN port of the Dahua Technology DH-EAP6218-C product contains Ethernet (RJ-45). This port allows for a reliable and fast network connection.
Design
The positioning of the product Dahua Technology DH-EAP6218-C is Plafond. This positioning allows for optimizing its use and ensuring an optimal user experience. Does the product Dahua Technology DH-EAP6218-C have a Reset Button? Oui. This button allows you to easily reset the product settings. The color of the product Dahua Technology DH-EAP6218-C is Blanc. This shade gives it a modern and elegant look. Does the product Dahua Technology DH-EAP6218-C have indicators? Oui. These indicators allow you to visualize the operating status of the device.
Antenna
The type of antenna of the product Dahua Technology DH-EAP6218-C is Interne. This antenna is designed to provide optimal performance in a compact space. The maximum gain level of the antenna for the product Dahua Technology DH-EAP6218-C is 4.6 dBi. This gain level helps optimize the reception and transmission of signals. The number of antennas of the product Dahua Technology DH-EAP6218-C is 2. This product thus offers improved connectivity and better reception.
Representation / realization
The product Dahua Technology DH-EAP6218-C has a flash memory of 16 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The internal memory of the product Dahua Technology DH-EAP6218-C contains 256 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use.
Features
The maximum data transfer rate (2.4 GHz) of the product Dahua Technology DH-EAP6218-C is 574 Mbit/s. This rate ensures a fast and efficient connection for your devices. The maximum data transfer rate of the product Dahua Technology DH-EAP6218-C is 1775 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. Does the product Dahua Technology DH-EAP6218-C have 6 GHz? Non. This feature determines the operating frequency, thus influencing the product's performance. Does the Dahua Technology DH-EAP6218-C have 5 GHz? Oui. This feature allows for a faster and more stable wireless connection. The maximum data transfer rate (5 GHz) of the product Dahua Technology DH-EAP6218-C is 1201 Mbit/s. This high speed ensures a fast and smooth connection for your devices. The data transfer rate of the product Dahua Technology DH-EAP6218-C is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The frequency band of the product Dahua Technology DH-EAP6218-C is 2.4 - 5.85 GHz. This feature allows for effective communication within the specified frequency range. The network standards of the product Dahua Technology DH-EAP6218-C are IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The number of users of the product Dahua Technology DH-EAP6218-C is 80 utilisateur(s). This product is ideal for several people. The bandwidth of the Dahua Technology DH-EAP6218-C channel is 80 MHz. This feature determines the data transmission capacity, thus influencing the overall performance of the product. Does the product Dahua Technology DH-EAP6218-C have MIMO (multiple inputs, multiple outputs)? Oui. This specification allows for efficient signal management by providing multiple inputs and outputs simultaneously. The MIMO Type of the product Dahua Technology DH-EAP6218-C contains Multi User MIMO. This MIMO Type allows for optimizing wireless communication by supporting multiple users simultaneously. Does the product Dahua Technology DH-EAP6218-C have Dynamic Frequency Selection (DFS)? Oui. This feature allows for optimizing the use of frequency bands for a more stable and faster connection. Does the product Dahua Technology DH-EAP6218-C have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The maximum indoor range of the product Dahua Technology DH-EAP6218-C is 15 m. This feature allows for optimal use in various spaces. The transmission power (CE) of the product Dahua Technology DH-EAP6218-C is 20 DBm. This specification ensures optimal performance for your communication needs. The operating modes of the product Dahua Technology DH-EAP6218-C are FIT AP, FAT AP. These modes allow for flexible use tailored to various connectivity needs. Is the Dahua Technology DH-EAP6218-C product 2.4 GHz? Oui. This specification ensures effective and stable wireless connectivity. Does the product Dahua Technology DH-EAP6218-C have Wi-Fi roaming? Oui. This feature allows you to stay connected to the Internet while traveling. The spectrum propagation method of the product Dahua Technology DH-EAP6218-C contains OFDMA. This method optimizes data transmission using advanced techniques. The wiring technology of the product Dahua Technology DH-EAP6218-C contains 10/100/1000Base-T(X). This technology ensures a fast and reliable connection for your networking needs.
Weight and dimensions
The depth of the product Dahua Technology DH-EAP6218-C is 188 mm. This dimension allows for optimal integration into your space. The height of the product Dahua Technology DH-EAP6218-C is 35 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Dahua Technology DH-EAP6218-C is 188 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Dahua Technology DH-EAP6218-C is 410 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The depth of the product package Dahua Technology DH-EAP6218-C is 243 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Dahua Technology DH-EAP6218-C is 235 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Dahua Technology DH-EAP6218-C is 76 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Dahua Technology DH-EAP6218-C package is 750 g. This weight ensures optimal protection during transport and delivery.
Environmental conditions
The product Dahua Technology DH-EAP6218-C has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Dahua Technology DH-EAP6218-C is -20 - 45 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Dahua Technology DH-EAP6218-C is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Sustainability
The product Dahua Technology DH-EAP6218-C has Sustainability Certificates: CE, Federal Communications Commission (FCC), RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect. Does the product Dahua Technology DH-EAP6218-C comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact.
Protocols
The supported network protocols of the product Dahua Technology DH-EAP6218-C are HTTP; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; DDNS; Qos; UPnP; ICMP; PPPoE; IP Filter. These protocols ensure efficient and reliable communication for your networking needs.
Security
Does the Dahua Technology DH-EAP6218-C product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The Service Set Identifier (SSID) of the Dahua Technology DH-EAP6218-C product contains Hidden SSID. This SSID allows for managing the broadcast of the wireless network and enhancing the security of the connection. The supported security algorithm of the product Dahua Technology DH-EAP6218-C contains WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPA3-PSK. This algorithm ensures optimal protection of your data. Does the product Dahua Technology DH-EAP6218-C have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses.
Management features
Does the product Dahua Technology DH-EAP6218-C have Syslog? Oui. This feature allows for the centralization and analysis of event logs for better network management. Does the Dahua Technology DH-EAP6218-C have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance. The Dahua Technology DH-EAP6218-C product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
