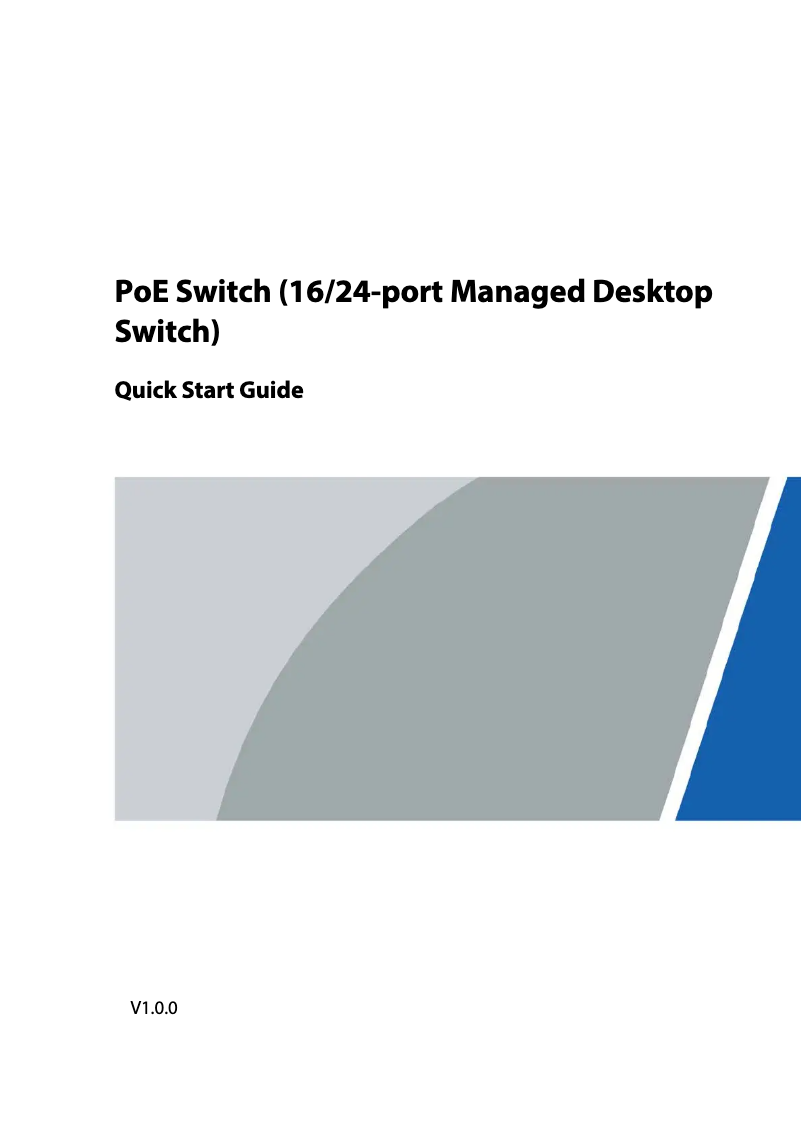

Manuals of product PFS4226-24ET-240
Technical Specifications PFS4226-24ET-240
General Information
-
ModelPFS4226-24ET-240
-
Brand
-
Category
-
Type
-
SKU1713492
-
MPN1713492
Management features
-
Switch typeManaged
-
Switching benchL2
-
System Event LogYes
-
System Event LogYes
-
System Event LogYes
Connectivity
-
Number of installed SFP modules-
-
Fast Ethernet (copper) Number of ports24
-
Basic switching RJ-45 Ethernet port typeFast Ethernet (10/100)
-
Fast Ethernet (copper) Number of ports24
-
Number of installed SFP+ modules0
-
Quantity of Combo SFP ports2
Power
-
Power supply included-
-
AC input voltage100 - 240 V
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power over Ethernet (PoE) Number of ports24
-
Total Power over Ethernet (PoE) Budget240 W
Fiber optic
-
Ethernet cabling technology over fiber1000BASE-X
Network
-
Support 10GNo
-
Network standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
-
VLAN SupportYes
-
VLAN SupportYes
-
Copper Ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
-
VLAN SupportYes
-
VLAN SupportYes
-
VLAN SupportYes
Data transmission
-
Switching capacity8.8 Gbit/s
-
Transfer rate6.55 Mpps
-
MAC Directory4000 entries
Environmental conditions
-
Operating relative humidity (H-H)10 - 90 %
-
Operating temperature-10 - 55 °C
Design
-
Stackable-
-
IndicatorsYes
-
Product colorBlack
-
Format1U
-
IndicatorsYes
Protocols
-
Management protocolsSNMP V1/V2C/V3
Security
-
DHCP FunctionsDHCP client
-
AuthenticationPort authentication
-
Authentication typeIEEE 802.1x, RADIUS
-
IP-MAC port bindingYes
Weight and dimensions
-
Width440 mm
-
Depth300 mm
-
Height44 mm
-
Weight3510 g
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product PFS4226-24ET-240 specifications from brand Dahua Technology
Generalities
The EAN code of the product Dahua Technology PFS4226-24ET-240 is 6939554912849. This code allows for the unique identification of the product in the distribution system. The product model Dahua Technology PFS4226-24ET-240 is PFS4226-24ET-240 | DH-PFS4226-24ET-240. This model ensures optimal performance and an enhanced user experience. The brand of the product Dahua Technology PFS4226-24ET-240 is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances.
Power
The AC input voltage of the Dahua Technology PFS4226-24ET-240 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. Does the Dahua Technology PFS4226-24ET-240 come with a power supply included? -. This ensures that you have everything you need for immediate use.
Management features
The switch type of the product Dahua Technology PFS4226-24ET-240 is Géré. This type of switch allows for advanced management and optimal control of the network. The switchboard of the product Dahua Technology PFS4226-24ET-240 contains L2. This switchboard allows for efficient and optimized network management. Does the product Dahua Technology PFS4226-24ET-240 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Dahua Technology PFS4226-24ET-240 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Dahua Technology PFS4226-24ET-240 have System Event Log? Oui. This log allows tracking and recording all system activities and events to ensure optimal security.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product Dahua Technology PFS4226-24ET-240 is 24. These ports enable efficient and fast network connectivity. The Fast Ethernet (copper) of the product Dahua Technology PFS4226-24ET-240 contains 24 ports. This connectivity allows for fast data transmission to meet the needs of your network. The number of SFP modules installed for the product Dahua Technology PFS4226-24ET-240 is -. This number helps optimize connectivity and ensure efficient network performance. The basic switching RJ-45 Ethernet port type of the product Dahua Technology PFS4226-24ET-240 is Fast Ethernet (10/100). This port allows for a fast and reliable connection for your network devices. The number of installed SFP+ modules for the product Dahua Technology PFS4226-24ET-240 is 0. This number helps optimize connectivity and ensure high performance. The number of Combo SFP ports of the product Dahua Technology PFS4226-24ET-240 is 2. These ports allow for increased flexibility in connectivity options.
Fiber optic
The fiber Ethernet wiring of the Dahua Technology PFS4226-24ET-240 is of type 1000BASE-X. This technology allows for high-speed data transmissions over long distances, thus providing optimal performance for modern networks.
PoE (Power over Ethernet)
Does the Dahua Technology PFS4226-24ET-240 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The number of Power over Ethernet (PoE) ports of the product Dahua Technology PFS4226-24ET-240 is 24. This number of ports allows for efficient and simplified connectivity to power your network devices. The Total Power over Ethernet (PoE) budget of the product Dahua Technology PFS4226-24ET-240 is 240 W. This budget allows for the efficient powering of multiple devices through a single network cable.
Environmental conditions
The operating temperature of the product Dahua Technology PFS4226-24ET-240 is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Dahua Technology PFS4226-24ET-240 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Data transmission
The transfer rate of the product Dahua Technology PFS4226-24ET-240 is 6.55 Mpps. This high rate ensures optimal performance for your networking needs. The switching capacity of the product Dahua Technology PFS4226-24ET-240 is 8.8 Gbit/s. This specification ensures efficient data transmission. The MAC directory of the product Dahua Technology PFS4226-24ET-240 contains 4000 entrées. This directory allows for precise identification of devices on the network.
Network
Does the product Dahua Technology PFS4226-24ET-240 have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. The network standards of the product Dahua Technology PFS4226-24ET-240 are IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. These standards ensure optimal compatibility with various equipment and protocols. Does the product Dahua Technology PFS4226-24ET-240 have Port mirroring? Oui. This feature allows for duplicating traffic from one port to another, thus facilitating network analysis and monitoring. Does the product Dahua Technology PFS4226-24ET-240 have Spanning Tree Protocols (STP)? Oui. This protocol is essential to prevent loops in networks. The copper Ethernet wiring of the product Dahua Technology PFS4226-24ET-240 contains 10BASE-T, 100BASE-TX, 1000BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. Does the product Dahua Technology PFS4226-24ET-240 have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. Does the product Dahua Technology PFS4226-24ET-240 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. Does the product Dahua Technology PFS4226-24ET-240 support VLAN? Oui. This feature allows for optimized network management by segmenting traffic.
Design
Is the product Dahua Technology PFS4226-24ET-240 stackable? No. This product cannot be stacked. Does the product Dahua Technology PFS4226-24ET-240 have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The format of the product Dahua Technology PFS4226-24ET-240 is a bar. This format allows for practical and efficient use in various contexts. Does the product Dahua Technology PFS4226-24ET-240 have indicators? Oui. These indicators allow you to visualize the operating status of the device. The color of the product Dahua Technology PFS4226-24ET-240 is Noir. This shade gives it a modern and elegant look.
Protocols
The product management protocol Dahua Technology PFS4226-24ET-240 contains SNMP V1/V2C/V3. This protocol allows for efficient and centralized management of network devices.
Weight and dimensions
The depth of the product Dahua Technology PFS4226-24ET-240 is 300 mm. This dimension allows for optimal integration into your space. The height of the product Dahua Technology PFS4226-24ET-240 is 44 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Dahua Technology PFS4226-24ET-240 is 3510 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Dahua Technology PFS4226-24ET-240 is 440 mm. This dimension is essential to ensure optimal integration into your space.
Security
The security system of the product Dahua Technology PFS4226-24ET-240 includes authentication methods such as guest VLAN, MAC address-based authentication, and port-based authentication. These features ensure enhanced protection of network access. The technical details of the product Dahua Technology PFS4226-24ET-240 include a type of authentication that consists of a chip/access card and a password. This type of authentication ensures enhanced security for the user. Does the product Dahua Technology PFS4226-24ET-240 have an IP-MAC port binding? Oui. This feature enhances network security by associating IP addresses with specific MAC addresses. The product Dahua Technology PFS4226-24ET-240 has DHCP functions. These functions allow for efficient management of IP addresses within a network, thus facilitating the connection of devices.
