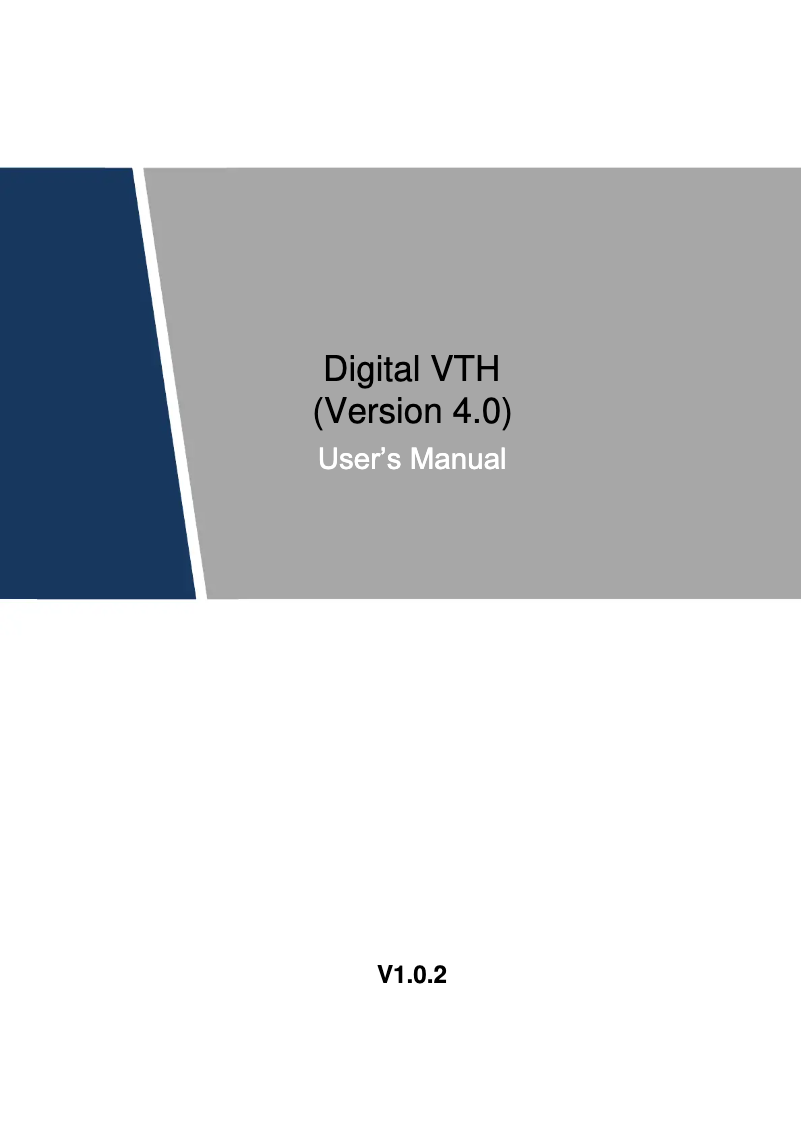

Manual of product Digital VTH
Technical Specifications Digital VTH
General Information
-
ModelDIGITAL VTH
-
Brand
-
Category
-
Type
-
SKU1205661
-
MPN1205661
Technical details
-
Connectivity technologyWith wire & without wire
-
Wall mountingYes
-
SpeakerNo
-
Number of supported displays1
-
Maximum number of supported cameras32
-
Wall mountingYes
-
CertificationFCC CFR 47 Part 15 subpart B ANSI C63.4 - 2009 EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009 EN 61000-3-3:2008, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004
-
UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005
Audio
-
Voice codecsG.711
Storage support
-
Memory card locationYes
-
Compatible memory cardsMicroSD (TransFlash)
-
Maximum memory card size32 GB
Screen
-
Screen size7 "
-
Display technologyTFT
-
Screen resolution1024 x 600 pixels
-
Touch screenYes
-
Touch screenYes
-
Touch screen typeCapacity
Design
-
Product colorBlack
-
Order typeTactile
Network
-
Type of Ethernet interfaceFast Ethernet
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Wifi standards802.11b, 802.11g
-
Wiring technology10/100Base-T(X)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Supported network protocolsTCP/IP
-
Network standardsIEEE 802.11b, IEEE 802.11g
Power
-
Type of power supply for the indoor unitCC
-
Typical electricity consumption7 W
-
Energy consumption (standby mode)1 W
Environmental conditions
-
Operating temperature of the main monitoring station (T-T)-10 - 55 °C
-
Operating relative humidity (H-H)10 - 90 %
Weight and dimensions
-
Width215 mm
-
Depth21 mm
-
Height140 mm
-
Weight800 g
Software
-
Installed operating systemlinux
Packaging information
-
Indoor unit includedYes
-
Outdoor unit includedNo
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product Digital VTH specifications from brand Dahua Technology
Generalities
The brand of the product Dahua Technology Digital VTH is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The product model Dahua Technology Digital VTH is Digital VTH | DHI-VTH5221D. This model ensures optimal performance and an enhanced user experience.
Storage support
Does the product Dahua Technology Digital VTH have a memory card slot? Oui. This feature allows you to expand storage according to your needs. The maximum size of the memory card for the product Dahua Technology Digital VTH is 32 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Dahua Technology Digital VTH has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data.
Audio
The voice codec of the Dahua Technology Digital VTH product contains G.711. This voice codec ensures optimal audio quality for your communications.
Technical details
The number of supported displays for the product Dahua Technology Digital VTH is 1. This product provides an optimal visual experience by supporting a display. The product Dahua Technology Digital VTH features a Avec fil &sans fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Dahua Technology Digital VTH have a Color? Oui. This feature allows you to choose a product that matches your aesthetic preferences. The product Dahua Technology Digital VTH has a speaker. This speaker delivers exceptional sound quality for an immersive listening experience. The maximum number of cameras supported by the Dahua Technology Digital VTH is 32. This specification allows for optimizing the use of cameras according to your needs. Does the product Dahua Technology Digital VTH have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics. The certification of the product Dahua Technology Digital VTH contains FCC CFR 47 Part 15 subpart BANSI C63.4 - 2009EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009EN 61000-3-3:2008, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004\nUL 60950-1 & CAN/CSA C22.2 No. 60950-1-07EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 +A2:2013IEC 60950-1:2005. This certification guarantees compliance with the required safety and performance standards.
Design
The color of the product Dahua Technology Digital VTH is Noir. This shade gives it a modern and elegant look. The product Dahua Technology Digital VTH order type consists of Tactile. This order type allows for intuitive and practical use.
Screen
The screen size of the product Dahua Technology Digital VTH is 7 ". This dimension allows for an optimal visual experience for all your content. Does the product Dahua Technology Digital VTH have a backlight screen? Oui. This screen allows for better visibility in low light conditions. The screen resolution of the product Dahua Technology Digital VTH is 1024 x 600 pixels. This feature ensures optimal display quality for a pleasant visual experience. The display technology of the product Dahua Technology Digital VTH is TFT. This technology ensures optimal image quality for an immersive visual experience. Does the product Dahua Technology Digital VTH have a touchscreen? Oui. The touch screen type of the product Dahua Technology Digital VTH is Capacité. This touch screen offers optimal responsiveness and accuracy for a smooth user experience.
Network
The wifi standard of the product Dahua Technology Digital VTH contains 802.11b, 802.11g. This wifi standard ensures a fast and reliable connection for all your devices. The Wifi of the product Dahua Technology Digital VTH contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Dahua Technology Digital VTH is Fast Ethernet. This type of interface allows for fast and efficient network connections. The data transfer rate of the product Dahua Technology Digital VTH is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The wiring technology of the product Dahua Technology Digital VTH contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. Does the Dahua Technology Digital VTH have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The network standards of the product Dahua Technology Digital VTH are IEEE 802.11b, IEEE 802.11g. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Dahua Technology Digital VTH are TCP/IP. These protocols ensure efficient and reliable communication for your networking needs.
Power
The power supply type of the indoor unit of the product Dahua Technology Digital VTH is CC. This type of power supply allows for flexible and convenient use of the device. The typical power consumption of the product Dahua Technology Digital VTH is 7 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Dahua Technology Digital VTH is 1 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Weight and dimensions
The width of the product Dahua Technology Digital VTH is 215 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Dahua Technology Digital VTH is 140 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Dahua Technology Digital VTH is 800 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Dahua Technology Digital VTH is 21 mm. This dimension allows for optimal integration into your space.
Environmental conditions
The operating temperature of the main monitoring station for the product Dahua Technology Digital VTH is -10 - 55 °C. This specification ensures optimal operation under varying conditions. The product Dahua Technology Digital VTH has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Software
The installed operating system of the product Dahua Technology Digital VTH is linux. This system allows for a smooth and intuitive user experience.
Packaging information
Does the product Dahua Technology Digital VTH come with an included outdoor unit? Non. This feature ensures simplified installation and optimal performance. Does the product Dahua Technology Digital VTH come with an indoor unit included? No. This means that the indoor unit is not provided with the product.
