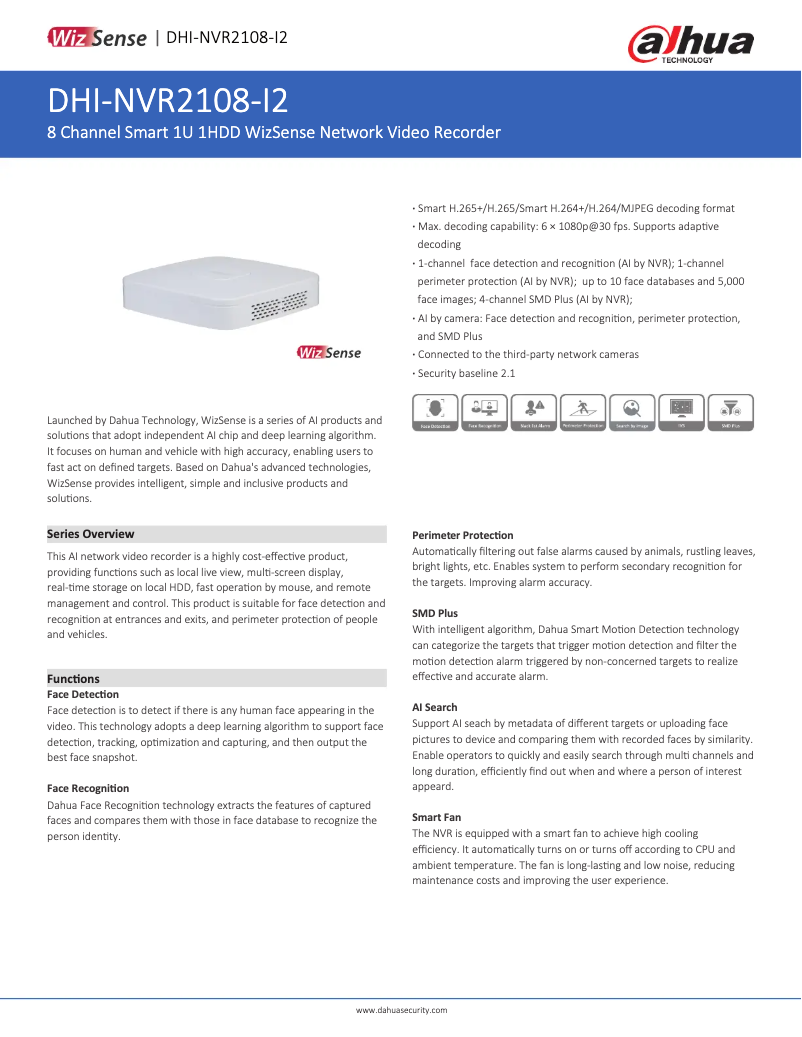

Manuals of product NVR2108-I2
Technical Specifications NVR2108-I2
General Information
-
ModelNVR2108-I2
-
Brand
-
Category
-
Type
-
SKU1720265
-
MPN1720265
Representation / realization
-
Number of channels read simultaneously8 channels
-
Number of channels read simultaneously8 channels
-
Maximum resolution4096 x 2400 pixels
-
Installed operating systemIntegrated LINUX
-
Video CodecsSmart H.265+; H.265; Smart H.264+; H.264; MJPEG
-
Audio CodecsPCM; G711A; G711U; G726
-
Reading modesPause, Play, Stop
-
Input bandwidth80 Mbit/s
-
Output bandwidth60 Mbit/s
-
Recording modeManual
Features
-
Product colorWhite
-
CertificationCertifications
-
Assembly grid
-
Rack capacityFCC:47 CFR FCC Part15, SubpartB, Class A
-
CE-EMC:EN 55032:2015, Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014
-
CE-LVD:EN 62368-1:2014+A11:2017
-
Yes
-
1U
Processor
-
Integrated into the processorYes
Power
-
Output current1.5 A
-
Output voltage12 V
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Operating relative humidity (H-H)10 - 93 %
-
Temperature out of operation0 - 40 °C
-
Relative humidity rate (storage)30 - 85 %
Wireless LAN Features
-
Wifi-
Disk reader
-
Number of installed hard drives1
-
Hard drive capacity0 Go
-
Maximum storage capacity10 To
-
Hard drive interfaceSATA III
Connectivity
-
RCA audio outputs1
-
DC InputYes
-
RCA audio outputs1
-
RCA audio outputs1
-
Quantity of USB 2.0 Ports2
-
RCA audio outputs1
-
RCA audio outputs1
-
DC InputYes
-
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration
Weight and dimensions
-
Width204.6 mm
-
Depth206.4 mm
-
Height48.1 mm
-
Weight450 g
-
Package width96 mm
-
Package depth364 mm
-
Package height261 mm
-
Packaging volume1070 cm³
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product NVR2108-I2 specifications from brand Dahua Technology
Processor
The technical detail "Integrated into the processor" of the product Dahua Technology NVR2108-I2 is Oui. This essential component ensures optimal performance and increased efficiency.
Generalities
The product model Dahua Technology NVR2108-I2 is NVR2108-I2 | DHI-NVR2108-I2. This model ensures optimal performance and an enhanced user experience. The brand of the product Dahua Technology NVR2108-I2 is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Dahua Technology NVR2108-I2 is 6923172508812. This code allows for the unique identification of the product in the distribution system.
Features
The color of the product Dahua Technology NVR2108-I2 is Blanc. This shade gives it a modern and elegant look. The capacity of the Dahua Technology NVR2108-I2 rack is 1U. This specification ensures optimal space for the installation of your equipment. The certification of the product Dahua Technology NVR2108-I2 contains Certifications\n\nFCC:47 CFR FCC Part15, SubpartB, Class A\nCE-EMC:EN 55032:2015, Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014\nCE-LVD:EN 62368-1:2014+A11:2017. This certification guarantees compliance with the required safety and performance standards. Does the product Dahua Technology NVR2108-I2 have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product.
Power
The output current of the product Dahua Technology NVR2108-I2 is 1.5 A. This current ensures optimal performance for your electrical needs. The output voltage of the Dahua Technology NVR2108-I2 is 12 V. This specification ensures optimal performance for your electrical needs.
Representation / realization
The number of video input channels of the product Dahua Technology NVR2108-I2 is 8 canaux. These channels allow for optimal connectivity for your multimedia devices. The installed operating system of the product Dahua Technology NVR2108-I2 is LINUX intégré. This system allows for a smooth and intuitive user experience. The maximum resolution of the product Dahua Technology NVR2108-I2 is 4096 x 2400 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The number of channels read simultaneously for the product Dahua Technology NVR2108-I2 is 8 canaux. This feature allows for a smooth and efficient user experience when using multiple audio or video sources. The video codecs of the product Dahua Technology NVR2108-I2 contain Smart H.265+; H.265; Smart H.264+; H.264; MJPEG. These codecs ensure efficient compression and optimal image quality for your videos. The audio codecs of the product Dahua Technology NVR2108-I2 contain PCM; G711A; G711U; G726. These codecs ensure optimal sound quality and a smooth listening experience. The reading modes of the product Dahua Technology NVR2108-I2 are Pause, Play, Stop. These modes allow for a personalized and varied listening experience. The output bandwidth of the product Dahua Technology NVR2108-I2 is 60 Mbit/s. This feature ensures fast and efficient data transmission. The recording mode of the product Dahua Technology NVR2108-I2 is Extended Play (EP), Long Play (LP), Standard Play (SP), Extra Play (XP). This recording mode allows you to optimize the duration of your videos while maintaining satisfactory image quality. The input bandwidth of the product Dahua Technology NVR2108-I2 is 80 Mbit/s. This specification ensures optimal performance for data processing.
Environmental conditions
The operating temperature of the product Dahua Technology NVR2108-I2 is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Dahua Technology NVR2108-I2 has an operating relative humidity (H-H) of 10 - 93 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Dahua Technology NVR2108-I2 is 30 - 85 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Dahua Technology NVR2108-I2 is 0 - 40 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Wireless LAN Features
The Wifi of the product Dahua Technology NVR2108-I2 contains -. This Wifi allows for a fast and reliable wireless connection for all your devices.
Disk reader
The maximum storage capacity of the product Dahua Technology NVR2108-I2 is 10 To. This capacity meets all your storage needs. The hard drive capacity of the product Dahua Technology NVR2108-I2 is 0 Go. This capacity allows for storing a large amount of data, ideal for users with significant storage needs. The number of installed hard drives for the product Dahua Technology NVR2108-I2 is 1. This number helps optimize storage and improve the overall performance of the device. The hard drive interface of the product Dahua Technology NVR2108-I2 is SATA III. This interface allows for a fast and efficient connection for data transfer.
Connectivity
The number of HDMI ports on the Dahua Technology NVR2108-I2 is 1. This detail is essential for determining compatibility with your multimedia devices. The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology NVR2108-I2 is 1. These ports provide a stable and fast network connection for your devices. The VGA output port (D-Sub) of the product Dahua Technology NVR2108-I2 contains 1. This port allows for easy connection of monitors and projectors for an optimal viewing experience. Does the Dahua Technology NVR2108-I2 have an HDMI Output? Oui. This feature allows for easy connection of the product to external displays for a better visual experience. The number of USB 2.0 ports on the Dahua Technology NVR2108-I2 is 2. These ports allow for a fast and efficient connection for your devices. The product Dahua Technology NVR2108-I2 has 1 RCA audio input. This feature allows for an easy and high-quality connection with various audio devices. The product Dahua Technology NVR2108-I2 has 1 RCA audio output. This output allows for an easy and high-quality connection for your audio devices. Does the product Dahua Technology NVR2108-I2 have a DC Input? Oui. This specification ensures compatibility with DC power supplies. The supported network protocols of the product Dahua Technology NVR2108-I2 are HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration. These protocols ensure efficient and reliable communication for your networking needs.
Weight and dimensions
The depth of the product Dahua Technology NVR2108-I2 is 206.4 mm. This dimension allows for optimal integration into your space. The width of the product Dahua Technology NVR2108-I2 is 204.6 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Dahua Technology NVR2108-I2 is 48.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Dahua Technology NVR2108-I2 is 450 g. This weight is ideal for ensuring optimal use and easy handling. The width of the package of the product Dahua Technology NVR2108-I2 is 96 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Dahua Technology NVR2108-I2 is 364 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Dahua Technology NVR2108-I2 is 261 mm. This dimension is essential to ensure optimal transport and storage. The packaging volume of the product Dahua Technology NVR2108-I2 is 1070 cm³. This volume allows for optimization of transport and storage.
