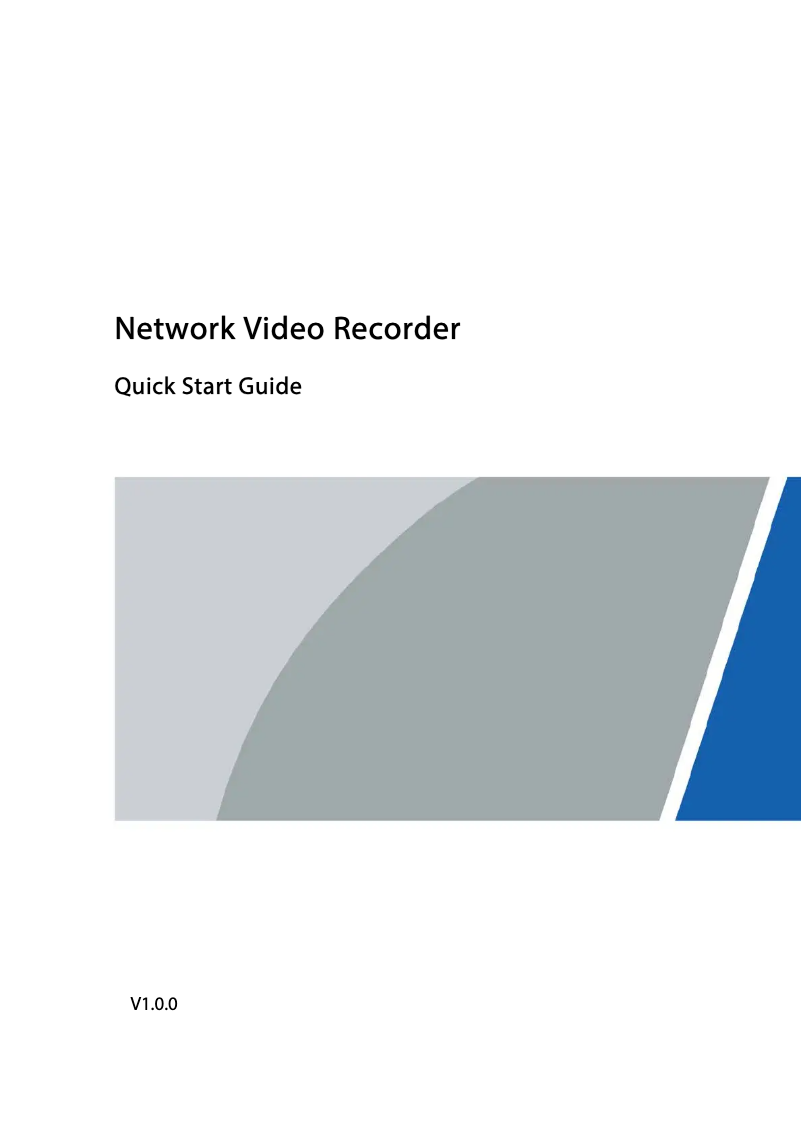

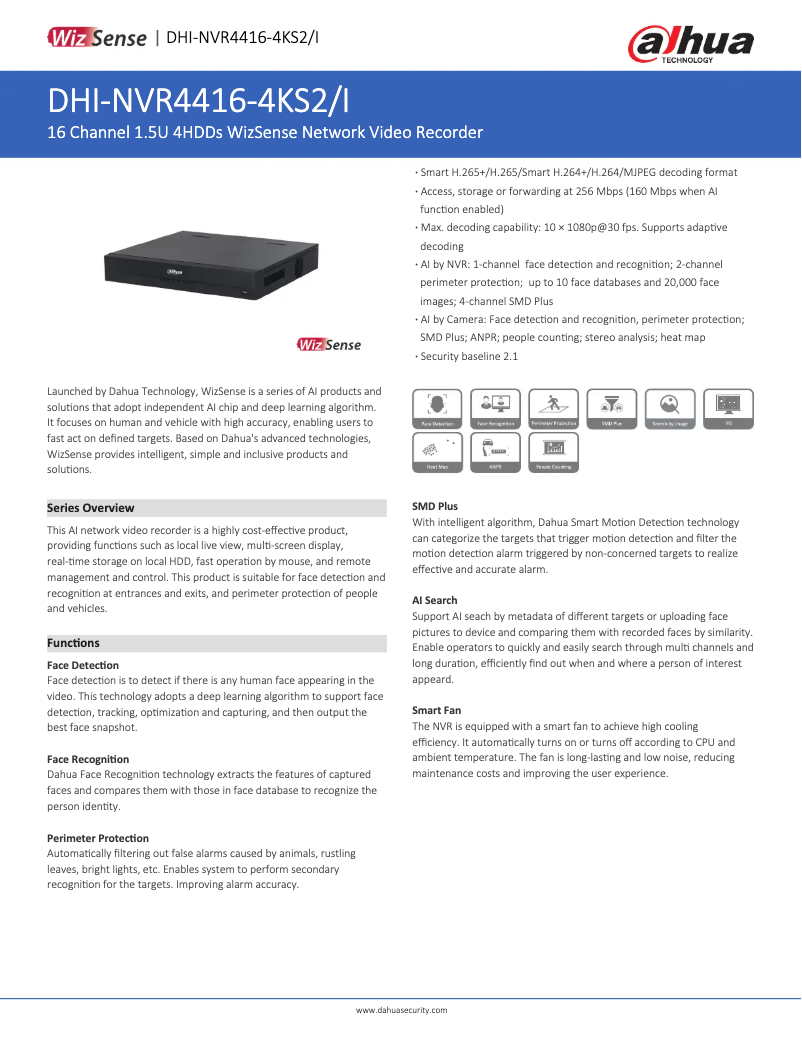

Manuals of product NVR4416-4KS2/I
Technical Specifications NVR4416-4KS2/I
General Information
-
ModelNVR4416-4KS2/I
-
Brand
-
Category
-
Type
-
SKU1720178
-
MPN1720178
Representation / realization
-
Video input channels16 channels
-
Alarm input channels16
-
Alarm output channels4
-
Maximum resolution- pixels
-
Image captureYes
-
Image captureYes
-
Image captureYes
-
Image captureYes
-
Supported video formatH.264, H.265, M-JPEG
-
Supported audio formatsG.726, PCM
-
Installed operating systemEmbedded LINUX
-
Maximum cadence30 fps
-
Image captureYes
-
Image captureYes
-
Input bandwidth256 Mbit/s
-
Output bandwidth160 Mbit/s
Processor
-
Integrated into the processorYes
Screen
-
Built-in screenYes
Features
-
CertificationFCC:47 CFR FCC Part15, SubpartB, Class A
-
Assembly gridCE-EMC:EN 55032:2015, Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014
-
Rack capacityCE-LVD:EN 62368-1:2014+A11:2017
-
Yes
-
1.5U
Power
-
AC input voltage100-240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption8 W
Minimum system requirements
-
Supported browsersChrome
-
PCAPP
-
IE9 or higher
-
Firefox
Wireless LAN Features
-
WifiNo
Disk reader
-
Number of installed hard drives-
-
Hard drive capacity- Go
-
RAID supportYes
-
Number of supported hard drives4
-
Maximum storage capacity10 To
-
Hard drive interfaceSATA III
Connectivity
-
Ethernet connection, supporting power over this port (PoE)No
-
RS-232 InterfaceYes
-
RS-232 port1
-
RS-232 port1
-
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
-
SATA revision3.0
-
Quantity of internal SATA ports4
-
RS-232 port1
-
RS-232 port1
-
Number of Ethernet LAN ports (RJ-45)2
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
RS-232 port1
-
RS-232 port1
-
RS-232 port1
-
RS-232 InterfaceYes
-
RS-232 port1
Weight and dimensions
-
Type of packagingBox
-
Width440 mm
-
Depth415.6 mm
-
Height76 mm
-
Weight4250 g
-
Package width529 mm
-
Package depth499 mm
-
Package height211 mm
-
Package weight6480 g
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Temperature out of operation0 - 40 °C
-
Operating relative humidity (H-H)10 - 93 %
-
Relative humidity rate (storage)30 - 85 %
Similar products
More product categories from brand Dahua Technology
More product types from brand Dahua Technology
Presentation of product NVR4416-4KS2/I specifications from brand Dahua Technology
Screen
The Dahua Technology NVR4416-4KS2/I has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device.
Processor
The technical detail "Integrated into the processor" of the product Dahua Technology NVR4416-4KS2/I is Oui. This essential component ensures optimal performance and increased efficiency.
Generalities
The brand of the product Dahua Technology NVR4416-4KS2/I is Dahua Technology. This brand is known for its quality and innovation in the field of household appliances. The product model Dahua Technology NVR4416-4KS2/I is NVR4416-4KS2/I | DHI-NVR4416-4KS2/I. This model ensures optimal performance and an enhanced user experience.
Features
The certification of the product Dahua Technology NVR4416-4KS2/I contains FCC:47 CFR FCC Part15, SubpartB, Class A\nCE-EMC:EN 55032:2015, Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014\nCE-LVD:EN 62368-1:2014+A11:2017. This certification guarantees compliance with the required safety and performance standards. Does the product Dahua Technology NVR4416-4KS2/I have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The capacity of the Dahua Technology NVR4416-4KS2/I rack is 1.5U. This specification ensures optimal space for the installation of your equipment.
Power
The AC input voltage of the Dahua Technology NVR4416-4KS2/I is 100-240 V. This specification ensures optimal compatibility with standard electrical systems. The typical power consumption of the product Dahua Technology NVR4416-4KS2/I is 8 W. This feature allows for the assessment of the energy efficiency of the device. The AC input frequency of the product Dahua Technology NVR4416-4KS2/I is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Representation / realization
The number of video input channels of the product Dahua Technology NVR4416-4KS2/I is 16 canaux. These channels allow for optimal connectivity for your multimedia devices. The alarm input channel of the product Dahua Technology NVR4416-4KS2/I contains 16. This channel allows for efficient integration of security systems. The maximum resolution of the product Dahua Technology NVR4416-4KS2/I is - pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The alarm output channel of the product Dahua Technology NVR4416-4KS2/I contains 4. This channel allows for the effective reporting of any alerts or important events. Does the product Dahua Technology NVR4416-4KS2/I have a People Counting feature? Oui. This feature allows you to track and analyze the flow of people in a given space. Does the product Dahua Technology NVR4416-4KS2/I have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Dahua Technology NVR4416-4KS2/I have a Multi-screen? Oui. This feature allows for an enhanced visual experience and better productivity. The supported video format of the product Dahua Technology NVR4416-4KS2/I contains H.264, H.265, M-JPEG. This format allows for smooth and high-quality playback of your multimedia content. The supported audio formats of the product Dahua Technology NVR4416-4KS2/I are G.726, PCM. These formats ensure optimal compatibility for an enriching listening experience. The installed operating system of the product Dahua Technology NVR4416-4KS2/I is LINUX intégré. This system allows for a smooth and intuitive user experience. Does the product Dahua Technology NVR4416-4KS2/I have a backup feature? Oui. This feature ensures the security of your data by reliably saving it. The maximum frame rate of the product Dahua Technology NVR4416-4KS2/I is 30 ips. This specification ensures optimal image smoothness for your recordings. Does the product Dahua Technology NVR4416-4KS2/I have Face Detection? Oui. This feature allows for the identification and tracking of faces within the camera's field of view, thereby enhancing security and interaction. Does the product Dahua Technology NVR4416-4KS2/I have Image Capture? Oui. This feature allows for capturing high-quality images, thus providing an enriching visual experience. The input bandwidth of the product Dahua Technology NVR4416-4KS2/I is 256 Mbit/s. This specification ensures optimal performance for data processing. The output bandwidth of the product Dahua Technology NVR4416-4KS2/I is 160 Mbit/s. This feature ensures fast and efficient data transmission.
Minimum system requirements
The browser support for the product Dahua Technology NVR4416-4KS2/I includes Chrome, PCAPP, IE9 or higher, Firefox. This feature ensures an optimal user experience on compatible platforms.
Wireless LAN Features
The Wifi of the product Dahua Technology NVR4416-4KS2/I contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Disk reader
The number of installed hard drives for the product Dahua Technology NVR4416-4KS2/I is -. This number helps optimize storage and improve the overall performance of the device. The hard drive capacity of the product Dahua Technology NVR4416-4KS2/I is - Go. This capacity allows for storing a large amount of data, ideal for users with significant storage needs. The number of hard drives supported by the product Dahua Technology NVR4416-4KS2/I is 4. This feature allows for optimizing storage and adapting needs based on users. Does the product Dahua Technology NVR4416-4KS2/I have RAID Support? Oui. This support ensures data redundancy and improves storage performance. The maximum storage capacity of the product Dahua Technology NVR4416-4KS2/I is 10 To. This capacity meets all your storage needs. The hard drive interface of the product Dahua Technology NVR4416-4KS2/I is SATA III. This interface allows for a fast and efficient connection for data transfer.
Weight and dimensions
The packaging type of the product Dahua Technology NVR4416-4KS2/I is Boîte. This type of packaging ensures optimal protection and facilitates transportation. The height of the product Dahua Technology NVR4416-4KS2/I is 76 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Dahua Technology NVR4416-4KS2/I is 440 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Dahua Technology NVR4416-4KS2/I is 415.6 mm. This dimension allows for optimal integration into your space. The weight of the product Dahua Technology NVR4416-4KS2/I is 4250 g. This weight is ideal for ensuring optimal use and easy handling. The width of the package of the product Dahua Technology NVR4416-4KS2/I is 529 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Dahua Technology NVR4416-4KS2/I is 211 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Dahua Technology NVR4416-4KS2/I package is 6480 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Dahua Technology NVR4416-4KS2/I is 499 mm. This dimension is essential to ensure proper packaging and secure transport.
Environmental conditions
The product Dahua Technology NVR4416-4KS2/I has an operating relative humidity (H-H) of 10 - 93 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Dahua Technology NVR4416-4KS2/I is 0 - 40 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Dahua Technology NVR4416-4KS2/I is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Dahua Technology NVR4416-4KS2/I is 30 - 85 %. This rate ensures optimal conditions for the preservation and durability of the product.
Connectivity
Does the Dahua Technology NVR4416-4KS2/I have an Ethernet connection, supporting power over this port (PoE)? Non. This feature allows for simplified and efficient power supply to connected devices. The VGA output port (D-Sub) of the product Dahua Technology NVR4416-4KS2/I contains 1. This port allows for easy connection of monitors and projectors for an optimal viewing experience. The number of HDMI ports on the Dahua Technology NVR4416-4KS2/I is 1. This detail is essential for determining compatibility with your multimedia devices. Does the Dahua Technology NVR4416-4KS2/I have an HDMI Output? Oui. This feature allows for easy connection of the product to external displays for a better visual experience. The supported network protocols of the product Dahua Technology NVR4416-4KS2/I are HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. These protocols ensure efficient and reliable communication for your networking needs. The number of USB 2.0 ports on the Dahua Technology NVR4416-4KS2/I is 1. These ports allow for a fast and efficient connection for your devices. The number of internal SATA ports of the product Dahua Technology NVR4416-4KS2/I is 4. This specification ensures optimal connectivity for your storage devices. The SATA product revision Dahua Technology NVR4416-4KS2/I is 3.0. This specification ensures fast and efficient connectivity for your storage devices. The product Dahua Technology NVR4416-4KS2/I has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of Ethernet LAN (RJ-45) ports of the product Dahua Technology NVR4416-4KS2/I is 2. These ports provide a stable and fast network connection for your devices. The product Dahua Technology NVR4416-4KS2/I has 1 RCA audio output. This output allows for an easy and high-quality connection for your audio devices. The data transfer rate of the product Dahua Technology NVR4416-4KS2/I is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The RS-485 port of the Dahua Technology NVR4416-4KS2/I contains 1. This port allows for robust serial communication and is ideal for industrial applications. The product Dahua Technology NVR4416-4KS2/I has 1 RCA audio input. This feature allows for an easy and high-quality connection with various audio devices. Does the product Dahua Technology NVR4416-4KS2/I have RS-232 Interface? Oui. This interface allows for standardized serial communication, ideal for many devices. The RS-232 port of the Dahua Technology NVR4416-4KS2/I contains 1. This port is essential for ensuring reliable serial communication with other devices.
