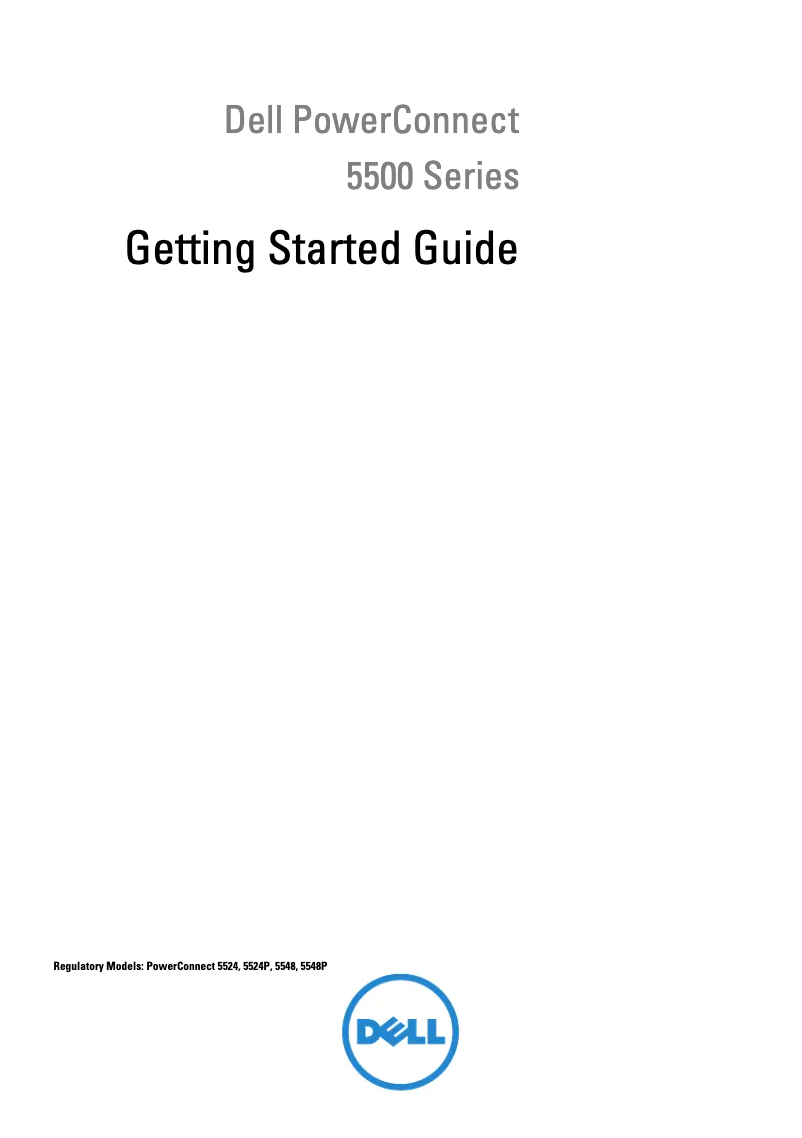

Manual of product PowerConnect 5524
Editorial note
The Dell PowerConnect 5524 stands out for its high performance, offering a maximum data transfer rate of 10 Gbit/s, ensuring fast and efficient information transmission. Its switching capacity of 128 Gbit/s and support for 4000 VLANs also contribute to improved network management and security. Additionally, its robust design allows for reliable operation in varied environmental conditions, with suitable operating temperatures. However, some drawbacks deserve to be highlighted. The Dell PowerConnect 5524 does not support the 10G support standard, which may limit its effectiveness in environments requiring higher data transfer speeds. Furthermore, the 12 MB packet buffer may not be sufficient for resource-intensive applications, potentially leading to slowdowns. The lack of PoE functionality complicates the wiring needed for connected devices, and the limited number of SFP/SFP+ ports (only 2) may restrict interconnection options. In terms of management, the managed switch allows for customization of network settings, thus providing optimal control. However, the absence of stacking capability may limit scalability, especially for businesses considering expanding their network infrastructure in the future. In summary, the Dell PowerConnect 5524 is a solid choice for those seeking performance and advanced management, but its limitations in speed and flexibility should be taken into account when assessing your network needs.Score details
Performance
High performance with a maximum data transfer rate of 10 Gbit/s ensures fast and efficient information transmission.
Usability
Advanced network management through a managed switch allows for optimal control and customization of network settings.
Features
The switching capacity of 128 Gbit/s and support for 4000 VLANs provide improved network management and security.
Support
Compatibility with a wide range of network protocols facilitates integration with various equipment and systems.
Robustness
The robust design allows for operation in varied environmental conditions, with an operating temperature of 0 to 40 °C.
Value for money
The Dell PowerConnect 5524 does not support the 10G support standard, which may limit its performance in environments requiring high data transfer speeds.
repairability
The lack of stacking capability may limit scalability and flexibility, especially for businesses planning to expand their network infrastructure in the future.
Advantages
Data transmission up to 10 Gbit/s
Advanced management with managed switch
Switching capacity of 128 Gbit/s
Support for 4000 VLANs for security
Compatibility with various network protocols
Port mirroring for traffic monitoring
Operating from 0 to 40 °C
Disadvantages
No 10G support.
Insufficient 12 MB cache memory.
Absence of PoE function.
No stacking option.
Limited to 2 SFP/SFP+ ports.
Technical Specifications PowerConnect 5524
General Information
-
ModelPOWERCONNECT 5524
-
Brand
-
Category
-
Type
-
SKU1758244
-
MPN1758244
Data transmission
-
Maximum data transfer rate10 Gbit/s
-
Data transfer rate10/100/1000 Mbps
-
Switching capacity128 Gbit/s
-
MAC Directory16000 entries
-
Support for jumbo framesYes
-
Packet cache memory12 MB
Network
-
Auto MDI/MDI-XYes
-
Auto MDI/MDI-XYes
-
Auto MDI/MDI-XYes
-
Auto MDI/MDI-XYes
-
Number of VLANs4000
-
Network standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Other features
-
Bandwidth40 Gbit/s
-
Dimensions (LxWxH)440 x 255 x 432 mm
-
Connectivity technologyWired
Management features
-
Switch typeManaged
-
Switching benchL3
Protocols
-
Management protocolsTelnet
-
HTTP
-
HTTPS/SSL
-
SSH
-
SNMP
-
RADIUS
-
TACACS+
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports24
-
Quantities of SFP+ module slots2
-
Quantities of SFP+ module slots2
Representation / realization
-
Type of memorySDRAM
-
Flash memory16 MB
Security
-
MAC address filteringYes
Weight and dimensions
-
Weight3330 g
Design
-
Stackable-
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)-
Environmental conditions
-
Operating relative humidity (H-H)10 - 90 %
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 70 °C
Frequently Asked Questions
What is the weight of the Dell PowerConnect 5524?
Is the manual for the Dell PowerConnect 5524 available in French?
Similar products
More product categories from brand Dell
Computers and accessories Dell
Other Dell
Audio Dell
Phones Dell
Software Dell
Interior Dell
More product types from brand Dell
Presentation of product PowerConnect 5524 specifications from brand Dell
General Information
The Dell PowerConnect 5524 is a network switch from the brand Dell, known for its innovation and reliability in the technology sector. This model, identified by the reference PowerConnect 5524 | 210-34478-3NBD, is designed to provide robust performance as well as an optimized user experience.
Data Transmission
This switch has a maximum transfer rate of 10 Gbit/s, ensuring fast and smooth data transmission. With a speed of 10/100/1000 Mbps, it meets modern network communication requirements. Its switching capacity reaches 128 Gbit/s, ensuring efficient data flow management. The MAC directory, which can contain up to 16,000 entries, allows for precise identification of connected devices. Additionally, support for Jumbo Frames optimizes overall performance, while the 12 MB packet cache allows for quick access to temporary data.
Network
The Dell PowerConnect 5524 supports full duplex mode, facilitating simultaneous data exchanges in both directions. However, it does not offer support for the 10G standard, which may limit its use in very high-speed environments. The product also includes port mirroring functionality, allowing traffic duplication between ports for in-depth analysis. Its Auto MDI/MDI-X capability simplifies network connection configuration. With the ability to manage up to 4000 VLANs, it offers effective segmentation for better security. Compatible network standards include various protocols such as IEEE 802.1ab, IEEE 802.1Q, and IEEE 802.3, ensuring broad integration with other equipment.
Other Features
The bandwidth of the Dell PowerConnect 5524 is 40 Gbit/s, ensuring a stable and high-performing connection. Its dimensions of 440 x 255 x 432 mm make it suitable for various environments. It operates with wired connectivity, providing reliable use without the constraints of wireless connections.
Management Features
This model is classified as a managed switch, allowing for advanced management and precise control of network configurations. It features an L3 switch bank, facilitating effective network administration.
Protocols
The Dell PowerConnect 5524 supports various management protocols, including Telnet, HTTP, HTTPS/SSL, SSH, as well as SNMP RADIUS and TACACS+, enabling centralized and integrated management of network devices.
Connectivity
It is equipped with 24 RJ-45 Ethernet ports, providing fast and efficient connectivity. Additionally, it has 2 SFP/SFP+ ports and 2 SFP+ module slots for increased flexibility in network interconnections.
Representation / Implementation
The type of memory used by the Dell PowerConnect 5524 is SDRAM, ensuring fast and efficient data storage. It also features 16 MB of flash memory, sufficient for storing essential settings.
Security
The product integrates a MAC address filtering system, allowing control of network access by only permitting devices with specified MAC addresses.
Weight and Dimensions
With a weight of 3330 g, the Dell PowerConnect 5524 ensures easy handling while remaining robust enough for enterprise use.
Design
This model is not stackable, which may limit certain expansion options for scalable network infrastructures.
Environmental Conditions
The Dell PowerConnect 5524 operates within a humidity range of 10 to 90 % and supports temperatures between 0 and 40 °C. For non-operating conditions, it can withstand temperatures ranging from -20 to 70 °C, ensuring its durability in varied environments.
