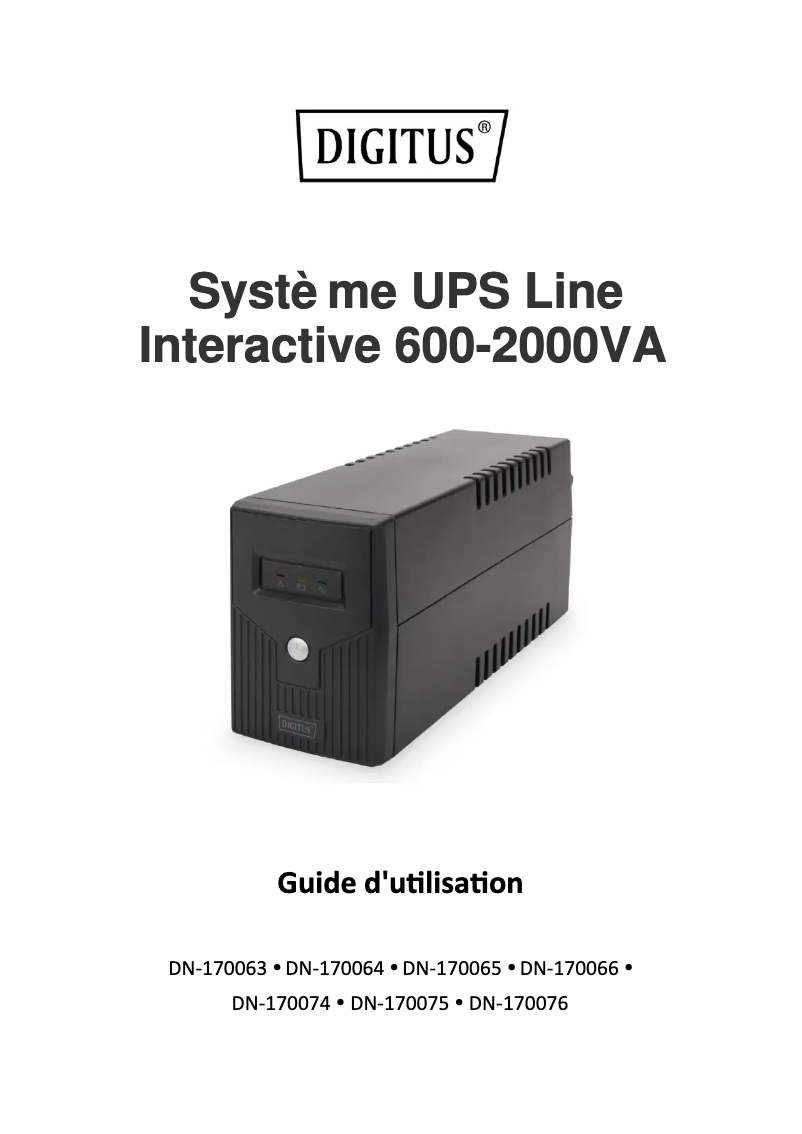

Manuals of product DN-170074
Technical Specifications DN-170074
General Information
-
ModelDN-170074
-
Brand
-
Category
-
SKU1661504
-
MPN1661504
Features
-
UPS TopologyLine interactivity
-
Output power capacity0.6 kVA
-
Output power600 W
-
Surge protectionYes
-
Input voltage (min)162 V
-
Input voltage tension (max)290 V
-
Output frequency50 Hz
-
Output voltage regulation10 %
-
Output frequency50 Hz
-
Transfer duration (Online mode to battery mode)2 ms
-
WaveformPseudo sine
-
Surge protectionYes
-
Sound alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
-
Sound level40 dB
-
Surge protectionYes
-
Electrical protection devicesBattery discharge, Overcharge, Overload
-
Output voltage tension (max)- V
-
Output voltage tension (max)- V
-
Number of entry phases1
-
Number of entry phases1
-
Power factor0.6
-
Surge protectionYes
-
Surge protection functionsDigital Subscriber Line (DSL), Modem, Network
-
Country of originChina
Battery
-
Battery voltage12 V
-
Battery capacity7 Ah
-
Number of supported batteries2
-
Cold startYes
-
Battery recharge time \t(90 %)6 h
Connectivity
-
Number of outputs4 output(s) CA
-
Serial interfaceYes
-
Serial interfaceYes
-
Serial interface typeRS-232
-
Quantity of USB 2.0 Ports1
-
Quantity of USB 2.0 Ports1
-
Number of Ethernet LAN ports (RJ-45)2
-
USB port typeUSB Type-B
-
Quantity of USB 2.0 Ports1
-
Male connectorType F
Design
-
Screen typeLCD
-
IndicatorsYes
-
FormatTower
-
Product colorBlack
Other features
-
Nominal output voltage230 V
-
Nominal output voltage230 V
-
Output connections4 x CEE 7/7
Environmental conditions
-
Operating relative humidity (H-H)0 - 95 %
-
Operating temperature0 - 40 °C
Weight and dimensions
-
Height162 mm
-
Width150 mm
-
Depth338 mm
-
Weight7800 g
-
Package width235 mm
-
Package depth405 mm
-
Package height192 mm
-
Package weight8100 g
Logistics data
-
UK Commercial Code Tariff85044085
-
Harmonized System Code85078000
Packaging information
-
Packaging volume18273.6 cm³
Similar products
More product categories from brand Digitus
Other Digitus
Interior Digitus
Audio Digitus
Software Digitus
Tools Digitus
Phones Digitus
More product types from brand Digitus
Presentation of product DN-170074 specifications from brand Digitus
Generalities
The brand of the product Digitus DN-170074 is Digitus. This brand is known for its quality and innovation in the field of household appliances. The product model Digitus DN-170074 is DN-170074 | DN-170074. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Digitus DN-170074 is 4016032441366. This code allows for the unique identification of the product in the distribution system.
Battery
The number of batteries supported by the product Digitus DN-170074 is 2. This product offers optimal capacity for extended use. The product Digitus DN-170074 has a battery voltage of 12 V. This specification ensures optimal performance and efficient use of the device. The battery capacity of the product Digitus DN-170074 is 7 Ah. This capacity allows for extended use without interruption. Does the product Digitus DN-170074 have a cold start? Oui. This feature is essential to ensure optimal operation in challenging weather conditions. The battery recharge time of the Digitus DN-170074 is 6 h. This feature ensures prolonged and convenient use.
Connectivity
Does the Digitus DN-170074 have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The number of output sockets of the product Digitus DN-170074 is 4 sortie(s) CA. This product allows you to connect multiple devices simultaneously. Does the product Digitus DN-170074 have a serial interface? Oui. This feature allows for effective communication with other devices. The serial interface type of the product Digitus DN-170074 is RS-232. This type of interface allows for effective communication between different devices. The USB port type of the product Digitus DN-170074 is USB Type-B. This modern port offers fast and versatile connectivity. The RS-232 port of the Digitus DN-170074 contains 1. This port is essential for ensuring reliable serial communication with other devices. The number of Ethernet LAN (RJ-45) ports of the product Digitus DN-170074 is 2. These ports provide a stable and fast network connection for your devices. The number of serial ports of the product Digitus DN-170074 is 1. This number of serial ports allows for efficient connectivity for your devices. The number of USB 2.0 ports on the Digitus DN-170074 is 1. These ports allow for a fast and efficient connection for your devices. The male plug of the product Digitus DN-170074 contains Type F. This male plug is designed to ensure a reliable and secure electrical connection.
Design
The screen type of the product Digitus DN-170074 is LCD. This type of screen offers clear and precise display quality, ideal for an optimal visual experience. The color of the product Digitus DN-170074 is Noir. This shade gives it a modern and elegant look. The format of the product Digitus DN-170074 is a bar. This format allows for practical and efficient use in various contexts. Does the product Digitus DN-170074 have indicators? Oui. These indicators allow you to visualize the operating status of the device.
Other features
The output connections of the product Digitus DN-170074 are 4 x CEE 7/7. These connections allow for easy integration with other audio equipment. The nominal output voltage of the Digitus DN-170074 is 230 V. This feature ensures optimal performance and compatibility with standard electrical devices. The nominal input voltage of the Digitus DN-170074 is 230 V. This specification ensures optimal performance and compatibility with standard electrical systems.
Environmental conditions
The operating temperature of the product Digitus DN-170074 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Digitus DN-170074 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging information
The packaging volume of the product Digitus DN-170074 is 18273.6 cm³. This volume allows for optimization of transport and storage.
Features
The UPS topology of the product Digitus DN-170074 is Interactivité de ligne. This topology determines how the power is managed and distributed, thus ensuring optimal protection against power outages and electrical fluctuations. Does the product Digitus DN-170074 have an automatic restart? Oui. This feature allows the product to restart autonomously, thus providing a smooth and uninterrupted user experience. The output power capacity of the product Digitus DN-170074 is 0.6 kVA. This specification ensures optimal performance for your energy needs. The output power of the product Digitus DN-170074 is 600 W. This power ensures optimal performance for your needs. The product Digitus DN-170074 has a maximum input voltage of 290 V. This specification ensures optimal performance and compatibility with various electrical systems. The input frequency of the product Digitus DN-170074 is 50 Hz. This specification ensures optimal compatibility with standard power grids. The product Digitus DN-170074 has an input voltage (min) of 162 V. This feature ensures optimal operation under various usage conditions. The output voltage regulation of the product Digitus DN-170074 is 10 %. This feature ensures stable and reliable performance, essential for the proper functioning of your devices. The transfer time of the product Digitus DN-170074 is 2 ms. This transfer time ensures a smooth transition between online mode and battery mode. The waveform of the product Digitus DN-170074 is Pseudo sine. This feature allows for optimizing performance and signal quality. Does the product Digitus DN-170074 have sound alarms? Oui. These sound alarms ensure increased security by alerting users in case of intrusion or emergency situations. The output frequency of the product Digitus DN-170074 is 50 Hz. This specification ensures optimal compatibility with electrical devices. The noise level of the product Digitus DN-170074 is 40 dB. This noise level allows for pleasant use without excessive noise disturbances. The audible alarm mode of the product Digitus DN-170074 includes alerts for battery, fault, low battery, overload, and battery replacement. These modes ensure optimal safety and efficient power management. The electrical protection devices of the product Digitus DN-170074 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. Does the product Digitus DN-170074 have an Automatic Voltage Regulator (AVR)? Oui. This device stabilizes the electrical voltage to protect your devices. The product Digitus DN-170074 has a minimum output voltage of - V. This specification ensures optimal performance for your energy needs. The output voltage (max) of the Digitus DN-170074 is - V. This feature ensures optimal performance for your electrical needs. The number of output phases of the product Digitus DN-170074 is 1. This number determines the complexity and functionality of the device. The number of input phases of the product Digitus DN-170074 is 1. This number determines the complexity and functionality of the device. The power factor of the product Digitus DN-170074 is 0.6. This power factor indicates the efficiency with which the product uses energy. The surge protection of the product Digitus DN-170074 is Oui. This protection ensures enhanced safety against voltage fluctuations, thereby preserving your electronic devices. The Digitus DN-170074 product has surge protection features for the network and the phone, thus ensuring optimal safety against voltage fluctuations. The country of origin of the product Digitus DN-170074 is Chine. This detail can influence the perception of quality and authenticity.
Logistics data
The UK trade tariff code for the product Digitus DN-170074 contains 85044085. This code is essential for the classification and processing of goods in international trade. The Harmonized System code for the product Digitus DN-170074 is 85078000. This code allows for the unique identification of goods in international trade.
Weight and dimensions
The height of the product Digitus DN-170074 is 162 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Digitus DN-170074 is 7800 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Digitus DN-170074 is 338 mm. This dimension allows for optimal integration into your space. The width of the product Digitus DN-170074 is 150 mm. This dimension is essential to ensure optimal integration into your space. The width of the package of the product Digitus DN-170074 is 235 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Digitus DN-170074 is 405 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Digitus DN-170074 is 192 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Digitus DN-170074 package is 8100 g. This weight ensures optimal protection during transport and delivery.
