Thumbnail of product Mavic 2 Zoom from brand DJI
Logo of brand DJI

Drone DJI Mavic 2 Zoom

DJI
Camera and photography
Drone

The Mavic 2 Zoom is a product in the category Camera and photography, specifically of type Drone. We have listed 2 manuals of types User Manual, Quick Start Guide for product Drone DJI Mavic 2 Zoom. We have also listed 86 specifications for product Drone DJI Mavic 2 Zoom. Have a question about product DJI Mavic 2 Zoom and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product Mavic 2 Zoom

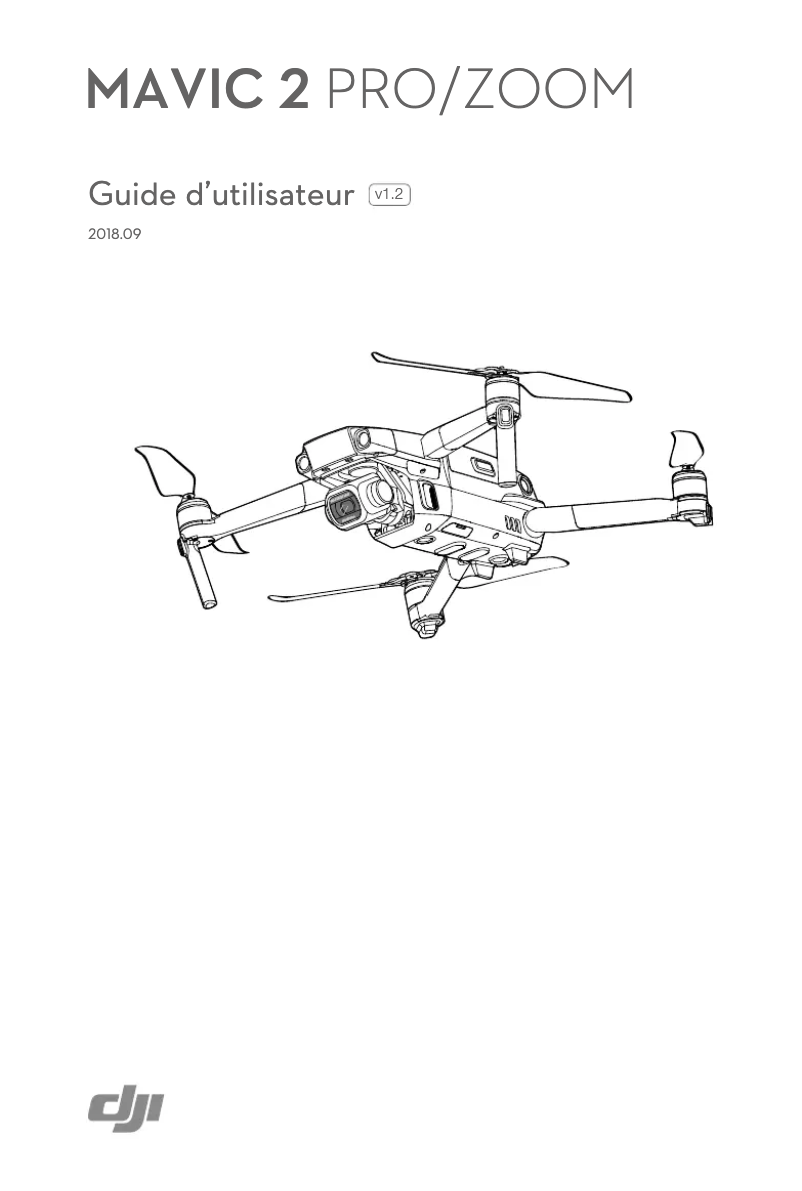

First page image of the manual for Mavic 2 Zoom

User Manual
68 pages
View manual

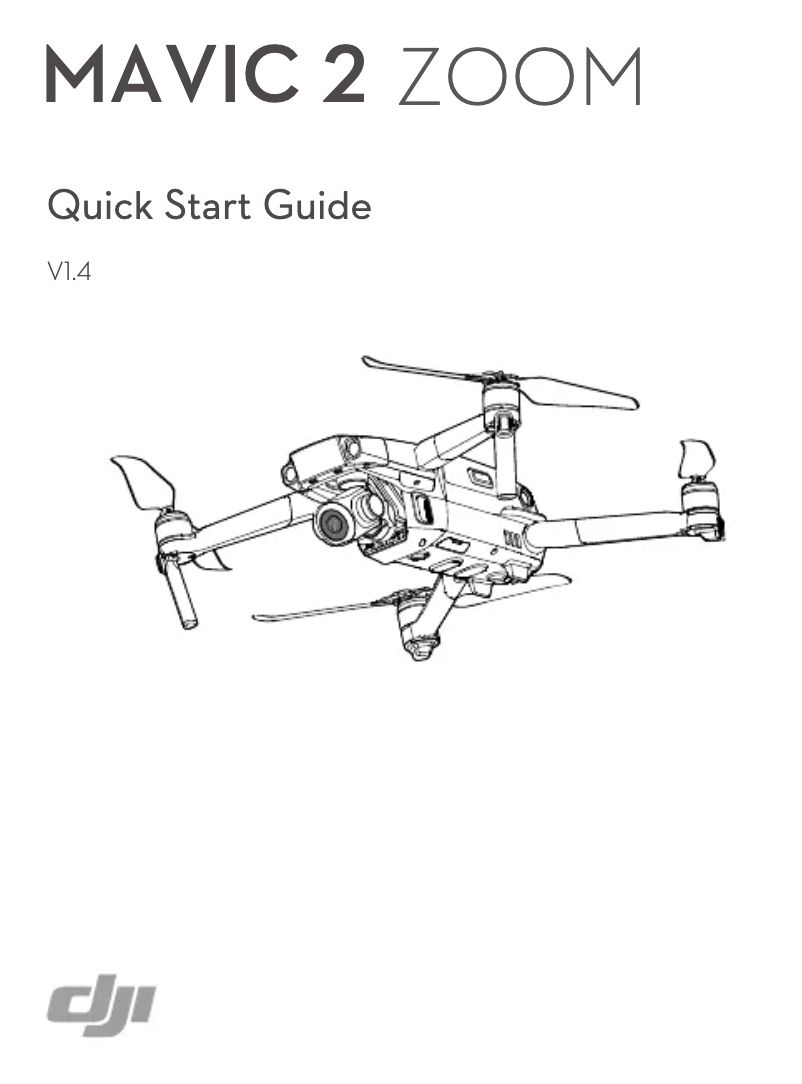

First page image of the manual for Mavic 2 Zoom

Quick Start Guide
12 pages
View manual

Technical Specifications Mavic 2 Zoom

General Information

Camera

  • Megapixel
    12 MP
  • Sensor type
    CMOS
  • Optical sensor size
    1/2.3 "
  • Maximum video resolution
    3840 x 2160 pixels
  • Video resolutions
    1920 x 1080, 3840 x 2160 pixels
  • Supported video modes
    1080p, 2160p
  • Field of view (FOV)
    83 °
  • Maximum cadence
    120 ips
  • Video broadcasting
    Yes
  • Video broadcasting
    Yes
  • Maximum video resolution throughput
    100 Mbit/s
  • Supported video format
    AVC, H.264, H.265, HEVC, MOV, MP4
  • Camera shutter speed
    8 – 1/8000 s
  • Maximum image resolution
    4000 x 3000 pixels
  • Supported image formats
    DNG, JPEG, RAW

Processor

  • Integrated into the processor
    -

Weight and dimensions

  • Weight
    905 g
  • Width
    242 mm
  • Depth
    322 mm
  • Height
    84 mm
  • Battery weight
    297 g

Design

  • Type
    Quadcopter
  • Product color
    Gray
  • Type of construction
    Ready-to-fly
  • Foldable
    Yes
  • Foldable
    Yes

Management features

  • Landmarks
    Yes
  • Landmarks
    Yes
  • Movement command functions
    Backward
  • Downward
  • Forward
  • Turn left
  • Turn right

Emitter

  • Operating frequency
    2400 - 2483, 5725 - 5850 MHz
  • Number of USB ports
    1
  • Support for mobile device
    Yes
  • Maximum device width
    160 mm

Features

  • Number of rotors
    4 rotors
  • Maximum speed
    20 m/s
  • Maximum load capacity
    - kg
  • Maximum operating distance
    8000 m
  • Frequency band
    2.400 - 2.483, 5.725 - 5.850 GHz
  • Horizontal speed accuracy
    1.5 m
  • Stationary speed accuracy
    0.5 m
  • Maximum step angular speed
    200 °/sec
  • Maximum descent speed
    3 m/s
  • Maximum tilt angle
    35 °
  • Maximum ascent speed
    5 m/s
  • Maximum wind resistance
    10 m/s
  • Maximum flight duration
    31 min
  • Hover time (max)
    29 min
  • Number of axes
    3
  • Obstacle detection system
    Yes
  • Obstacle detection system
    Yes
  • Obstacle detection system
    Yes

Battery

  • Works on batteries
    Yes
  • Battery voltage
    15.4 V
  • Battery capacity
    3850 mAh
  • Battery capacity
    59.29 Wh
  • Battery capacity of the transmitter
    3950 mAh

Power

  • AC power adapter
    80 W
  • Output current of the power adapter
    3.41 A
  • Equivalent Isotropic Radiated Power (EIRP)
    26 dBmW
  • Power adapter frequency
    50/60 Hz
  • Input voltage of the power adapter
    100 - 240 V
  • Output power
    60 W
  • Output voltage of the power adapter
    17.6 V

Environmental conditions

  • Operating temperature
    -10 - 40 °C

Packaging contents

  • Helical guardrail
    Yes
  • Cables included
    Lightning, Micro-USB, USB Type-C
  • Helical guardrail
    Yes
  • Helical guardrail
    Yes
  • Helical guardrail
    Yes
  • Helical guardrail
    Yes
  • Helical guardrail
    Yes
  • Helical guardrail
    Yes

Memory

  • Internal memory
    8 GB
  • Memory card location(s)
    Yes
  • Compatible memory cards
    MicroSD (TransFlash)
  • Maximum memory card size
    128 GB
