Motherboard ECS A960M-M2 (V1.0)

ECS
Computers and accessories
Motherboard

The A960M-M2 (V1.0) is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 1 manual of type User Manual for product Motherboard ECS A960M-M2 (V1.0). We have also listed 72 specifications for product Motherboard ECS A960M-M2 (V1.0). Have a question about product ECS A960M-M2 (V1.0) and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product A960M-M2 (V1.0)

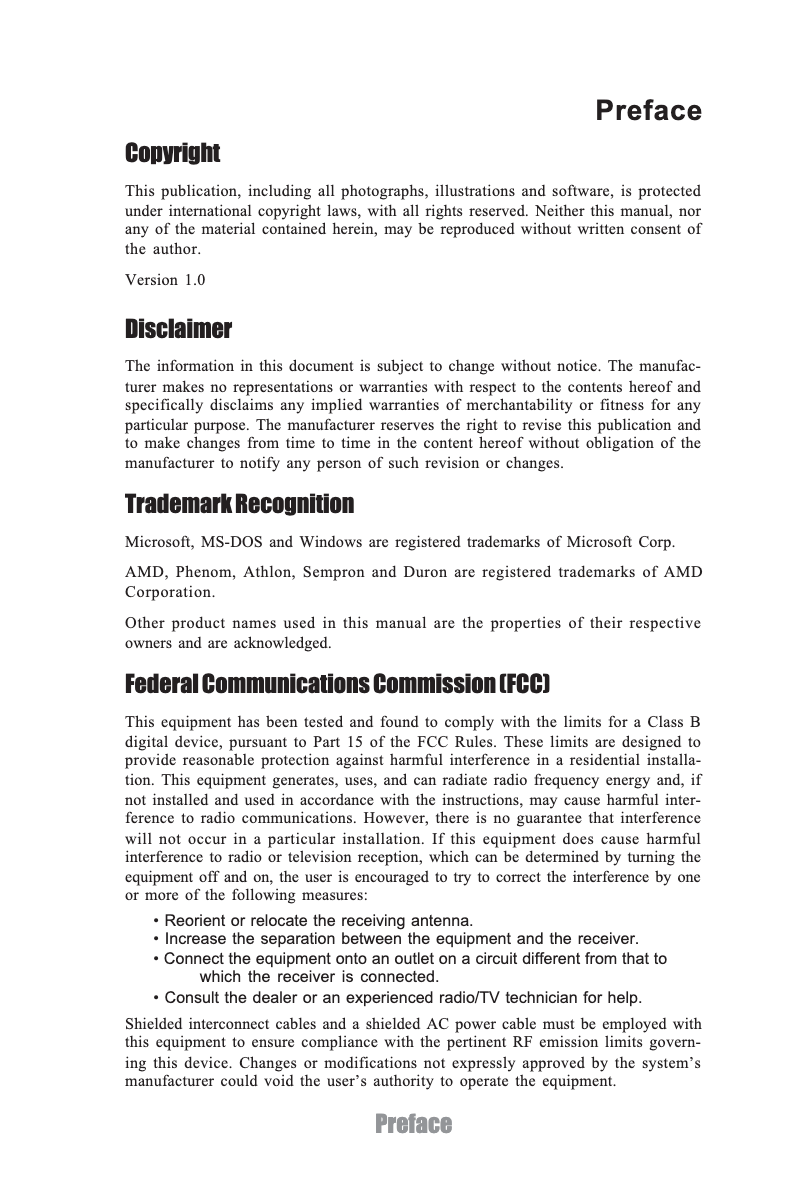

First page image of the manual for A960M-M2 (V1.0)

User Manual
68 pages
View manual

Technical Specifications A960M-M2 (V1.0)

General Information

Memory

  • Number of housing units for reference
    2
  • Type of support (slot)
    DIMM
  • Supported memory types
    DDR3-SDRAM
  • Memory channels
    Dual channel
  • Support for memory clock speed
    1066,1333,1866 MHz
  • Maximum internal memory
    16 GB

Processor

  • Processor manufacturer
    AMD
  • Processor socket (processor receptacle)
    Socket AM3+
  • Compatible processors
    AMD Phenom FX, AMD Phenom II X6
  • Maximum number of SMP processors
    1

Internal I/O

  • USB 2.0 connectors
    2
  • Number of SATA III connectors
    0
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • Number of Parallel ATA connectors
    1
  • EPS power connector (8-pin)
    Yes
  • Number of SATA II connectors
    6
  • Number of SATA III connectors
    0
  • EPS power connector (8-pin)
    Yes

Back panel of I/O ports (Input/Output)

  • Quantity of USB 2.0 Ports
    4
  • Quantity of HDMI ports
    0
  • Quantity of HDMI ports
    0
  • Number of PS/2 ports
    2
  • Quantity of HDMI ports
    0
  • Quantity of COM ports
    1
  • Quantity of COM ports
    1
  • Microphone jack input
    Yes
  • Quantity of COM ports
    1
  • Quantity of COM ports
    1
  • Quantity of HDMI ports
    0
  • Quantity of HDMI ports
    0

Features

  • Component for
    PC
  • Product component family
    AMD
  • Motherboard form factor
    micro ATX
  • Motherboard chipset
    AMD 770
  • Motherboard southbridge
    AMD SB710
  • Audio chip
    VIA VT1705
  • Audio output channels
    6.1 channels
  • Certification
    EuP, RoHS
  • Power supply type
    ATX

Storage controller

  • Supported storage reader interfaces
    Parallel ATA
  • RAID Levels
    SATA II
  • 0
  • 1
  • 10

Graphique

  • Parallel Processing Technology
    -
  • Discrete graphic support
    Yes
  • Graphics adapter
    Radeon HD 3000
  • Graphics adapter family
    AMD
  • DirectX Version
    10
  • Discrete graphic support
    Yes

Extension connectors

  • PCI Express x1 slot
    1
  • PCI Locations
    2
  • PCI Express x1 slot
    1
  • Version of PCI Express locations
    2.0

Weight and dimensions

  • Width
    244 mm
  • Depth
    210 mm

Other features

  • Quick Installation Guide
    Yes

Network

  • Wake-on-LAN ready
    Yes
  • Local Area Network (LAN) Controller
    Realtek RTL8111E
  • Wake-on-LAN ready
    Yes
  • Type of Ethernet interface
    Gigabit Ethernet

BIOS

  • BIOS Type
    FRIEND
  • Memory capacity of the BIOS
    64 Mbit
