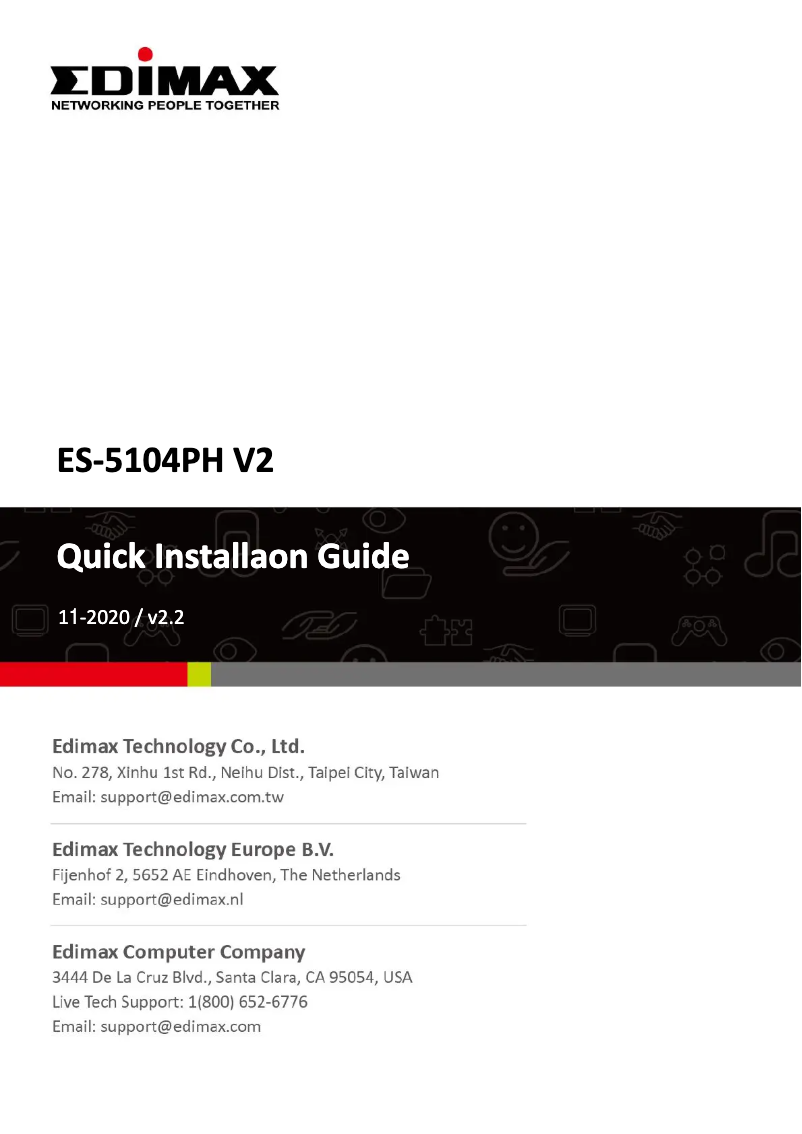

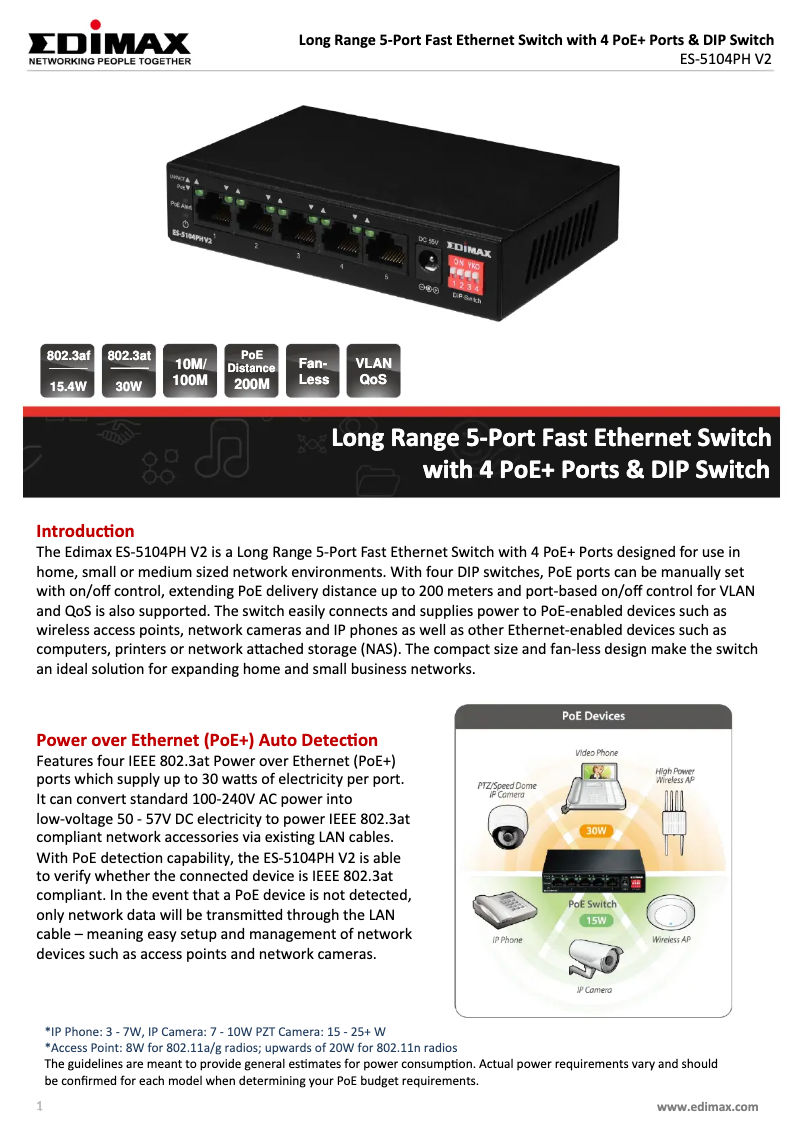

Manuals of product ES-5104PH V2
Technical Specifications ES-5104PH V2
General Information
-
ModelES-5104PH V2
-
Brand
-
Category
-
Type
-
SKU1574716
-
MPN1574716
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports5
-
Basic switching RJ-45 Ethernet port typeFast Ethernet (10/100)
-
Number of installed SFP+ modules0
-
Number of installed SFP+ modules0
-
Power connectorDC-in jack
Network
-
Copper Ethernet cabling technology10BASE-T, 100BASE-TX
-
Flow control assistanceYes
-
Support 10GNo
-
Network standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
-
Flow control assistanceYes
-
Flow control assistanceYes
-
Virtual LAN functionsPort-based VLAN
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Quantity of Power Over Ethernet plus (PoE+) ports4
-
Power over Ethernet (PoE) powered port30 W
-
Total Power over Ethernet (PoE) Budget60 W
Data transmission
-
Registration-and-reissueYes
-
MAC Directory1000 entries
-
Switching capacity1 Gbit/s
-
Packet transfer rate (10 Gbps)14880 pps
-
Packet transfer rate (100 Mbps)148800 pps
Design
-
Stackable-
-
IndicatorsLink
-
Assembly gridPoE
-
Product colorPower
-
No
-
Black
Power
-
AC input voltage100 - 240 V
-
Typical electricity consumption3 W
-
Output voltage55 V
-
Output current1.3 A
-
Power supply includedYes
Management features
-
Switch type-
-
Quality of Service (QoS)Yes
Weight and dimensions
-
Width75 mm
-
Depth121 mm
-
Height26 mm
-
Weight240.5 g
Representation / realization
-
Buffer size56 KB
-
Plug and PlayYes
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 90 %
Certificate
-
CertificationFCC
-
CE
-
LVD
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand Edimax
More product types from brand Edimax
Presentation of product ES-5104PH V2 specifications from brand Edimax
Generalities
The brand of the product Edimax ES-5104PH V2 is Edimax. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Edimax ES-5104PH V2 is 4717964701534, 5057454799252. This code allows for the unique identification of the product in the distribution system. The product model Edimax ES-5104PH V2 is ES-5104PH V2 | ES-5104PH V2. This model ensures optimal performance and an enhanced user experience.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product Edimax ES-5104PH V2 is 5. These ports enable efficient and fast network connectivity. The number of SFP modules installed for the product Edimax ES-5104PH V2 is 0. This number helps optimize connectivity and ensure efficient network performance. The number of installed SFP+ modules for the product Edimax ES-5104PH V2 is 0. This number helps optimize connectivity and ensure high performance. The basic switching RJ-45 Ethernet port type of the product Edimax ES-5104PH V2 is Fast Ethernet (10/100). This port allows for a fast and reliable connection for your network devices. The power connector of the product Edimax ES-5104PH V2 contains DC-in jack. This connector is essential for ensuring reliable and efficient power supply.
PoE (Power over Ethernet)
Does the Edimax ES-5104PH V2 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The product Edimax ES-5104PH V2 has 4 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices. The Total Power over Ethernet (PoE) budget of the product Edimax ES-5104PH V2 is 60 W. This budget allows for the efficient powering of multiple devices through a single network cable. The product Edimax ES-5104PH V2 has a PoE (Power over Ethernet) power port of 30 W. This feature allows compatible devices to be powered through the same Ethernet cable, thereby simplifying installation and reducing the need for additional electrical outlets.
Network
The copper Ethernet wiring of the product Edimax ES-5104PH V2 contains 10BASE-T, 100BASE-TX. This type of technology enables fast and reliable network connections, suitable for various environments. Does the product Edimax ES-5104PH V2 have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product Edimax ES-5104PH V2 support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The network standards of the product Edimax ES-5104PH V2 are IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. Does the product Edimax ES-5104PH V2 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. Does the product Edimax ES-5104PH V2 have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. The virtual LAN functions of the Edimax ES-5104PH V2 product contain Port-based VLAN. This feature allows for network segmentation for better data management and security.
Design
Does the product Edimax ES-5104PH V2 have indicators? Link, PoE, Power. These indicators allow you to visualize the operating status of the device. Is the product Edimax ES-5104PH V2 stackable? No. This product cannot be stacked. The color of the product Edimax ES-5104PH V2 is Noir. This shade gives it a modern and elegant look. Does the product Edimax ES-5104PH V2 have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product.
Data transmission
The packet transfer rate of the product Edimax ES-5104PH V2 is 14880 pps. This high rate allows for fast and efficient data transmission. Does the product Edimax ES-5104PH V2 have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission. The MAC directory of the product Edimax ES-5104PH V2 contains 1000 entrées. This directory allows for precise identification of devices on the network. The switching capacity of the product Edimax ES-5104PH V2 is 1 Gbit/s. This specification ensures efficient data transmission. The packet transfer rate of the product Edimax ES-5104PH V2 is 148800 pps. This rate allows for efficient data transmission, thus ensuring optimal performance.
Management features
Does the product Edimax ES-5104PH V2 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The switch type of the product Edimax ES-5104PH V2 is -. This type of switch allows for advanced management and optimal control of the network.
Power
The output voltage of the Edimax ES-5104PH V2 is 55 V. This specification ensures optimal performance for your electrical needs. The AC input voltage of the Edimax ES-5104PH V2 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The typical power consumption of the product Edimax ES-5104PH V2 is 3 W. This feature allows for the assessment of the energy efficiency of the device. The output current of the product Edimax ES-5104PH V2 is 1.3 A. This current ensures optimal performance for your electrical needs. Does the Edimax ES-5104PH V2 come with a power supply included? Oui. This ensures that you have everything you need for immediate use.
Weight and dimensions
The width of the product Edimax ES-5104PH V2 is 75 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Edimax ES-5104PH V2 is 26 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Edimax ES-5104PH V2 is 121 mm. This dimension allows for optimal integration into your space. The weight of the product Edimax ES-5104PH V2 is 240.5 g. This weight is ideal for ensuring optimal use and easy handling.
Representation / realization
The buffer size of the product Edimax ES-5104PH V2 is 56 Ko. This feature helps optimize data processing and improve overall performance. Does the product Edimax ES-5104PH V2 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable.
Certificate
The certification of the product Edimax ES-5104PH V2 contains FCC, CE, LVD. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The operating temperature of the product Edimax ES-5104PH V2 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Edimax ES-5104PH V2 is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Edimax ES-5104PH V2 is 5 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Edimax ES-5104PH V2 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Logistics data
The Harmonized System code for the product Edimax ES-5104PH V2 is 85176990. This code allows for the unique identification of goods in international trade.
