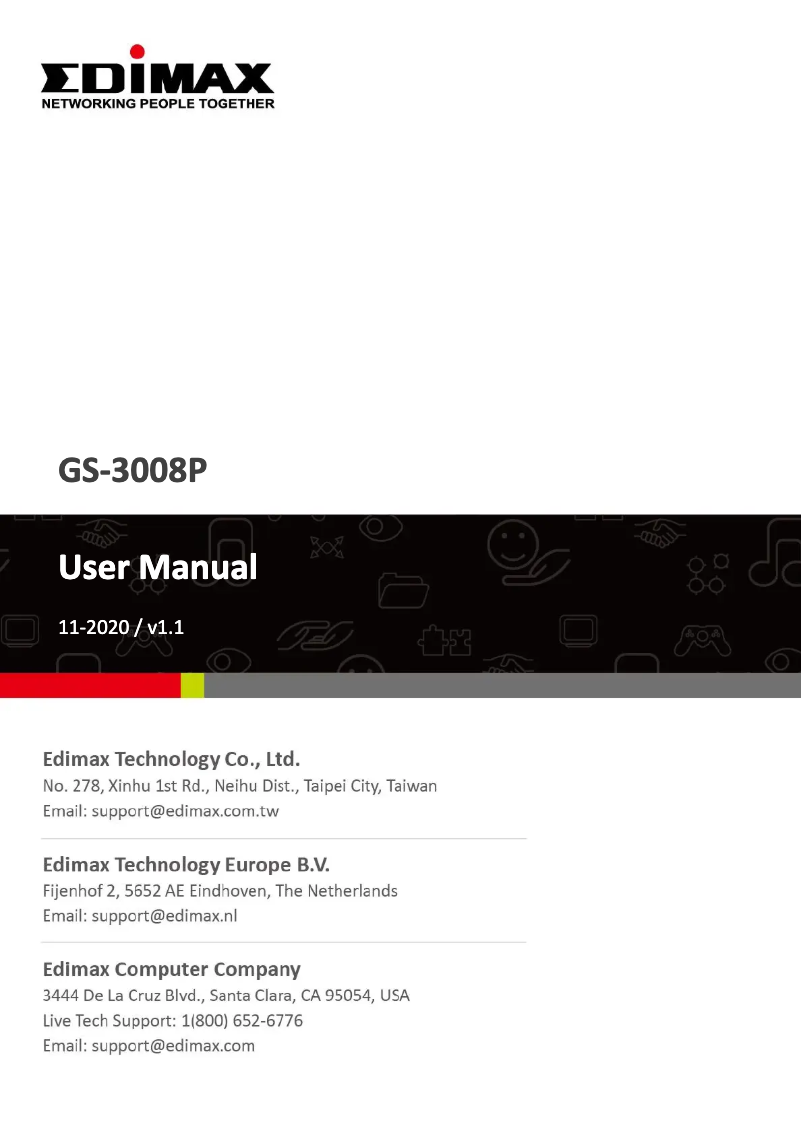

Manual of product GS-3008P
Technical Specifications GS-3008P
General Information
-
ModelGS-3008P
-
Brand
-
Category
-
Type
-
SKU1878654
-
MPN1878654
Management features
-
Switch typeManaged
-
Web-based managementYes
-
Web-based managementYes
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports8
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
-
Number of installed SFP+ modules0
-
Number of installed SFP+ modules0
-
Power connectorDC-in jack
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Quantity of Power Over Ethernet plus (PoE+) ports4
-
Total Power over Ethernet (PoE) Budget60 W
-
Power over Ethernet (PoE) powered port30 W
Data transmission
-
Support for jumbo framesYes
-
Switching capacity16 Gbit/s
-
Transfer rate35.712 Mpps
-
MAC Directory4000 entries
-
Support for jumbo framesYes
-
Giant frames9000
-
Packet transfer rate (10 Gbps)14880 pps
-
Packet transfer rate (100 Mbps)148800 pps
-
Packet transfer rate (1 Gbps)1488000 pps
Design
-
Built-in power buttonYes
-
Built-in power buttonYes
-
Product colorBlack
-
IndicatorsActivity, PoE, Power, Status
-
Number of fans0 fan(s)
Power
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Output voltage55 V
-
Output current1.3 A
-
Typical electricity consumption72 W
Weight and dimensions
-
Width105 mm
-
Depth240 mm
-
Height26 mm
-
Weight590 g
Representation / realization
-
Buffer size192 Ko
-
Scalable firmwareYes
Network
-
Network standardsIEEE 802.1Q
-
Flow control assistanceIEEE 802.1p
-
Number of VLANsIEEE 802.3
-
Virtual LAN functionsIEEE 802.3ab
-
Flow control assistanceIEEE 802.3ad
-
Flow control assistanceIEEE 802.3af
-
Flow control assistanceIEEE 802.3at
-
Copper Ethernet cabling technologyIEEE 802.3az
-
IEEE 802.3u
-
IEEE 802.3x
-
Yes
-
8
-
Multicast VLAN
-
Tagged VLAN
-
Yes
-
Yes
-
Yes
-
10BASE-T
-
100BASE-TX
-
1000BASE-T
Security
-
Access Control List (ACL)Yes
-
Access Control List (ACL)Yes
-
Access Control List (ACL)Yes
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 90 %
Certificate
-
CertificationFCC A
-
CE
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand Edimax
More product types from brand Edimax
Presentation of product GS-3008P specifications from brand Edimax
Management features
The switch type of the product Edimax GS-3008P is Géré. This type of switch allows for advanced management and optimal control of the network. Does the product Edimax GS-3008P have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Edimax GS-3008P product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Generalities
The EAN code of the product Edimax GS-3008P is 4717964702814. This code allows for the unique identification of the product in the distribution system. The product model Edimax GS-3008P is GS-3008P | GS-3008P. This model ensures optimal performance and an enhanced user experience. The brand of the product Edimax GS-3008P is Edimax. This brand is known for its quality and innovation in the field of household appliances.
PoE (Power over Ethernet)
The product Edimax GS-3008P has a PoE (Power over Ethernet) power port of 30 W. This feature allows compatible devices to be powered through the same Ethernet cable, thereby simplifying installation and reducing the need for additional electrical outlets. The Total Power over Ethernet (PoE) budget of the product Edimax GS-3008P is 60 W. This budget allows for the efficient powering of multiple devices through a single network cable. The product Edimax GS-3008P has 4 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices. Does the Edimax GS-3008P have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Connectivity
The basic switching RJ-45 Ethernet port type of the product Edimax GS-3008P is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices. The number of basic switching RJ-45 Ethernet ports of the product Edimax GS-3008P is 8. These ports enable efficient and fast network connectivity. The number of SFP modules installed for the product Edimax GS-3008P is 0. This number helps optimize connectivity and ensure efficient network performance. The number of installed SFP+ modules for the product Edimax GS-3008P is 0. This number helps optimize connectivity and ensure high performance. The power connector of the product Edimax GS-3008P contains DC-in jack. This connector is essential for ensuring reliable and efficient power supply.
Design
Does the product Edimax GS-3008P have a Reset Button? Oui. This button allows you to easily reset the product settings. The color of the product Edimax GS-3008P is Noir. This shade gives it a modern and elegant look. Does the product Edimax GS-3008P have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. Does the product Edimax GS-3008P have indicators? Activity, PoE, Power, Status. These indicators allow you to visualize the operating status of the device. The number of fans of the product Edimax GS-3008P is 0 ventilateur(s). This design allows for better air circulation and optimal performance.
Power
The AC input voltage of the Edimax GS-3008P is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Edimax GS-3008P is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The output current of the product Edimax GS-3008P is 1.3 A. This current ensures optimal performance for your electrical needs. The output voltage of the Edimax GS-3008P is 55 V. This specification ensures optimal performance for your electrical needs. The typical power consumption of the product Edimax GS-3008P is 72 W. This feature allows for the assessment of the energy efficiency of the device.
Weight and dimensions
The width of the product Edimax GS-3008P is 105 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Edimax GS-3008P is 590 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Edimax GS-3008P is 26 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Edimax GS-3008P is 240 mm. This dimension allows for optimal integration into your space.
Data transmission
The transfer rate of the product Edimax GS-3008P is 35.712 Mpps. This high rate ensures optimal performance for your networking needs. The MAC directory of the product Edimax GS-3008P contains 4000 entrées. This directory allows for precise identification of devices on the network. The switching capacity of the product Edimax GS-3008P is 16 Gbit/s. This specification ensures efficient data transmission. Does the product Edimax GS-3008P have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission. The product Edimax GS-3008P supports jumbo frames. This feature allows for optimizing data transfer over the network, thereby improving overall performance. The product Edimax GS-3008P contains 15000 giant frames. These giant frames allow for efficient data management within the network. The packet transfer rate of the product Edimax GS-3008P is 14880 pps. This high rate allows for fast and efficient data transmission. The packet transfer rate of the product Edimax GS-3008P is 148800 pps. This rate allows for efficient data transmission, thus ensuring optimal performance. The product Edimax GS-3008P has a packet transfer rate of 1 Gbps. This rate ensures fast and efficient data transmission, thus meeting the needs of demanding users.
Representation / realization
The buffer size of the product Edimax GS-3008P is 192 Ko. This feature helps optimize data processing and improve overall performance. Does the Edimax GS-3008P have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance.
Security
Does the product Edimax GS-3008P have IGMP Snooping? Oui. This feature allows for efficient management of multicast traffic, thereby enhancing network security and performance. Does the product Edimax GS-3008P have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the product Edimax GS-3008P have Loop Protection? Oui. This feature ensures enhanced security for optimal use.
Environmental conditions
The non-operating temperature of the product Edimax GS-3008P is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Edimax GS-3008P is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Edimax GS-3008P has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Edimax GS-3008P is 5 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product.
Network
The network standards of the product Edimax GS-3008P are IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. Does the product Edimax GS-3008P support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The virtual LAN functions of the Edimax GS-3008P product contain Multicast VLAN, Tagged VLAN. This feature allows for network segmentation for better data management and security. The number of VLANs for the product Edimax GS-3008P is 8. This high number allows for effective network segmentation for better management and security. Does the product Edimax GS-3008P have a Broadcast storm Control? Oui. This feature allows for efficient network traffic management by preventing broadcast storms, thus ensuring optimal performance. Does the product Edimax GS-3008P have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. Does the product Edimax GS-3008P have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. The copper Ethernet wiring of the product Edimax GS-3008P contains 10BASE-T, 100BASE-TX, 1000BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments.
Certificate
The certification of the product Edimax GS-3008P contains FCC A, CE. This certification guarantees compliance with the required safety and performance standards.
Logistics data
The Harmonized System code for the product Edimax GS-3008P is 85176990. This code allows for the unique identification of goods in international trade.
