Manuals of product EWWN1685W
Editorial note
The Electrolux EWWN1685W washing machine stands out with its modern and elegant white design, which harmoniously fits into any type of interior. With a washing capacity of 8 kg and a maximum spin speed of 1551 rpm, it offers satisfactory performance, allowing for efficient handling of a large amount of laundry. The integrated screen and intuitive controls (buttons, rotary, touch) make daily use easier, making the user experience pleasant. However, this model has some drawbacks. Its energy efficiency class is relatively low, with a rating of D for washing and E for washing and drying, which may lead to higher electricity costs. Additionally, the duration of some washing and drying cycles can reach up to 375 minutes, which could be restrictive for users in a hurry. The absence of light inside the drum also limits the ability to check the laundry during the cycle. Although the delayed start feature is convenient, the lack of advanced features such as an anti-overflow safety system or a garment addition function may reduce everyday usability. In summary, the Electrolux EWWN1685W is a functional and aesthetically pleasing washing machine, but it could benefit from improvements in energy efficiency and practicality.Score details
User experience
The user experience is satisfactory thanks to an integrated screen and intuitive controls (buttons, rotation, touch), making daily use easier.
Performance
The performance is generally good, with a washing capacity of 8 kg and a maximum spin speed of 1551 rpm, but the duration of some cycles can be long.
Battery life
The energy efficiency class is relatively low (D for washing and E for washing and drying), which can lead to higher electricity bills.
Design
The modern and sleek design in white easily fits into any type of interior, adding a touch of aesthetics.
Usability
The delayed start feature is convenient, but the lack of light inside the drum and the absence of some advanced features can reduce usability convenience.
Advantages
Modern and elegant design in white
Washing capacity of 8 kg
Optimized energy consumption
Intuitive screen and controls
Delay start function
Spin speed of 1551 rpm
Disadvantages
Low energy class (D and E)
No interior drum light
Long wash cycles (up to 375 min)
Limited drum volume (52 L)
Lack of advanced features
Technical Specifications EWWN1685W
General Information
-
ModelEWWN1685W
-
Brand
-
Category
-
Type
-
SKU1510645
-
MPN1510645
Design
-
Loading typeCharge before
-
Device placementFree pose
-
Color of the doorWhite
-
Hinge location of doorLeft
-
Color of the doorWhite
-
Order typeButtons, Rotary, Touch
-
Converter technologyYes
-
Converter technologyYes
-
Drum volume52 L
Ergonomics
-
Child safety-
-
Light inside the drum-
-
Adjustable feetYes
-
Adjustable feetYes
-
Adjustable feetYes
-
Cable length1.7 m
-
Length of the supply pipe1.3 m
-
Length of the drainage pipe1.4 m
Representation / realization
-
Overflow protection-
-
AquaStop function-
-
Clothing addition function (pause)-
-
Anti-crease function-
-
Half-load-
-
Nominal capacity (washing and drying)4 kg
-
Maximum spin speed1551 rpm
-
Nominal capacity (washing)8 kg
-
Washing cycle duration210 min
-
Washing and drying cycle duration375 min
-
Sound emission classB
-
Noise level (washing)- dB
-
Noise level (washing)- dB
-
Noise level (washing)- dB
-
Drying systemCondensation
-
Adjustable temperatureYes
-
Adjustable temperatureYes
-
Sound emission classB
-
Adjustable temperatureYes
-
Washing programsCotton, Delicate/silk, Eco, Pre-wash, Rinse, Spin/drain, Steam, Synthetics, Timed, Wool
-
Drying programsBlanket, Cotton, Delicate/silk, Eco, Steam, Synthetics, Wool
Power
-

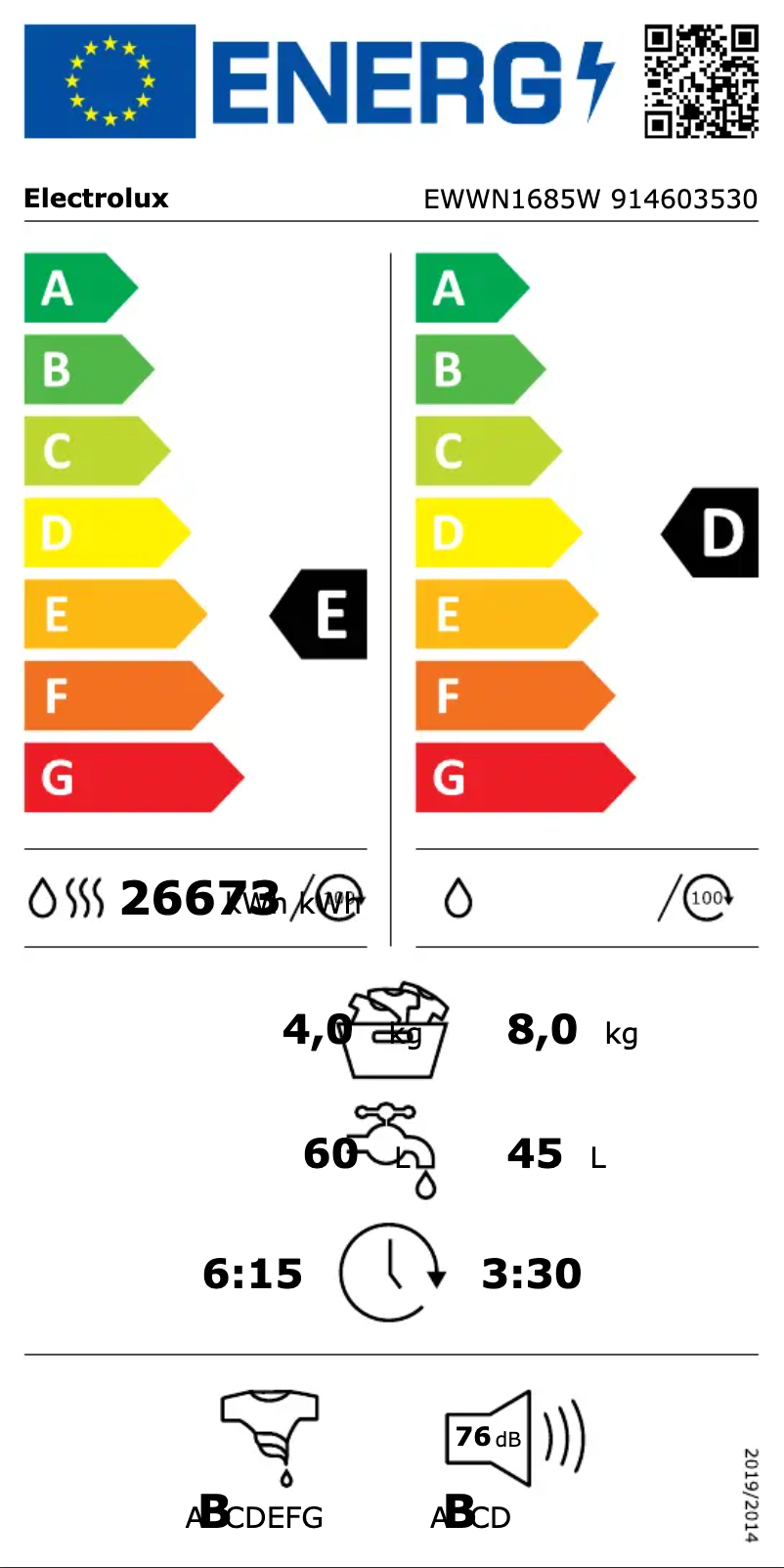

Energy efficiency class (washing)D
-
Energy efficiency class (washing and drying)E
-
Energy efficiency rangeA to G
-
Energy consumption for 100 cycles (washing)73 kWh
-
Energy consumption per wash0.73 kWh
-
Energy consumption for 100 cycles (washing and drying)266 kWh
-
Energy consumption for washing and drying0.266 kWh
-
Washing water consumption45 L
-
Washing and drying water consumption60 L
-
Connected charge2200 W
-
AC input voltage230 V
-
AC input frequency50 Hz
-
Current10 A
-
Energy consumption (standby mode)0.5 W
-
Energy consumption (standby mode)0.5 W
Weight and dimensions
-
Height847 mm
-
Width597 mm
-
Depth534 mm
Frequently Asked Questions
What temperature should I use to wash my clothes?
Is it necessary to use a descaling product for my washing machine?
How can I prevent bad odors in my washing machine?
What is the height of the Electrolux EWWN1685W model?
What is the width of the Electrolux EWWN1685W?
What is the depth of the Electrolux EWWN1685W?
Is the user manual for the Electrolux EWWN1685W available in French?
Similar products
More product categories from brand Electrolux
More product types from brand Electrolux
Presentation of product EWWN1685W specifications from brand Electrolux
General Information
The Electrolux EWWN1685W is a washing machine from the Electrolux brand, renowned for its innovation and the quality of its household appliances. This model, designated by the EAN code 7332543817177, is designed to offer reliable performance and an enhanced user experience.
Design
This model features a front loading design, optimizing space and facilitating its use. With its integrated design and white color, the Electrolux EWWN1685W easily harmonizes with all interior styles. The door hinge is located at the bottom, ensuring smooth opening. The controls, which include buttons, a potentiometer, and a touch interface, make it an intuitive appliance. Additionally, an integrated display provides better visibility of settings and ongoing cycles. The built-in converter technology optimizes energy consumption, while the drum volume of 52 L allows for a considerable amount of laundry to be processed at once.
Ergonomics
The machine is equipped with a remaining time indicator, facilitating the management of washing cycles. A power button simplifies its use, and the adjustable feet allow for height adaptation according to your needs. However, it is worth noting that the appliance does not have an interior light in the drum, which could complicate checking the laundry. The lengths of the cable and hoses are 1.7 m (cable) and 1.3 m (supply hose), allowing for flexible installation.
Performance / Execution
The washing capacity of the Electrolux EWWN1685W is 8 kg, ideal for medium-sized households. The maximum spin speed reaches 1551 rpm, ensuring well-spun laundry and reducing drying time. Washing cycles last about 210 minutes and can reach 375 minutes for combined washing and drying. The appliance is rated B for spin efficiency, although some features, such as overflow protection, are absent. The noise levels during washing and drying are designed to be discreet, making its use more pleasant.
Power
The energy efficiency class for washing is rated D, while combined washing and drying receive a rating of E. The appliance falls within an efficiency range of A to G. Its energy consumption for 100 washing cycles is 73 kWh, with a consumption of 0.73 kWh per cycle. In terms of water consumption, the appliance uses 45 L for washing and 60 L for washing and drying, thus contributing to responsible resource use. The input voltage is 230 V, with a frequency of 50 Hz, ensuring compatibility with standard electrical installations.
Weight and Dimensions
The dimensions of the Electrolux EWWN1685W are as follows: a height of 847 mm, a width of 597 mm, and a depth of 534 mm, allowing for optimal integration into various spaces.
