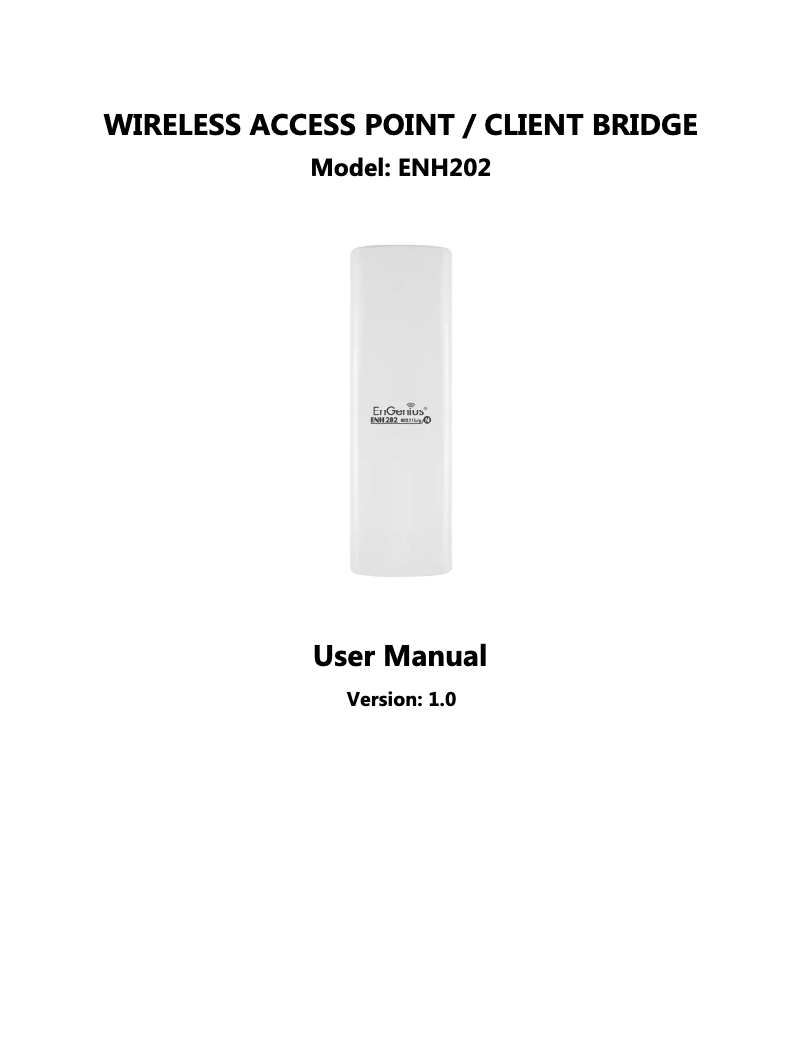

Manual of product ENH202
Technical Specifications ENH202
General Information
-
ModelENH202
-
Brand
-
Category
-
Type
-
SKU107534
-
MPN107534
Features
-
Maximum data transfer rate via the wireless local area network300 Mbit/s
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Frequency band2.4 GHz
-
Modulation16-QAM, 64-QAM, BPSK, QPSK
-
Number of channels11 channels
-
Network standardsIEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
-
2.4 GHzYes
-
2.4 GHzYes
-
2.4 GHzYes
-
Maximum data transfer rate via the wireless local area network300 Mbit/s
-
Method of spectrum propagationDSSS
-
5 GHzNo
-
Channel bandwidth40 MHz
-
Transmission power15 dBmW
-
Operating modesAccess Point (AP), Client Bridge, Client Router, WDS
-
Virtual LAN functionsTagged VLAN
Antenna
-
Antenna gain level (max)10 dBi
-
Antenna quantity2
-
Antenna functionsIntegrated antenna
Design
-
InternalNo
-
Reset buttonYes
-
Product colorWhite
-
PositioningWall
-
Reset buttonYes
-
International Protection Code (IP)IP65
Other features
-
Network featuresFast Ethernet
-
Plan E (3 dB opening angle)21 °
-
Plan H (3 dB opening angle)70 °
Protocols
-
DHCP serverYes
-
DHCP serverYes
-
Management protocolsSNMP v1/v2c, MIB I/II
Connectivity
-
Number of Ethernet LAN ports (RJ-45)2
-
Quantity of USB 2.0 Ports0
Security
-
Security-supported algorithm128-bit WEP
-
Automatic Wireless Distribution System (WDS)256-bit WEP
-
Number of SSID support cases64-bit WEP
-
Automatic Wireless Distribution System (WDS)SSID
-
WPA
-
WPA2
-
Yes
-
8
-
Yes
Weight and dimensions
-
Dimensions (LxWxH)84 x 260 x 55 mm
-
Weight380 g
-
Width84 mm
-
Depth260 mm
-
Height55 mm
Environmental conditions
-
Operating relative humidity (H-H)0 - 90 %
-
Operating temperature-20 - 70 °C
-
Relative humidity rate (storage)-30 - 80 %
Certificate
-
CertificationFCC
-
CE
-
IC
Power
-
Power requirements24V AC / 0.6A
-
Output power description800 mW
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input voltage24 V
Representation / realization
-
Internal memory32 MB
-
Flash memory8 MB
-
Processor modelQualcomm Atheros AR7240
-
Integrated into the processorYes
Similar products
More product categories from brand EnGenius
More product types from brand EnGenius
Presentation of product ENH202 specifications from brand EnGenius
Antenna
The maximum gain level of the antenna for the product EnGenius ENH202 is 10 dBi. This gain level helps optimize the reception and transmission of signals. The number of antennas of the product EnGenius ENH202 is 2. This product thus offers improved connectivity and better reception. The operation of the EnGenius ENH202 product's antenna is integrated. This feature allows for better reception and transmission of signals.
Generalities
The product model EnGenius ENH202 is ENH202 | ENH202. This model ensures optimal performance and an enhanced user experience. The brand of the product EnGenius ENH202 is EnGenius. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product EnGenius ENH202 is 1910731718, 655216005587, 6552160055870, 720825493442, 733115908205, 0655216005587, 0720825493442, 0733115908205, 0001910731718, 0031112862507, 0112840008280, 0115970741638, 4713361930522, 0805095885569, 0724627346586, 1320010355884, 0807034908193, 0806296594748, 0320127552481, 0809385675526, 0731215379222, 0782386085047, 0803982892560, 0807320172253, 0696582162900, 4913603155434, 0872182679493, 0809186280707, 0617407324327, 0809390025866, 5436639783918, 0971478167611, 0745734271042, 0809190595132, 0172304352922, 0734911339187, 0803982892171, 0807320357629, 0851975731808, 0168141651090, 0680216775178, 7337331812556, 0807030505006. This code allows for the unique identification of the product in the distribution system.
Design
Does the product EnGenius ENH202 have an Internal? No. This product does not have any internal components. The positioning of the product EnGenius ENH202 is Mur. This positioning allows for optimizing its use and ensuring an optimal user experience. The color of the product EnGenius ENH202 is Blanc. This shade gives it a modern and elegant look. Does the product EnGenius ENH202 have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product EnGenius ENH202 have a Reset Button? Oui. This button allows you to easily reset the product settings. The International Protection Code (IP) for product EnGenius ENH202 contains IP65. This code indicates the level of protection against solid objects and moisture.
Other features
The Plan E (3 dB opening angle) of the product EnGenius ENH202 is 21 °. This Plan E ensures optimal performance in signal broadcasting. The EnGenius ENH202 network has Fast Ethernet network features. These features ensure a fast and reliable connection for all your digital needs. The Plan H (3 dB opening angle) of the product EnGenius ENH202 is 70 °. This Plan H ensures optimal performance in applications requiring angle precision.
Connectivity
The number of USB 2.0 ports on the EnGenius ENH202 is 0. These ports allow for a fast and efficient connection for your devices. The number of Ethernet LAN (RJ-45) ports of the product EnGenius ENH202 is 2. These ports provide a stable and fast network connection for your devices.
Protocols
The DHCP client of the product EnGenius ENH202 is Oui. This client allows for dynamic management of IP addresses, thus facilitating the connection of devices to the network. The DHCP server of the product EnGenius ENH202 is Oui. This server allows for the dynamic assignment of IP addresses to devices on a network, thus facilitating the management of connections. The product management protocol EnGenius ENH202 contains SNMP v1/v2c, MIB I/II. This protocol allows for efficient and centralized management of network devices.
Features
The maximum data transfer rate of the product EnGenius ENH202 is 300 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. The data transfer rate of the product EnGenius ENH202 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The frequency band of the product EnGenius ENH202 is 2.4 GHz. This feature allows for effective communication within the specified frequency range. The modulation of the product EnGenius ENH202 is 16-QAM, 64-QAM, BPSK, QPSK. This feature allows for the operation of the product to be adapted according to the specific needs of the user. The quantity of channels of the product EnGenius ENH202 is 11 canaux. This specification determines the number of communication paths available for optimal use. The network standards of the product EnGenius ENH202 are IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols. Does the product EnGenius ENH202 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. Is the EnGenius ENH202 product 2.4 GHz? Oui. This specification ensures effective and stable wireless connectivity. Does the product EnGenius ENH202 support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The spectrum propagation method of the product EnGenius ENH202 contains DSSS. This method optimizes data transmission using advanced techniques. Does the EnGenius ENH202 have 5 GHz? Non. This feature allows for a faster and more stable wireless connection. The bandwidth of the EnGenius ENH202 channel is 40 MHz. This feature determines the data transmission capacity, thus influencing the overall performance of the product. The maximum data transfer rate via the wireless local area network of the product EnGenius ENH202 is 300 Mbit/s. This high rate allows for a fast and smooth connection for all your devices. The operating modes of the product EnGenius ENH202 are Access Point (AP), Client Bridge, Client Router, WDS. These modes allow for flexible use tailored to various connectivity needs. The virtual LAN functions of the EnGenius ENH202 product contain Tagged VLAN. This feature allows for network segmentation for better data management and security. The transmission power of the product EnGenius ENH202 is 15 dBmW. This feature ensures optimal performance for your connectivity needs.
Weight and dimensions
The dimensions (LxWxH) of the product EnGenius ENH202 are 84 x 260 x 55 mm. These dimensions ensure an optimal fit in your space. The depth of the product EnGenius ENH202 is 260 mm. This dimension allows for optimal integration into your space. The weight of the product EnGenius ENH202 is 380 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product EnGenius ENH202 is 84 mm. This dimension is essential to ensure optimal integration into your space. The height of the product EnGenius ENH202 is 55 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Security
The number of SSID supports for the product EnGenius ENH202 is 8. This feature allows for the management of multiple wireless networks simultaneously, thus providing increased flexibility and security. Does the product EnGenius ENH202 have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses. The supported security algorithm of the product EnGenius ENH202 contains 128-bit WEP, 256-bit WEP, 64-bit WEP, SSID, WPA, WPA2. This algorithm ensures optimal protection of your data. Does the product EnGenius ENH202 have an Automatic Wireless Distribution System (WDS)? Oui. This system ensures efficient and secure data distribution without requiring complex wiring.
Environmental conditions
The product EnGenius ENH202 has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product EnGenius ENH202 is -30 - 80 %. This rate ensures optimal conditions for the preservation and durability of the product. The operating temperature of the product EnGenius ENH202 is -20 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Certificate
The certification of the product EnGenius ENH202 contains FCC, CE, IC. This certification guarantees compliance with the required safety and performance standards.
Power
The power requirements of the product EnGenius ENH202 are 24V AC / 0.6A. These requirements ensure optimal operation of the device. The output power description of the product EnGenius ENH202 is 800 mW. This specification ensures optimal performance for your connectivity needs. Does the EnGenius ENH202 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The AC input voltage of the EnGenius ENH202 is 24 V. This specification ensures optimal compatibility with standard electrical systems.
Representation / realization
The processor model of the product EnGenius ENH202 is Qualcomm Atheros AR7240. This model ensures optimal performance for smooth and efficient use. The product EnGenius ENH202 has a flash memory of 8 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The internal memory of the product EnGenius ENH202 contains 32 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The technical detail "Integrated into the processor" of the product EnGenius ENH202 is Oui. This essential component ensures optimal performance and increased efficiency.
