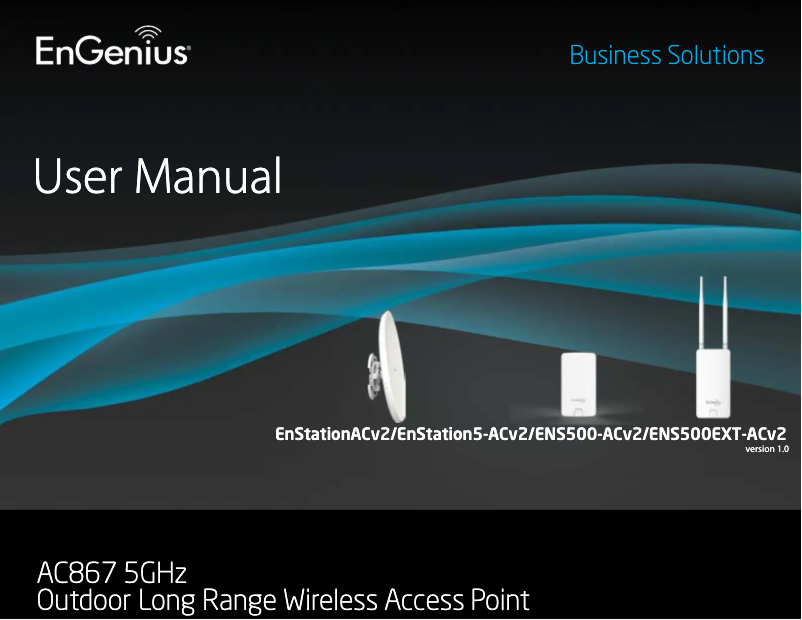

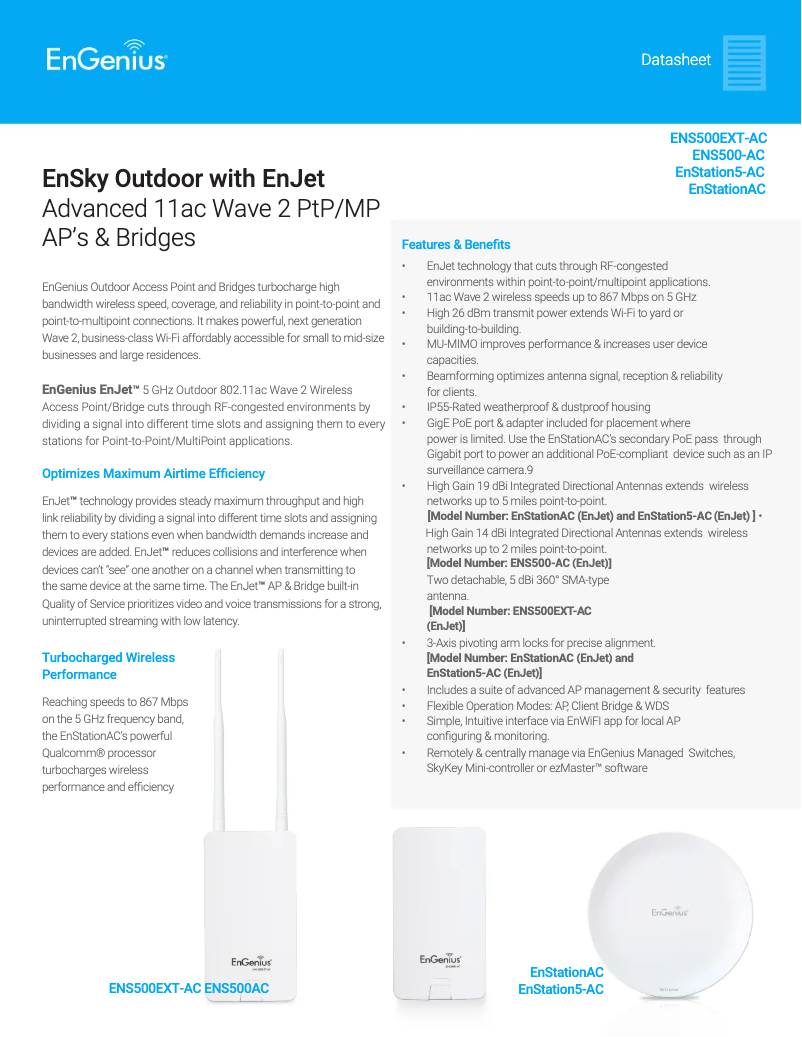

Manuals of product ENS500-AC
Technical Specifications ENS500-AC
General Information
-
ModelENS500-AC
-
Brand
-
Category
-
Type
-
SKU1065671
-
MPN1065671
Features
-
Maximum data transfer rate867 Mbit/s
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
2.4 GHzNo
-
Automatic channel selectionYes
-
Frequency band5 GHz
-
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
-
Automatic channel selectionYes
-
Automatic channel selectionYes
-
Transmission power23 dBmW
-
Operating modesAccess Point (AP), Client Bridge, WDS
-
Virtual LAN functionsTagged VLAN
-
Automatic channel selectionYes
-
Network standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11az, IEEE 802.11n
Design
-
International Protection Code (IP)IP55
-
Product colorWhite
-
PositioningWall
-
IndicatorsYes
-
InternalNo
-
IndicatorsYes
Management features
-
Web-based managementYes
Security
-
Remote Authentication Dial-In User Service (RADIUS) user authentication composition serviceYes
-
Security-supported algorithm128-bit WEP, 152-bit WEP, 802.1x RADIUS, WPA, WPA-AES, WPA-EAP, WPA-TKIP, WPA2-Enterprise
-
Remote Authentication Dial-In User Service (RADIUS) user authentication composition serviceYes
-
Number of SSID support cases16
-
Remote Authentication Dial-In User Service (RADIUS) user authentication composition serviceYes
Certificate
-
CertificationFCC
-
CE
Connectivity
-
Number of Ethernet LAN ports (RJ-45)2
-
Quantity of USB 2.0 Ports0
Environmental conditions
-
Relative humidity rate (storage)0 - 90 %
-
Operating temperature-20 - 60 °C
-
Temperature out of operation-40 - 80 °C
-
Relative humidity rate (storage)0 - 90 %
Antenna
-
Antenna quantity1
-
Antenna gain level (max)14 dBi
-
Antenna functionsRemovable antenna
Power
-
Consumption (max)7.5 W
-
Ethernet connection, supporting power over this port (PoE)Yes
Weight and dimensions
-
Width100 mm
-
Depth186 mm
-
Height29 mm
Packaging contents
-
Included PoE adapterYes
-
Included PoE adapterYes
-
Included PoE adapterYes
-
Included PoE adapterYes
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand EnGenius
More product types from brand EnGenius
Presentation of product ENS500-AC specifications from brand EnGenius
Generalities
The EAN code of the product EnGenius ENS500-AC is 0655216008496, 4713361930737, 4713361934582. This code allows for the unique identification of the product in the distribution system. The product model EnGenius ENS500-AC is ENS500-AC | ENS500-AC. This model ensures optimal performance and an enhanced user experience. The brand of the product EnGenius ENS500-AC is EnGenius. This brand is known for its quality and innovation in the field of household appliances.
Management features
The EnGenius ENS500-AC product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Design
The International Protection Code (IP) for product EnGenius ENS500-AC contains IP55. This code indicates the level of protection against solid objects and moisture. The positioning of the product EnGenius ENS500-AC is Mur. This positioning allows for optimizing its use and ensuring an optimal user experience. Does the product EnGenius ENS500-AC have a Reset Button? Oui. This button allows you to easily reset the product settings. The color of the product EnGenius ENS500-AC is Blanc. This shade gives it a modern and elegant look. Does the product EnGenius ENS500-AC have an Internal? No. This product does not have any internal components. Does the product EnGenius ENS500-AC have indicators? Oui. These indicators allow you to visualize the operating status of the device.
Certificate
The certification of the product EnGenius ENS500-AC contains FCC, CE. This certification guarantees compliance with the required safety and performance standards.
Features
The maximum data transfer rate of the product EnGenius ENS500-AC is 867 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. Is the EnGenius ENS500-AC product 2.4 GHz? Non. This specification ensures effective and stable wireless connectivity. The data transfer rate of the product EnGenius ENS500-AC is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the EnGenius ENS500-AC have 5 GHz? Oui. This feature allows for a faster and more stable wireless connection. The frequency band of the product EnGenius ENS500-AC is 5 GHz. This feature allows for effective communication within the specified frequency range. The modulation of the product EnGenius ENS500-AC is 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK. This feature allows for the operation of the product to be adapted according to the specific needs of the user. Does the product EnGenius ENS500-AC have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. Does the product EnGenius ENS500-AC support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The transmission power of the product EnGenius ENS500-AC is 23 dBmW. This feature ensures optimal performance for your connectivity needs. The operating modes of the product EnGenius ENS500-AC are Access Point (AP), Client Bridge, WDS. These modes allow for flexible use tailored to various connectivity needs. The virtual LAN functions of the EnGenius ENS500-AC product contain Tagged VLAN. This feature allows for network segmentation for better data management and security. Does the product EnGenius ENS500-AC have automatic channel selection? Oui. This feature allows for optimizing the connection by choosing the best available channel. The network standards of the product EnGenius ENS500-AC are IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11az, IEEE 802.11n. These standards ensure optimal compatibility with various equipment and protocols.
Security
Does the product EnGenius ENS500-AC have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses. The supported security algorithm of the product EnGenius ENS500-AC contains 128-bit WEP, 152-bit WEP, 802.1x RADIUS, WPA, WPA-AES, WPA-EAP, WPA-TKIP, WPA2-Enterprise. This algorithm ensures optimal protection of your data. Does the product EnGenius ENS500-AC have an Automatic Wireless Distribution System (WDS)? Oui. This system ensures efficient and secure data distribution without requiring complex wiring. The number of SSID supports for the product EnGenius ENS500-AC is 16. This feature allows for the management of multiple wireless networks simultaneously, thus providing increased flexibility and security. Does the product possess the Remote Authentication Dial-In User Service (RADIUS) user service? Oui. This service allows for secure management of remote connections, thus ensuring the authenticity of users.
Connectivity
The number of USB 2.0 ports on the EnGenius ENS500-AC is 0. These ports allow for a fast and efficient connection for your devices. The number of Ethernet LAN (RJ-45) ports of the product EnGenius ENS500-AC is 2. These ports provide a stable and fast network connection for your devices.
Environmental conditions
The operating temperature of the product EnGenius ENS500-AC is -20 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product EnGenius ENS500-AC has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product EnGenius ENS500-AC is 0 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product EnGenius ENS500-AC is -40 - 80 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Weight and dimensions
The height of the product EnGenius ENS500-AC is 29 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product EnGenius ENS500-AC is 186 mm. This dimension allows for optimal integration into your space. The width of the product EnGenius ENS500-AC is 100 mm. This dimension is essential to ensure optimal integration into your space.
Power
The maximum consumption of the product EnGenius ENS500-AC is 7.5 W. This specification allows for the assessment of the energy efficiency of the device. Does the EnGenius ENS500-AC have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Antenna
The number of antennas of the product EnGenius ENS500-AC is 1. This product thus offers improved connectivity and better reception. The operation of the EnGenius ENS500-AC product's antenna is integrated. This feature allows for better reception and transmission of signals. The maximum gain level of the antenna for the product EnGenius ENS500-AC is 14 dBi. This gain level helps optimize the reception and transmission of signals.
Logistics data
The Harmonized System code for the product EnGenius ENS500-AC is 85176990. This code allows for the unique identification of goods in international trade.
Packaging contents
Does the product EnGenius ENS500-AC come with a power adapter? Oui. This allows you to use it immediately without having to purchase a separate adapter. Does the product EnGenius ENS500-AC have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. Does the EnGenius ENS500-AC come with a PoE Adapter included? Oui. This allows you to benefit from a simplified installation and an efficient network connection. Does the EnGenius ENS500-AC product come with a mounting kit? Oui. This kit will allow you to easily assemble your product.
